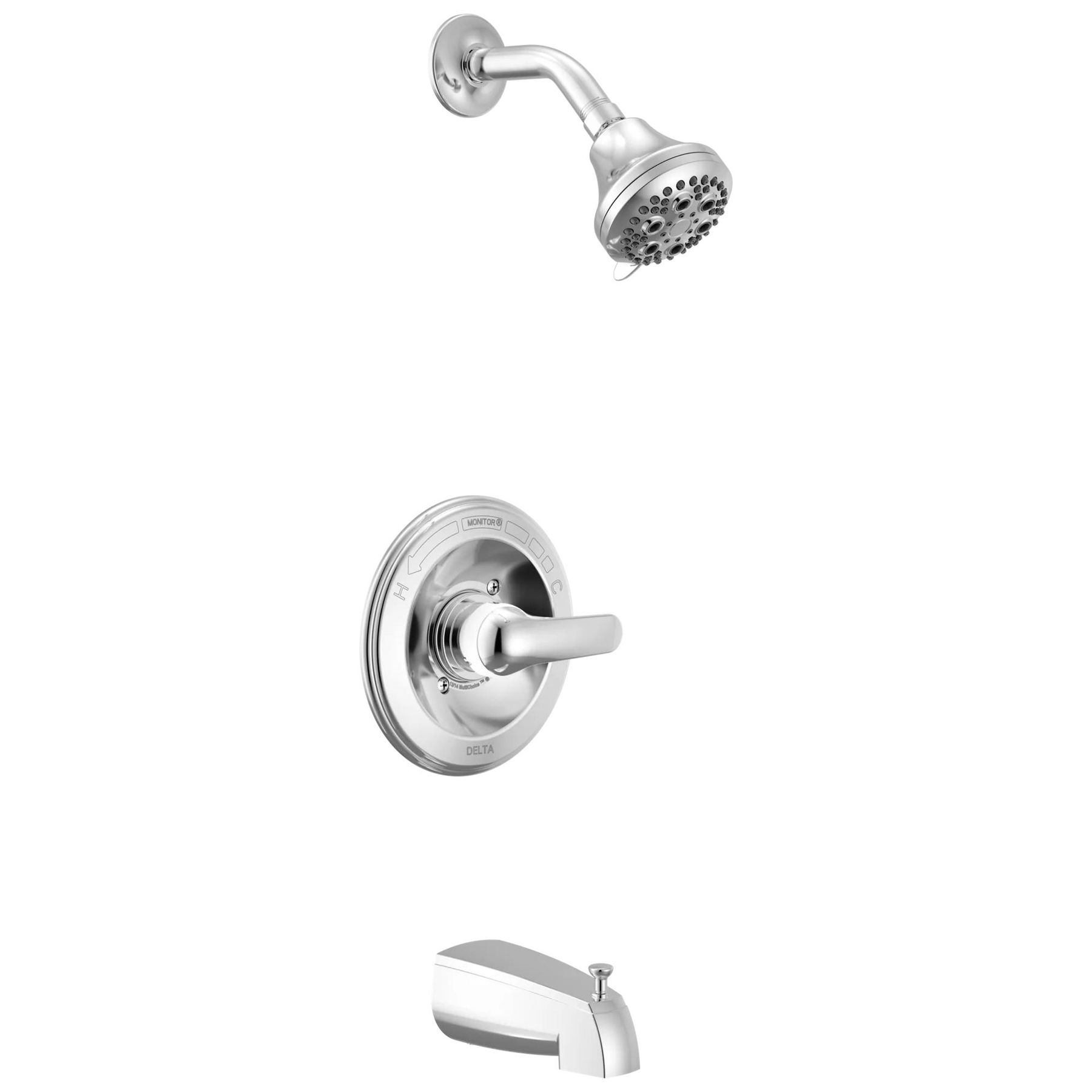

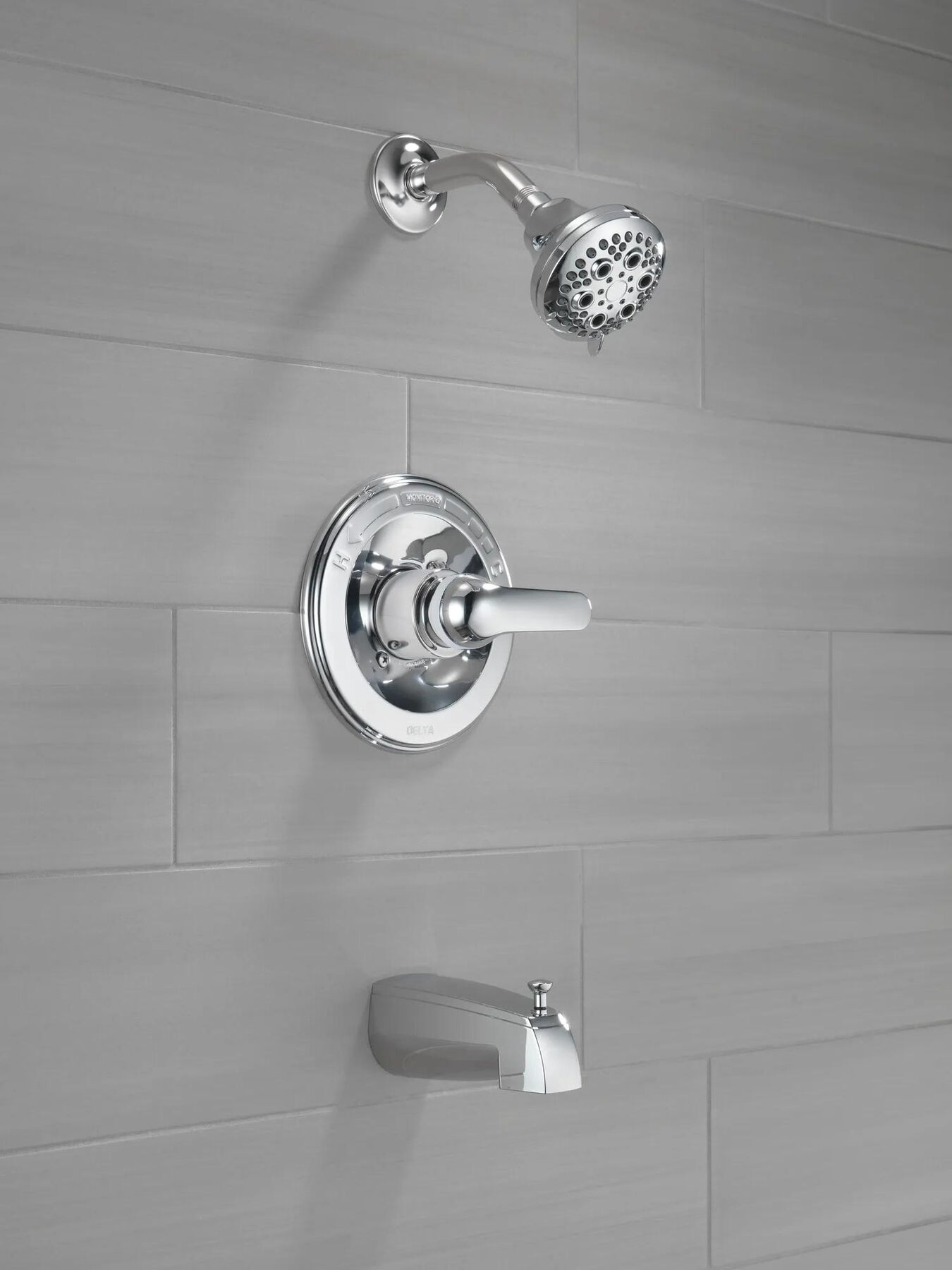

Monitor(R) 13 Series Tub and Shower Complete Rough and Trim in Chrome
Model#:
134900-A-WS
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
PRODUCT FEATURES
Monitor® pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure

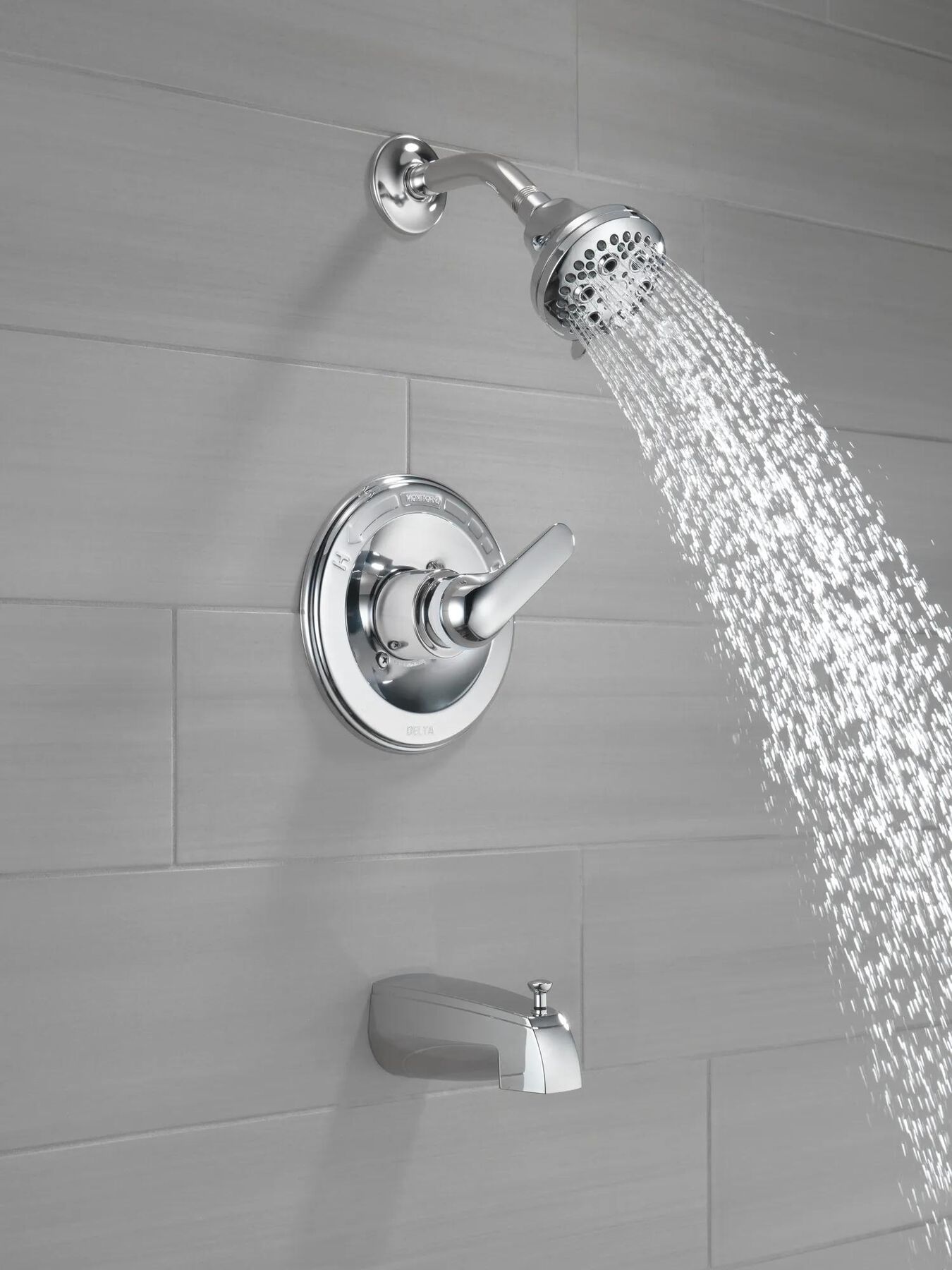

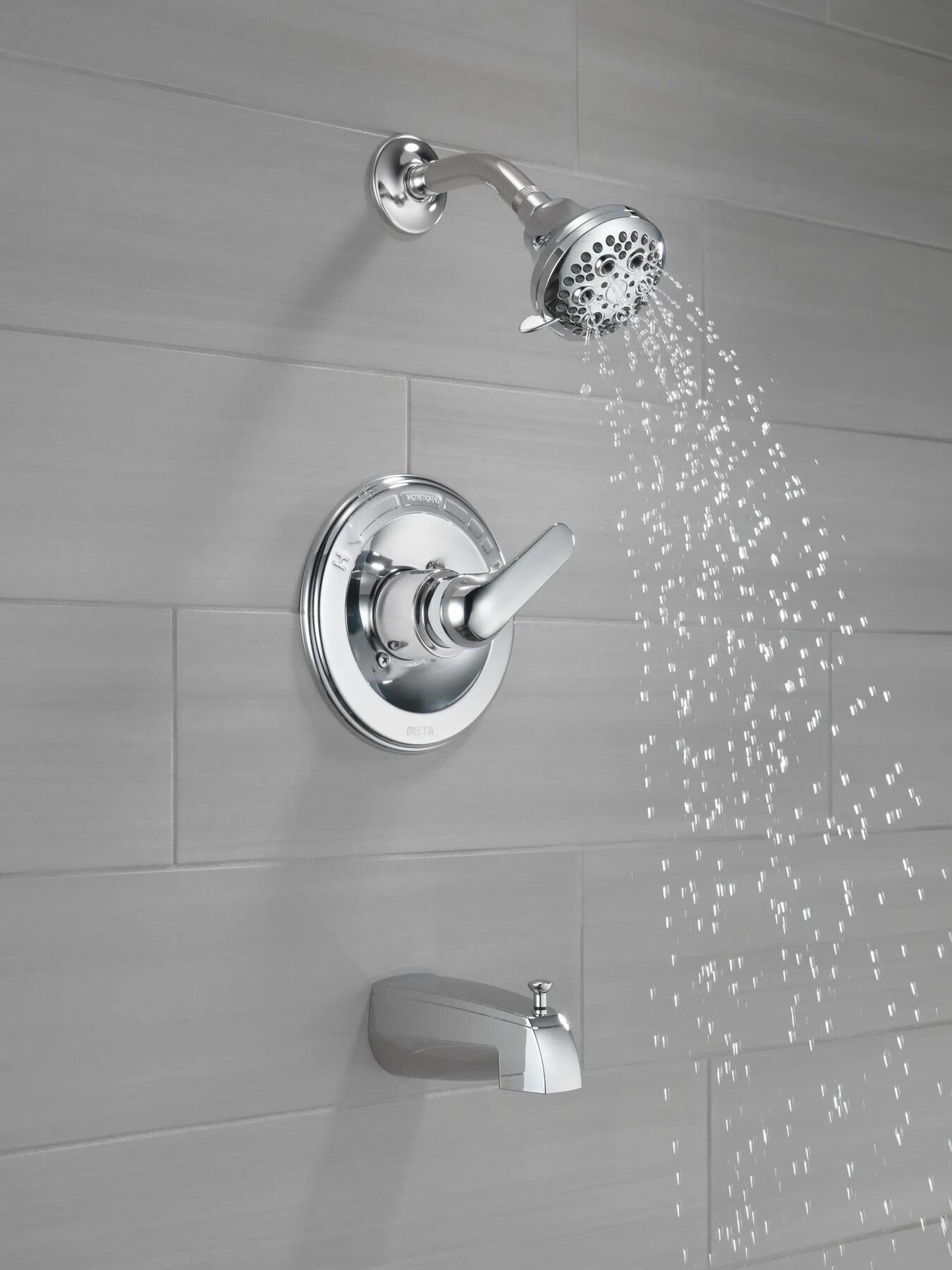

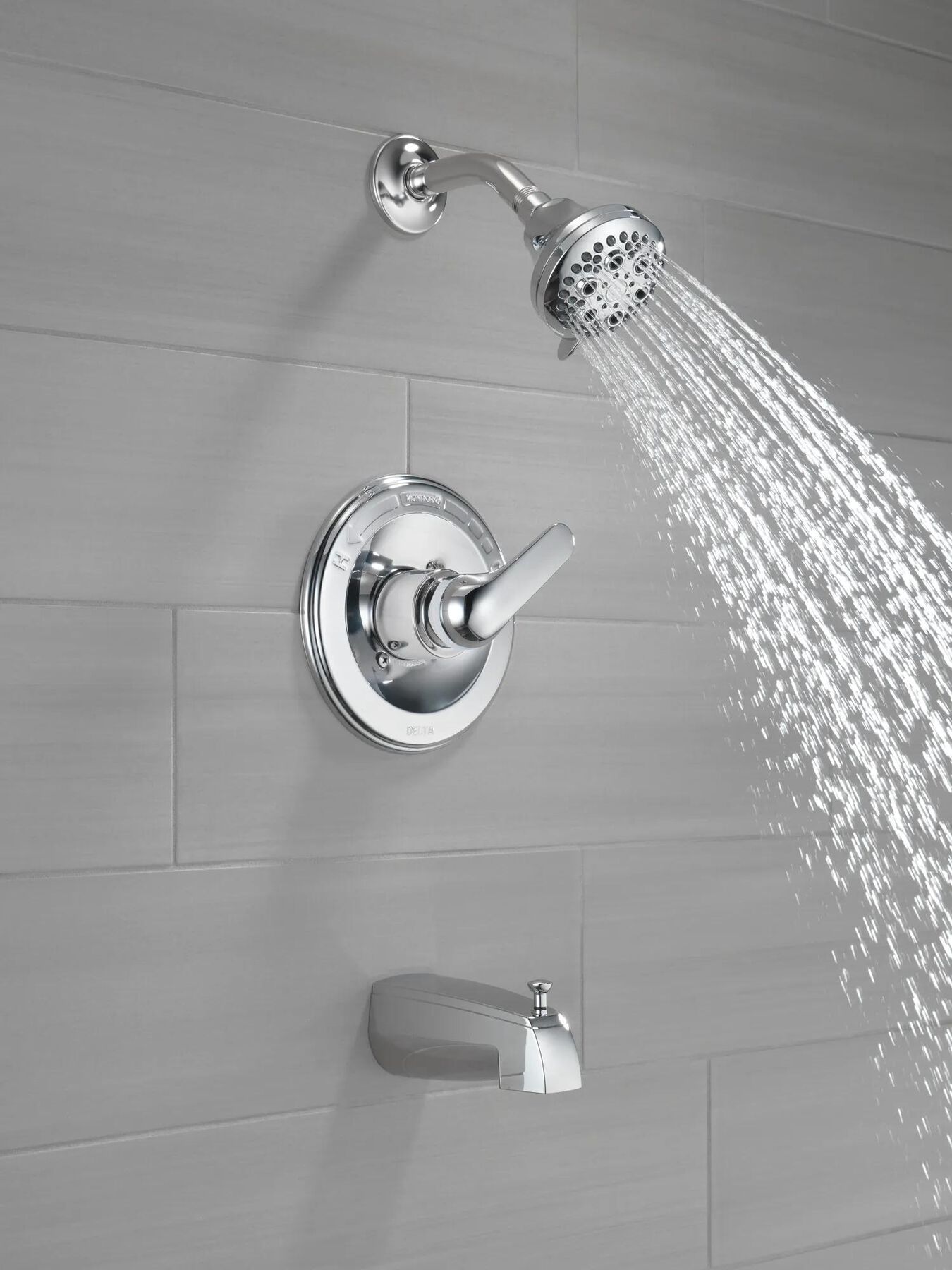

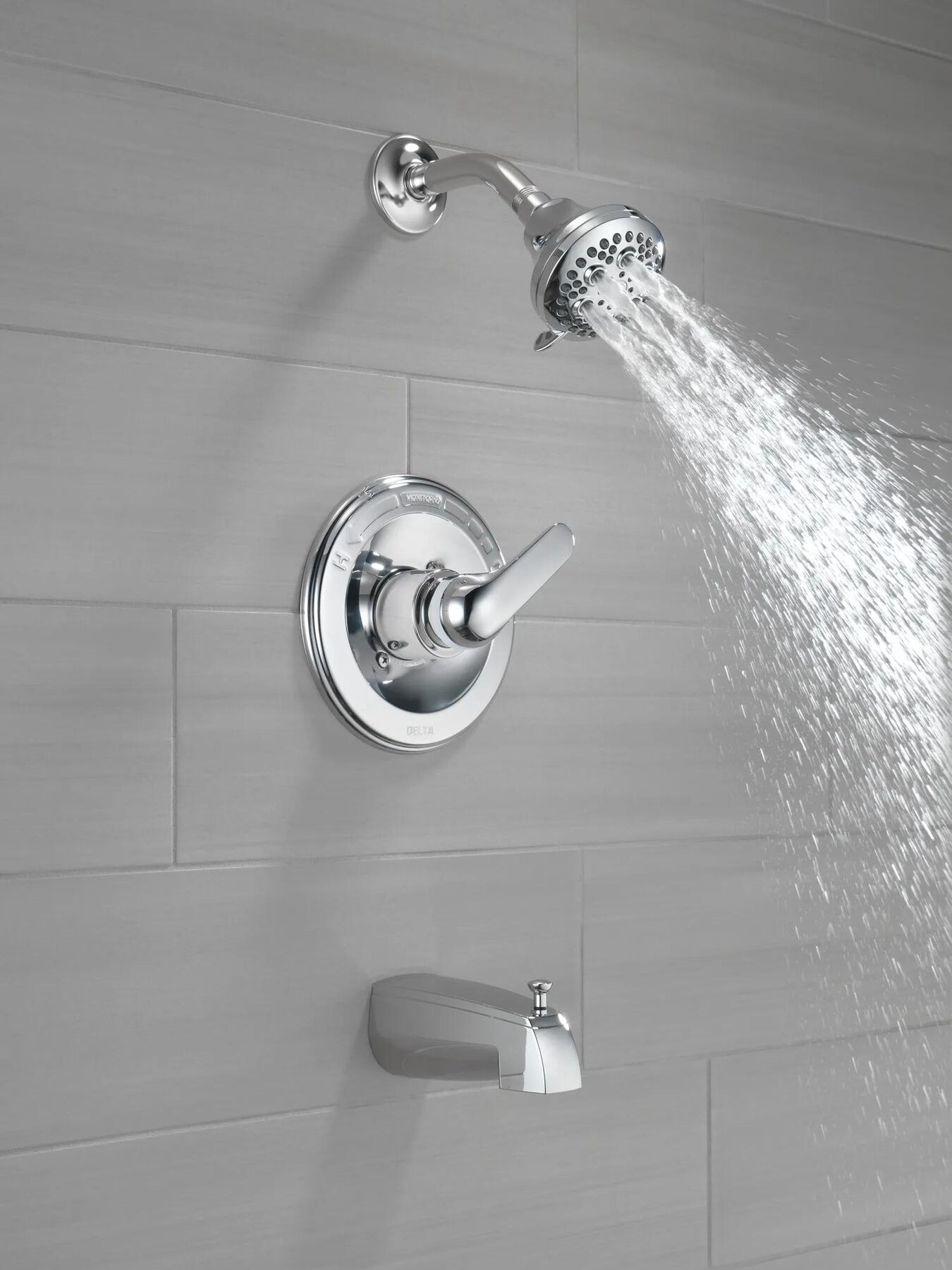

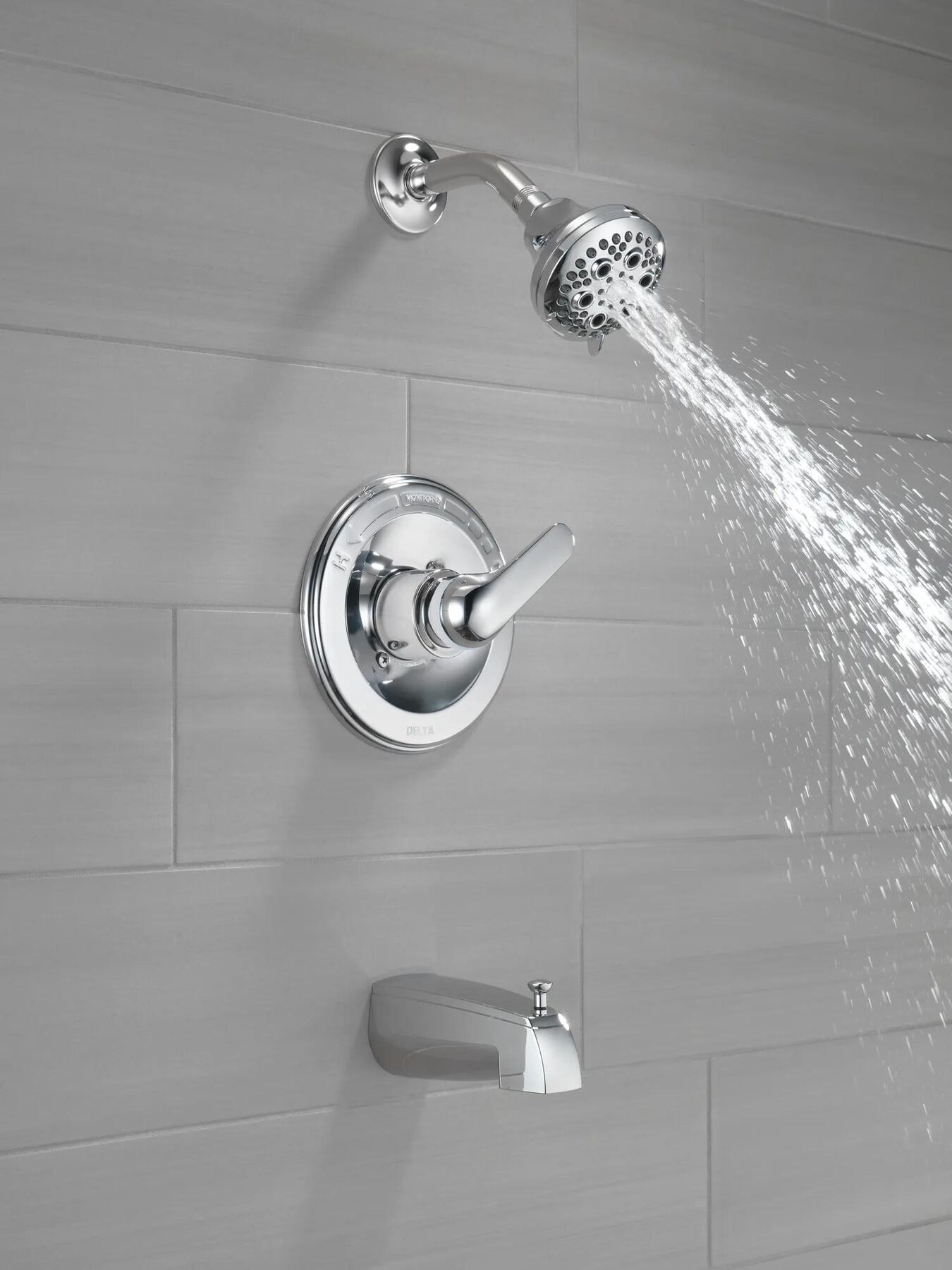

- Spray settings include: Full Body spray, Fast Massage spray, Full Spray with Massage, High Efficiency Spray
- Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
- Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
- Complete unit includes trim and MultiChoice® Universal Valve with rough-in
- ADA Compliant
- WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
- Back-to-back installation capability
- Solid brass fabricated body
- Temperature only controlled with metal lever handle
- Field adjustable to limit handle rotation into hot water zone
- 120° maximum handle rotation
- Pull-up diverter tub spout diverts the flow of water from the tub spout to the shower head
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
12-9/32
Valve Type:
Single-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 1 out of
5
by
MNDan from
Terrible installation instructions
We purchased this tub/shower set for a complete renovation. Home Depot said this was the set to use. Instructions do NOT cover enough steps to complete an installation. No mention of dimensions for holes for the control unit, tub spout, or shower spout. I was told at Home Depot I would not need a wall on the drain end of tub, everything kng would line up fine. Not so! I was told there was an installation video at "deltafaucet.com/video." Not so! I was told the instructions are in layman's terms. Not so!
If I ever get this installed I sincerely hope it works better than I am now expecting!
Date published: 2023-03-26
Rated 4 out of
5
by
Jimmy K from
Nice Look
I had it installed a month ago.
It looks and works well.
Date published: 2022-11-13
Rated 5 out of
5
by
Abby from
good product
Workg great. Instructions were a bit vague in some areas but all worked out.
Date published: 2022-10-11
Rated 5 out of
5
by
Abby from
Great Faucet.
No problem with instilation. I think the instructions was more for a professional than a home owner and had to read several
times to understand. I was a builder for 30 years and that helped. We got through it and all is fine.
Date published: 2022-09-27
Rated 5 out of
5
by
MCPC from
Great uses!
I am very happy with the design and functions of my Delta shower faucet.
Date published: 2022-09-14
Rated 4 out of
5
by
Huckelbuck from
Nice faucet
Easy installation good fit
Date published: 2022-04-15
Rated 4 out of
5
by
Anthony from
Easy install
This is for a new construction and the install I sf very simple.
Date published: 2022-04-05
Rated 4 out of
5
by
Cece from
Great product
I love the way this product looks in my renovated bathroom.
Date published: 2022-04-03
Q&A
What is the difference between Delta Model # 134900-A-WS and Delta Model # 134900-A?
Hello,
Thank you for your question!
The rough-in valve for model 134900-A-WS will include turn stops to shut the valve off.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-03-21
Does the Delta Chrome Model #134900-A either come with or is compatible with the 1700 series cartridge?
Hi, Steve!
Thank you for your question. The Delta Monitor 134900-A Tub and Shower Faucet is not compatible with the RP32104 Valve Cartridge Assembly from the Delta 1700 Series. The cartridge assembly for the unit is RP46074.
Best Regards, Rosanna
Date published: 2024-09-01
What is the flow rate of the tub faucet?
Thank you for your question, Austin! The tub spout port for a Delta Universal MultiChoice valve will depend on the PSI to the home as well as the type of water heater being used.
Best regards, Edward
Date published: 2024-03-28
We installed the 134900-A and we are ha omg trouble with the water getting hot in that shower. The handle only turns 45 degrees but looks like it should go further.
Hi, Thank you for contacting us.
We apologize for any inconvenience with your Delta Faucet Company product. I am also more than happy to have this opportunity to help you.
Unfortunately, I would need a little more information in order to further assist you. I would like to confirm a installation date and place of purchase. To place an order for you, we will need to have your full name, physical street address, and telephone number. We use your phone number for tracking information.
Please contact us at 1-800-345-3358. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday.
Thank you for your help with this and I look forward to hearing back from you!
Best Regards,
Bethany
Date published: 2024-04-01
Is this exact style available in Brushed Nickel?
Hi, Cindy!
Thank you for your question. At this time, the Delta Monitor 134900-A Tub and Shower Trim Kit is only available in the Chrome Finish.
Best Regards,
Rosanna
Date published: 2024-03-28
i have a 134900-a shower mixer.when i turn on the faucit all the way on hot it is mixing cold water in. Is there an adjustment?
Thank you for your question, Dawn! This model has a rotational limit stop that adjusts to allow hotter or colder water into the mixing valve. Information on setting this cartridge can be found on page 9, step B of the maintenance and installation manual below. Please contact us if you have questions or need any further assistance.
https://media.deltafaucet.com/MandI/72264%20Rev%20G.pdf
Best regards, Edward
Date published: 2024-03-28
Is a chrome sleeve available (RP39407) that would be 3/4" to 1" longer? The plumber was mistakenly told that 1/2" drywall would be behind the surround. Sleeve doesn't fit into the escutcheon plate with spacer. Without spacer, plastic by handle shows.
Thank you for your question, Jim44! The RP39407 sleeve used on this model is 3" long. The RP22735 trim sleeve is 3 1/2" long and will work in place of the included trim sleeve. The only other option would be to include a 14 series extension kit, part number RP77991.
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP22735
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP77991
Best regards, Edward
Date published: 2024-03-28
How do you remover the bonnet (page 4)
Hi, Robert!
Thank you for your question. To remove the bonnet assembly fro the Delta Monitor 134900-A Tub and Shower Faucet, first turn the water off at the shut off valve. Remove the set screw with a 1/8" Allen wrench to remove the handle assembly. Remove the sleeve assembly and unscrew the bonnet nut counterclockwise from the valve body. Please feel free to call, email, or message us on social if you should need further assistance.
Best regards, Rosanna
Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Date published: 2024-03-28
