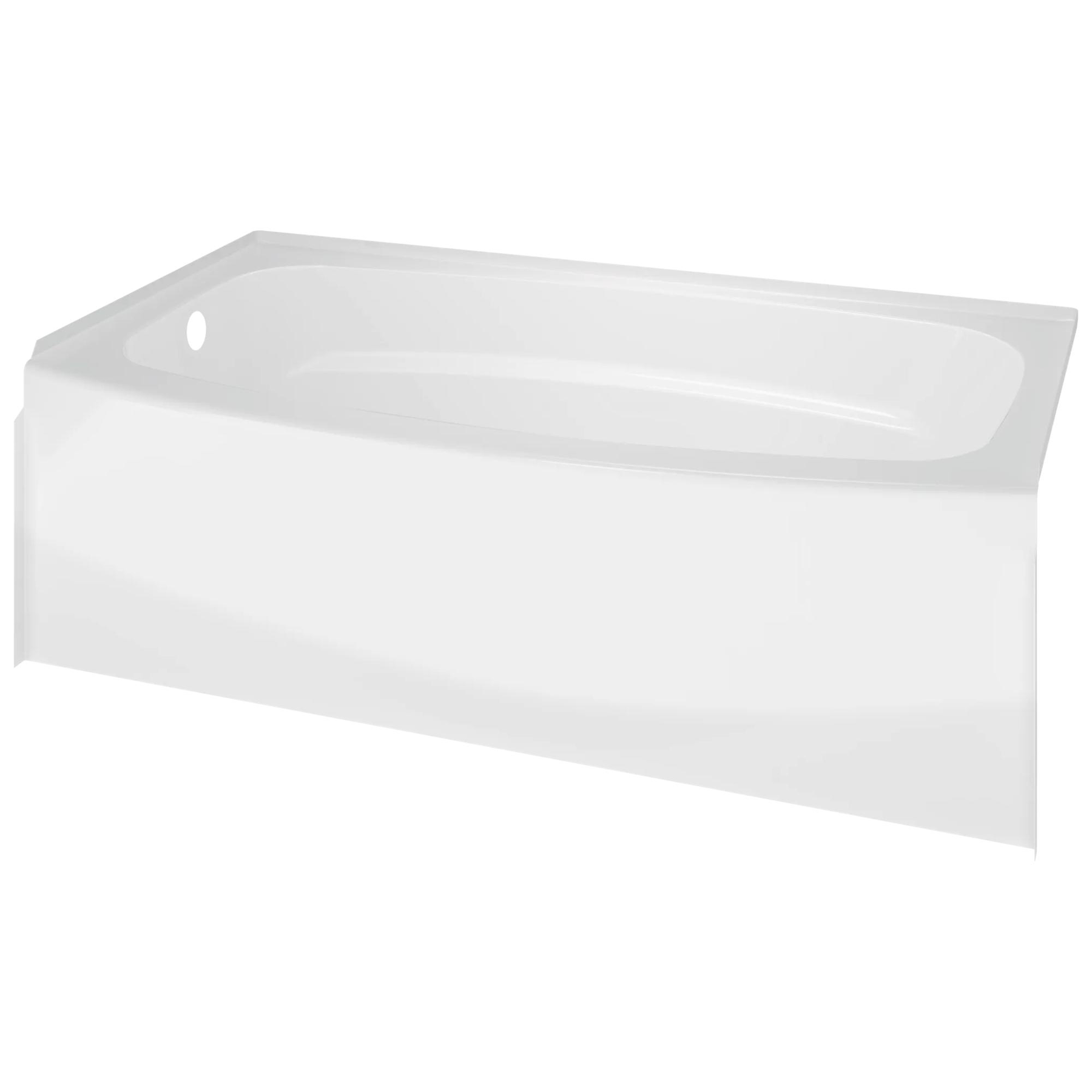

Classic 400
60" x 30" Curved Bathtub - Left Drain
Model#:
40114L
PRODUCT FEATURES
The Classic 400 Curve 5 ft. Left Drain Soaking Tub in White is designed to fit 5 ft. x 30 in. alcoves. This bathtub offers an integral apron for a clean look. This bathtub also features a built-in, reinforced bathtub support to enhance installation and performance.

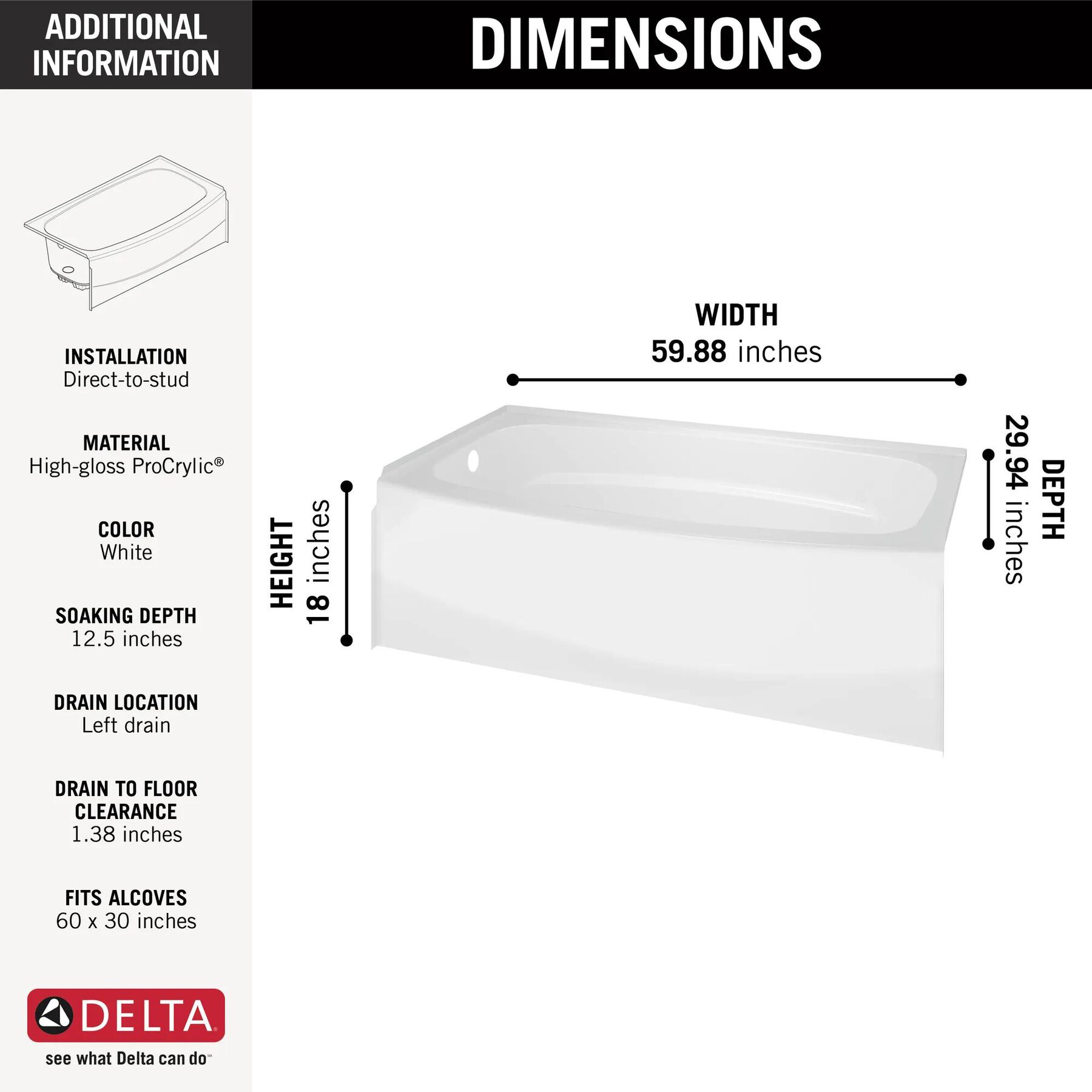

- Actual product dimensions 59.88 in. W x 29.94 in. D x 18 in. H
- Fits alcoves 60 in. wide x 30 in. deep with left-side drain
- Direct-to-stud installation helps to create a long-lasting and secure unit
- Drain located on left hand side
- Built-in nailing flange to help ease installation
- Integral apron with sophisticated style
- Bright white, high-gloss surface matches any décor
- Curved tub apron maximizes bathing space
- Mold and mildew resistant
- Direct-to-stud installation
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Connection Type :
NA
REVIEWS
Rated 5 out of
5
by
Manny from
Nice Acrylic Bathtub
Wasn’t hard to assemble although I did use backer board to avoid additional framing. Came out beautiful. Everyone loves it and the 10 year warranty isn’t bad either.
Date published: 2019-10-31
Q&A
At what height does the curve start? I have baseboard heat that I don't want to move near the right hand side.
Hello richd,
Thank you for your question regarding the Delta Classic 400 - 60" x 30" Curved Bathtub and I am happy to assist you today.
The sides of the bathtub are straight and the curve does not begin on the bathtub until 3.8" from the center of the base of the apron of the unit, so it should not interfere with the baseboard, although if you have further dimensions you would like to include, we will be happy to review them further to ensure there will be no interference.
If we can assist you with anything else going forward, please do not hesitate to give us a call at 800-355-2721.
Thank you,
Brandy
Delta Faucet Company
Customer Service
Date published: 2018-02-14
This tub is really white. How can I find a toilet that matches the same shade of white?
Hi, Boxcar!
Thank you for your question. Our Delta Toilets are all available in the White Finish. Here is a link to our toilets:
deltafaucet.com/bathroom/toilets
Best Regards, Rosanna
Date published: 2020-03-17
I've heard most acrylic/fiberglass tubs walls are about 5-6 mm. Some are up to 8mm think. What is the products thickness?
Hello brian,
Thank you for your question regarding the Delta Classic 400 - 60" x 30" Curved Bathtub and I am happy to assist you today.
The thickness of the material of this bathtub is 1/4".
If there is anything going forward that we may be able to help with, please do not hesitate to give us a call on our warranty line at 800-355-2721 and we will be happy to help you where we can.
Thank you,
Brandy
Date published: 2018-09-28
How wide is the widest part of this bathtub?
Hello Jeff,
Thank you for your question regarding the Delta Classic 400 60" x 30" Curved Bathtub - Left Drain. I will be happy to assist you today.
The Tub Extends to 33 inches in the center at the top of the tub, however at the bottom of the tub, it is all the same width.
If you have any other questions, concerns, or require anything further please feel free to give us a call at 800-345-3358 and we will be happy to assist you in any way that we can.
Thank you again!
Matthew
Delta Faucet Company
Consumer Care
Date published: 2020-02-26
Is it ADA or Fair Housing compliant for apartments
Thank you for your question, Brad! Unfortunately we do not offer an ADA compliant bathtub or shower base currently as they must be wheel chair accessible. However, we will keep this suggestion in mind for future endeavors.
Best regards, Edward
Date published: 2019-06-12
Max width size
Hi, I know the tub is 30x60, but the specifications does not show the max width at the curve. Can you tell me what it is?
Hi Cindy,
Thank you for your question about the Classic 400 Curved Bathtub. The Tub Extends to 33 inches in the center at the top of the tub, however at the bottom of the tub, it is all the same width.
Thanks,
Nick
Date published: 2015-08-10
installation
Can expanding spray foam be used on the underside to provide additional rigidity? This would not be on the bottom where it meets the subfloor....but on the sides. The thought is to get insulation so that the water stays hot for a longer period of time
I also use fiberglass and epoxy resins a lot. Any concerns with putting fiberglass with epoxy resins on the underside (of just the sides)? This would add rigidity to the sides
Hi Dean,
Thank you for your question about the Classic 400 Curved Bathtub. We do not recommend altering the product in the ways described. Putting other materials on the unit can run the risk of damaging the material.
Thanks,
Nick
Date published: 2015-11-20

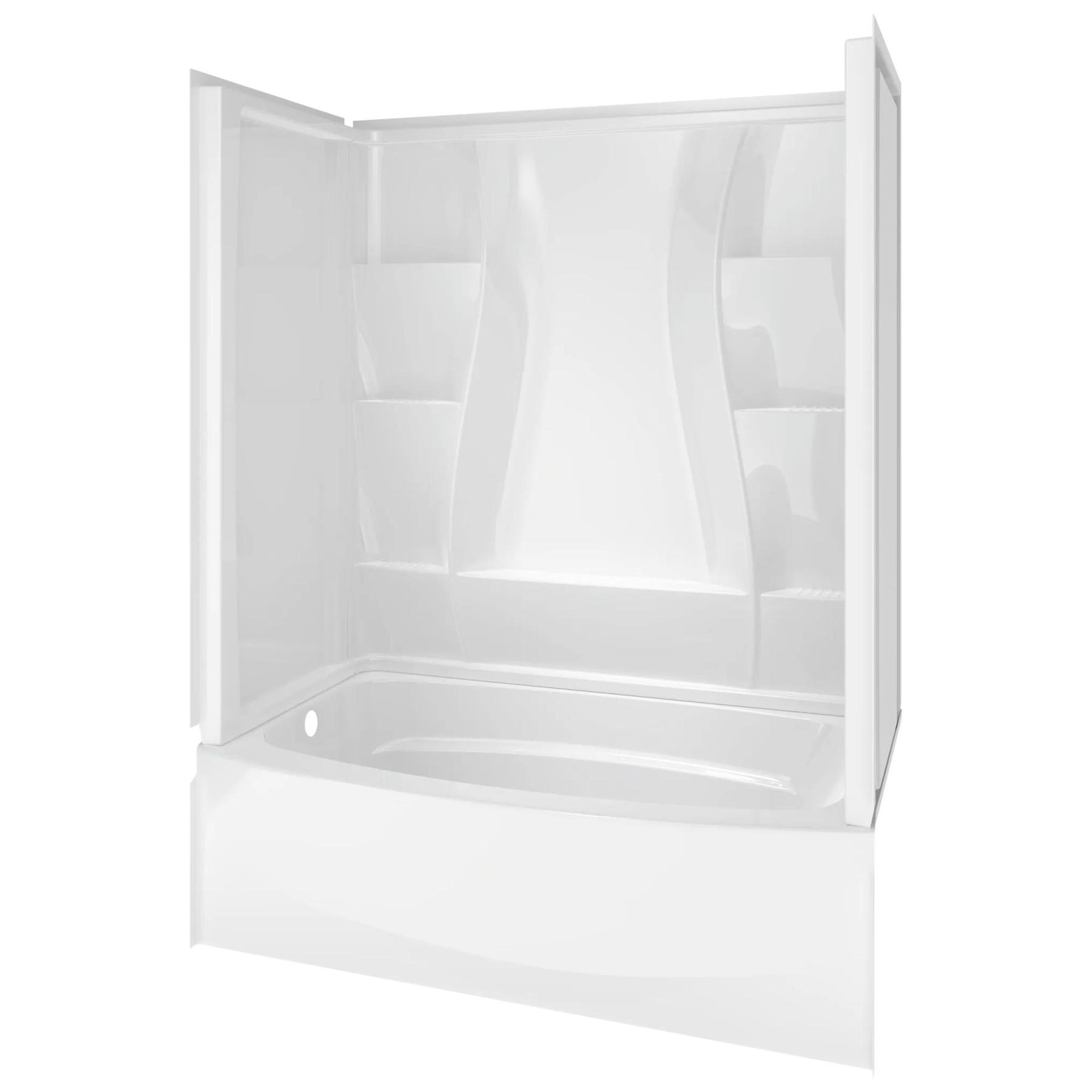

what is the matching set of walls for this tub
Hi, Perla Flores! Thank you for your question. Model 40114L is compatible with B66513-6032-WH, and B66414-6032-WH. Here is the link to both.
https://www.deltafaucet.com/bathroom/product/B66414-6032-WH#specsTab
https://www.deltafaucet.com/bathroom/product/B66513-6032-WH
Best regards,
Themar
Date published: 2020-06-06
