SteamScape™ Generator
SteamScape™ 12kW Steam Generator - 240V 1ph
Model#:
5GE-SMP12-240-1
Image Thumbnail, click to view zoomed product image
null
PRODUCT FEATURES
Want to take your at-home steam experience to the next level? Meet Delta® SteamScape™ — a home steam system offering more features, more options, and more ways to customize your calm. Discover how the Delta® Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with peace of mind; the SteamScape generator is covered by our Lifetime Limited Warranty.
- Proportional steam ensures a consistent temperature in the shower with no temperature spikes
- Compact design permits generator installation in a vanity, a closet or an insulated attic or basement
- Includes 35' cable (alternative length extension cords sold separately)
- UL listed
- Most US residential installations will use 240V/1-Phase. 208V, 220V and 3Phase options also available.
- Stainless steel tank
- Limited lifetime warranty
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Max Shower Volume :
550
Generator Included :
Yes
Electrical Phases :
1
Breaker Capacity :
60
Frequency :
60
Voltage :
240
Wattage :
12000
Kilowatts :
12kw

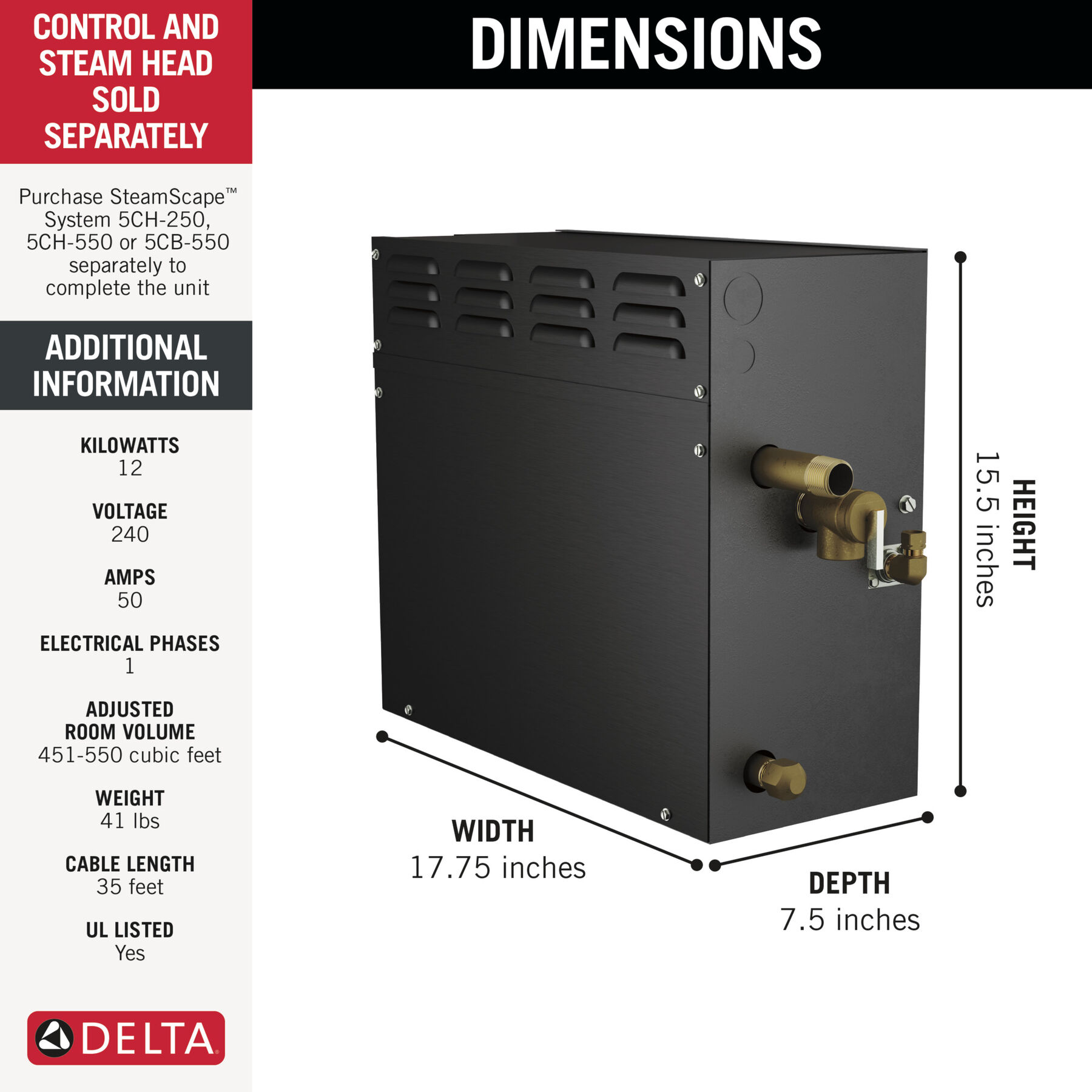

Overall Height (in.) :
15-1/2
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Q&A
I am replacing a SM-79 unit that doesn't work with my new gold cover and steam inlet. Will this require any changes for the wire used? Can I order the unit without the finish pieces for inside the shower since I already have them?
The Steamist SM-79 is a 9kw and worked with certain Steamist model user controls. The 5GE-SMP12-240-1 is a 12kw. Please make sure the electrical service in the house can support this power increase. The user control from SM-79 will not work with the 5GE-SMP12 model and will need to be replaced. The control cable may be reused.
Date published: 2026-05-06
I need the slave for the SteamScape 12kw 240 volts 1ph
Then you may order another 5GE-SMP12-240-1 and a 2nd steam head. After that, please contact our tech support to explain how to link them with dip switch adjustment inside the steam generator. Steam-product@deltafaucet.com
Date published: 2025-03-21
What's the difference between the Steamscape and Simplesteam units? They look identical and I know that Simplesteam used to be EliteSteam. Is the Steamscape just a repackaging of the Simplesteam?
Hi CSS_TILE,
Thanks for your question regarding 5GE-SMP12-240-1! Yes, Elitesteam is now Delta® Simplesteam™.
Please feel free to contact us with any questions or for further assistance.
Best Regards,
Emma
Digital Communications Specialist
Date published: 2023-09-30
What type of warranty is on this unit and for how long
Please see this M&I link, it covers the warranty details: https://media.deltafaucet.com/MandI/113110%20Rev%20E.pdf
Date published: 2026-06-17
Hello, I have to replace my Steamist TSG-12 bought in 2017. This unit needs to be replaced with another 12 KW. 1. Do I have to replace the steam outlet in the shower as well or can I use the existing one? 2. Can I use the same CAT cable?
You may reuse the steam outlet and the control cable.
Date published: 2026-03-30
