SimpleSteam™ Kit
SimpleSteam™ Kit - 4kW in Lumicoat® Chrome
Model#:
5P-EST04-PR
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
PRODUCT FEATURES
Simple to order and simple to use, the SimpleSteam™ Kit is simple for a reason: so you can enjoy the benefits of at-home steam whenever you want it. Steam can be more than a relaxing escape. Discover how the Delta® Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with peace of mind; the SimpleSteam generator is covered by our Lifetime Limited Warranty, and our electronic parts are covered for up to two years.

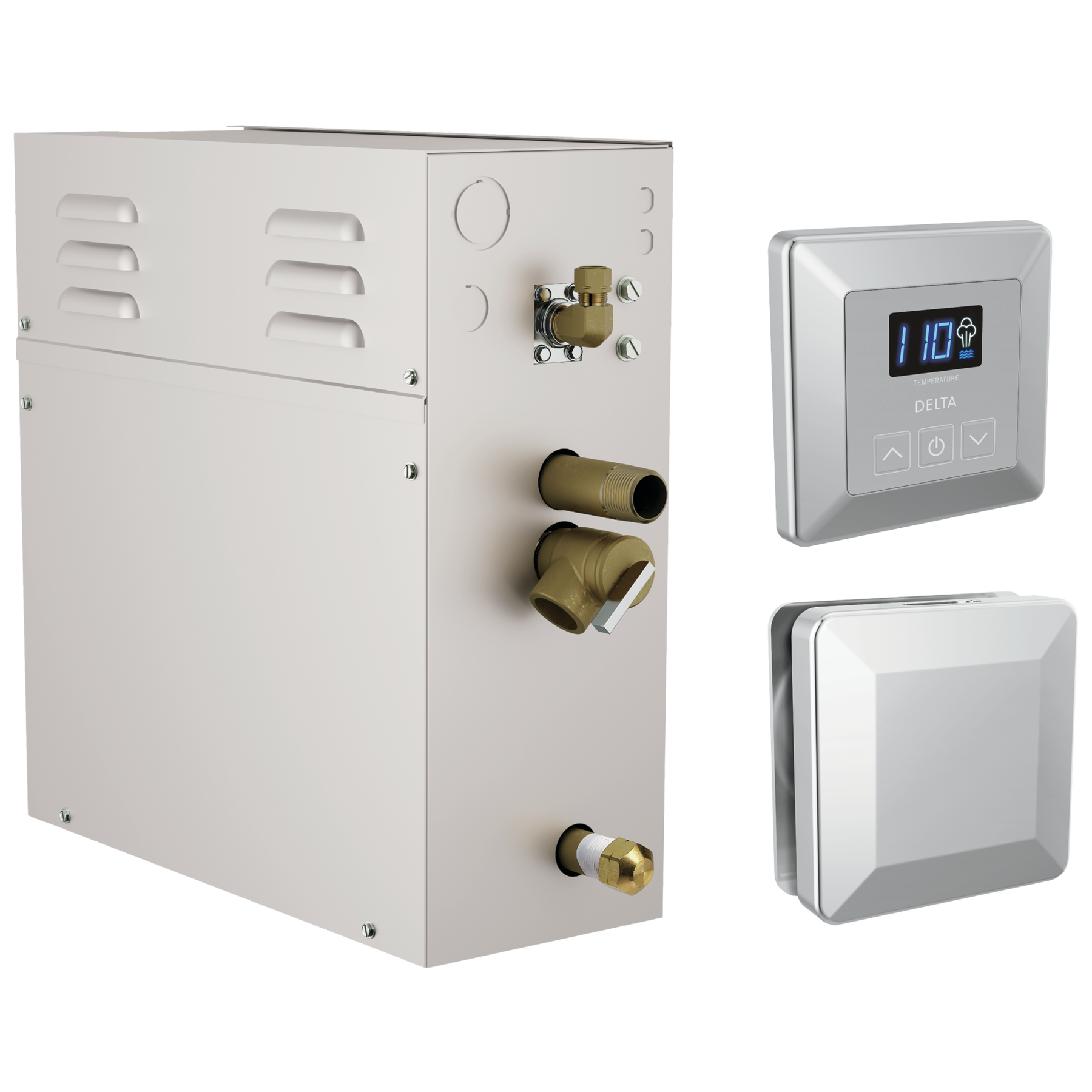

- Kit includes the SimpleSteam™ Generator, SimpleSteam™ Square Control and Square Steam Head
- Generator available in sizes: 4, 6, 7.5, 10, 12 & 15 kW
- Compact design permits generator installation in a vanity, closet, or insulated attic or basement
- Includes 35' cable (alternative length extension cable sold separately)
- Recommended generator pan and auto drain 5GA-PAD-240 available for purchase separately
- Stainless steel tank
- Generator is UL Listed with Limited Lifetime Warranty
- Control turns system off and on and adjusts temperature
- Control must be installed inside the shower area
- Steam Head 3/4" NPT, includes silicone cover
- Essential oil reserve on top of steam head
- Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Max Shower Volume :
75
Control Unit Included :
Yes
Generator Included :
Yes
Steam Head Included :
Yes
Silicon Cover Included :
Yes
Electrical Phases :
1
Breaker Capacity :
25
Frequency :
60
Voltage :
240
Wattage :
4000
Number Of Steam Heads :
1
Control Unit Height :
3-3/4
Control Unit Depth :
5/8
Steam Head Height :
3
Steam Head Width :
3
Steam Head Depth :
1
Generator Height :
15-1/2
Generator Depth :
15
Kilowatts :
4kw
Overall Height (in.) :
21-7/16
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Q&A
can I install simple steam kit above the shower ceiling?
Hello!
Yes, it can be installed above the shower ceiling.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-09-18
Can the Delta unit be used as a direct replacement for 1 year old Elite Steam unit? (Will controls and connections be the same?)
Hi JBurns719,
Yes, the Delta Simple Steam will be a direct replacement for the Elite Steam Product.
Date published: 2024-05-16
what is the maximum steam temperature I can get? dial shows106 but set to 124
Hi T Clark,
The control's maximum set point is 125°F. The maximum temperature the steam room can reach will vary depending on how the steam was constructed and sized.
Date published: 2024-11-06
I have a new 72”x42 shower what size unit should I install?
To select the proper model steam generator, we also need to know the Height, Wall Material and if there are any exterior walls/windows.
Date published: 2025-02-20
Can I use the gold round Control from the other units for the simple steam?
Hello,
You can only use the control that comes with the Simple Steam Kit. The other controls will not work and could damage the system. Upgrade to the Delta Steam Scape or Brizo Mystix generators if you want the round and gold control.
Date published: 2024-09-24
Where does the auto drain drain too?
Into Indirect Waste.
Date published: 2025-07-01
SimpleSteam Kit 10kW. The plumber wants to install it under wife's vanity punch a hole thru the wall run the steam pipe up the wall into & across the attic into the MB down the MB wall & into the MB. Toal pipe ft = 40 with 4 right angles. Will this work?
Hi Batman0015,
This is acceptable.
Date published: 2024-09-11
how far can i run the steamer
For optimum performance, we recommend keeping the steam pipe run under 25'.
Date published: 2025-02-11
