SimpleSteam™ Kit
SimpleSteam™ Kit - 15kW in Lumicoat® Chrome
Model#:
5P-EST15-PR
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
PRODUCT FEATURES
Simple to order and simple to use, the SimpleSteam™ Kit is simple for a reason: so you can enjoy the benefits of at-home steam whenever you want it. Steam can be more than a relaxing escape. Discover how the Delta® Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience—an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with peace of mind; the SimpleSteam generator is covered by our Lifetime Limited Warranty, and our electronic parts are covered for up to two years.

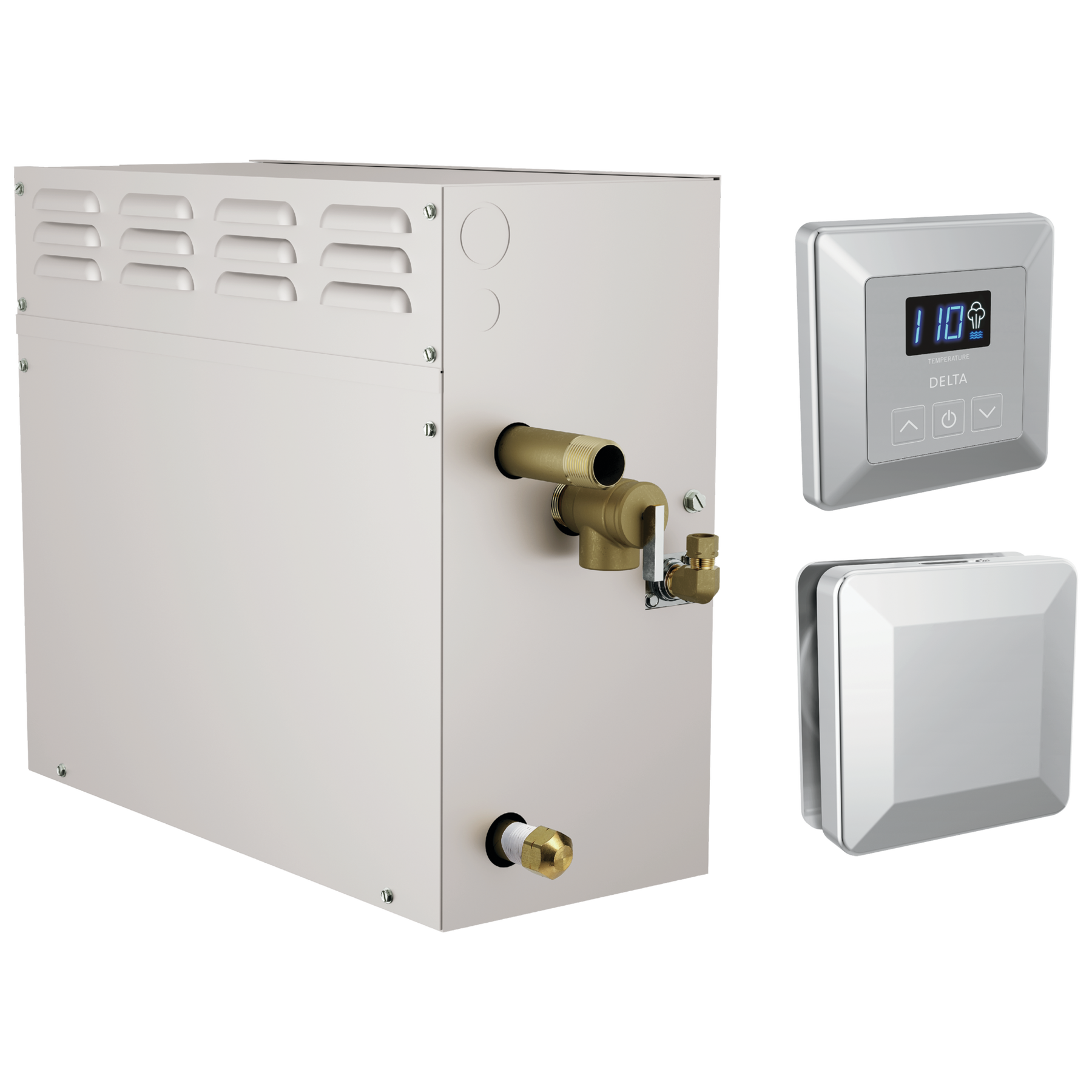

- Kit includes the SimpleSteam™ Generator, SimpleSteam™ Square Control and Square Steam Head
- Generator available in sizes: 4, 6, 7.5, 10, 12 & 15 kW
- Compact design permits generator installation in a vanity, closet, or insulated attic or basement
- Includes 35' cable (alternative length extension cable sold separately)
- Recommended generator pan and auto drain 5GA-PAD-240 available for purchase separately
- Stainless steel tank
- Generator is UL Listed with Limited Lifetime Warranty
- Control turns system off and on and adjusts temperature
- Control must be installed inside the shower area
- Steam Head 3/4" NPT, includes silicone cover
- Essential oil reserve on top of steam head
- Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications

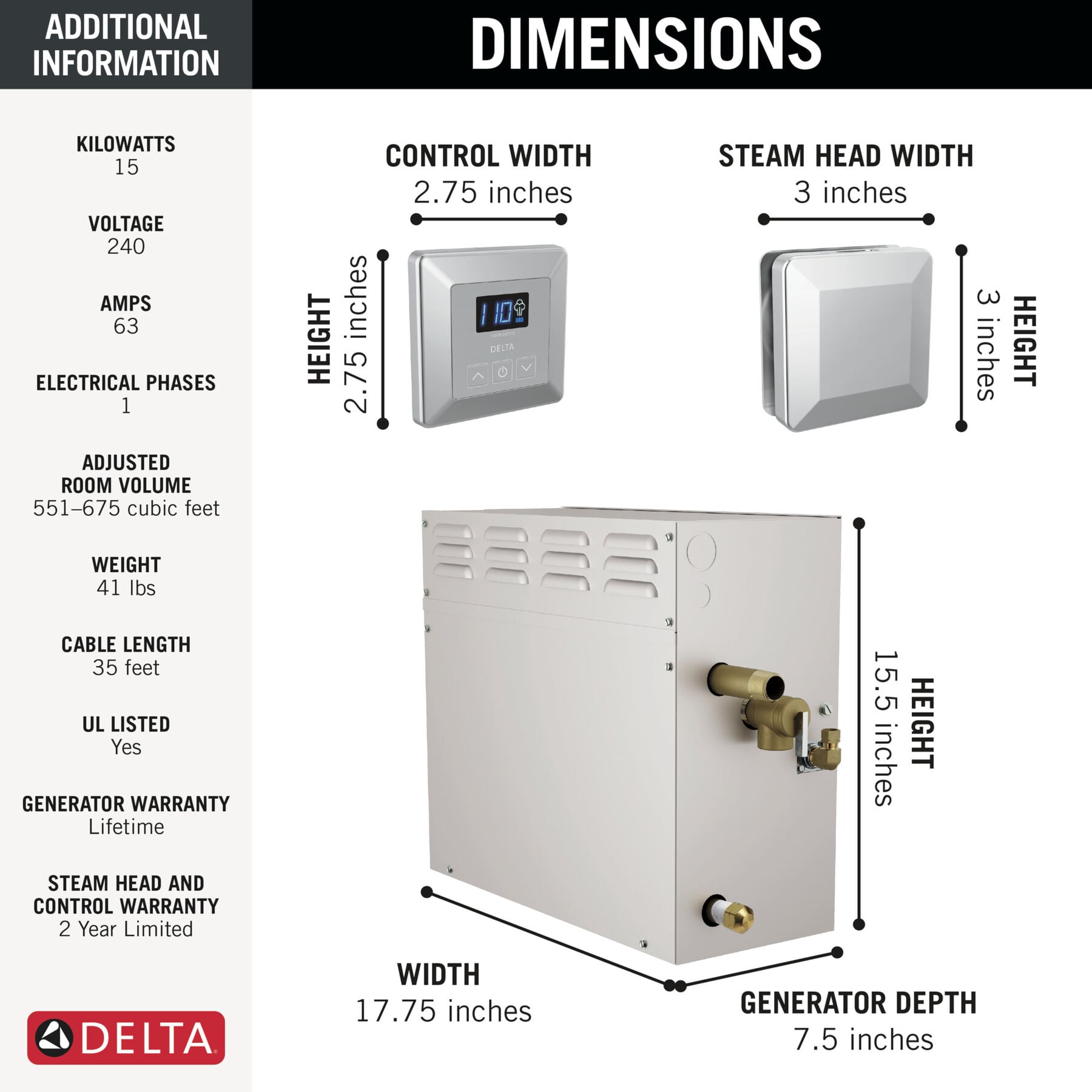

Installation Information
Max Shower Volume :
650
Control Unit Included :
Yes
Generator Included :
Yes
Steam Head Included :
Yes
Silicon Cover Included :
Yes
Electrical Phases :
1
Breaker Capacity :
80
Frequency :
60
Voltage :
240
Wattage :
15000
Number Of Steam Heads :
1
Control Unit Height :
3-3/4
Control Unit Depth :
5/8
Steam Head Height :
3-3/16
Steam Head Width :
3-3/16
Steam Head Depth :
1-1/4
Generator Height :
15-1/2
Generator Depth :
17-3/4
Kilowatts :
15kw
Overall Height (in.) :
21-7/16
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Q&A
can I install simple steam kit above the shower ceiling?
Hello!
Yes, it can be installed above the shower ceiling.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-09-18
What kilowatt unit do I need for a 6 x 8 room?
There is more info needed in sizing, please use this configurator tool: https://configurator.deltafaucet.com/#sizing
Date published: 2026-04-07
Can my Delta 5P-EST15-PR generator (240V/L1L2) be connected to the Paraguayan grid (380V LL and 220V/LN) 50Hz? What transformer or technical solution do you recommend for this voltage and frequency incompatibility?
This product will work on 220Volts, however the output will be reduced from 15kw down. Delta offers 220Volt specific products, please take a look at the Delta SteamScape product line, models: 5GE-SMP15-220-1 (steam generator) and 5CH-250T-PR (user control with steam head).
Date published: 2025-12-01
how do I start the unit
Turn the water and power on to the steam generator. Then inside of the steam room press the Start/Power button on the user control. It should light up and display the ambient room temperature. You may press the up/down arrows to adjust the set point (Ex: 105F) then wait a few minutes for water to boil and steam should enter the steam room.
Date published: 2026-06-29
Mi generador Delta 5P-EST15-PR (240V/L1L2) ¿puede conectarse a la red de Paraguay (380V LL y 220V/LN) 50hz? ¿Qué transformador o solución técnica recomiendan para esta incompatibilidad de voltaje y frecuencia?
This product will work on 220Volts, however the output will be reduced from 15kw down. Delta offers 220Volt specific products, please take a look at the Delta SteamScape product line, models: 5GE-SMP15-220-1 (steam generator) and 5CH-250T-PR (user control with steam head).
Date published: 2025-12-02
Can I use the gold round Control from the other units for the simple steam?
Hello,
You can only use the control that comes with the Simple Steam Kit. The other controls will not work and could damage the system. Upgrade to the Delta Steam Scape or Brizo Mystix generators if you want the round and gold control.
Date published: 2024-09-24
Where does the auto drain drain too?
Into Indirect Waste.
Date published: 2025-07-01
SimpleSteam Kit 10kW. The plumber wants to install it under wife's vanity punch a hole thru the wall run the steam pipe up the wall into & across the attic into the MB down the MB wall & into the MB. Toal pipe ft = 40 with 4 right angles. Will this work?
Hi Batman0015,
This is acceptable.
Date published: 2024-09-11
Not sure what you need?
Use our Steam Shower Configurator tool. Follow the step-by-step guided experience to determine the exact products you’ll need to create your ideal Steam Shower space. This tool will help you:
- Determine the correct generator for your shower size
- Select accessories to enhance your shower space
- Get a list of the exact products you’ll need
