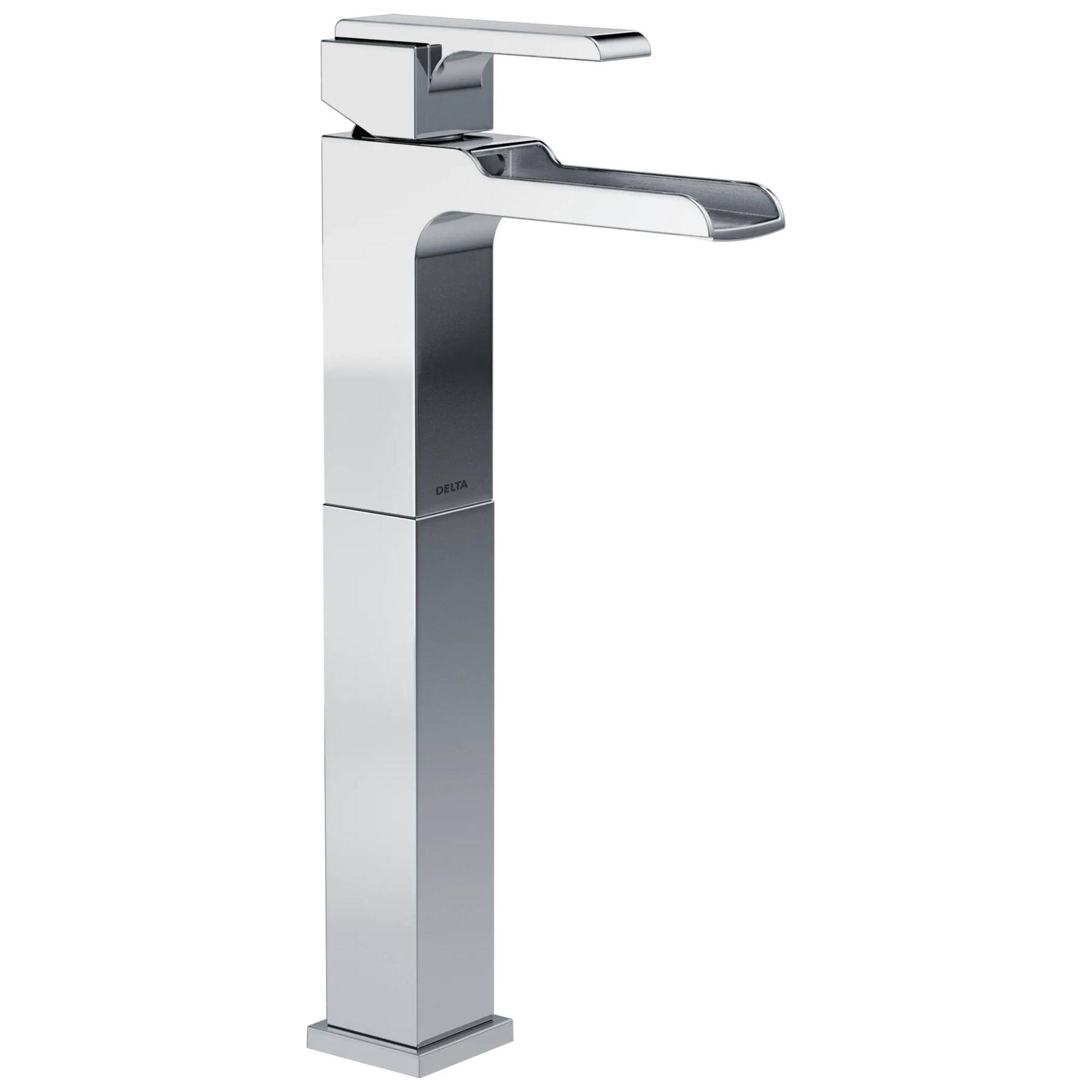

Single Handle Vessel Channel Bathroom Faucet in Chrome

Model#: 768LF
Single Handle Vessel Channel Bathroom Faucet in Chrome
Model#: 768LF
List Price: $69900
PRODUCT FEATURES
With defined geometric angles and edges, the Ara® Bath Collection creates a streamlined look of contemporary elegance. Delta® faucets with DIAMOND Seal® Technology perform like new for life with a patented design that reduces leak points, is less hassle to install and lasts twice as long as the industry standard. Delta WaterSense® labeled faucets use at least 20% less water than the industry standard — helping you save water without compromising performance. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • DIAMOND Seal® Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
  • Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines
  • Open channel spout creates a harmonious waterfall ambiance
  • Fits single hole installations
  • Optional red/blue temperature indicator ring included
  • Drain assembly sold separately
  • Metal push pop-up drain (RP101632PC) or push pop-up drain with overflow holes (RP101630PC) may be purchased separately
  • ADA Compliant
  • WaterSense® labeled faucet uses at least 20% less water than the industry standard without compromising performance
  • Rigid spout does not swivel
  • 3/8-inch compression fittings
  • Backed by Delta Faucet's Lifetime Limited Warranty
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
No-Lead Compliant
Water-Efficient

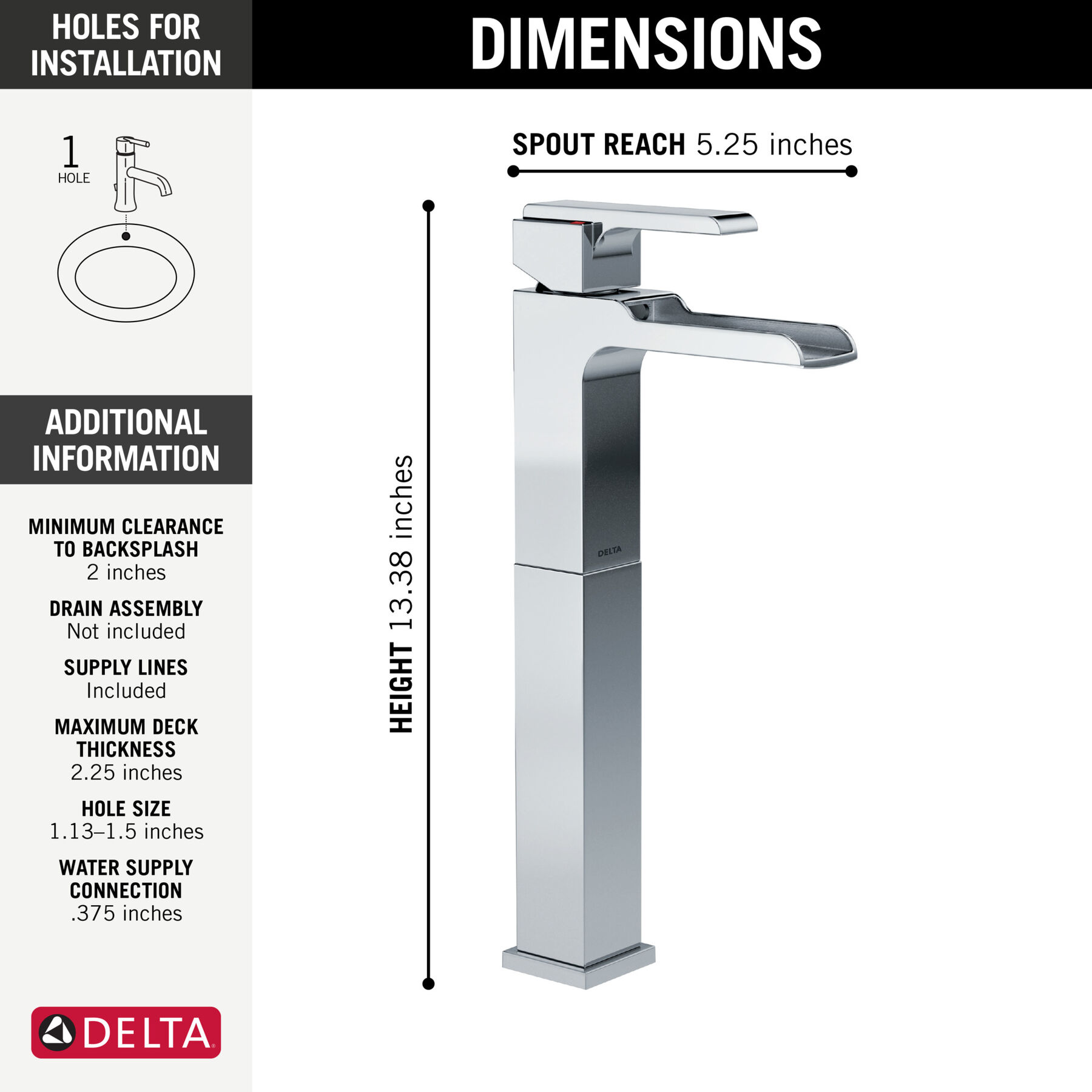

Documents & Specs
Installation Information
Single hole installation
Single hole installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
Overall Height (in.) :
13-3/8
Valve Type:
Ceramic Disc

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from poor water flow rate The thin stream from this faucet is barely enough to wash your face with. I've taken it apart and found no contamination and no way to improve the flow.
Date published: 2023-02-27
Rated 5 out of 5 by from Great product and look We installed in our powder room over a glass bowl. Perfect fit and look. Works quite well. Replaced a far more expense European faucet that needed replacement. We are very happy.
Date published: 2021-06-28
Rated 5 out of 5 by from Water saving shuttle faucet Bought this particular faucet for a vessel sink. Works perfectly, looks great and saves on water usage as well. Like how the water flows like an "old-time" Well pump.
Date published: 2021-04-06
Rated 5 out of 5 by from Delta Faucet So far so good! Love it!
Date published: 2020-09-02
Rated 5 out of 5 by from Elegant and beautiful! This faucet is absolutely beautiful. It's easy to install and easy to maintain. Very clean lines.
Date published: 2019-04-22
Rated 5 out of 5 by from Highly recommend! This is a great faucet. It’s really well made and easy to install. And it looks amazing. Very clean lines and timeless.
Date published: 2018-12-21
Rated 5 out of 5 by from Delta768LF [This review was collected as part of a promotion.] Love it! Looks beautiful in the powder room, love the water fall effect.
Date published: 2018-07-14
Rated 5 out of 5 by from Beautiful [This review was collected as part of a promotion.] Exceeded my expectations. Easy installation, soothing trickling sound when faucet is turned on, and truly eye jewelry for my sink. Guests continually comment on the faucet's elegant look. I would only suggest that you dry the area where the water dispenses out of immediately after each usage because it leaves a white powdery stain that when dried it does not disappear. I did not dry it in the beginning therefore I believe that's why I have a permanent marking. Nevertheless, you will not be disappointed with this product.
Date published: 2016-12-01
  • y_2026, m_7, d_11, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.47
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_9
  • loc_en_US, sid_768LF, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 11ms
  • reviews, product
Q&A

How do you clean the water spout to avoid the white stain?

Asked by: Alouk01
Hi Alouk01, Thank you for your question. Spots can form when water evaporates, leaving behind minerals. We recommend blotting the faucet dry after use to help prevent spots from forming. You can clean the faucet with a soft cloth and warm water or a 50/50 white vinegar and water solution. Please click the link below for more information. https://www.deltafaucet.com/design-innovation/inspiredliving/how-to-clean-a-faucet Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Water flow is very very slow trickles

Asked by: Rahman
Hi Rahman, Thank you for contacting Delta Faucet. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible. Our Delta Faucet Delta Ara® Single Handle Vessel Channel Bathroom Faucet In Chrome MODEL#: 768LF max flow rate is 1.2 GPM @ 60 psi. Here are instructions on how to check the flow restrictor. Please use a 3/32" Allen wrench, small needle-nose pliers, adjustable wrench, and some towels just in case of excess water. 1. Please shut off water supplies. 2. Please remove the button behind the handle and then use the 3/32" Allen wrench to remove the set screw. 3. Once you remove this, you will see a dome-shaped piece with the same finish as the rest of the faucet, please remove this piece. 4. You should now see a brass nut piece. Please take the adjustable wrench and remove the bonnet nut. 5. Lift out the cartridge and grab the needle-nose pliers. Review the valve and you should see a small brass cylinder piece that is held in by an O-ring. Place one part of the needle nose pliers in the hole of this piece, squeeze gently and lift straight up. Thank you for being a loyal Delta Faucet customer. Please feel free to call, email, or message us on social if you need anything else. Best Regards, Themar Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

The water flow from this faucet is very slow - almost a trickle. How do I get to the screen to check for debris?

Asked by: Kathy
Dear Kathy, Thank you for your question! I will be more than happy to help you! On Delta model 768LF the flow restrictor sits under the valve cartridge. To get to this part, please refer to the instructions below. Please grab a 3/32" allen wrench, small needle-nose pliers, adjustable wrench, and some towels just in case of excess water. 1. Please shut off water supplies. 2. Please remove the button behind the handle and then use the 3/32" allen wrench to remove the set screw. 3. Once you remove this, you will see a dome-shaped piece with the same finish as the rest of the faucet, please remove this piece. 4. You should now see a brass nut piece. Please take the adjustable wrench and remove the bonnet nut. 5. Lift out the cartridge and grab the needle-nose pliers. Review the valve and you should see a small brass cylinder piece that is held in by an o-ring. Place one part of the needle nose pliers in the hole of this piece, squeeze gently and lift straight up. Feel free to contact us directly, if you need further assistance. Best regards, Kyra
Answered by: Delta7
Date published: 2024-03-28

Can you advise if the guts of this are plastic or ceramic or brass?

Asked by: Jennifer
Hello Jennifer, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet ARA® Single Handle Vessel Channel Bathroom Faucet MODEL#: 768LF cartridge has an internal ceramic disk. Thank you for being a loyal Delta customer. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

Is the Ara 768LF the same product whether purchased from a shop like Lowe’s or a dealer like Hajoca? Or are there different versions (like a commercial versus home use?) under the same item number?

Asked by: Jennifer
Hello Jennifer! Thank you for your question and we are happy to help. We apologize for this information not being readily available to you. The Delta ARA® Single Handle Vessel Channel Bathroom Faucet MODEL#: 768LF will be the same with no difference from where it is purchased. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta customer. Best Regards, Carrie
Answered by: Delta7
Date published: 2024-03-28

I have model 768LF.  I am disappointed as after about 6 years I must replace it as a slimy black residue has been visible every day.  Cleaning it daily does not remove it completely and is very disappointing.  It’s not our city water. Other faucets ok

Asked by: LouJr
Hi LouJr, Thank you for your question about the Delta Faucet model 768LF. Please accept our sincere apology for the inconvenience you are experiencing. We are happy to help! To first troubleshoot this issue, I recommend checking the seals on the home water supply valves. Next, flush the faucet using a bucket to catch the water. With the handle closed, unclip the hose below the sink and clean the flow restrictor and screen. Open the handle to run water directly into the bucket for a minute. Reinstall the flow restrictor and screen and reconnect the hose. For more information, see our cleaning and care instructions: https://support.deltafaucet.com/s/article/Cleaning-and-Care Please contact us directly for further assistance or if you have any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2022-12-07

Where are the specifications?  Measurements?  Thank you.

Asked by: Frannie
Hello, Frannie! Thank you for contacting us at Delta Faucet! I apologize for this information not being available to you but I will be happy to help! Please see the following link for the technical specifications for this Delta Faucet model 768LF Ara® Single Handle Vessel Channel Bathroom Faucet In Chrome. https://media.deltafaucet.com/SpecSheet/DSP-L-768LF_D.pdf Please contact us directly if further assistance is needed at this time.  We appreciate your loyalty to Delta Faucet Company. Best Regards, Tim
Answered by: Delta
Date published: 2024-03-28

Is the spout sloped sufficiently so that water never sits in channel when it's not running?

Asked by: Eronn
Hi Eronn, Thank you for your question about the Delta Faucet model 768LF-BL. The spout is sloped to avoid water pooling, but drops and wetness can remain. To prevent water spots, dry with a soft towel. Please contact us directly if you have any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

I noticed this faucet was ADA compliant.  Can you tell me what I’m the design/features makes this compliant?

Asked by: Remodel
Hello Remodel, Thank you for your question! We apologize for the inconveniences you are experiencing and will be happy to help you. The Delta Faucet Ara Single Handle Vessel Channel Bathroom Faucet MODEL# 768LF-SS is ADA compliant by having an easy-to-function handle. Thank you for being a loyal Delta Faucet customer. We look forward to continuing to serve you. Please feel free to contact us back for further assistance. Best Regards, Kelley
Answered by: Kelley
Date published: 2024-03-28

What is the measured spout reach of this faucet please?

Asked by: Cici
Hello Valued Customer, Thank you for contacting Delta Faucet Company! Our 768LF-SS has a spout reach of 5 1/4" inches from the center of the valve to the tip of the spout. For more technical information, please refer to the link below! https://media.deltafaucet.com/SpecSheet/DSP-L-768LF%20Rev%20E.pdf We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Delta
Date published: 2025-07-24

How close to brushed nickel is the stainless finish?

Asked by: TMStrong
Thank you for your question, TMStrong! Our stainless steel finish is a matte brushed finish that is identical to the brushed nickle finish. Best Regards, Benjamin
Answered by: Benjamin
Date published: 2024-03-28

Just installed our 768LF faucet and there is a lot of splatter. What can be done to eliminate this - can the faucet be cut down?

Asked by: bevd
Hi bevd, Thank you for your question about the Delta Faucet model 768LF-BL. Unfortunately, the shape of the faucet is not designed to be adjusted or cut. I apologize for the inconvenience this causes. Changing the flow regulator to reduce the flow may help. 1.0 and 0.5 gpm are available as: RP101952-1.0 RP101952-0.5 Please reach out for further assistance or with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Delta
Date published: 2025-01-13

Does the ARA 768L:F-BL price include valve and overflow kit? If not, please provide information for that.

Asked by: Cathy
Thank you for your question, Cathy! The 786LF-BL is designed for a vessel sink and does not include a drain pop up. For a sink with overflow, we would recommend the 72173-BL push pop-up with overflow. Or, the faucet model 568LF-BLMPU that includes a pop-up and lift rod. Supply line shut off valves are not included. Best regards, Bryan
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_7, d_11, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.47
  • cp_2, bvpage2n
  • co_hasquestionsanswers, tq_21
  • loc_en_US, sid_768LF, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 56ms
  • questions, product
PART LIST

PART LIST

Image-RP90056 Secondary Image-RP90056

Ara®

Ara® Stem & Valve

List Price: $123.20
Online Price: $98.56
Free Ground Shipping All Orders $49+

RP90056

Image-Master-RP75404

Ara®

Ara® Cap & O-Ring - 1H Bathroom

List Price: $21.40 - $23.00
Free Ground Shipping All Orders $49+

RP75404

Image-RP73838

Compel®

Compel® Aerator - Water-Efficient - 1.0 GPM

List Price: $29.10
Online Price: $23.28
Free Ground Shipping All Orders $49+

RP73838

Image-RP73837

Compel®

Compel® Aerator - Water-Efficient - 0.5 GPM

List Price: $29.10
Online Price: $23.28
Free Ground Shipping All Orders $49+

RP73837

Image-Master-RP26533

Delta®

Delta® Metal Drain Assembly - Less Lift Rod - Bathroom

List Price: $96.10 - $201.80
Free Ground Shipping All Orders $49+

RP26533

Image-Master-RP90060

Ara®

Ara® Handle Base, Spout & Gasket - 1H

List Price: $62.35 - $82.30
Free Ground Shipping All Orders $49+

RP90060

Image-Master-RP75407

Ara®

Ara® Lift Rod & Slider - 1H Bathroom

List Price: $34.40 - $46.55
Free Ground Shipping All Orders $49+

RP75407

Image-RP5648

Delta®

Delta® Drain Stopper - Bathroom

List Price: $22.50
Online Price: $18.00
Free Ground Shipping All Orders $49+

RP5648

4.25 8
Image-RP47029

Leland®

Leland® Mounting Bracket - 1H Bathroom

List Price: $18.05
Online Price: $14.44
Free Ground Shipping All Orders $49+

RP47029

5.00 2
Image-RP12517

Delta®

Delta® Horizontal Rod

List Price: $22.50
Online Price: $18.00
Free Ground Shipping All Orders $49+

RP12517

2.86 7
Image-RP47030

Leland®

Leland® Bathroom Wrench

List Price: $10.00
Online Price: $8.00
Free Ground Shipping All Orders $49+

RP47030

1.00 2
Image-RP12516

Delta®

Delta® Strap w/ Screw

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12516

Image-RP75402 Secondary Image-RP75402

Ara®

Ara® Ceramic Valve - Euro-Motion

List Price: $164.25
Online Price: $131.40
Free Ground Shipping All Orders $49+

RP75402

Image-RP6142

Delta®

Delta® Gasket

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP6142

2.00 1
Image-RP72564

Cassidy®

Cassidy® Set Screw & Button

List Price: $21.30
Online Price: $17.04
Free Ground Shipping All Orders $49+

RP72564

Image-RP6140

Delta®

Delta® Nut & Washer - Drain Assembly

List Price: $25.00
Online Price: $20.00
Free Ground Shipping All Orders $49+

RP6140
