DELTA
38'' Direct-to-Stud Corner Shower Wall Set
Model#: B67916-3838-WH
Finish: White
List Price*: $311.25
PRODUCT FEATURES

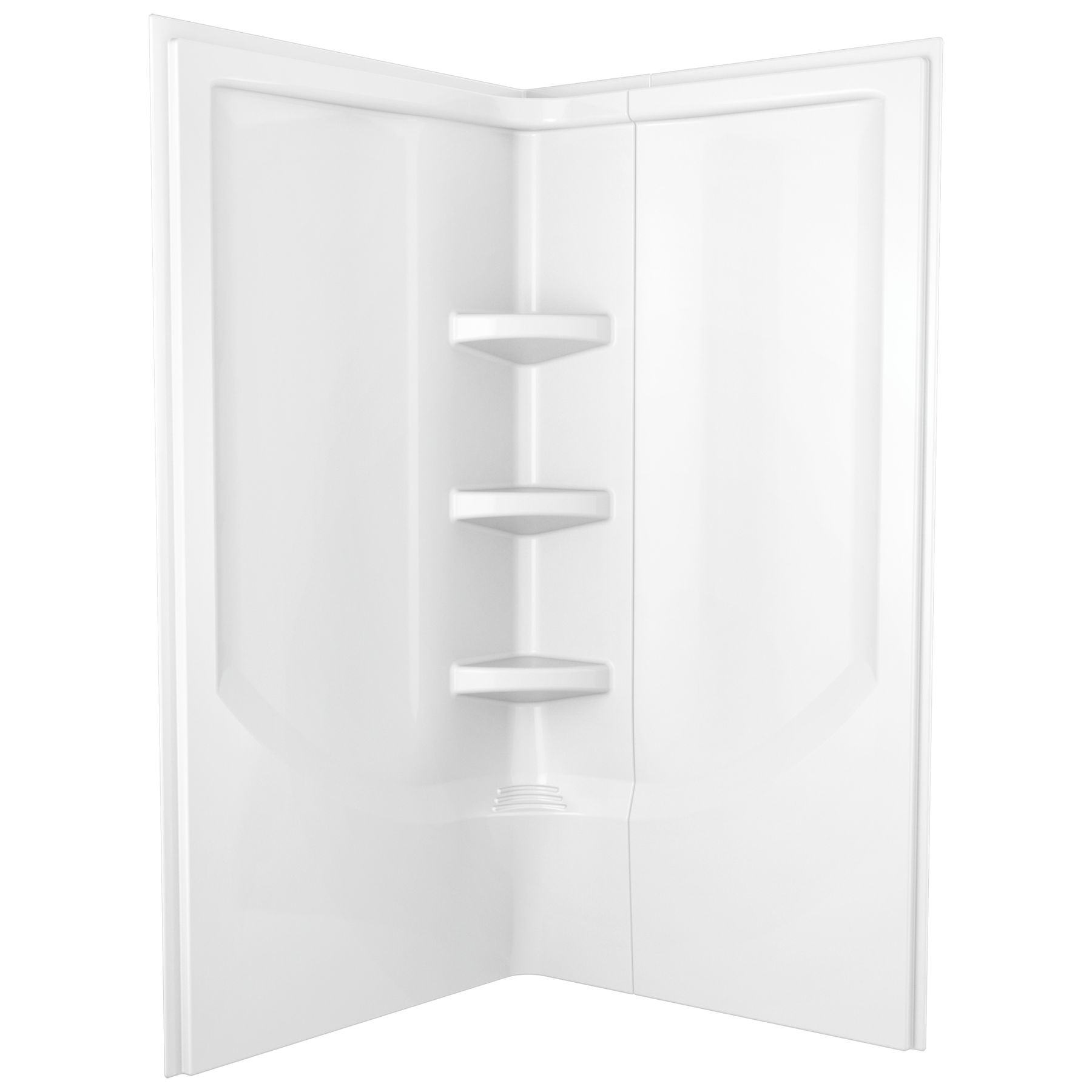

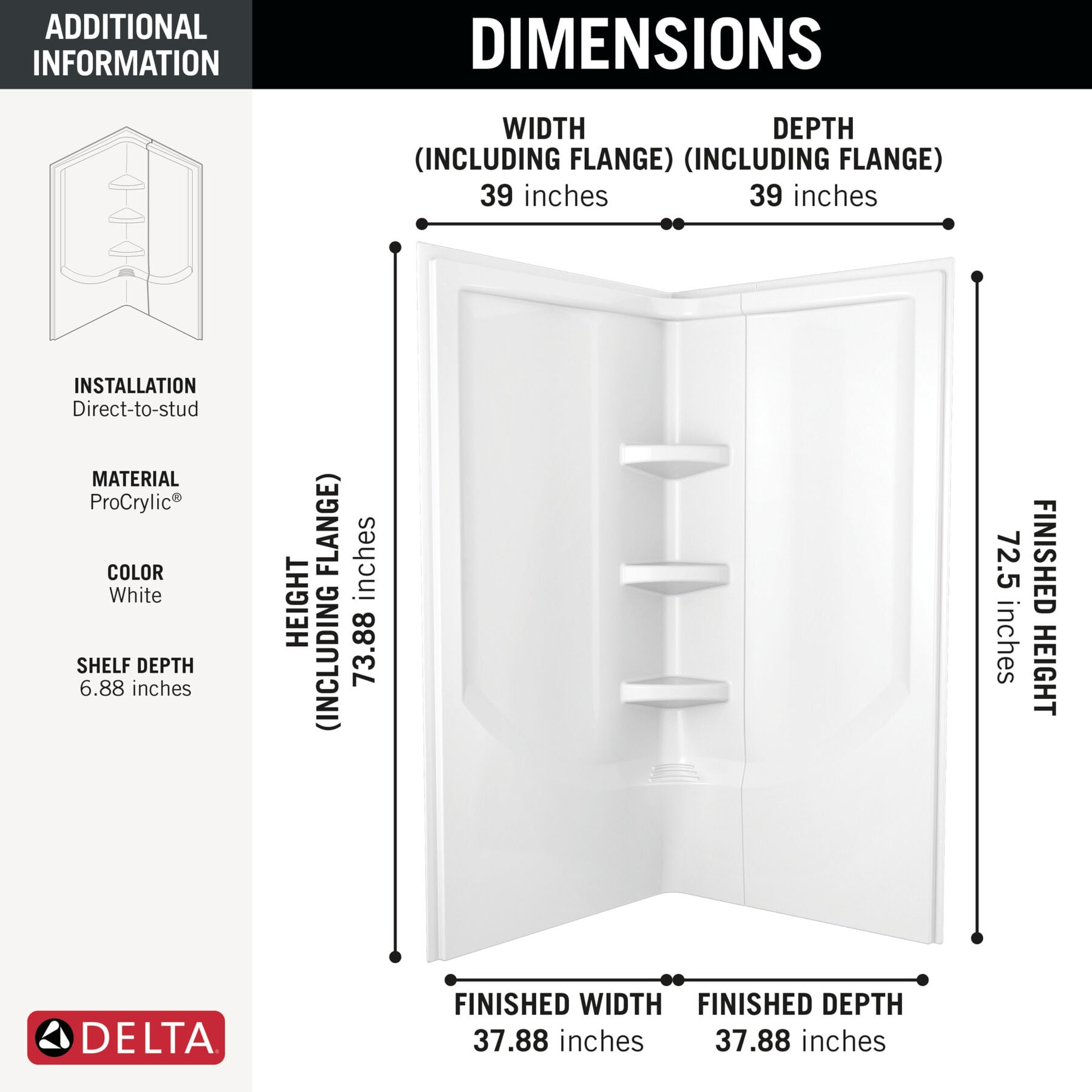

This 38 in. x 73.88 in. 2-Piece Direct-to-Stud Corner Wall in White is a stylish and functional backdrop for your shower. It has 3-generous corner shelves for convenient storage. Its white finish complements all interior styles.
  • High-gloss finish for easy cleaning
  • Direct-to-stud installation for added security

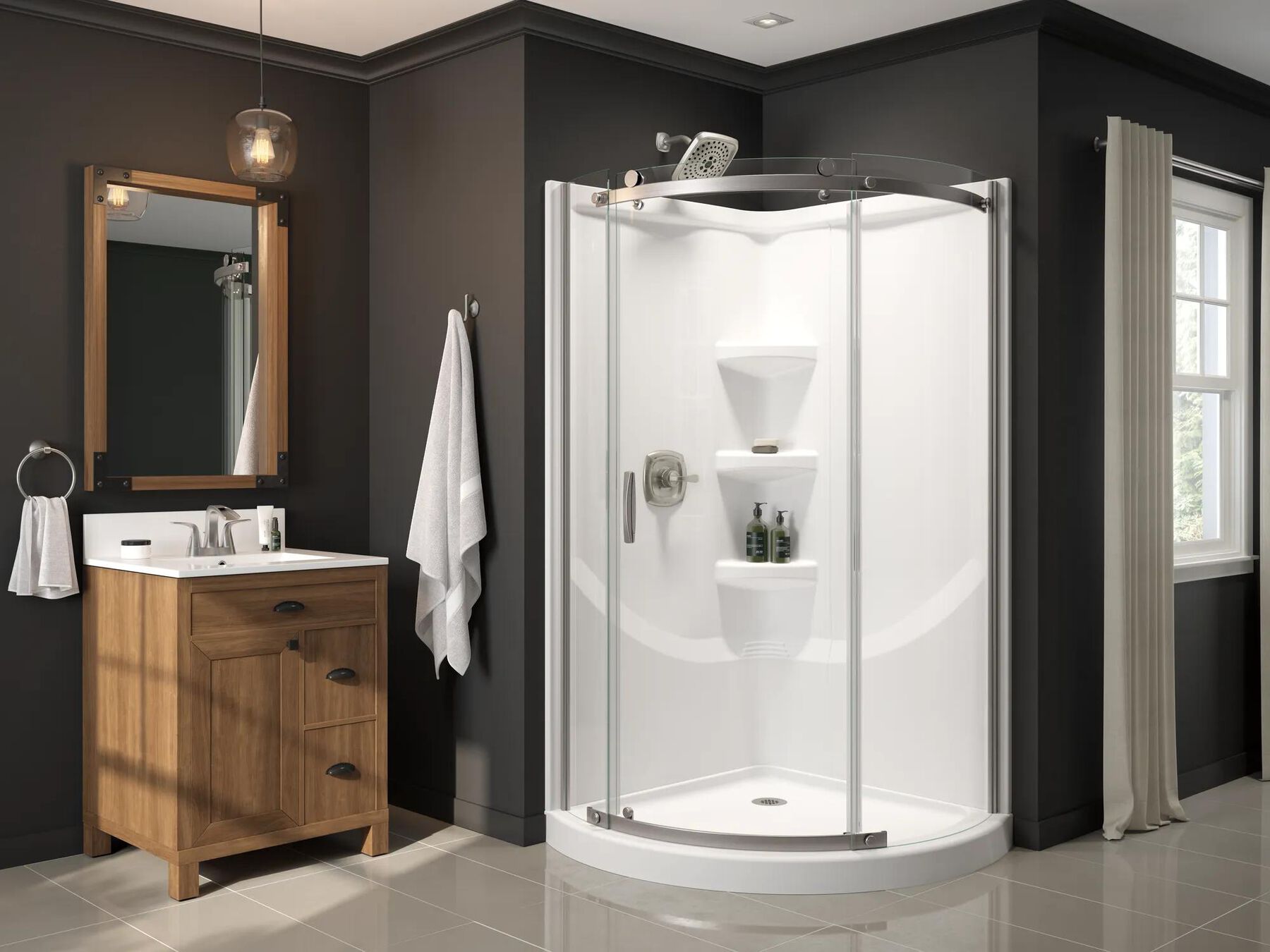

  • Pictured with 35-7/8 in. x 35-7/8 in. x 71-7/8 in. semi-frameless Neo-Angle shower enclosure (model # 422061)
  • Pictured with 38-1/2 in. x 38-1/2 in. Neo-Angle single threshold shower base in white (model # 422062)
  • Direct-to-stud installation
  • Made with high-gloss ProCrylic material
  • Backed by Delta Faucet’s 10-Year Limited Warranty
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Over All Height :
73-7/8
Connection Type :
NA
REVIEWS
Rated 4 out of 5 by from A very nice looking unit, with a slight design fla This is a very nice and elegant surround. The only downside is the curvature on the left and right side of the wàlls. These can make it difficult for mounting to studs.
Date published: 2020-06-23
Rated 4 out of 5 by from perfect, but.. This product MUST be installed by a person who reads and FOLLOWS the directions.
Date published: 2020-06-11
Rated 4 out of 5 by from Fits Perfect in a small bathroom Great support after the sale.
Date published: 2020-04-02
Rated 4 out of 5 by from Looks Great This is a very acceptable shower stall. It was fairly easy to install except for the door. I had a terrible time lining up the door.
Date published: 2019-03-12
  • y_2021, m_1, d_24, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_US, sid_B67916-3838-WH, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
Q&A

Can I pair the 38" direct to stud walls MODEL#: B67916-3838-WH with the neo ange shower base Model # B879912-3838-WH and the shower enclosure Model # B99912-3838-PC?

Asked by: gk_stagecoach
Dear Asker gk_stagecoah, Thank you for your question, I will be more than happy to help you with this. The shower wall set and neo angle base are compatible. If you need further assistance, contact us directly. Best Regards, Samantha Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com
Answered by: DeltaFaucet7
Date published: 2020-07-15

There is a piece of styrofoam on the back of the wall with the shelves, what is the purpose of it and does it remain in place for installation?

Asked by: Taylor
Hello Taylor, Thank you for your question regarding the Delta 38'' Direct-to-Stud Corner Shower Wall Set and I am happy to help you today. The styrofoam on the back of the wall will need to stay in place to add additional support for the surround. I hope this helps! If there is anything going forward that we may be able to help with, please do not hesitate to give us a call on our warranty line at 800-355-2721 and we will be happy to help you where we can. Thank you, Brandy
Answered by: Brandy
Date published: 2018-09-28

Will this work with shower doors B911917-3838-PC or SS and round base B711917-3838WH and approximately how think is this product does base sit flush on floor

Asked by: Ms Fornof
Hello Ms Fornof, Thank you for your question regarding the Delta 38'' Direct-to-Stud Corner Shower Wall Set and I am happy to assist you today. You may pair the 38" Wall Set, model B67916-3838-WH with the 38" Shower Base, model B711917-3838-WH and the Round Shower Enclosure, model B911917-3838-PC together. The 38" Shower Base is 3 5/8" or 92 mm thick, not including the nailing flange. Including the nailing flange the base is 4 3/4" or 121 mm thick and the base sits flush on the floor. If we can assist you with anything else going forward, please do not hesitate to give us a call at 800-355-2721. Thank you, Brandy Delta Faucet Company Customer Service
Answered by: Brandy
Date published: 2018-03-26

Can the shower head to on either side

Asked by: Kath
Hi, Kath! Thank you for your question. A shower head can be installed on either side of the Delta B67916-3838-WH shower surround. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-04-10

Is there an advantage to a direct to stud versus an onto green board installation? It appears that the readily available model from HD is direct to stud. Thanks

Asked by: Melli
Hello Melli, Thank you for your question regarding the Delta 38'' Direct-to-Stud Corner Shower Wall Set and I am happy to assist you today. There is not a definite advantage to installing a surround direct to stud versus over green board, although direct to stud models can be more durable and provide more stability. Choosing between a glue up surround or a direct to stud model highly depends on personal preference as well as what has already been installed the home where the project is taking place. I hope this is at least somewhat helpful! We do also manufacture a glue up surround which can be purchased through Home Depot, model B69912-3838-WH, if you are interested. If we can assist you with anything else going forward, please do not hesitate to give us a call at 800-355-2721. Thank you, Brandy Delta Faucet Company Customer Service
Answered by: Brandy
Date published: 2018-04-02

Im installing How critical is the stud locations on the right hand side of the enclosure, specifically the 21" dimension. The closest I can get is 24" due to existing plumbing supplies through the second story.

Asked by: Mike57
Hi, MKH57! Thank you for your question. The stud placement for the Delta B67916-3838-WH 38'' Direct-to-Stud Corner Shower Wall Set is vital to ensure proper installation. Deviation from stud placement may result in product failure due to lack of appropriate support. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-10-24

On page 4, Roughing-in section, the stud placement diagram does not match what is displayed in the rest of the instructions, can you explain under what circumstances the stud placement diagram on page 4 would be used?

Asked by: Pat_DIY
Hello Pat_DIY, Thank you for your question regarding the Delta 38'' Direct-to-Stud Corner Shower Wall Set and I am happy to help you today. The additional studs mentioned on page 4 of the Maintenance and Installation manual are recommended in the event that you are installing an enclosure with your base and surround. Please do not hesitate to give us a call on our warranty line at 800-355-2721 if we can assist you with anything going forward. Thank you, Brandy
Answered by: Brandy
Date published: 2018-06-22

I need this exact item. (B67916-3838 WH). Where can I buy! Nearest large town is Bakersfield Ca. I ordered from Home Depot but they only have Display Model!?! I have ordered everything else of bathroom remodel & the shower assembly NEEDS this corner piece

Asked by: joel
Hi, Joel! Thank you for your question. The Delta B67916-3838-WH 38'' Direct-to-Stud Corner Shower Wall Set can be purchased anywhere Delta Products are sold. If this is not available at your selected local hardware or plumbing supply store, we do recommend to check with the store for assistance for a special order. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-07-02
