Hycroft™

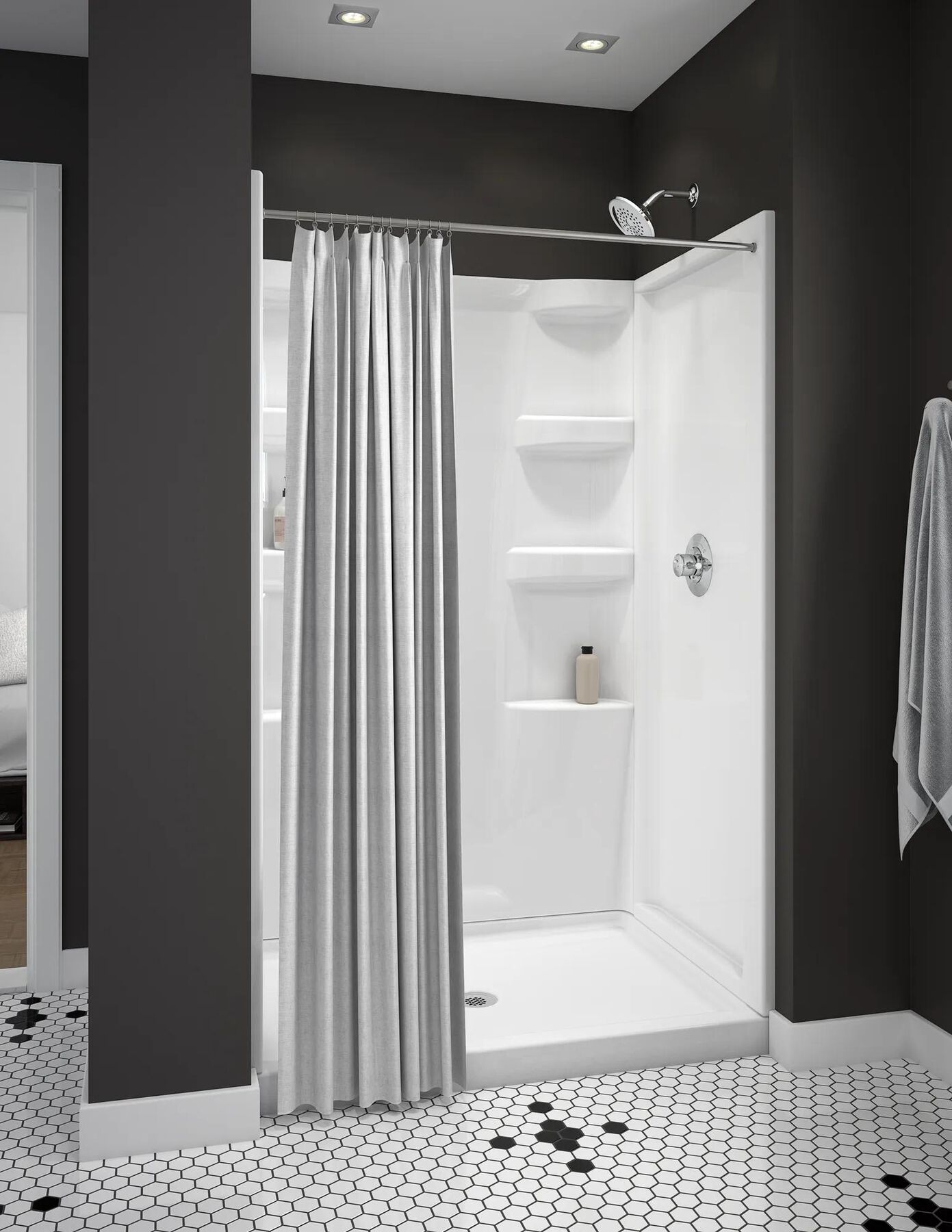

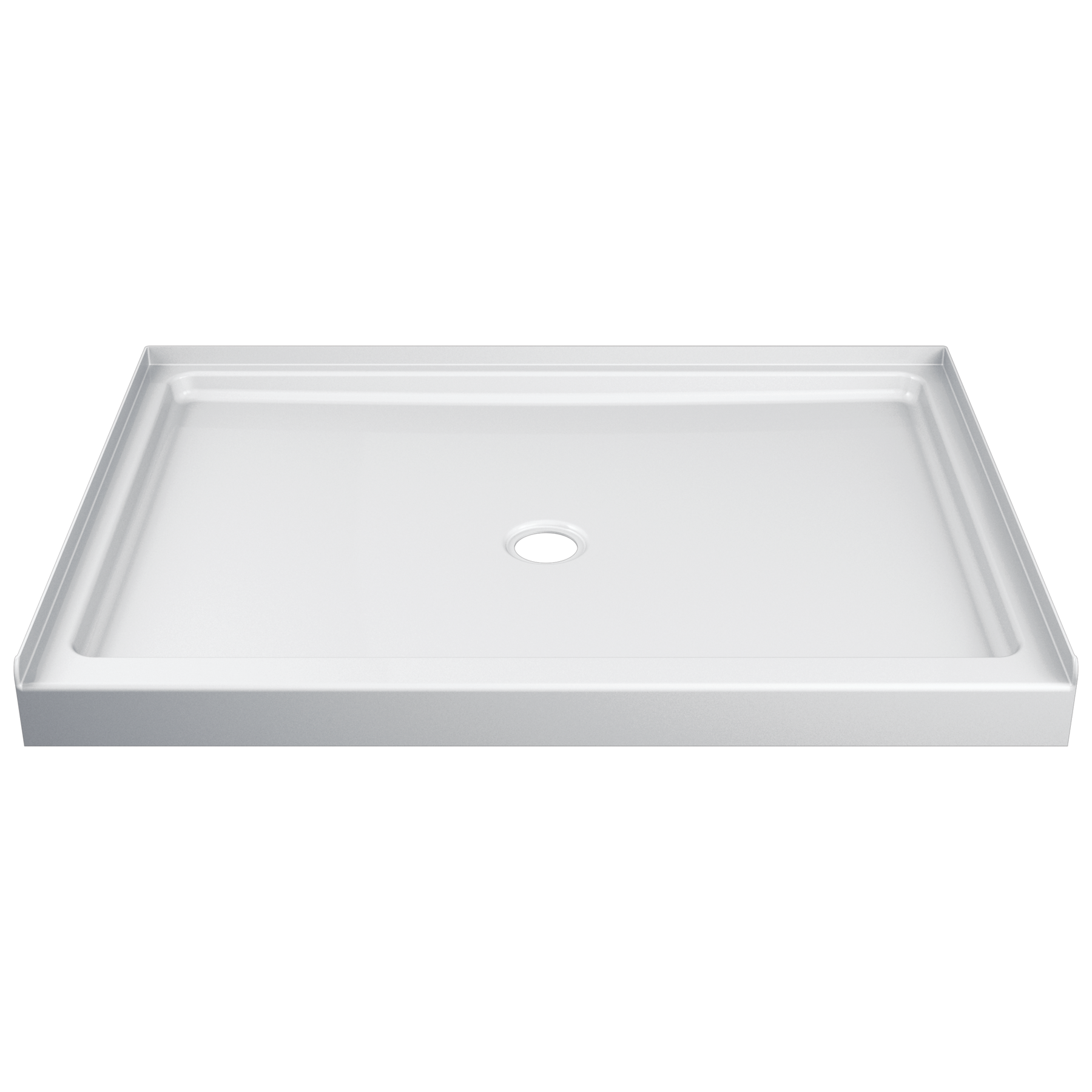

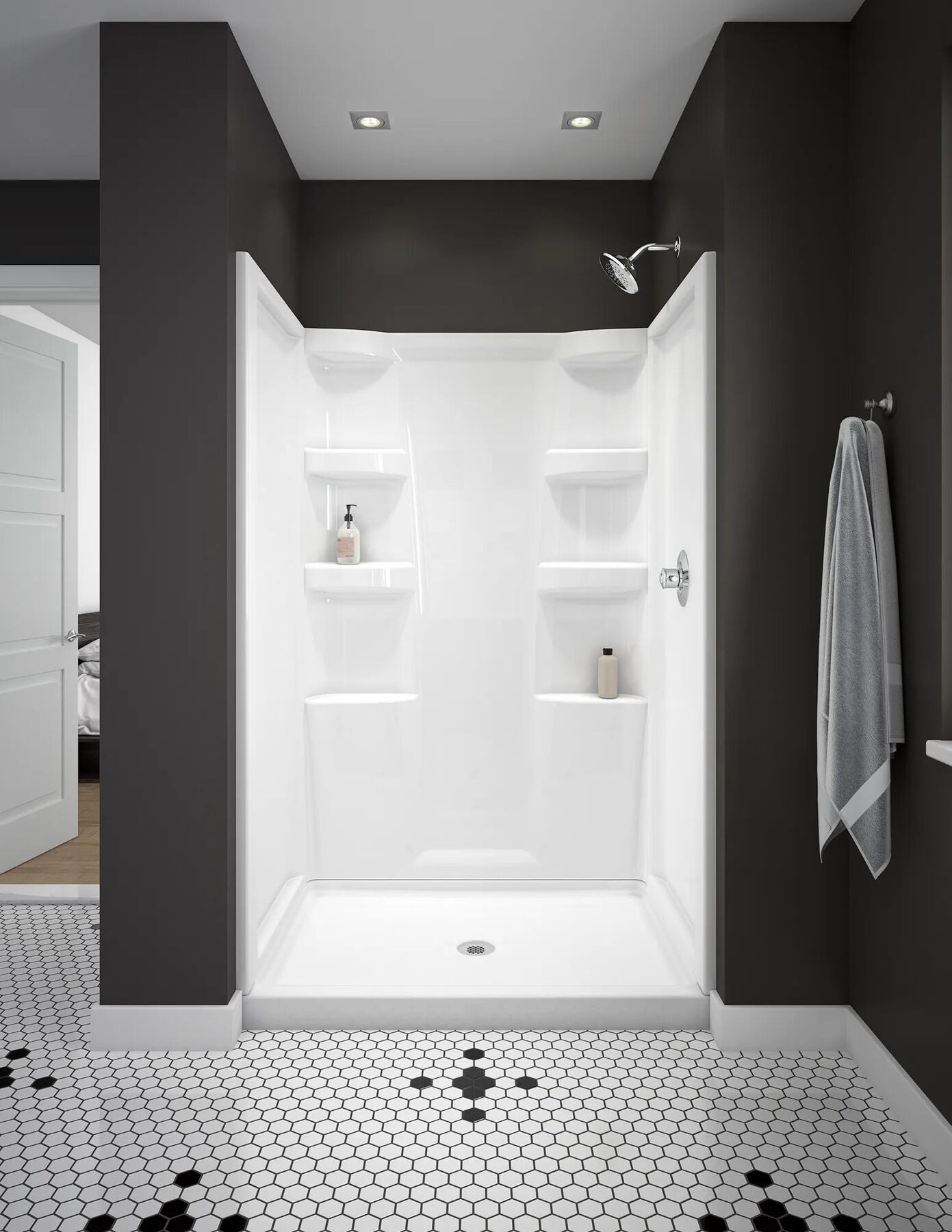

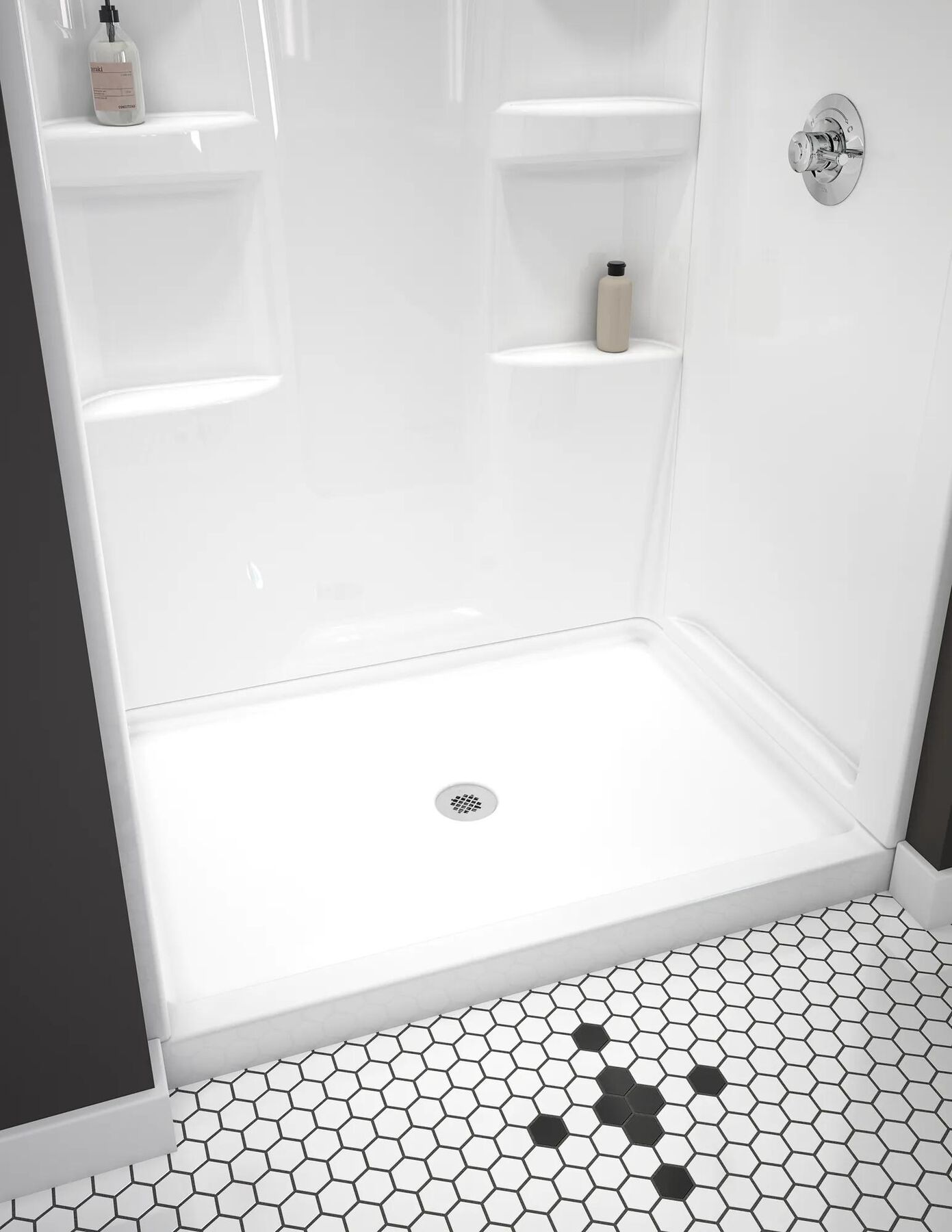

ProCrylic 48 in. x 34 in. Shower Base Center Drain
Model#: B78513-4834-WH
ProCrylic 48 in. x 34 in. Shower Base Center Drain
ProCrylic 48 in. x 34 in. Shower Base Center Drain
ProCrylic 48 in. x 34 in. Shower Base Center Drain
ProCrylic 48 in. x 34 in. Shower Base Center Drain
Hycroft™
ProCrylic 48 in. x 34 in. Shower Base Center Drain
Model#: B78513-4834-WH
Finish: White
List Price*: $191.35
PRODUCT FEATURES
Engineered for style, design and durability, Delta ProCrylic® Material helps you create a high gloss acrylic look that lasts in your bath. Each bath and shower is fashioned with a sleek, refined look that feels at home with any décor. Mildew-resistant and easy to clean, Delta bath products built from ProCrylic® Material are as easy to maintain as they are to install for a cost-effective bath that’s simply beautiful.
  • Long-lasting beauty for your bath
  • Style, design, and durability
  • Durable, bright-white, high-gloss material
  • Easy to handle and install, with no fiberglass backing
  • Built-in, reinforced base for simplified installation
  • Helps save money, with no mortar base required in standard installation*
  • *May be required in cases of extremely uneven installation surfaces
  • Direct-to-stud installation for increased stability
  • 1-piece installation
  • Center drain
SUPPORT
Installation Information
Over All Height :
4-1/2
Connection Type :
NA
REVIEWS
Rated 1 out of 5 by from Do not buy I bought and installed the shower base to my level concrete floor. I dry fit it into place and heard some creaking in the base so I used adhesive to glue it down to the floor. I put weight on it and took it off 2 days later... still creaking. It turns out that the noise was coming from between the fiberglass and the foam base. I returned it to menards and then went over to the display and it made the same noise. Needless to say, I will be returning the surround tomorrow and buying from a different store.
Date published: 2018-09-08
  • y_2021, m_2, d_24, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_B78513-4834-WH, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
Q&A

Can you order a special drain location

Asked by: Dicki
Hi, Dicki! Thank you for your question. At this time, the Delta B78513-4834-WH Shower Base is only available with a center drain hole. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2020-02-27

i need specific info on what sealent and adhesive i can use. the paperwork that comes with the base and shower walls is very vague. What it is clear about is certain producs will damage the walls and foam base.

Asked by: kevin
Thank you for your question, kevin! We don’t recommend that you use silicone and acrylic latex sealant because of potential adhesion and shrinkage, which could lead to leaks. To get the best results, use an advanced kitchen and bath polymer sealant, such as: • DAP® 3.0™ Kitchen, Bath & Plumbing High Performance Sealant • Red Devil® RD3000™ Advanced Kitchen & Bath Sealant • ECO-BOND® Kitchen-Bath-Plumbing Adhesive and Sealant https://www.deltafaucet.com/design-innovation/inspiredliving/how-clean-your-acrylic-delta-shower-or-tub Best regards, Edward
Answered by: Delta Faucet
Date published: 2020-05-24

What adhesive should be used on the foam base for Delta model B78513-4834-WH?

Asked by: Mike12
Thank you for your question, Mike12! To get the best results, use an advanced kitchen and bath polymer sealant, such as: • DAP® 3.0™ Kitchen, Bath & Plumbing High Performance Sealant • Red Devil® RD3000™ Advanced Kitchen & Bath Sealant • ECO-BOND® Kitchen-Bath-Plumbing Adhesive and Sealant https://www.deltafaucet.com/design-innovation/inspiredliving/how-clean-your-acrylic-delta-shower-or-tub Best Regards, Benjamin
Answered by: Benjamin
Date published: 2020-03-30

Do you have a How To Installation video for this model? I saw some other How To Installation videos on your site, but I couldn't find one for this type of shower base. Thanks so much for your time!

Asked by: paulb
Hello Paulb, Thank you for your question. I will be happy to assist you. We do not have any "How to" video on installing model B78513-4834-WH (B78513-4834-WH). Please feel free to contact us for help with installation or if you have any questions or concerns. Best Regards, Camry
Answered by: Delta7
Date published: 2020-07-23

Is it necessary to apply adhesive to a level subfloor if base is screwed into studs?

Asked by: Bob26
Hello Bob26! Thank you for your question. I am happy to help. We do advise applying adhesive even if the subfloor is flat and level. Here is a link to the installation instructions: https://media.deltafaucet.com/MandI/104215%20Rev%20A.pdf Please see page 8 step 5. Best Regards, Antoine
Answered by: Delta7
Date published: 2021-01-25

what is the distance on the open end? does it have a secured underneath or do i need mortar?

Asked by: roll
Hello roll, Thank you for your question! I am happy to help you! I have attached the technical specifications for our Delta B78513-4834-WH, this will show the measurements of the base. Also if the subfloor is not flat and level, a mortar bed must be applied where the base will be positioned. If the subfloor is level then you would only need to apply adhesive, please see page 8 on the installation guide. https://media.deltafaucet.com/SpecSheet/DSP-B-B78513-4834-WH%20Rev%20C.pdf Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2021-01-20

According to the instructions, it says to leave pipe 1-3/4" above the subfloor. It appears that that is way too high. That brings the pipe above the inside of the shower by about 3/4". What are we doing wrong? We are using the Oatey #140 shower drain.

Asked by: Chris
Hello Chris, Thank you for contacting us, I would be happy to help you. We can only provide the instructions for the base, we ask the subfloor opening should be 5” in diameter. The drain pipe should extend 1-3/4” above the subfloor, then you would follow the instructions of your shower drain. Please contact us back if you have any questions or need further assistance.  Best Regards,  Nicole
Answered by: Delta7
Date published: 2020-10-07

does this base have a lip on all 4 sides?

Asked by: roll
Hello Roll! Thank you for your question and we are happy to help! On the Delta B78513-4834-WH, there are flanges on three sides of the base. With any further questions or concerns, please do not hesitate to reach out to us directly. Best Regards, Carrie
Answered by: Delta7
Date published: 2021-01-18
