Windemere®

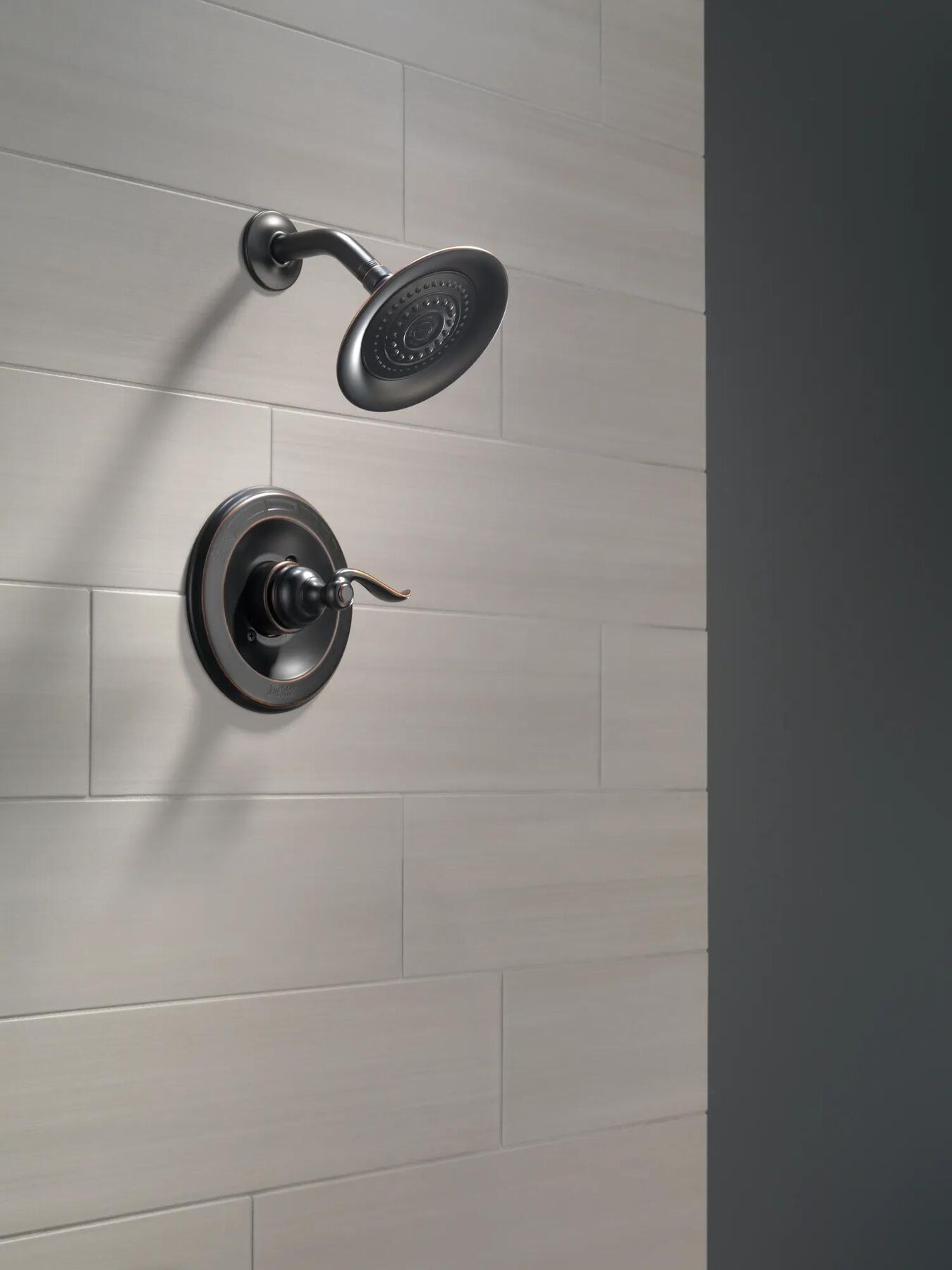

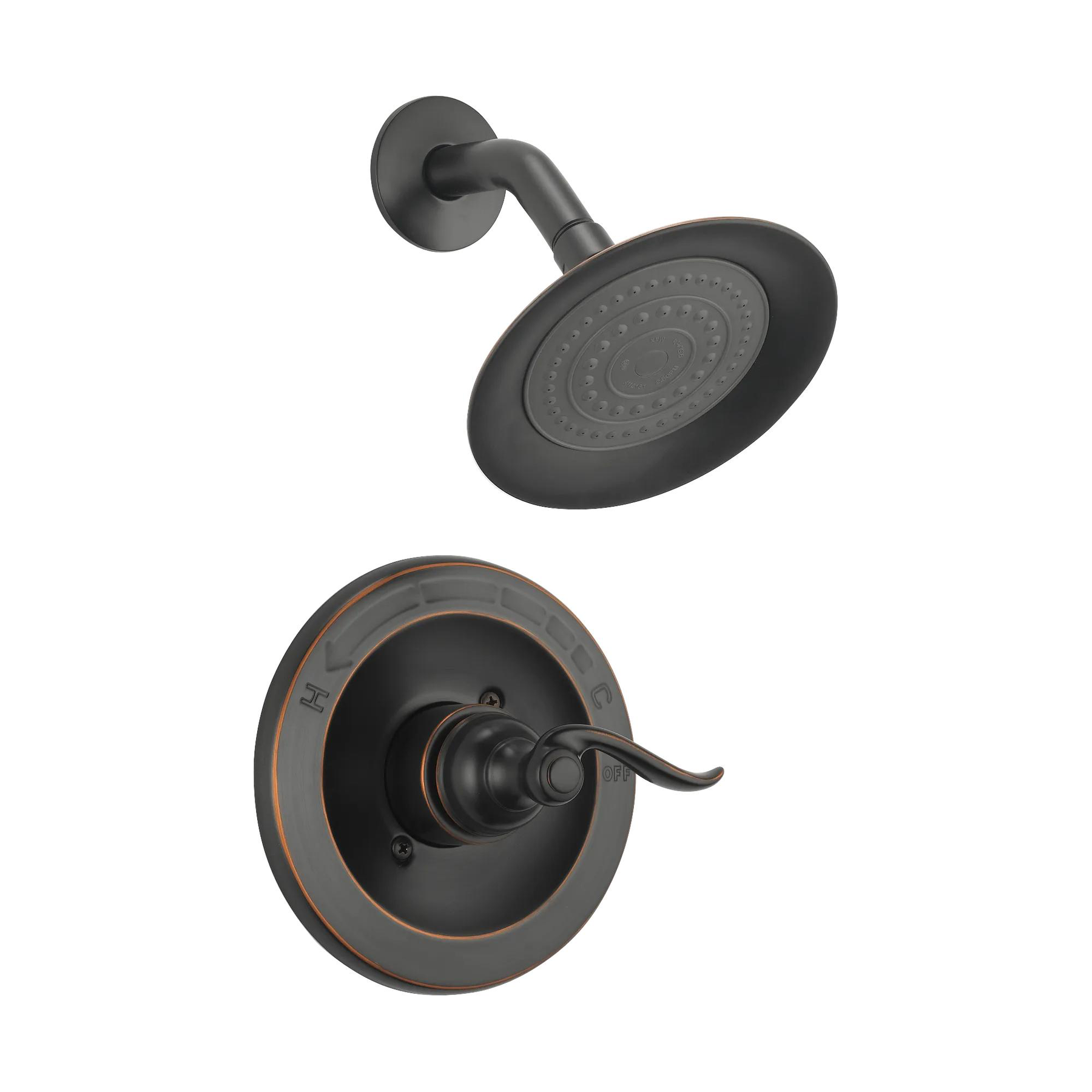

Monitor® 14 Series Shower Trim in Oil Rubbed Bronze
Model#:
BT14296-OB
PRODUCT FEATURES
Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Rustic Oil Rubbed Bronze brings old-warm charm to you space for an inviting, sophisticated look in a stunning combination of deep, warm tones and hand-relieved bronze highlights for a truly unique look. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
- Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
- Spray settings include: Full Body spray
- Full body spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles
- ADA Compliant
- WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Water-Efficient
Water-Efficient
CalgreenCert Tooltip information here...
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information

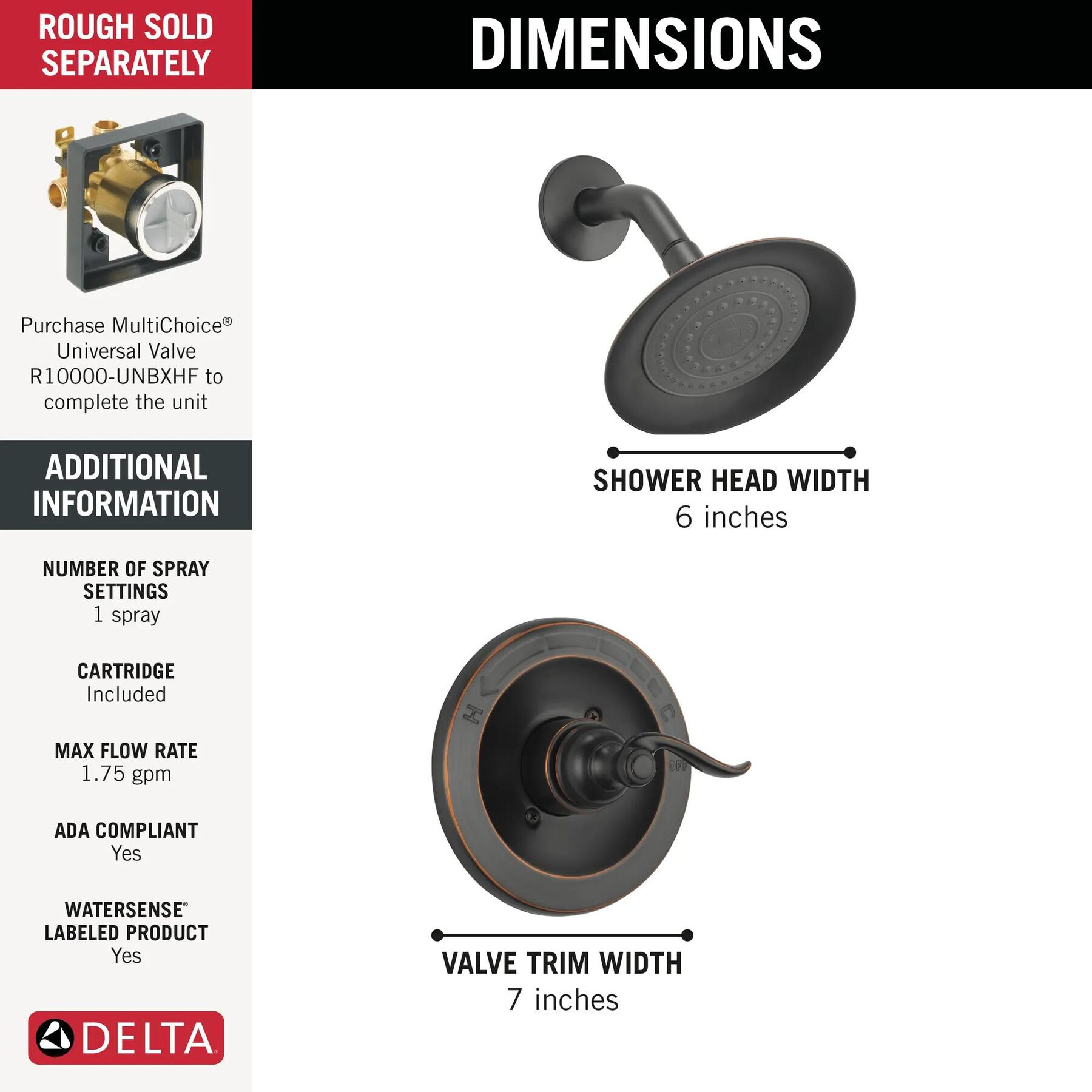

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa

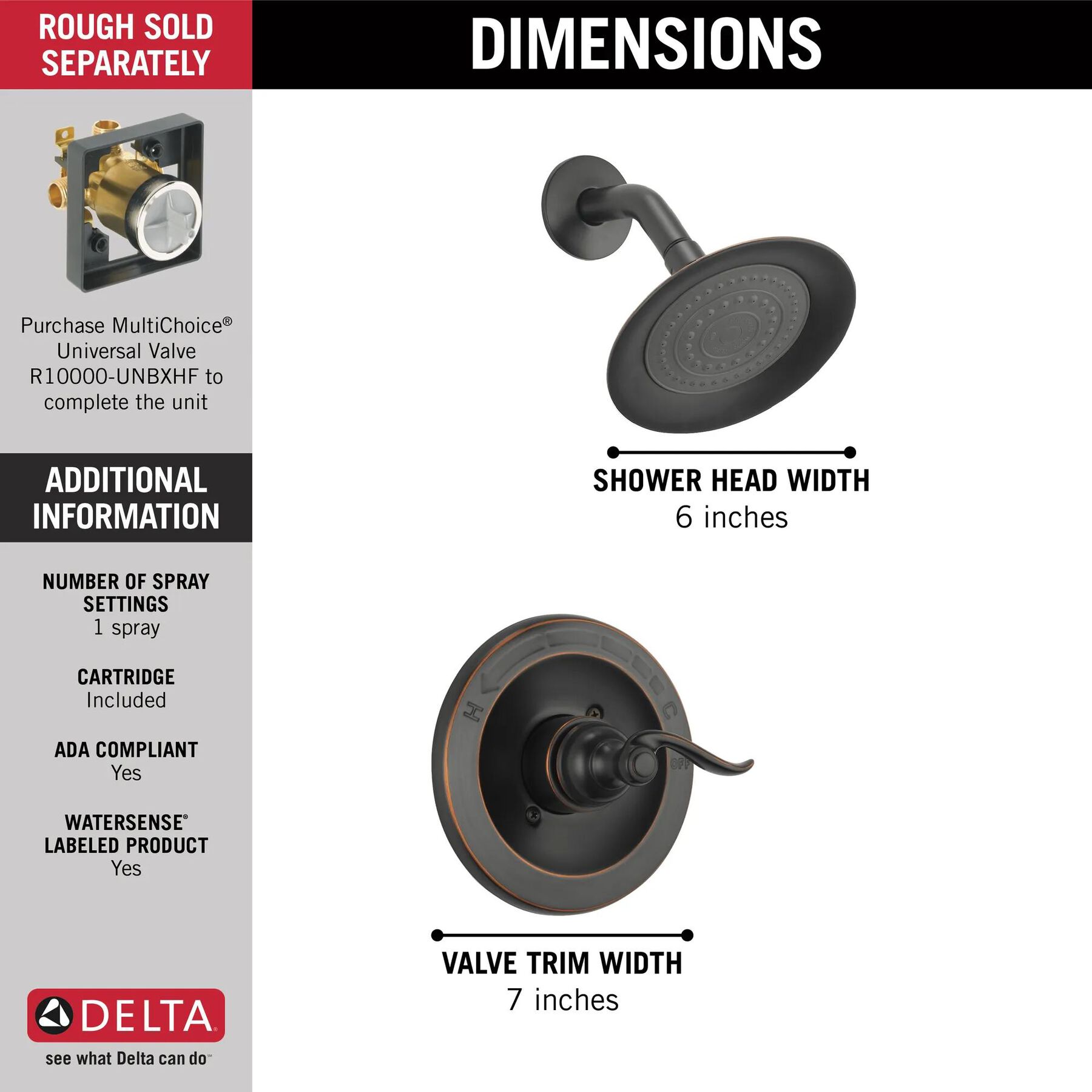

Overall Height (in.) :
9-1/2
Valve Type:
Single-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 1 out of
5
by
steve1000 from
Bad Design
The pressure cannot be adjusted, only the temperature, and the stream cannot be adjusted from soft to sharp, it is only very sharp.
Date published: 2023-10-28
Rated 5 out of
5
by
CAL from
Shower Head and regulator
Nice set - bought all Windemere - easy clean
Date published: 2022-10-26
Rated 2 out of
5
by
Pinkbelle15 from
Looks really nice but no shower pressure like we had before...
Just did a total bathroom remodel and added this to our shower...we have always had great water pressure but putting this shower head in was a downgrade...water trickles out and might look good but definitely a step down for us and wish we had read more of the reviews...I wouldn't choose to buy this again.
Date published: 2019-11-09
Rated 1 out of
5
by
LJBVA1 from
Great Look! BUT shower head drips!
We had these installed in our house when it was built. The guest bath always works great. The master bath however will NOT stop dripping from the shower head. Customer service has always been responsive but they keep sending the same springs and seals that never fix the problem!
Date published: 2019-06-13
Rated 5 out of
5
by
Charliek from
Good Trim
I have used the Windermere trim before and liked it so I’m putting 5 more in my new lake house!
Date published: 2018-08-03
Rated 5 out of
5
by
VaVa from
Great fixtures
[This review was collected as part of a promotion.] I just love the way they look . Plenty water flows through and was easy to install. So everyone out there buy this one!!!!
Date published: 2016-12-23
Rated 5 out of
5
by
kelly628 from
great product. the shower head provides great coverage.
once again installed this product in my new home. previous experience was excellent.
Date published: 2016-08-12
Rated 2 out of
5
by
JaneS from
the product consistently drains water after the shower is turned off.
The plumber was called twice to check the leaking shower head. He said it was a fault with the manufacture design of the shower. The water continues to drain out after the shower is cut off. The plumber said he has had several complaints with this make of shower heads.
Date published: 2016-05-09
Q&A
Do you offer a cross-handle knob that works with this trim kit?
I have BT14296-OB 1400 SERIES TRIM ONLY SHOWER ONLY WITH CARTRIDGE that includes a lever-type handle. Would rather have a cross-handle to match our sink faucet handles. Also plan to install magnetic hand shower 58471 or 58472. Installation by professional plumber. How/where do I purchase these parts?
Dear Katherine,
Thank you for your inquiry. The H795RB would be the Cross Style Handle to use, for your Delta Windemere BT14296-OB shower trim kit.
Best regards,
Tanya
Date published: 2016-10-22
Looking for more accessories.
I like this line, but I am looking for more accessories. For my shower I am looking for a hand shower, body jets, 3 way divereter valve, and a drain set. For the tub, I am looking for a hand shower, and a drain set.
Thank you for your questions. At this time, Delta Faucet model # BT14296-OB does not offer any other products for the bathroom other than lavatory and shower faucets.
Date published: 2024-03-28
Doe the head tilt side-to-side, up-down, for best placement?
Thank you for your question.
The shower head should pivot from side to side as well as up and down approximately 30 degrees.
Best regards, Edward
Date published: 2017-08-11
The shower is dripping and I’m assuming needs a new cartridge after 8 years. How do I remove the handle?
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-05-01
How do you increase the water pressure?
Hello Carlos,
Thank you for your inquiry! The Delta Windemere Shower BT14296-SS faucet is not designed with an increasing/decreasing pressure adjustment. We would advised making sure the stops (if you have them) are fully open and flushing the valve out, if you are getting low pressure.
https://www.deltafaucet.com/video-gallery/video-page?videoId=aHDE586LwYk
Best regards,
Tanya
Date published: 2024-03-28
Can you preset temperature
Hi Bill,
Thank you for your question. This faucet has only one handle that turns from off to cold to hot, so you will need to adjust temperature each time you turn it on. However, turning the handle to the same position should give you about the same temperature each time.
Best regards,
Jon
Date published: 2017-07-13
Current valve is a two handle system, will this work?
I am doing a remodel. My current valve is a two handle operaration, one to turn on shower and the other for hot and cold. Delta shower and value approx 14 years old. I have attached pic. Will i need a new rough in valve for it to work, or is their an adapter piece on trim? I really can't do a rough in, as i am keeping existing shower enclosure. Unless their is a way to access it, when i remove existing valve cover. If not is their another two handle valve system with a similar style to Windermere that would work? We want it to match, best we can. Already have installed sink faucets in windmere.
Hi Mark,
Thank you for your question. Unfortunately, this trim will not work with your existing 1700 series shower valve. However, you can use any Monitor 17 series trim using the original valve and cartridge (RP32104).
https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets?facetFinish=stainless&ValveType=Dual-function+pressure+balance+cartridge
Best regards,
Jon
Date published: 2017-06-19
Any adapter to update the cartridge to newer version
I want to use this to update the trim on my Monitor shower valve. Even though the house was built in 2008, I'm assuming my existing valve has the older cartridge since it is white colored. Any way to adapt to use the new cartridge included with the kit? I have seen some adapter mentioned to update to a 17 series.
Hi Pdoc11,
Thank you for your question! This shower trim will work with existing 13/1400 series showers. However, you will need to use the existing cartridge. The cartridge that comes with the trim kit will not work with pre-MultiChoice (2006 - present) valves.
Thanks,
Jon
Date published: 2024-03-28
Do you sell trim kit for diverter valve? And do you sell hand held shower with cradle holder for the Delta Windemere Bt14296 series?
Thank you for your question, Heidi! While we do manufacture several hand showers and diverter trims, we do not manufacture any in the Windemere collection. I have included some links that shows some hand showers and diverter trims we currently manufacture.
https://www.deltafaucet.com/bathroom/showering/showerheads--handshowers?searchFilter=true
https://www.deltafaucet.com/bathroom/showering/shower-components
Best Regards, Benjamin
Date published: 2024-03-28
How do I determine which series of Delta Monitor I have? It is chrome finish, clear acrylic handle, separate red/blue/black temperature control, ridged escutcheon.
Hi Valued Customer,
Thank you for your question.
That sounds like our 1500 series.
Please feel free to contact us directly for technical or warranty information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Date published: 2026-01-10
Hello, I have a Windemere® Monitor® 14 Series Shower Trim In Oil Rubbed Bronze MODEL#: BT14296-OB that is leaking from the shower head. Is there any parts that I should change to prevented from leaking. Thank you,
Hi shirleyfjrd,
Thank you for contacting Peerless Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you.
If the Delta Faucet Windemere® Monitor® 14 Series Shower Trim In Oil Rubbed Bronze MODEL#: BT14296-OB is leaking when off, we recommend a flush, debris can cause the cartridge to not seal properly. Please see the flushing instructions below, if this does not work then we recommend a cartridge replacement.
1) Remove the handle by loosening the set screw on the side of the base of the handle. The set screw is either a 1/8" or 3/32" Allen screw. So you will need to use the appropriate size Allen wrench to loosen it. Loosen it just enough to be able to easily pull the handle off. * Note. If there is calcium build-up at the base of the handle, it may be necessary to soak it in a 50/50 solution of vinegar and water. Simply saturate the rag with the 50/50 solution, wrap it around the handle base and place a plastic bag over it. I would recommend do this the night before removing the handle.
2) After removing the handle, remove the trim sleeve.
3) Then you will need to remove the bonnet nut. The bonnet nut is the threaded ring at the valve opening. It unscrews counterclockwise. You will need a pipe wrench or a pair of channel locks.
4) After removing the bonnet nut, you will need to pull the cartridge straight out. You may need a small, skinny bladed screwdriver to wedge in between the lip of the cartridge and the valve to help start it out.
5) Once the cartridge is removed, you will have an open valve body.
6) Next, shut the shower door or curtain and turn the water on to the valve. Water should gush out, much like an open fire hydrant. Have someone observe if there is good water pressure coming out of the valve and let it flush for 30 seconds.
7) Re-install the cartridge and re-assemble in reverse of how it was disassembled.
Thank you for being a loyal Peerless Faucet customer. We appreciate your business and look forward to continuing to serve you. Please contact us back with any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
Dimensions of the base plate
Will this kit replace a Delta Monitor 1700 series faucet without changing the valve?
Hello DonH,
Thank you for your question! I will be happy to assist.
Model BT14296-OB will fit with any 14 series, unless if you have the universal valve body already. (R10000-UNBX)
Please contact us directly so we can assist you further with this matter.
Best Regards,
Kyra
Date published: 2024-03-28
I just purchased this model which was delivered on January 2 from Amazon. I installed it last night; however, this morning, I have a slight leak from the shower head. I believe I may have gotten faulty cartridge in the one that I installed.
Hi Patrick,
Thank you for your question regarding our Delta Faucet BT14296-OB.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2024-01-31
Where can i get replacement parts for the handle and inside the handle?
Hi Lori b thank you for your interest in the BT14296-OB!
We are happy to assist you!
We have reached out to you directly via email in regard to this matter.
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Themar
Digital Communications Specialist
Date published: 2024-03-28
I want more pressure from this shower head, how is this possible? My other shower was way better that this one before I replaced it
Hello, Katie McGovern!
Thank you for contacting us at Delta Faucet! I apologize for this information not being available to you but I will be happy to help!
The showerhead for this Delta Faucet BT14296-OB Windemere® Monitor® 14 Series Shower Trim In Oil Rubbed Bronze provides a flow rate of 1.75gpm at 80 psi. This is a Water a WaterSense labeled product and uses at least 20% less water than the industry standard—saving you money without compromising performance. Unfortunately, there is no way to increase the pressure. We apologize for any inconvenience this may have caused.
Please contact us directly if further assistance is needed at this time.
We appreciate your loyalty to Delta Faucet Company.
Best Regards,
Tim
Date published: 2024-03-28
How do I remove the handle to replace part RP4993 I have loosened the screw all the way it will come out but this doesn't let the handle come off.
Hello Gerald,
Thank you for your question about your Delta Faucet WINDEMERE® Monitor® 14 Series Shower Trim In Chrome MODEL#: BT14296. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
We have reached out to you directly via email in regards to this matter.
We look forward to better serving you in the future. Please contact us directly with any further questions.
Best Regards,
Themar
Digital Engagement Specialist
Date published: 2024-03-28
To clarify from my first question. The screw inside the handle will not come out all the way. it unscrews some but not to where the handle will come off. All I need is how to get the handle off to replace part RP7993 a couple of springs with washers.
Hi Jerry,
Thank you for your question about the Delta Faucet model BT14296-OB Windemere® 14 Series Shower Trim In Oil Rubbed Bronze. I am sorry this information was not readily available, and I am happy to help!
The handle is removed by first removing the cap on the end of the handle, then unscrewing the Philips head screw that attaches the handle to the cartridge. I recommend soaking the area with 50/50 white vinegar and water, then rinsing, to remove any buildup of mineral deposits. See here for more information:
https://support.deltafaucet.com/s/article/Removing-stuck-handle-set-screw
Please contact us directly if you have any questions or need additional assistance. We appreciate your business and look forward to continuing to serve you!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-03-28
What size set screw for the handle.of Model#: BT14296-OB. I need a replacement set screw
Hi Valued Customer,
Thank you for your question regarding our Delta Faucet.
The handle screw is size #10-24 so the diameter would be 0.190".
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2024-12-17
Screw will not unscrew from handel need to adjustment to balance hot water
Thank you for your question Longbeard14. Sorry that you are having difficulty removing the handle. The handle is held on by a Philips head screw underneath the cover cap. If there are water deposits making the screw difficult to remove, we recommend soaking in 50/50 white vinegar and warm water.
Please contact us directly if you need further assistance. We are happy to help.
Best regards, Bryan
Date published: 2024-03-28
What is the correct replacement cartridge number for the model BT14296 shower handle?
Does the cartridge that comes with the Windemere 1400 shower trim have pressure balancing feature?
Hello Jeff K,
Thank you for your question. We are happy to help!
The Delta Faucet BT14296-SS shower trim includes the RP46074 pressure balance cartridge.
Best regards,
Bryan
Date published: 2024-03-28
I have a drip from the spout, I have the diverter type. How do I know what part to replace?
Hi Valued Customer,
Thank you for your question regarding our Delta Faucet BT14296-SS. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2024-10-29
What is the diameter of the set screw under the button?
Hi Ronnie,
Thank you for your question about the Delta Faucet model BT14296.
The handle screw is size #10-24 so the diameter would be 0.190".
Please contact us directly if you have any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-03-28
I have an old Delta 1400 series shower assembly. I want to replace with a compatible Delta shower kit. Can the BT14296 shower kit work? I need a new cartridge for our existing Delta 1400 series, as well. Do I need to order a different cartridge?
Hello Customer!
Thank you for your question and we are happy to help. The Delta BT14296 is a 1400 series. You would order the same cartridge. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2024-05-20
How does the hand nozzle come off to replace the cartridge? I don’t see a screw or anything.
Hi Jonathan,
Thanks so much for contacting Delta Faucet Company!
The front of the lever has a cap that can be removed to reveal a screw beneath it. Please see the following parts diagram for more information:
https://media.deltafaucet.com/PartsDiagram/DPD-B-BT14096_A.pdf
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-03-28
What is the part number for the valve for a Windemere BT14296 shower faucet?
Hi Tom W,
Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you.
Our Delta Faucet Windemere® Monitor® 14 Series Shower Trim In Chrome MODEL#: BT14296 will allow for the R10000-UNBX rough end valve to be used.
Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you. Please contact us back with any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
PART LIST
PART LIST
View Product
![Image-Master-RP64722]()
Foundations®
Foundations® Tub Spout - Non-Diverter
List Price:
$75.60
-
$111.30
Free Ground Shipping All Orders $49+
RP64722
View Product
![Image-RP46074]()
![Secondary Image-RP46074]()
Delta®
Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series
List Price:
$118.35
Online Price:
$94.68
Free Ground Shipping All Orders $49+
RP46074
2.20
108
View Product
![Image-Master-RP6025PR]()
Delta®
Delta® Flange - Shower
List Price:
$23.10
-
$36.90
Free Ground Shipping All Orders $49+
RP6025PR
View Product
![Image-Master-RP64721]()
Foundations®
Foundations® Tub Spout - Pull-Up Diverter
List Price:
$71.25
-
$121.30
Free Ground Shipping All Orders $49+
RP64721
View Product
![Image-Master-RP61184]()
Delta®
Delta® Escutcheon
List Price:
$41.90
-
$130.60
Free Ground Shipping All Orders $49+
RP61184
View Product
![Image-RP14414]()
Delta®
Delta® O-Rings (2) - 13 / 14 Series
List Price:
$4.60
Online Price:
$3.68
Free Ground Shipping All Orders $49+
RP14414
5.00
2
View Product
![Image-RP23336]()
Delta®
Delta® O-Ring - Large - All Monitor® Series
List Price:
$7.70
Online Price:
$6.16
Free Ground Shipping All Orders $49+
RP23336
5.00
5
View Product
![Image-Master-RP6023]()
Delta®
Delta® Shower Arm
List Price:
$43.65
-
$109.60
Free Ground Shipping All Orders $49+
RP6023
View Product
![Image-RP29569]()
Delta®
Delta® Spacer
List Price:
$4.90
Online Price:
$3.92
Free Ground Shipping All Orders $49+
RP29569
5.00
1
BUNDLES FEATURING THIS PRODUCT
View Product
![Image-Master-FVS14296]()
Only at Online Retailers
Windemere®
Windemere® Shower Trim Bundles
List Price:
$233.65
-
$341.55
Standard Finishes
FVS14296
View Product
![Image-Master-FVS259601-OB]()
Only at Online Retailers
DELTA
DELTA Oil Rubbed Bronze Bundle Kit
List Price:
$609.00
Standard Finishes
FVS259601-OB
View Product
![Image-Master-FVS359601-OB]()
Only at Online Retailers
Windemere®
Windemere® Oil Rubbed Bronze Bundle Kit
List Price:
$759.85
Standard Finishes
FVS359601-OB
Delta Online Pricing
This online price is exclusive to DeltaFaucet.com. The list price may be shown on products offered outside of the Outlet section on DeltaFaucet.com. Strikethrough pricing may be used to show discounts.
