Delta®

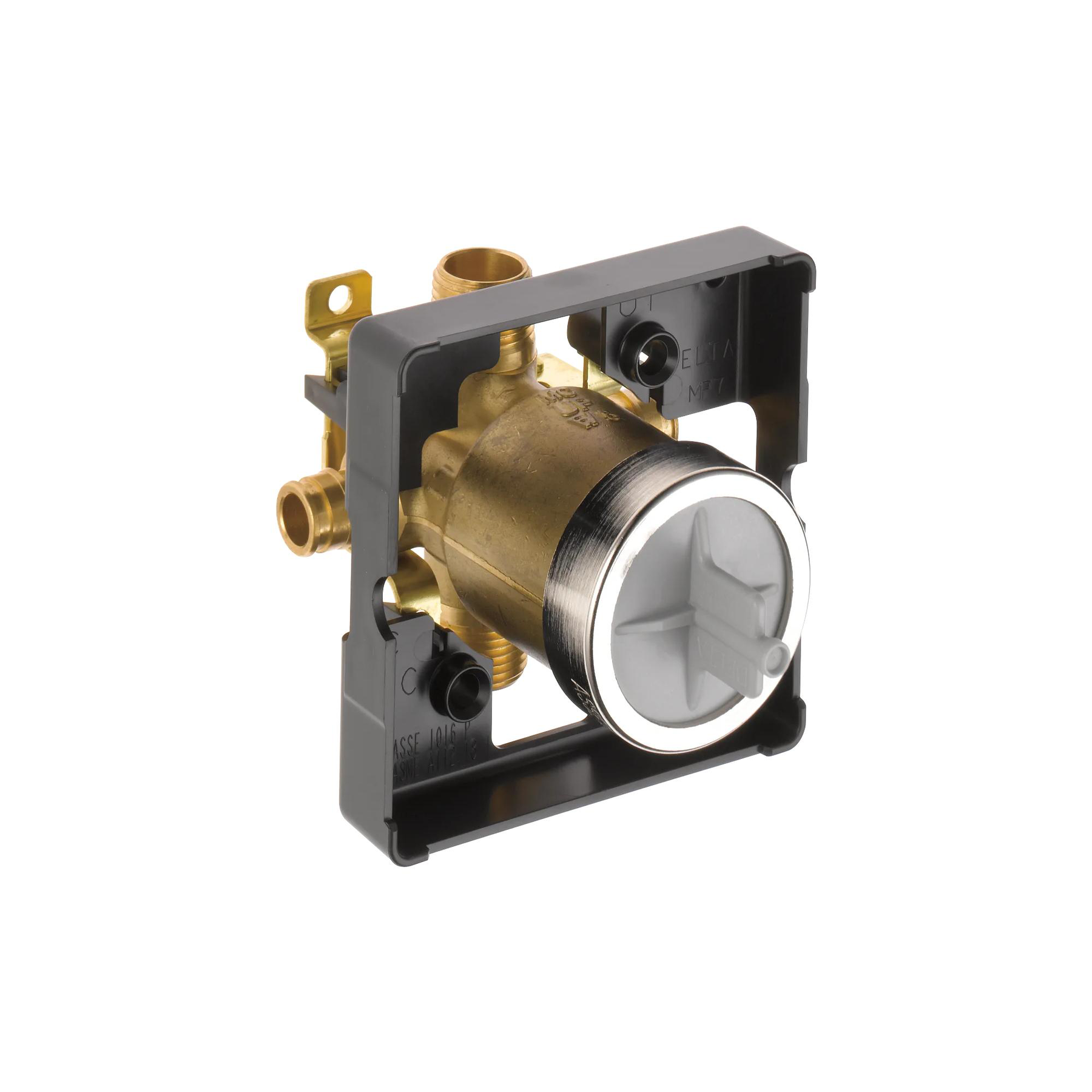

MultiChoice® Universal Tub / Shower Rough - PEX Cold Expansion
Model#: R10000-MF
MultiChoice® Universal Tub / Shower Rough - PEX Cold Expansion
Delta®
MultiChoice® Universal Tub / Shower Rough - PEX Cold Expansion
Model#: R10000-MF

Finish:Not Applicable

List Price*: $62.40
PRODUCT FEATURES
  • MultiChoice® Universal valve body only
  • Accepts single, dual, or dual thermostatic cartridge
  • Cartridge ships with trim
  • Back-to-back capability
  • Model must be ordered in full case quantity of 12
California Prop 65 WARNING
SUPPORT
Installation Information

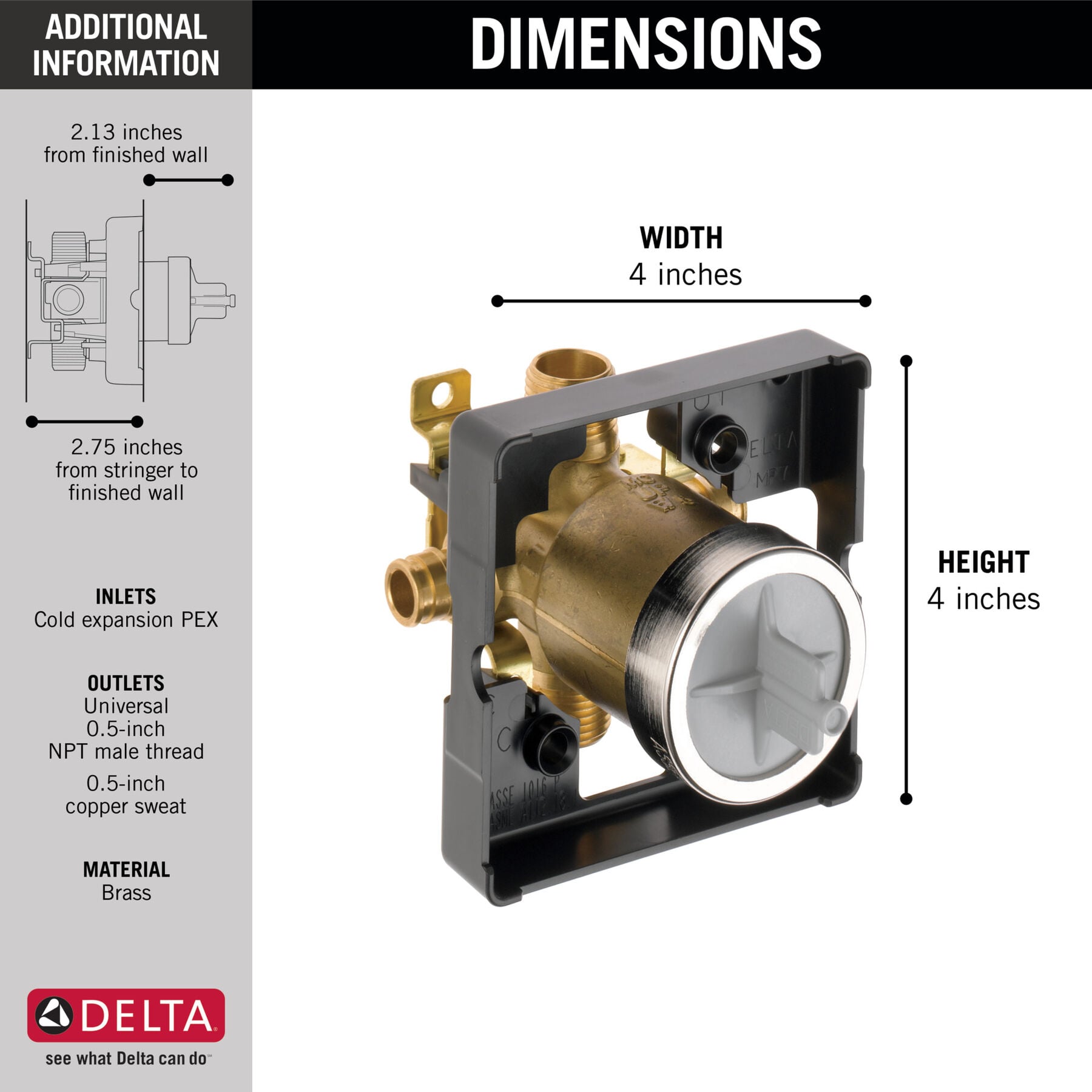

Over All Height :
4
Connection Type :
Universal fittings
PART LIST
REVIEWS
Rated 5 out of 5 by from Shower Valve Works well, easy install.
Date published: 2021-01-26
Rated 5 out of 5 by from Shower mixing valve Very heavy duty. Excellent
Date published: 2021-01-15
Rated 5 out of 5 by from Very good product Smooth operation, nice look
Date published: 2021-01-10
Rated 5 out of 5 by from Great valve that was needed for the shower head Great rough in valve that works great with the new shower head
Date published: 2020-12-24
Rated 5 out of 5 by from Good Valve! Excellent Valve! no Sweat and super easy to mount!!!!
Date published: 2020-11-30
Rated 5 out of 5 by from Worked Perfect fit by my plumber.
Date published: 2020-10-24
Rated 5 out of 5 by from did the job! did the job! my contractors were thrilled that I purchased this too. it's always good to have in case (for condo owners) who don't know which valve is in the current setup. This is compatible with the contemporary shower hardware sets I purchased.
Date published: 2020-10-14
Rated 5 out of 5 by from Simple, easy to install. Simple to install. Compatible with PET or Copper.
Date published: 2020-08-31
  • y_2021, m_3, d_6, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_173
  • loc_en_US, sid_R10000-MF, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

I bought this valve and is it possible to run to the shower and than run the tub spout to a rain head? And then on top of that is there trim kit that can run both at the same time, one at a time? Or do I have to buy a diverter valve?

Asked by: tyler
Thank you for your question, Tyler. You would need an R11000 diverter valve and a 3-setting trim kit in order to divert between a shower head and rain can shower head. The R11000 valve will be connected to the top port of the R10000. Best regards, Jon
Answered by: Delta Faucet
Date published: 2019-05-17

What is the difference between this model with PEX Cold Expansion R10000-MF and the PEX Crimp R10000-PX? Is the insert barb bigger in the former than the latter to accommodate the stretched PEX during installation? Thanks.

Asked by: David
Thank you for your question, David! The difference on these models is solely in the connection for the Inlets in regards to the type being used. Both will feature universal 1/2" connections, however the R1000-PX will have slightly tapered inlets for easier installation. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2018-10-07

i installed two of these rough in valves into my walk in shower. I teed the hots and colds together from original. I don't have a valve yet but plugged the shower head. i noticed that the valve itself is very hot to the touch with no H2O moving through

Asked by: Doug
Hi, Doug. Thank you for your question. The R10000-MF is a solid brass valve body. Any type of connection around the valve body in your wall that gets hot will make the valve body hot. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-02-02

What is the difference between a "box" model and the other roughin valves? Also, what is the difference between a high flow model and non high flow rough in showervalve?

Asked by: Aaron
Hello Aaron, Thank you for your question. The Delta MultiChoice Universal Rough-In "box" model rough-in valves are single model units and non-box models comes as bulk/case of units. The difference between the High Flow and non high flow valves is that there (non high flow valve) a bottom port for a tub spout installation and the R10000-UNBXHF valve does not include a bottom port for a tub spout installation. The high flow valve are designed for shower only installation. Best regards, Tanya
Answered by: Tanya
Date published: 2018-08-11

What size PEX pipe is needed for the R10000-PXWS inlet connections?

For the MULTICHOICE® UNIVERSAL ROUGH VALVE BODY - R10000-PXWS What size PEX pipe is needed for the inlet connections?
Asked by: Brent
Thank you for your question. The R10000-MF has 1/2" PEX cold expansion connections and 1/2" universal outlets with male threads. The R10000-PXWS has 1/2" PEX Crimp connections and 1/2" universal outlets with male threads. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2017-10-08

Pex inlet flow restriction...?

The inner dimension of the PEX inlets on these vale bodies are considerably smaller than any 1/2" cold expansion fitting I've seen (picture attached for reference). After referencing different pictures of these cold expansion PEX valve bodies, some versions show larger inner diameters on the inlets, while some are smaller. My questions/concerns: Wouldn't these inlets with a smaller ID restrict water flow? Can you please provide the actual Flow/GPM of this specific valve body with these small inlets? Are the inner diameters of the PEX inlets different between the WS and non-WS versions? Thank You
Asked by: Grizzle
Grizzle, Thank you for your question! There is no difference in inlet diameter between MF and MFWS or any other with and without stops roughs. The difference in the inlets between PEX (MF, PX) and other valve types (UN, IP, etc.) will not produce a noticeable change in the flow rate as the waterways through the cartridge are more restrictive. The cartridge determines the flow rate, so the maximum flow rate will be determined by the series of trim that you use. Here are the approximate flow rates for each series at 60 PSI: 14 series - 5.8 GPM 17 series - 5.9 GPM 17T series - 7.3 GPM Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2019-05-18

Not completely understanding the different pex type of barb fittings, would the R1000-MF or the R1000-PX be the correct choice if my plumbing contractor uses Upinor Propex fittings for his installations? Is there a tech. sheet for fitting profiles?

Asked by: Captain T
Thank you for your question, Captain T! Both the R10000-MF (1/2" PEX cold expansion connections) and the R10000-PX (1/2" PEX Crimp connections) have 1/2" universal outlets with male threads. The difference on these models is solely in the connection for the Inlets. Both will feature universal 1/2" connections, however the R1000-PX will have slightly tapered inlets for easier installation. This would be up to the contractor to decide what methods best suit the installation needs. https://media.deltafaucet.com/MandI/50353%20Rev%20J.pdf https://media.deltafaucet.com/SpecSheet/DSP-B-R10000%20Rev%20J.pdf Best regards, Edward
Answered by: Delta Faucet
Date published: 2019-02-26

What is the flow rate of the R10000-MFWS as compared to the R10000-UNWSHF?

Asked by: fred
Hi Fred, Thank you for your question! Here is the flow rate comparison information.Regular R10000 (60PSI ) (80PSI) R10000-HF(60PSI) (80PSI) 13/14 6.3gpm 7.3gpm 7.3gpm 8.6gpm 17 5.6 gpm 6.4gpm 6.7gpm 7.8gpm 17T 7.0 gpm 8.0gpm 9.4gpm 10.7gpm Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2017-12-10
