Delta®

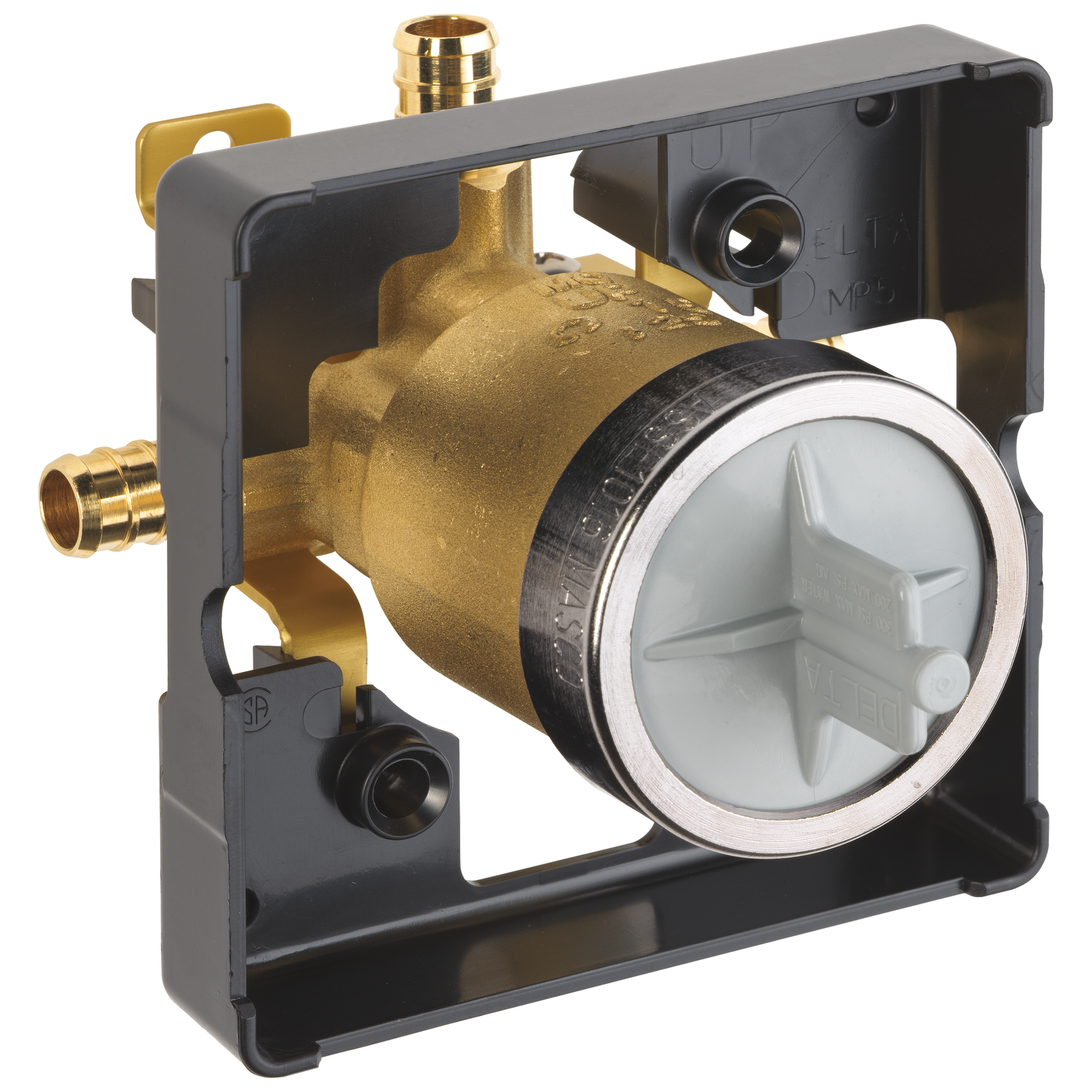

MultiChoice® Universal Shower Rough - Prefab PEX Crimp

Model#: R10000-PFS-PX
Add to Favorites
Find local Delta® installers.
Delta®
MultiChoice® Universal Shower Rough - Prefab PEX Crimp
Model#: R10000-PFS-PX
List Price: $9985
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
  • MultiChoice® Universal valve body only
  • Accepts single, dual, or dual thermostatic cartridge
  • Cartridge ships with trim
  • Back-to-back capability
  • Features blocked tub port & PEX shower riser
  • Model must be ordered in full case quantity of 12
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Connection Type :
1/2" PEX Crimp
Overall Height (in.) :
4
Valve Type:
Valve body only

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Great Delta valve body These Delta valve bodies work great and I especially like the integrated water shut off valves so you can turn the water back on during the rough in stage and finish the installation of the trim at a later time
Date published: 2026-03-06
Rated 5 out of 5 by from Great Great company, good products and quick response.
Date published: 2026-02-07
Rated 4 out of 5 by from Delta mounting bracket I really like the Delta Valve vs others. The one thing you can change is to improve upon is to make a sturdier mounting bracket
Date published: 2025-12-27
Rated 5 out of 5 by from Very helpful! Not sure why it was so hard to find the pex version of the Delta shower rough in, but they were super helpful and figured out what I needed.
Date published: 2025-12-08
Rated 5 out of 5 by from More efficient install than the standard R10000 [This review was collected as part of a promotion.] Installs like the standard R10000 and the stops make it much more efficient because you only have to turn the water off one time. Would love to see the R22000 with stops too.
Date published: 2025-11-15
Rated 5 out of 5 by from Best Valve [This review was collected as part of a promotion.] Hands down the best valve on the market.
Date published: 2025-10-10
Rated 5 out of 5 by from Great product Everything works and fit as it should.
Date published: 2025-09-13
Rated 5 out of 5 by from The service stops allows you to install in a condo situation so you can isolate work on the shower without turning off the entire condo complex. Some of the complexes we work on don't have individual unit shut off valves. Pex crimp valve saves you from purchasing transition fittings
Date published: 2025-09-12
  • y_2026, m_6, d_10, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_25
  • loc_en_US, sid_R10000-PFS-PX, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
Q&A

What cartridge assembly should I use to complete my assembly.

Asked by: Chef
Hi Chef, Thank you for your question! The cartridge will be included with the trim kit that you purchase to go with this valve. Each series (13/14, 17, and 17T) uses a different cartridge. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

What is the PEX size of the outlet port of the R10000-PFS-PX? I have a Universal R10000 and am debating between using 1/2" or 3/4" PEX to the R11000 diverter. I will block the port to the tub as this is a shower head and handheld only application.

Asked by: Kate Bee
Thank you for your question, Kate Bee! The model R10000-PFS-PX has 1/2" PEX connections. Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

Hello, if I am looking at the print correctly... the plastergaurd is supposed to be flush to the finish wall with the wall being cut and butted up tight to the guard? Did some internet research and this question has come up in a lot of forums..

Asked by: Ferny B
Hi, Ferny B! Thank you for your question. The plasterguard is more of a template. The plasterguard does not have to be butted up tightly flushed to the wall. The recommendation that the plasterguard must be flush with the finished wall is in regards to the measurement of the valve body to the finished wall, which should be 2 3/4" (+/- 1/4"). Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

How do I adjust the 120 degree temp on the multi choice universal valve

Asked by: BillDoc
BillDoc, Thank you for your question! 120 degrees is the maximum temperature setting that we recommend for your water heater. The trim kit will have a Rotational Limit Sop that can be adjusted to set the maximum temperature of the water (at or below the temperature of the incoming hot water supply). Please see our How-To video for adjusting the stop: https://www.deltafaucet.com/video-gallery/video-page?videoId=n2_uZ7wgV1I Hope this helps! Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Do they make a high flow pex r10000 or do I need to adapt the high flow options that are available. I’m looking to go from the r10000 to a r11000 diverter and have a shower head, two side jets and a hand held shower.  Also does 1/2 pex have enough flow

Asked by: Ryan
Thank you for your question, Ryan. Unfortunately, we dot currently offer a High-Flow (HF) version of the R10000 that comes with PEX fittings. However, you can adapt either the R10000-UNBXHF or R10000-UNWSHF for 1/2" PEX. This should not reduce maximum flow rate from the valve as this is primarily determined by the water pressure in the home. Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

What cartridge do I use with Delta R10000-Pfs-Px 0.5 ?

Asked by: TCN21
Hi TCN21, Thanks so much for contacting Delta Faucet Company! The MultiChoice® Universal Shower Rough MODEL#: R10000-PFS-PX accepts single, dual, or dual thermostatic cartridge. The cartridge will ship with the trim. Please reach out with further questions! Best Regards, Kelley Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-07-23

Is there a PEX crimp version of R11000? Or do I have to sweat in adapters? Thanks, Scott

Asked by: Scott
Hi Valued Customer, Thank you for your question. Unfortunately, we do not currently offer a version of the R10000-UNWSHF and R11000 that comes with PEX fittings. However, you can adapt the R10000-UNWSHF and the R11000 diverter valve for 1/2" PEX. Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time. Thank you for being a loyal Delta Faucet customer. Best Regards, Themar Digital Communications Specialist (800) 345-3358 customerservice@deltafaucet.com
Answered by: Themar
Date published: 2025-07-29

Is this valve compatible with you Classic 1-Handle Temperature Control Valve Trim Kit in Chrome, model # T13020? If not, what handle is compatible?

Asked by: Biff
Hi Biff, Thank you for your question about the Delta Faucet model R10000-PFS-PX. Yes, this valve rough is compatible with the T13020 valve trim. Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Delta
Date published: 2025-01-24
  • y_2026, m_6, d_10, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_16
  • loc_en_US, sid_R10000-PFS-PX, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 53ms
  • questions, product
PART LIST

PART LIST

Image-RP83888

Delta®

Delta® Bracket - MultiChoice® Universal

List Price: $22.25
Online Price: $17.80
Free Ground Shipping All Orders $49+

RP83888

2.33 3
Image-RP22734

Delta®

Delta® Bonnet

List Price: $17.70
Online Price: $14.16
Free Ground Shipping All Orders $49+

RP22734

4.45 11
Image-RP46075

Delta®

Delta® Plasterguard

List Price: $5.85

RP46075

Image-RP46077

Delta®

Delta® Debris Screen

List Price: $9.95
Online Price: $7.96
Free Ground Shipping All Orders $49+

RP46077

Image-RP46078

Delta®

Delta® Pressure Test Cap

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP46078

Image-RP46079

Delta®

Delta® Pressure Test Plug - Hot / Cold

List Price: $7.50
Online Price: $6.00
Free Ground Shipping All Orders $49+

RP46079

Image-RP75136

Delta®

Delta® TempAssure® 17T Series Extension Kit

List Price: $102.30
Online Price: $81.84
Free Ground Shipping All Orders $49+

RP75136

Image-RP47202

Delta®

Delta® MultiChoice® Universal Thin Wall Installation Aid

List Price: $17.05
Online Price: $13.64
Free Ground Shipping All Orders $49+

RP47202

5.00 4
Image-RP50366

Delta®

Delta® Stem Assembly w/ O-Rings & Nuts

List Price: $29.60
Online Price: $23.68
Free Ground Shipping All Orders $49+

RP50366

5.00 1
