Delta®

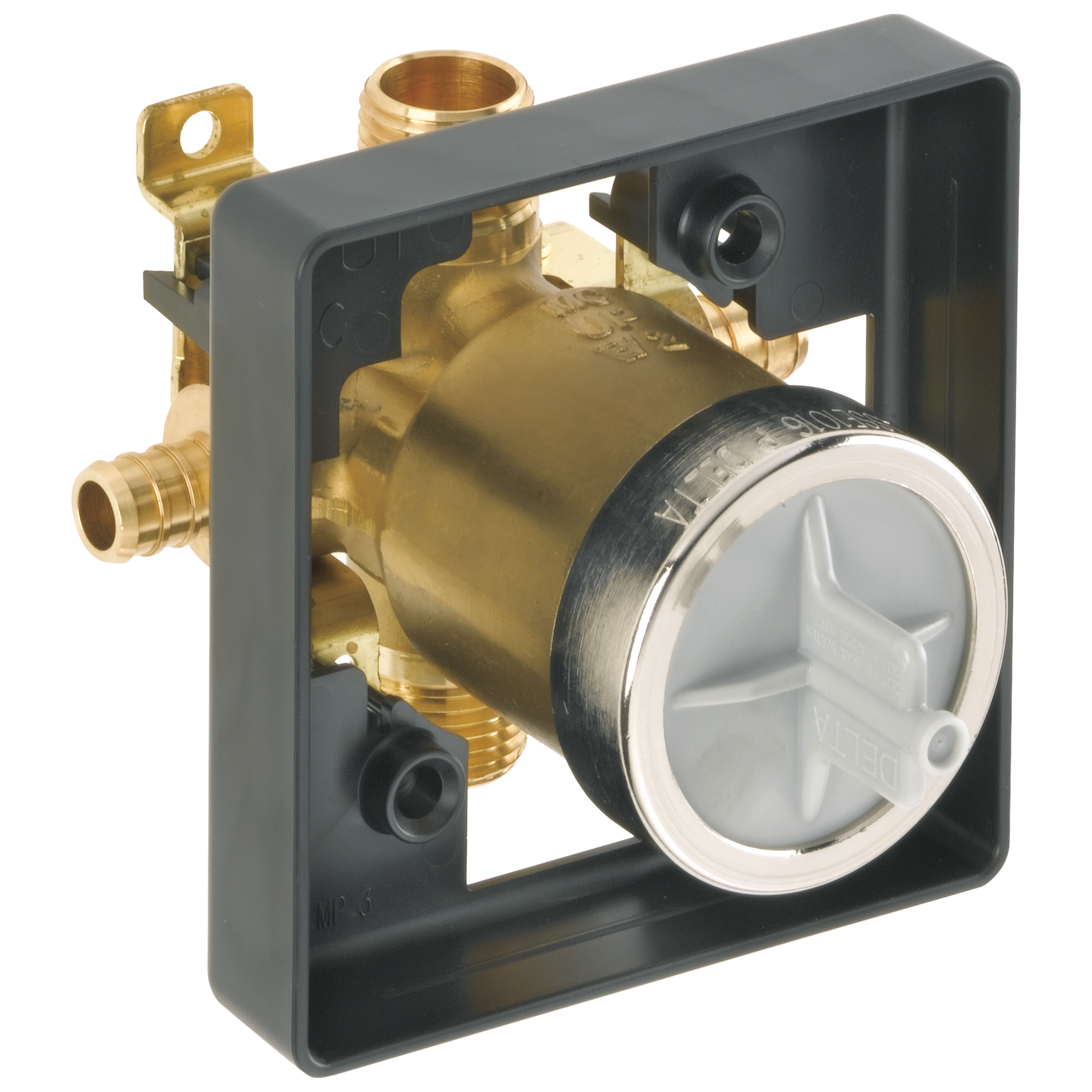

MultiChoice® Universal Tub / Shower Rough - PEX Crimp
Model#:
R10000-PX
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
This rough-in kit may be installed prior to choosing the specific trim and finish. Allows for construction or a renovation project to proceed without delays when narrowing down a design style. Trim kit is sold separately and is required to complete the unit. Save time, effort, and money on future renovation updates because there’s no need to alter plumbing behind the wall.
- MultiChoice® Universal valve body only
- Accepts single, dual, or dual thermostatic cartridge
- Cartridge ships with trim
- Back-to-back capability
- Model must be ordered in full case quantity of 12
- Crimp type fitting 1/2" PEX
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Overall Height (in.) :
4
Valve Type:
Valve body only
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 3 out of
5
by
hman from
Faucet kept leaking, didn't understand
Cartridge went out in less than two years
Date published: 2026-05-23
Rated 5 out of
5
by
Delta from
Delta R10000-PXWS
[This review was collected as part of a promotion.] Works well if using PEX connection for the hot and cold water supply lines. Requires sweat connection or adapter for the shower head and bath tub spout.
Date published: 2026-03-20
Rated 5 out of
5
by
Tim from
Nice
Works great ! Did the job
Date published: 2025-12-22
Rated 5 out of
5
by
Tony F from
Best
[This review was collected as part of a promotion.] I like how easy it is to install, and the quality and durability of it.
Date published: 2025-12-17
Rated 5 out of
5
by
SandCon from
[This review was collected as part of a promotion.] Always our go to when doing bathroom remodels!
Date published: 2025-12-15
Rated 5 out of
5
by
Rick from
[This review was collected as part of a promotion.] Valve did exactly as was expected . Like the individual shut off made it easy for pressure testing. wouldbuyy again.
Date published: 2025-12-15
Rated 5 out of
5
by
Ruthie from
Contractor
[This review was collected as part of a promotion.] ease of installation- settings crimp outlets are a plus
Date published: 2025-11-14
Rated 5 out of
5
by
Raj from
Great efficient valve with so many trim options
[This review was collected as part of a promotion.] I've used Delta's universal mixing valve in dozens of showers and I have yet to have any problems with them!
Date published: 2025-11-09
Q&A
What is the meaning of "Universal?"
I have purchased one of these valves and want to use a trim kit by another maker. Is this valve compatible with other faucet makers? Do valve cartidges usually come with the trim kits?
Hi fixie,
Thank you for your question. This valve is only designed to work with Delta trim kits. The cartridge will be included with the trim kit.
Best regards,
Jon
Date published: 2017-06-21
shower only pex bottom outlet connection
I am replacing a 10+ years 1400 series old valve body in which I sheared off (poorly designed as seen in middle picture) the 3 copper pipes connecting the valve body frame to the cartridge receptor drum, while trying to replace the RP19804 cartridge due to dripping shower head.
I bought the R10000-UNBX, as although all my pipes are PEX, I also would need elbow and outlet fittings anyway to reach my current pipe locations.
This is installed opposite the showerhead wall, in a knee-wall topped with glass enclosure, so the top outlet was capped off, and the shower was fed from the bottom outlet (as seen in 1st and 3rd pictures).
The old valve had a few inches of copper pipe before the PEX connection (1st & 3rd pic).
I also notice the RP10000 instructions mention the tub outlet (which I am using for shower only) drop pipe must be 8-18 inches copper only.
Is this initial copper length only required for the pull-diverter mechanism from bath-spout to shower, or is it still required in my application and why, or can I connect my PEX directly to the bottom outlet using an NPT-PEX adapter?
Hi Ismail, Thank you for your question. If you are using the R10000-UNBX in a shower only installation, with the tub outlet going to the showerhead you can hook up the pex tubing directly to the valve as pictured. The 8"-18" copper pipe installation does refer to the tub spout diverter specifically to prevent shower rise.
Thanks,
Dave
Date published: 2024-03-28
Why not have a PEX crimp port on the top port to the shower spout? This would eliminate using an adapter. What am I missing?
Thank you for your question, Scott101. This version has PEX crimp connections on the supply lines. The tub and spout outlet ports have 1/2" NPT male thread with 1/2" C.W.T. female sweat connections. You may connect a PEX adapter to the shower port. For a tub and shower installation, the drop to the tub spout must be 1/2" copper or iron pipe.
Best regards, Jon
Date published: 2024-03-28
Why can PEX not be used for the tub down spout? Even with a PEX drop-ear, it's still a no go? Is it because if the constant pressure from switching to shower mode?
Hello, KahnArtist! Thank you for your question. The drop from the valve to the tub spout must be 1/2" copper or galvanized pipe. Other types of piping, such as PEX, have a different internal diameter. This affects how the water flows through the pipe and can cause back pressure, which may cause water to flow from the shower head when the tub spout diverter is not engaged.
Best regards,
Jon
Date published: 2024-03-28
Are there any options for a matte black trim kit that DOES NOT have a valve included? I bought the valves during rough in and now just need trim kits. Thank you
Hi, Burge Burge!
Thank you for your question. Any of our Delta Monitor and TempAssure trim kits that start with a 'T' will not include the valve body and only include trim only. Here is a link to our Matte Black trim kits:
https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets?facetFinish=matteblack
Best Regards, Rosanna
Date published: 2024-03-28
T14497-LHP H797SS 58467-SS WATCO 38190-NB push pull trim kit
How can I increase the water flow? Is there a water restrictor / screen that can be cleaned / removed?
Thank you for your question, Allan. The 58467-SS has a flow rate of 2.5 GPM at 60 PSI. You can measure the flow by running the water into a bucket for 1 minute. Please check for debris at the shower arm connection as this can cause reduced flow. We do not recommend removing or modifying the flow restrictor.
The flow rate from the tub spout or shower arm with a 14 series cartridge will be approximately 5.8 GPM at 60 PSI. If you get reduced flow here, please try flushing the valve according to the How-To Video linked below.
https://www.deltafaucet.com/video-gallery/video-page?videoId=aHDE586LwYk
Best regards,
Jon
Date published: 2024-03-28
Can pex pipe be used to shower head with this rough-in valve (R10000-PX) by using the proper threaded pex adapter?
Hi, CT3002!
Thank you for your question. A PEX line can be used at the application between the Delta R10000-PX rough valve and the shower head.
Best Regards,
Rosanna
Date published: 2024-03-28
What is the flow rate of this valve?
What is the flow rate of this valve?
Hi 5C,
Thank you for your question. The flow rate will depend on the trim kit series that you use. Below are the approximate flow rates per series at 60 PSI.
13/14 - 6.3 gpm
17 - 5.6 gpm
17T - 7.0 gpm
Best regards,
Jon
Date published: 2018-02-18
