Delta®

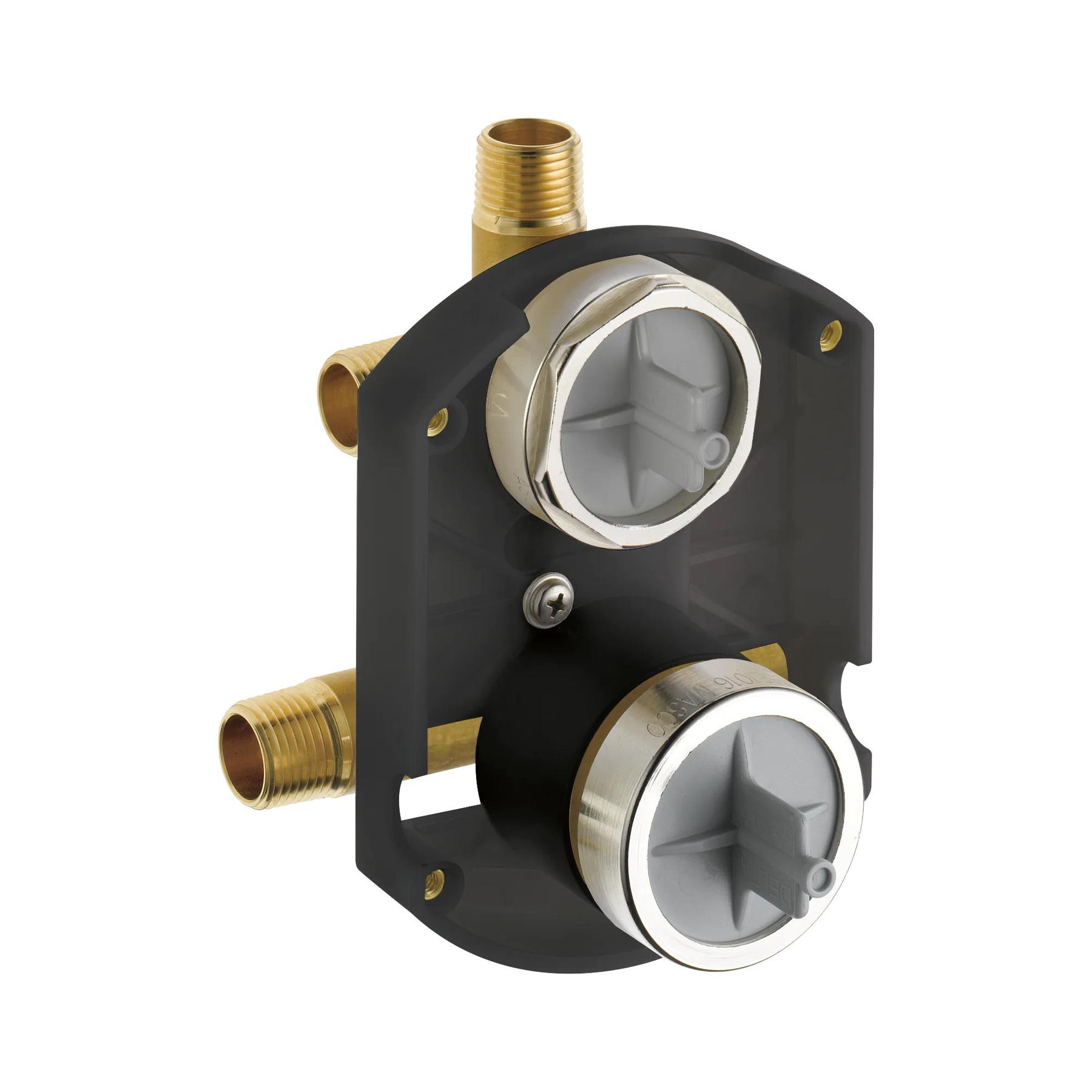

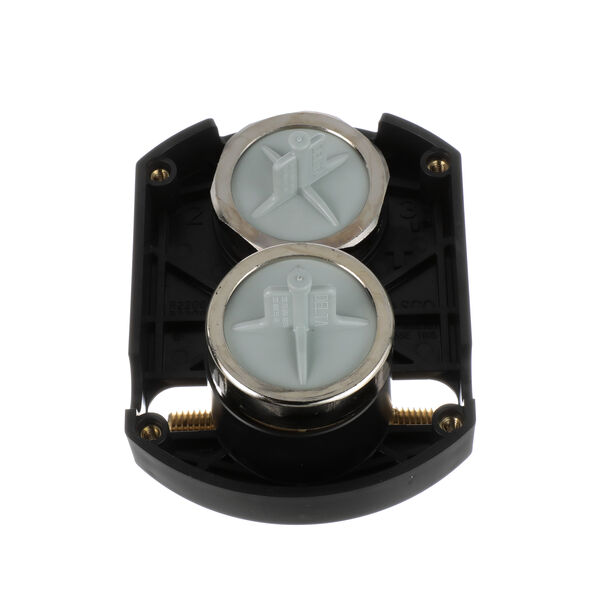

MultiChoice® Universal Integrated Shower Diverter Rough Universal Inlets / Outlets

Model#: R22000
Add to Favorites
Find local Delta® installers.
Delta®
MultiChoice® Universal Integrated Shower Diverter Rough Universal Inlets / Outlets
Model#: R22000
List Price: $26650
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. With three popular trim style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
  • Monitor® pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
  • Rough-in only

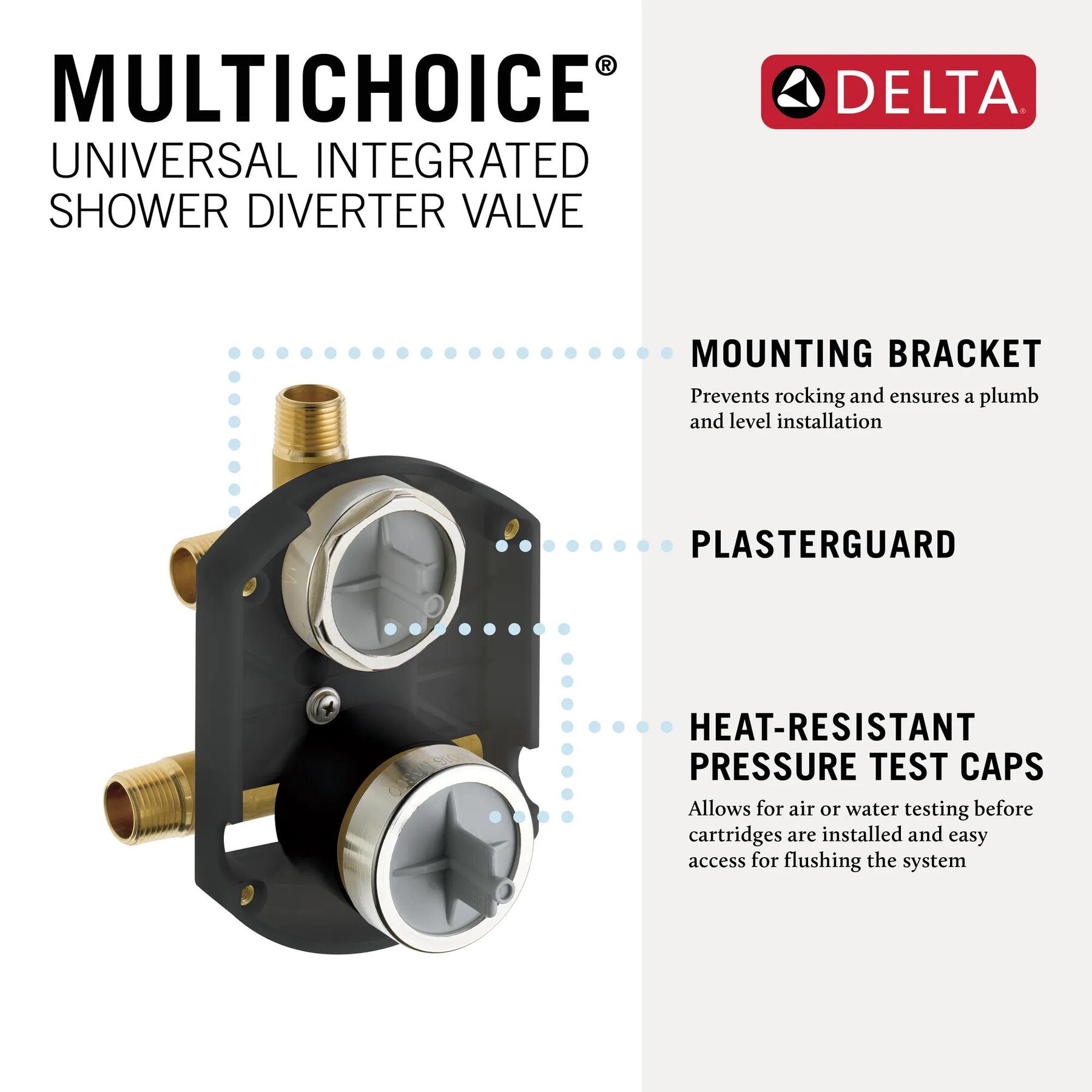

  • One-Piece forged valve body without stops
  • Back-to-back installation capability
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Connection Type :
Universal fittings

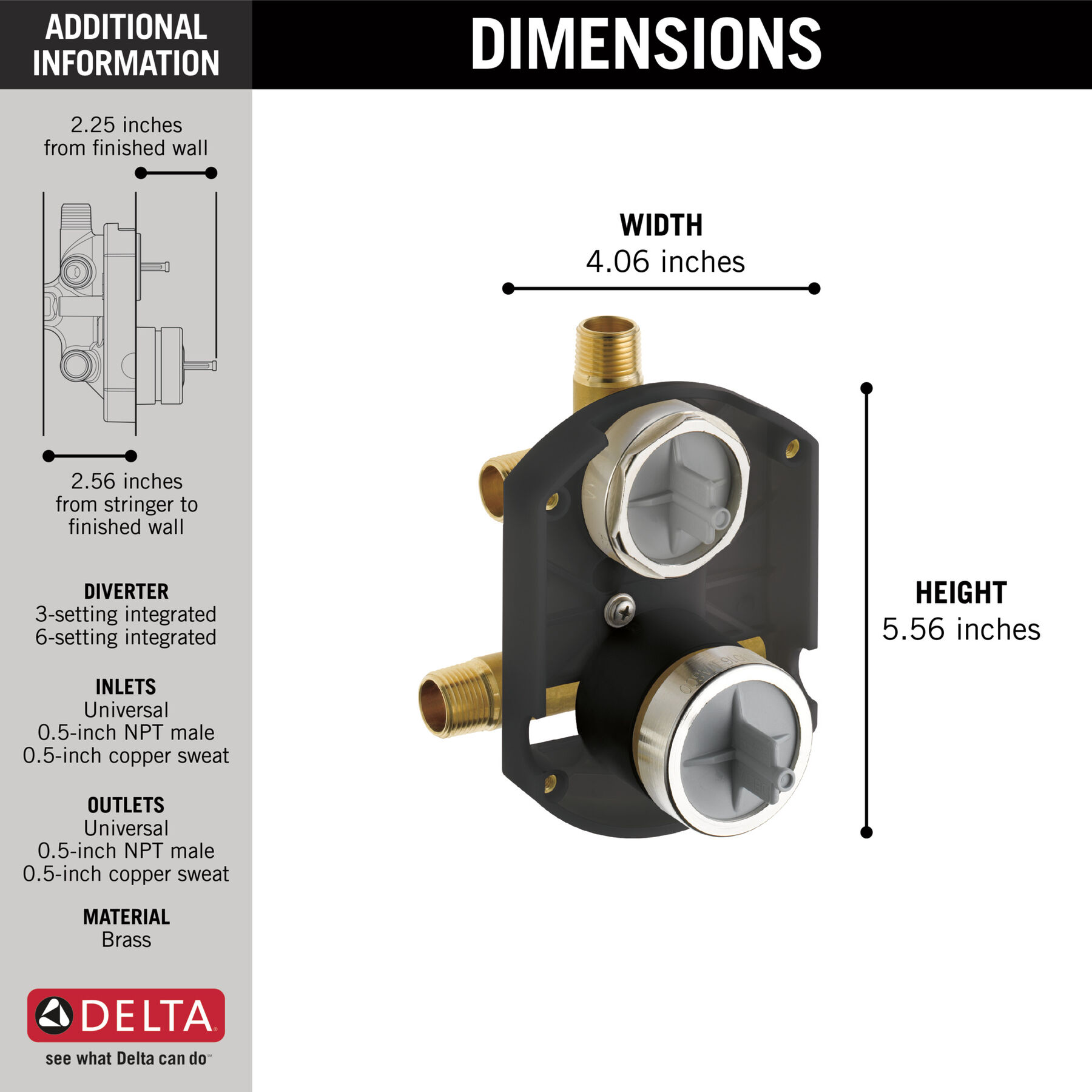

Overall Height (in.) :
6-1/16
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Great double piece Works great for new shower
Date published: 2026-04-26
Rated 5 out of 5 by from Seems to be a quality product Higher quality than what the builder installed
Date published: 2026-04-17
Rated 5 out of 5 by from It works well with the new Delta Valve This item seems to be working well.
Date published: 2026-03-03

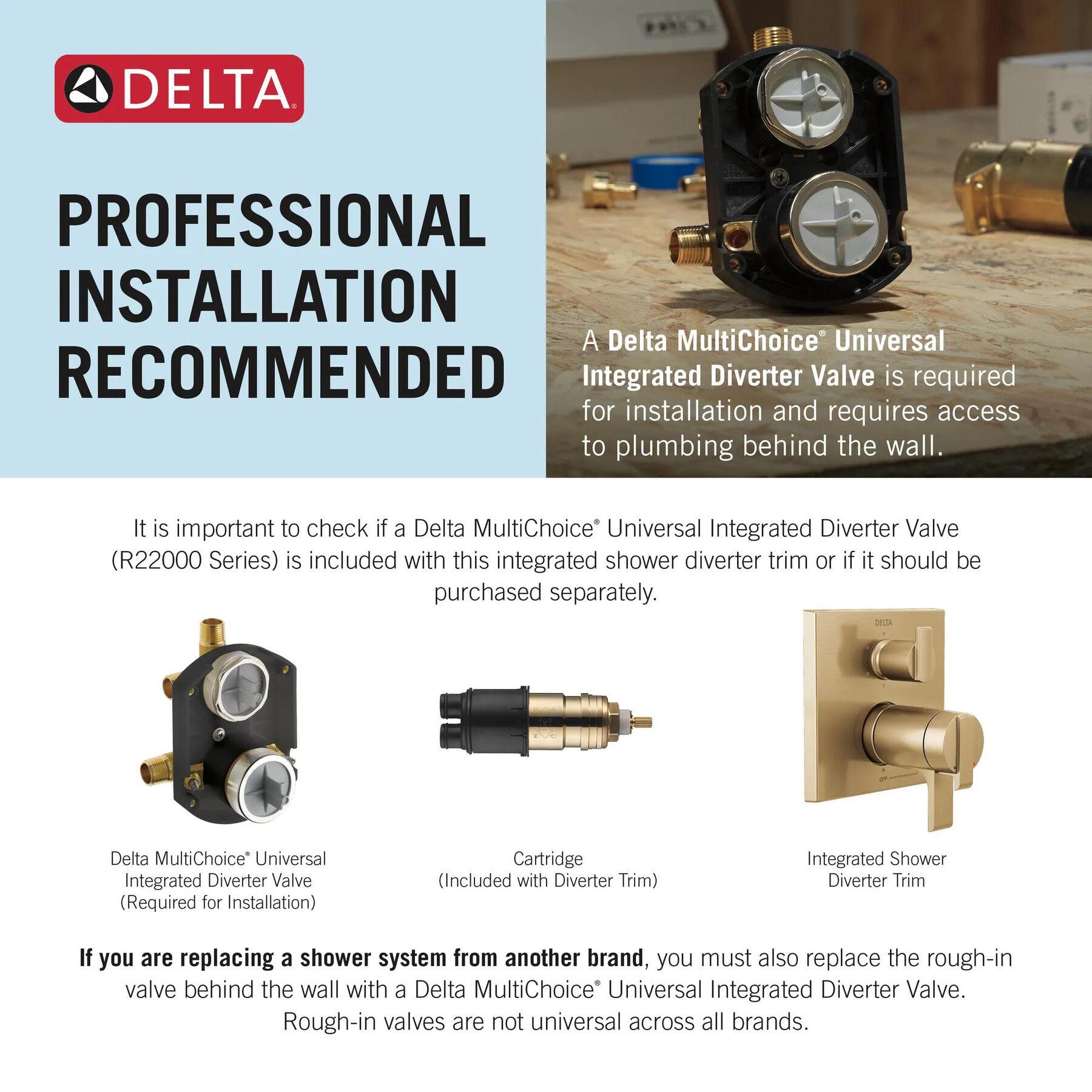

Rated 5 out of 5 by from Diverter valve Works great with no installation issues. Pay attention to installation instructions on setback to ensure proper alignment with finished wall. Includes a template in the instructions that helps with the cutout
Date published: 2026-01-12
Rated 3 out of 5 by from Universal, schmooniversal What's "universal" about this? I can only find one shower set up that works with it! Unfortunately, it's already installed in my new shower, behind some nice new tile, and the one shower kit that works, even though it's a Delta, looks like it belongs in a Minecraft World, it's so square shaped. My bad, I guess, for taking the universal part seriously.
Date published: 2025-12-05
Rated 5 out of 5 by from Quality Delta Product A “behind the wall” universal Rough In with service stops is exactly what I needed for the bathroom renovation.
Date published: 2025-09-12
Rated 4 out of 5 by from shower valve works, would be nice if you could select the outlet side.
Date published: 2025-02-14
Rated 2 out of 5 by from Water Temperature- Luke Warm We're having the same issue, as some here. The water temp is not hot enough for me and we also turned it up as hot as it can go. The water is luke warm at best. What can we do to fix this without having to punch a hole in the wall to replace it?
Date published: 2025-01-30
  • y_2026, m_6, d_10, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_44
  • loc_en_US, sid_R22000, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
Q&A

where do i find the shower trim kits for the r22000 universal diverter valve? Can you email me the links for all the trim kits you sell?

Asked by: Kenny H
Thank you for your question, Kenny H! Below is a link to our collections that are currently offered with an Integrated Shower Diverter option. https://www.deltafaucet.com/search-results?searchTerm=Integrated+Diverter+#resultPage=7&offset=0 Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

I intend a Delta shower system with a rain shower head, a hand-held, and two pairs of body sprays using a series 17 thermostatic integrated diverter with six functions. Is this the right valve and what combinations will it allow?

Asked by: Gerry
Hello, Thank you for your question! Yes, this is the correct valve and you will need a six function trim kit. Please see page 3 in the following link for a flow chart diagram when selecting the different ports. https://media.deltafaucet.com/MandI/103739%20Rev%20D.pdf Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-03-21

I have a new R22000 Series valve, which cartridges (both diverter and mixing valves) do I order ?

Asked by: Paul
Hi, Paul! Thank you for your question. The cartridges come with the Integrated valve trim kits that are available for the Delta R22000 rough valve. Here are links to these valve trim kits: https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets?categories=Delta_Bathroom_Showering_Tub+and+Shower+Faucets_Shower+Valve+with+Diverter Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Is this the correct rough-in valve?

We will be having a rain can style shower head (RP52382-SS with RP61273) with a separate slide bar hand shower (57014-SS) and would like to know if this is the correct valve to accomplish this.
Asked by: TubExplorer
Hi, Kell! Thank you for your question. The R22000 rough valve will work to turn on your water and divert your water from shower head to handshower to raincan shower unit. Here is a link to the trim kits that work with this valve body: https://www.deltafaucet.com/search-results?searchTerm=T27 Best Regards, Rosanna
Answered by: Rosanna
Date published: 2016-11-18

Remodeling my shower to use shower head, ceiling rain fall and hand held head. No tub and want to use each one individually. what do i need? r22000 or 10000 plus 11000 diverter and what cartridge 3 0r 6 way. HELP!!!

Asked by: rkoczko15
Hi rkoczko15! Thank you for your question. For your installation, you could use an R22000 as it does not have a tub spout port, with a six setting integrated diverter trim. You could also use an R10000-UNBXHF valve which also does not have a tub spout port, along with an R11000 diverting valve and matching six setting diverter trim. A six setting cartridge will allow you to use each product individually as well as offering shared positions. I will include some examples below. https://www.deltafaucet.com/search-results?searchTerm=integrated+6-setting https://www.deltafaucet.com/bathroom/product/R10000-UNBXHF Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2024-03-28

Difference between Monitor and Temp-assure and water pressure?

I understand that temp assure is a thermostatic valve and the monitor valve is pressure static, does this result in one valve having better water pressure as the hot water supply dwindles during the shower?
Asked by: Zach
Hi, Zach! Thank you for your question. The thermostatic valve will give out 8.6 gpm while the pressure balance valve will give off 6.8 gpm. Both units will have the best flow rate while on at the hot/cold mix. Both units water flow will dwindle if you have the water on at all hot or even on all cold. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2024-03-28

With the 3 port option, is there an option to run the 3 outputs at once as well as to choose to run 1 at a time?

Asked by: David
Thank you for your inquiry, David! The Delta R22000 MultiChoice Universal Integrated Shower Diverter Rough valve will accommodate our Delta T2 integrated trim kits and would be able to run three showering units separately and also two at a time. This unit is not designed for all three showering units to run at the same time. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-05-08

I have a R2200 installed to meet instructions +/- 1/4 from finish. But, because of a shimmed wall stack-up it may be closer to minus 5/16 sunk below finish - is this something that will cause a huge problem?

Asked by: Michigan Steve
Hello Michigan Steve, Thanks for your inquiry! The rough-in valve would need to be flushed with the finished wall so that the trim parts will seat properly on the valve and against the outer wall. The screws for the back plate and escutcheon trim plate would need to be able to connect to the R22000 valve body. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_213
  • loc_en_US, sid_R22000, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 39ms
  • questions, product
PART LIST

PART LIST

Image-RP22734

Delta®

Delta® Bonnet

List Price: $17.70
Online Price: $14.16
Free Ground Shipping All Orders $49+

RP22734

4.45 11
Image-RP83940

DELTA

DELTA Bonnet Nut

List Price: $47.20
Online Price: $37.76
Free Ground Shipping All Orders $49+

RP83940

Image-RP46078

Delta®

Delta® Pressure Test Cap

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP46078

Image-RP46079

Delta®

Delta® Pressure Test Plug - Hot / Cold

List Price: $7.50
Online Price: $6.00
Free Ground Shipping All Orders $49+

RP46079

Image-RP84875

Delta®

Delta® Rough-In Box - Integrated Shower Diverter

List Price: $71.90
Online Price: $57.52
Free Ground Shipping All Orders $49+

RP84875

1.67 3
Image-RP50366

Delta®

Delta® Stem Assembly w/ O-Rings & Nuts

List Price: $29.60
Online Price: $23.68
Free Ground Shipping All Orders $49+

RP50366

5.00 1

BUNDLES FEATURING THIS PRODUCT

Only at Online Retailers
Image-Master-FVS7-PV2101
Only at Online Retailers

Ara®

Ara® 3-Setting Custom Shower Bundle with Raincan - 14 Series

FVS7-PV2101

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
