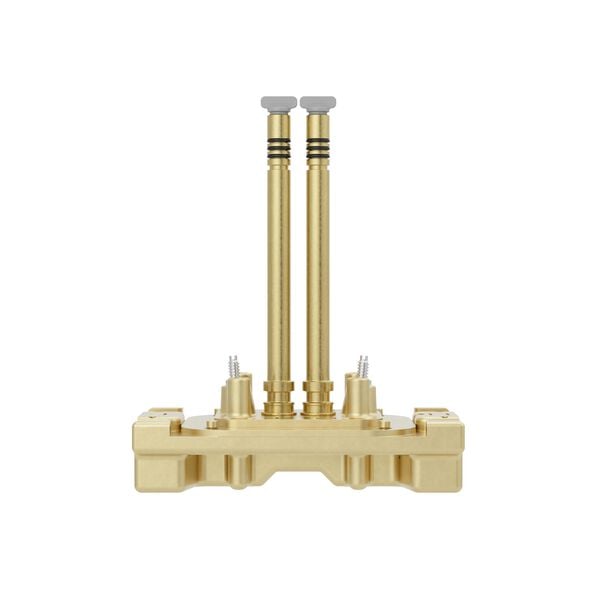

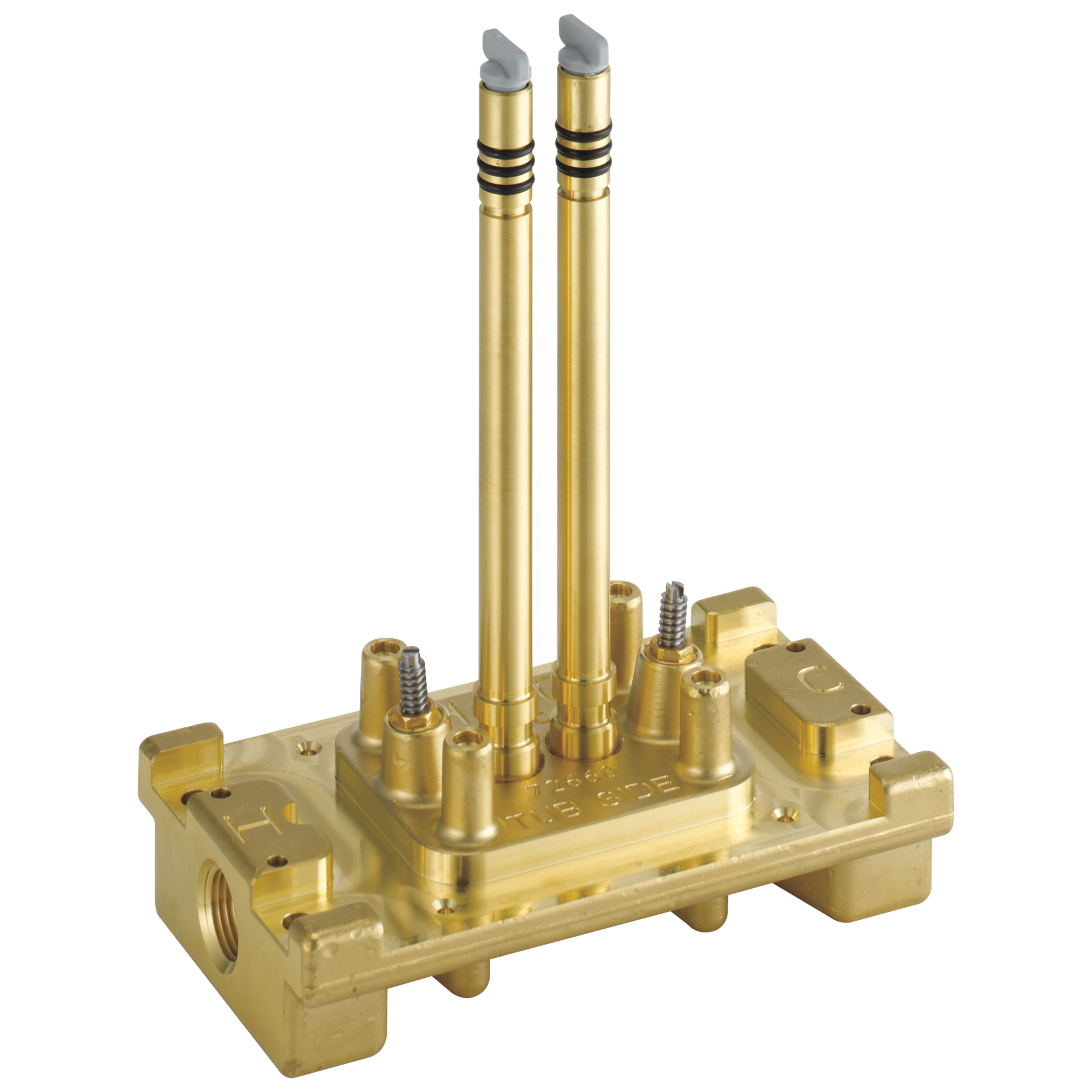

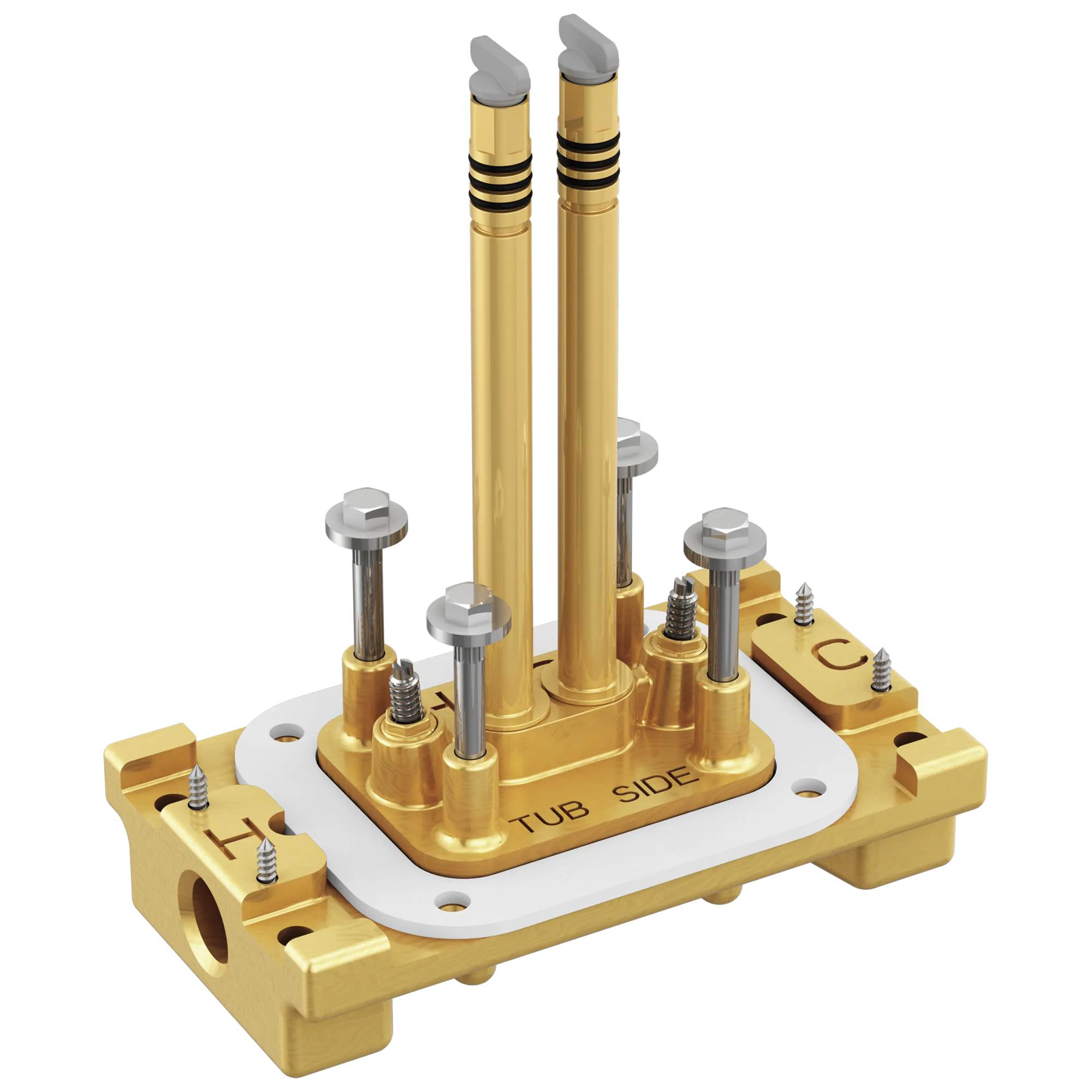

Floor Mount Tub Filler - Rough with Stops
Model#:
R4700-FLWS
PRODUCT FEATURES
This rough-in kit may be installed prior to choosing the specific trim and finish. Allows for construction or a renovation project to proceed without delays when narrowing down a design style. Trim kit is sold separately and is required to complete the unit. Save time, effort, and money on future renovation updates because there’s no need to alter plumbing behind the wall.
- Rough-in kit only
- Must purchase trim kit to complete the unit

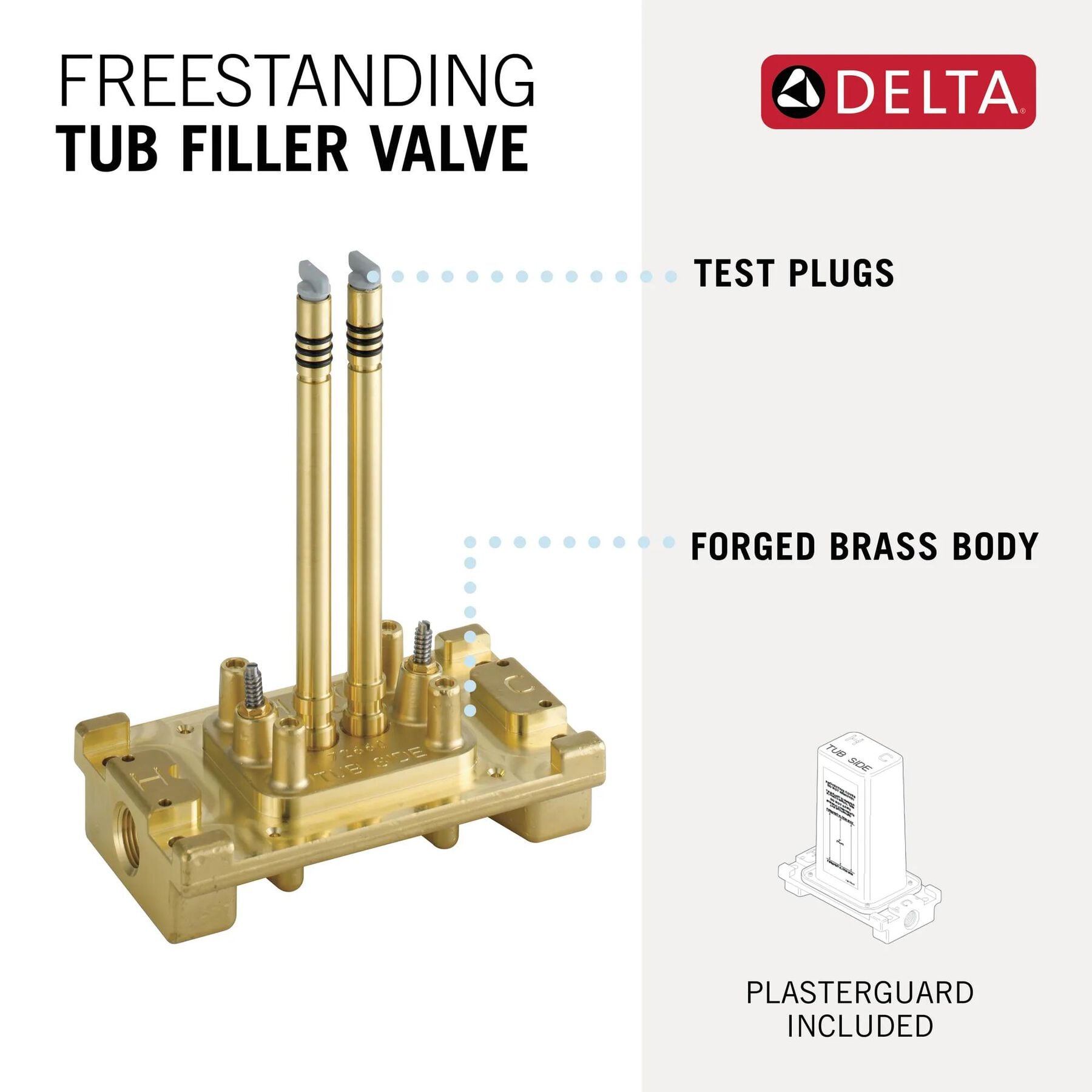

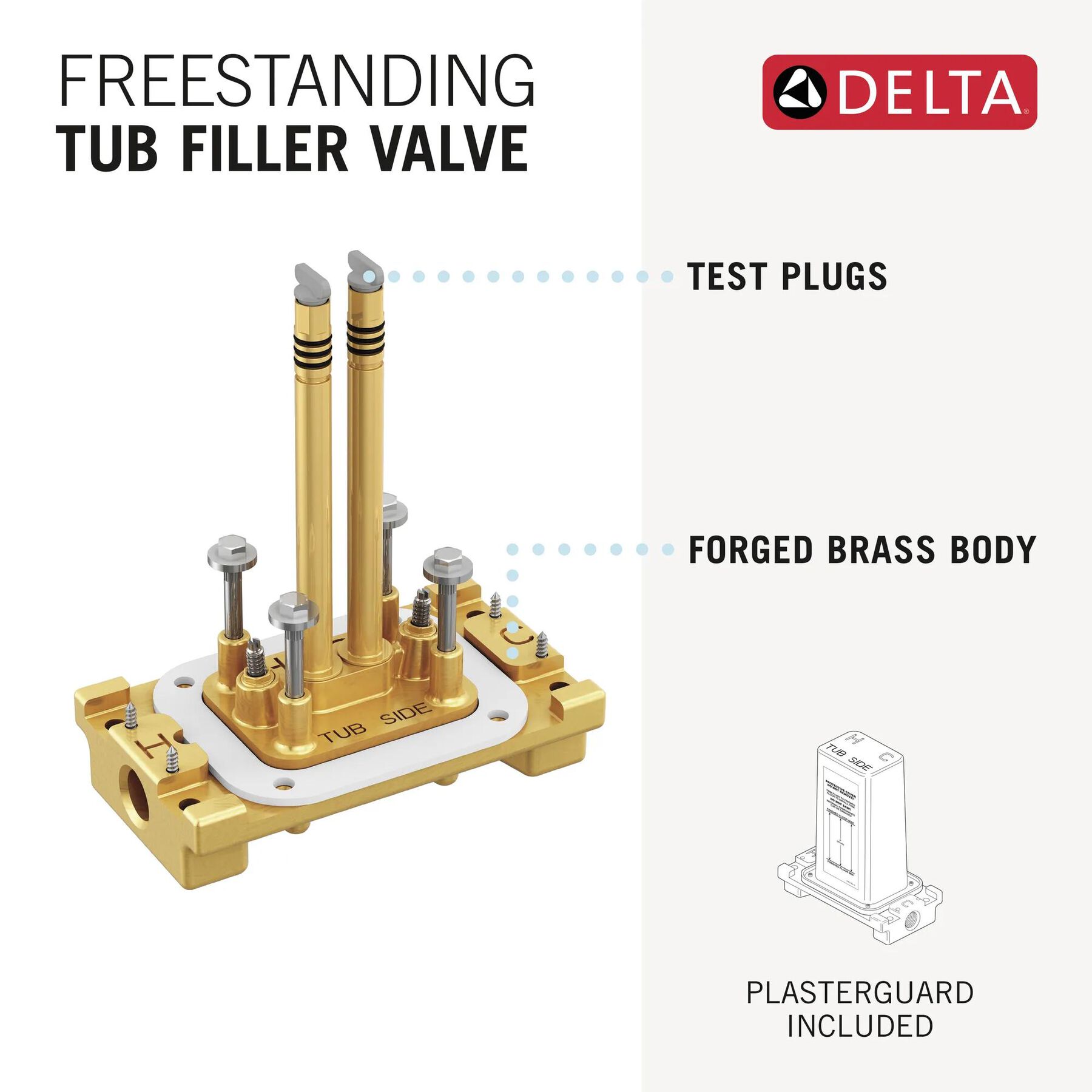

- Forged brass body
- Cartridge ships with trim
- 1/2" NPT female inlets
- Product ships with test plugs and plasterguard
- WS = With Stops
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information

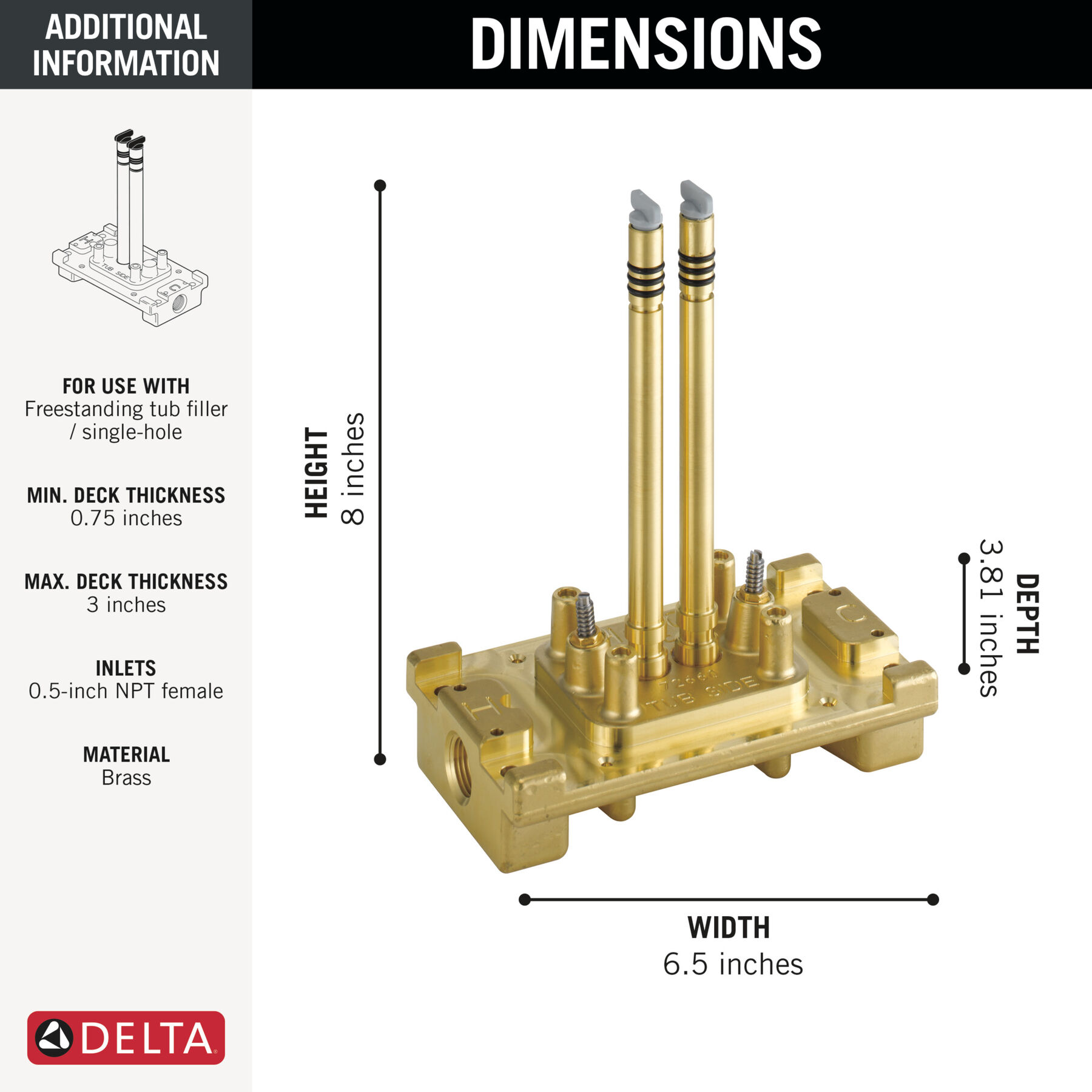

Overall Height (in.) :
8
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 5 out of
5
by
Rough in from
Great product
High quality , Plummer no issues setting this product up .
Date published: 2026-03-13
Rated 5 out of
5
by
lljhogfan from
I'm a long-time Delta buyer!
I use this Delta R4700 rough-in valve very often. I typically always select Delta and Brizo for all of my plumbing fixtures, and after using this rough-in valve multiple times, I remain a loyal Delta fan. The quality, price and finish of Delta faucets and other products just can't be matched. I never have warranty calls for Delta products and have never been sorry to use one of their fixtures.
Date published: 2025-09-22
Rated 5 out of
5
by
Nik99 from
High quality Tub filler
[This review was collected as part of a promotion.] Bought this product for a stand alone bathtub. Very nice champagne finish and easy install. Would buy it again.
Date published: 2025-05-21
Rated 5 out of
5
by
RF from
Quality product
Straight forward instruction, fairly easy to install, works as intended.
Date published: 2025-05-10
Rated 5 out of
5
by
Calixan from
Works Perfect
This thing works perfect for such a small little valve. It controls the major piece of our master bathroom remodel.
Date published: 2025-04-11
Rated 5 out of
5
by
New Again Restoration from
Great product
[This review was collected as part of a promotion.] Great rough in, it did the job and was easy to install. Good quality.
Date published: 2025-04-11
Rated 5 out of
5
by
Susan V from
Free standing rub valve
Made installation for the free standing tub much simpler
Date published: 2024-08-22
Rated 5 out of
5
by
Sheri Kelly from
Essential hardware.
Just what we needed. Plumber was happy with a quality product.
Date published: 2024-07-22
Q&A
Hi, I am wondering what is the difference between the r4700-fl vs r4700-flws
Thank you for your question, ejvv! The model R4700-FLWS has supply shut offs, which allow you to turn the water off directly at the valve during installation of the trim or repair. It also has 1/2" NPT female inlets, whereas the R4700-FL has 1/2” sweat connections.
Best regards, Jon
Date published: 2024-03-28
what is the tub filler flow rate
Hi Rick,
Thank you for your question! The tub filler should run at least 6 gallons per minute at 60 PSI. However, the exact flow rate will be determined by the trim kit that you use. Please refer to the Technical Specifications under the "Documents and Specs" tab on the product page for the trim kit you will be using.
Best regards,
Jon
Date published: 2016-11-14
What size and thread type are the 4 mounting screws
Hi Zac,
Thank you for your question. The subfloor mounting screw threads are a #8-15 x 1.25".
The trim mounting bolts come in 2 different lengths, 1/4-20 x 2.32" and 3.70".
Thanks,
Jon
Date published: 2021-01-27
will the R4700-FLWS floor valve work with a Senlesen floor tub faucet?
Thank you for your question, Helms! We can not guarantee a faucet from another manufacturer would be able to fit over the Delta R4700-FLWS rough in kit.
Best Regards, Benjamin
Date published: 2024-03-28
I see from the instructions that it is mounted with the plasterguard in place. Cut it off when installing filler?
It is attached the the rough so I was wondering if it stays on and I cut it off when installing the filler trim.
Yes, right before you install the trim, cut off the plastic shield even with the floor. I used a utility knife and it cut fairly easy.
Hope this helps,
Jim
Date published: 2024-03-28
is this valve temperature and pressure balanced?
Hi, Darin 3!
Thank you for your question. The valve cartridge assembly that is included with the Delta Floor Mount Tub Filler for the Delta R4700-FLWS Rough Valve Body is pressure balanced.
Best Regards, Rosanna
Date published: 2024-03-28
What's the easiest way to mount it in cement?
Thank you for your question, Steve! Information on installing this rough-in valve in concrete can be found on page 4 of the Maintenance and Installation manual below.
https://media.deltafaucet.com/MandI/X00076944_C.pdf
Best regards, Edward
Date published: 2024-03-28
Hot Water Adjustment
We have the R4700-FLWS with stops and there is not enough hot water. Can the faucet be adjusted to increase the hot water?
Thank you for your question, Greg. Some Tub Filler trims have a Rotational Limit Stop. Please refer to page 7 of the instructions linked below. Please also make sure that the supply stop on the hot side is fully open.
https://media.deltafaucet.com/MandI/74820%20Rev%20D.pdf
Best regards,
Jon
Date published: 2016-11-29
