ShowerSense Digital 3-Port Thermostatic Shower Rough
Model#:
R53000E
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
PRODUCT FEATURES
A connected world calls for a connected shower.The Delta® ShowerSense™ Digital Shower is the shower as it should be—smart, easy to use, and customizable. In other words, a shower built specifically for you. With customizable presets, precise temperature and flow control, built-in Bluetooth compatibility, and voice-activated technology when paired with a virtual assistant, the Delta® ShowerSense™ Digital Shower has all the features necessary to create a shower experience customized to fit your needs. Plus, use the DFC@Home™ app to craft the ideal settings with up to twelve shower presets. Delta® showers with TempAssure® thermostatic valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
- Controller required for operation: Digital shower controller/interface is sold separately and must be purchased to complete the system.
- Includes: 3-Port Digital Shower Rough, 12VDC/60W power adapter with 2.5m wire, 35' interface cable, Interface and cable adapter
- TempAssure® thermostatic valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
- Includes 3-ports
- When started from the DFC@Home™ app, the shower will pause once the desired temperature is reached.
- Waterproof touchscreen interface
- Built-in Wi-Fi with full connectivity to the DFC@Home™ app, and other Wi-Fi-enabled devices.
- Independent temperature and volume control for each outlet port
- Test button for rough-in pressure check
- Diagnostic LED
- Firmware updateable through the user interface when connected to WiFi
- Separate mixing valves independently calibrated for each outlet
- Requires 120V outlet
- View Delta Faucet's Warranty
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
TempAssure™
TempAssure™
TempAssure™ keeps the temperature consistent by precisely measuring, monitoring, and automatically adjusting the water mix.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information

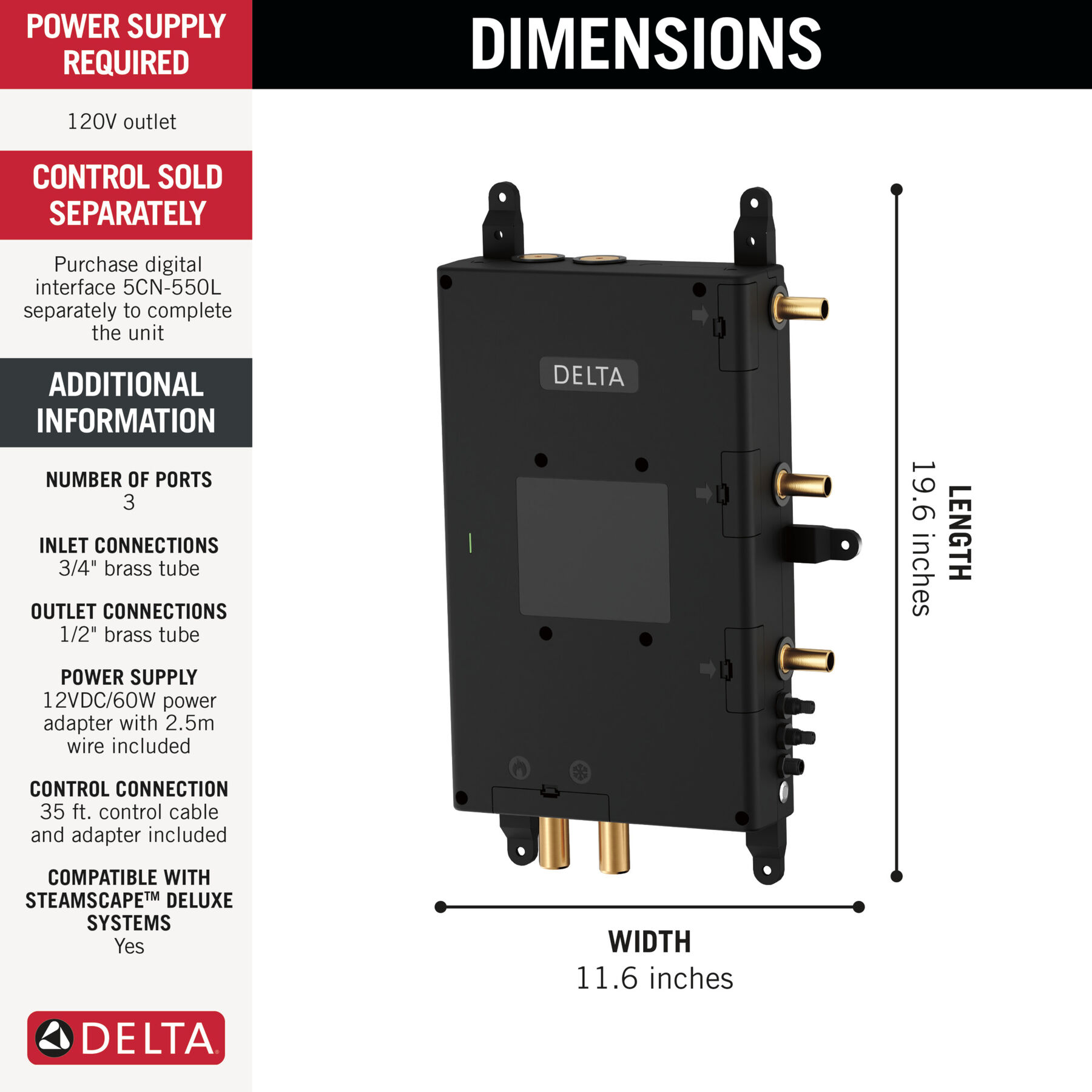

Overall Height (in.) :
19-5/8
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Q&A
what controller do i need for this?
Hi genew,
Thank you for your question about the Delta Faucet R53000E.
Required interfaces/controllers include: 5CN-550L, 5CH-550L, and 5CB-550L.
Please reach out with any additional questions!
Best Regards,
Bryan
Date published: 2025-12-31
Can you connect two ShowerSense Digital 3-Port Thermostatic Shower Roughs together so that you have 6 available ports or a 2-Port and a 3-Port to create 5 available ports?
No, you would need one digital shower user control per rough or you may look into the Brizo product line for a 6 port digital rough, model# R86000E
Date published: 2026-05-23
