Delta®

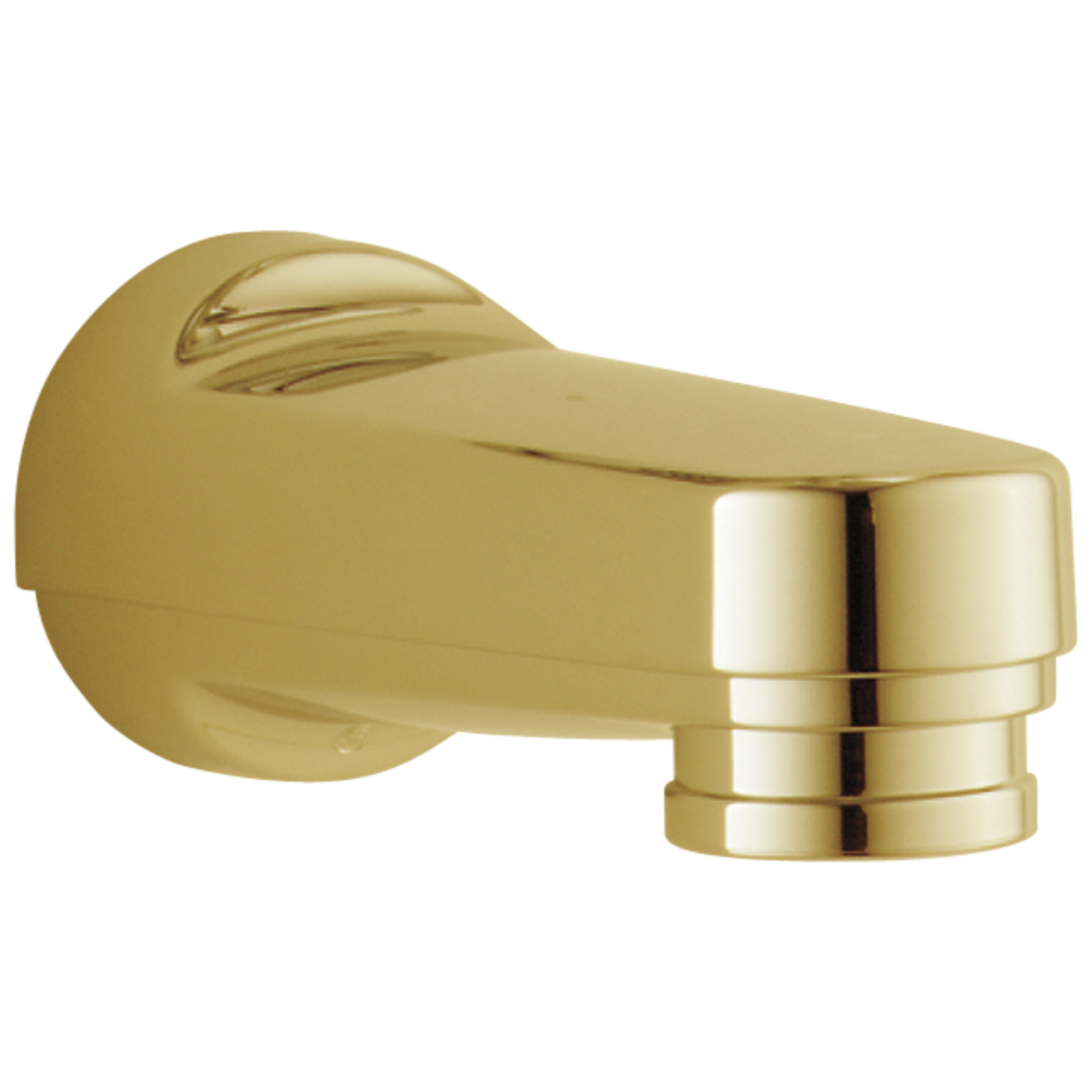

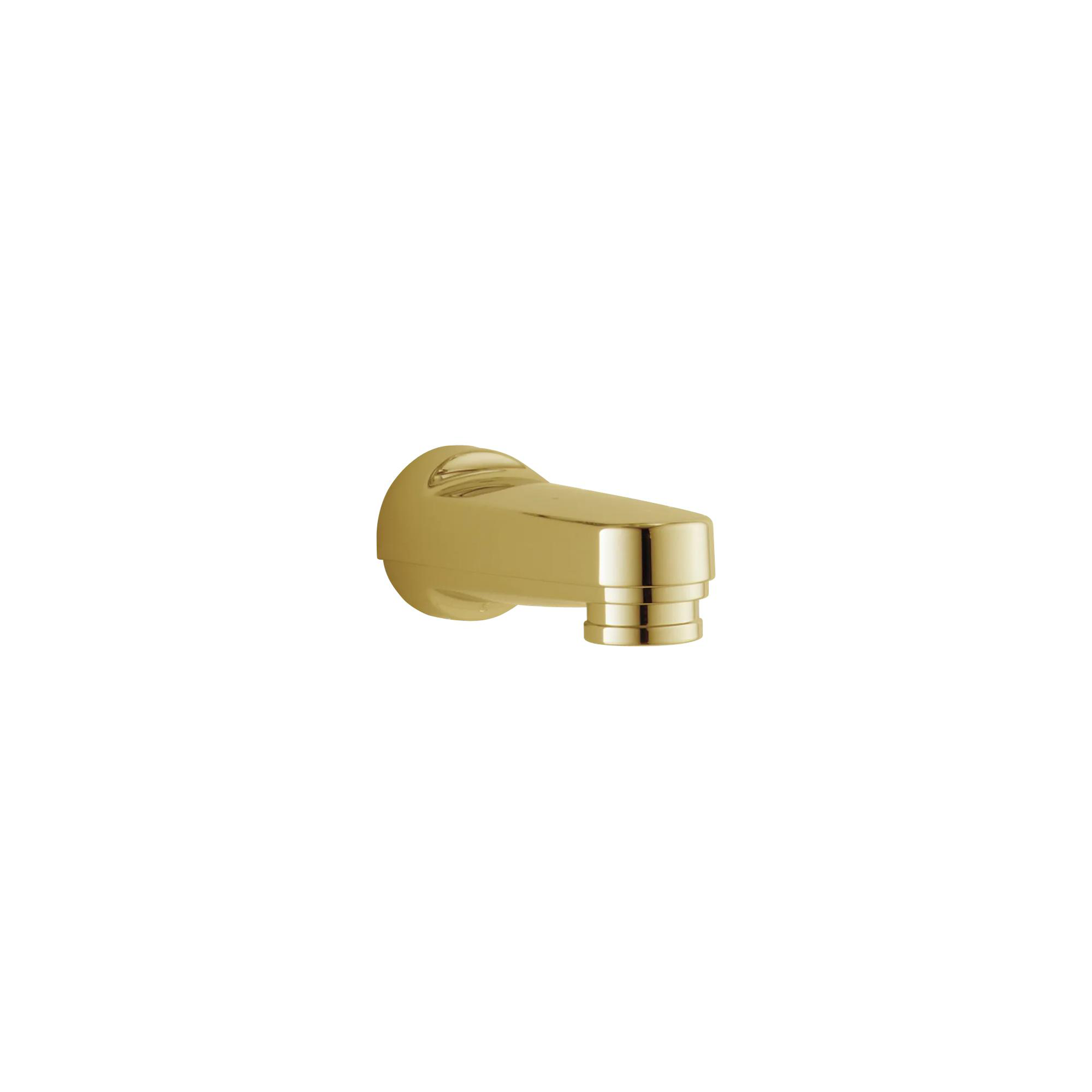

Tub Spout - Pull-Down Diverter in Polished Brass
Model#:
RP17453PB
Image Thumbnail, click to view zoomed product image
null
PRODUCT FEATURES
Included with all applicable faucets, we know that sometimes little parts like this Delta Pull-Down Diverter Tub Spout in Polished Brass RP17453PB get lost or misplaced. That's why Delta has made it available for the handy DIYer to order. Just another way Delta is more than a faucet.
- Pull down to Divert

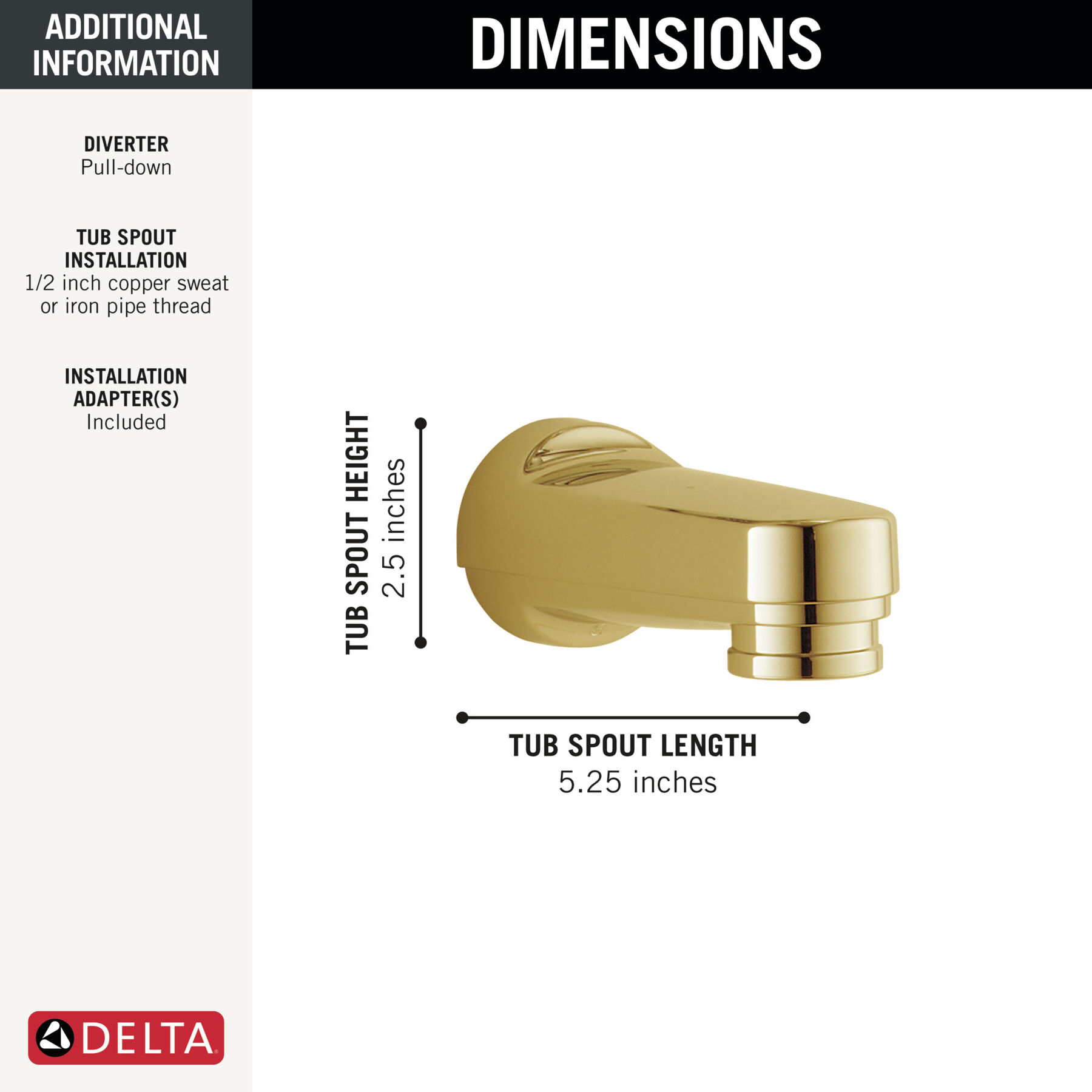

- 5 1/4" total length
- Sweat onto 1/2" C.W.T. or thread onto 1/2" IPS
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Overall Height (in.) :
2-1/2
Valve Type:
NA
REVIEWS
Rated 1 out of
5
by
Headaches from
Bad Change
I have read previous review, and I am seeing similar issues, I replaced the same faucet with a new that had worked for a number of years. I initially thought that I was not installing properly, but I cannot get the new faucet to stop leaking, I wasted $40 at Ace, now I am looking for a different option.
Date published: 2025-04-08
Rated 1 out of
5
by
Sammi from
No set screw for a 80 diverted basic faucet
Didn’t come with set screw and ahit straight off the pipe! Can only replace delta with delta and they can’t even make their own stuff work with the items that are out in by contractors. So annoyed.
Date published: 2024-11-03
Rated 5 out of
5
by
Mar59 from
Ours has lasted.
We have had ours for 27 years and only now do we need to replace it. I’m looking for the part and hoping the newer ones last as long.
Date published: 2024-10-20
Rated 5 out of
5
by
FairyTalePink from
Excellent spout!
In the past several months I did some updates to my shower. I recently got a Moen Verso showerhead, and I wanted my Delta valve trim and spout to aesthetically match my showerhead in style. For the valve trim I went with the Delta Modern Series.
For the spout, I went with this one with the pull-down diverter. It has a nice modern design that seems to go well with my valve trim and showerhead. It fit right onto my existing Delta adapter with ease. The best part about this spout is that the diverter completely seals while showering, resulting in higher shower pressure. I would definitely recommend this spout if you want to improve your shower pressure.
Date published: 2023-12-16
Rated 1 out of
5
by
JT922 from
Don’t buy
Had installed for less than a year and it leaks out when trying to shower. Go with something that has less plastic components.
Date published: 2023-08-11
Rated 5 out of
5
by
Woodhead from
Awesome product & service
I've had this tub spout 3 yrs and noticed issues with the finish when I removed it to work on the shower grout. After contacting customer service, Daishana handled it smoothly and in a professional and quick manner. The spout has been exceptional with no issues and I highly recommend it, Also, their customer care group is always outstanding!
Date published: 2023-04-06
Rated 1 out of
5
by
Ga Mom honest review from
The diverter allows allot of water to leak
My 15 yr old tub spout diverter started squealing and needed replaced. You would think you could access the O-rings inside this reliable spout but I was told it has to be replaced. Got the pull down one and when activated it isn’t stopping the water flow. Please go back to the old 1990 style Delta.
Date published: 2021-09-24
Rated 1 out of
5
by
Furious from
Very disappointed
The inner plastic cracked allowing water to bypass when attempting to divert.
Date published: 2021-09-06
Q&A
What is the difference between tub spout RP17453PB and RP17454PB besides price?
Delta RP100747 Dryden 7 5/8" Wall Mount Non-Diverter Tub Spout has a SQUARE BASE
How much clearance (measurement in inches) does the base need from corner to corner to screw onto the coper pipe with Delta adapter?
Date published: 2024-03-28
Do you have a pull-down diverter that just slips on over 1/2" copper pipe?
Would like polished brass. Thank you!!
Hi Papa Ron,
Thank you for your question. Unfortunately, we do not make a Polished Brass pull-down diverter that slips onto 1/2" copper piping.
Best Regards,
Courtney
Date published: 2024-03-28
What O ring is needed for the RP17453PB pull down diverter. I have a leak from the diverter behind the tiled wall.
Hello Saggy Floor Girl,
Thank you for your inquiry! The o-ring on the RP12307 adapter, that comes with the Pull-Down Diverter Tub Spout RP17453PB, is available as the RP1745. The o-ring is 15/16" ID x 1-1/8" OD x 3/32" thick. Please feel free to call, email, or message us on social, if there is anything else you need.
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP1745
Best regards,
Tanya
Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com |
Date published: 2024-03-28
we have a RP17453 in our bathroom.Guests at times can't figure out how to turn on the shower. When installed this came with a sticker to be installed on the spout where water flows into the tub. Can we get a replacement sticker from you?
Hello Michele,
Thank you for your question. The RP17829 and RP17472 are the stickers that inform others of how to use the RP17453. These stickers can be purchae from any local or online dealer that sells Delta products.
Best regards,
Tanya
Date published: 2024-03-28
Is this style and/or model faucet available in steel with chrome? I do not want chrome over plastic if I can help it.
Hi, Russell S!
Thank you for your question. The Delta RP17453 Diverter Tub Spout is non-metallic. The Delta RP17454 Diverter Tub Spout is metallic. Here is a link to this model:
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP17454
Best Regards,
Rosanna
Date published: 2024-03-28
What is the difference between the RP17453 & RP17454
Hi Jim, Thank you for your question. The tub spouts are the same except for the materials used to make them. The RP17454 is metal, the RP17453 is non-metallic.
Thanks,
Dave
Date published: 2024-03-28
The item RP17453 is fit for pipe protruding 3.5" from the wall?
Thank you for your question, Raymond! This tub spout will sweat onto a smooth copper pipe extending 2 - 4" from the finished wall, or thread onto a 1/2" IPS nipple extending 5/8 - 1 5/8" from the finished wall.
Best regards,
Jon
Date published: 2017-06-10
The inside of the tub faucet I am replacing has a piece of plastic that slips onto the pipe. I need to match the current faucet that is 20+ years. How can I see the inside or figure out if this faucet will work?
Hi, Blonde Hockey Fan!
Thank you for your question. Unfortunately, we do not have a photograph of the inside of the Delta RP17453SS tub spout assembly. However, the tub spout sweats onto a 1/2" C.W.T or threads onto 1/2" IPS nipple. The RP12307 adapter assembly is included for installation.
Best Regards,
Rosanna
Date published: 2024-03-28
