Delta®

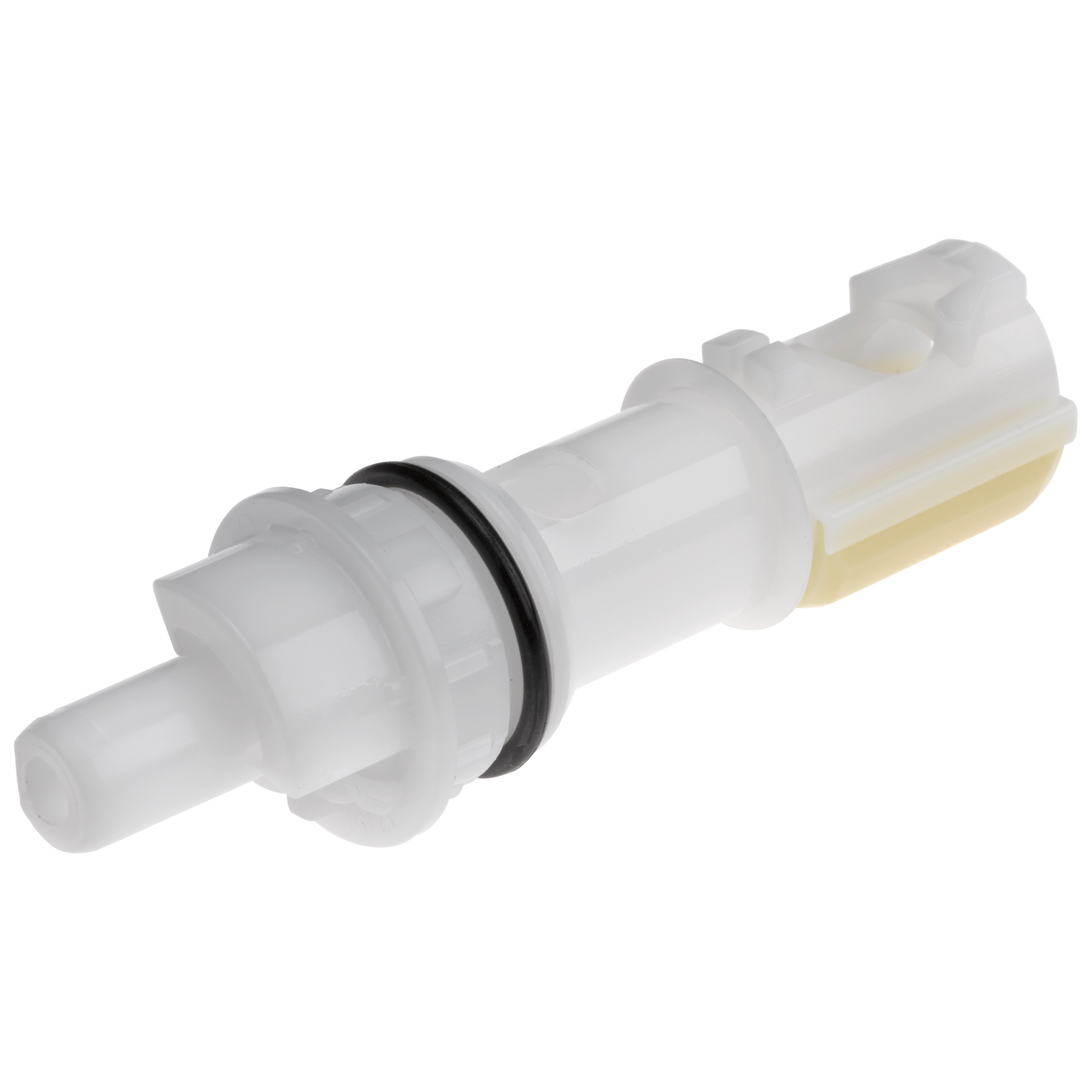

Diverter Assembly
Model#:
RP17730
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
Included with all applicable faucets, we know that sometimes little parts like this Delta Diverter Assembly RP17730 get lost or misplaced. That's why Delta has made it available for the handy DIYer to order. Just another way Delta is more than a faucet.
- For use with Delta 3-handle tub and shower faucets
- Diverts the flow of water from the spout to the shower head
- Tub/shower application
- Sold individually
- Genuine Delta repair part
Documents & Specs
Installation Information
Overall Height (in.) :
13/16
Valve Type:
NA
REVIEWS
Rated 5 out of
5
by
Randy from
Water from all spouts!
Showed up quickly and worked perfectly
Date published: 2021-12-13
Rated 5 out of
5
by
Brett from
Go with the OEM part
I bought this hoping it was an OEM part, and it appears to be. Reviews of aftermarket diverter cartridges indicated they didn't fit as well as an original Delta... this one fit perfectly. Two months later it is working fine.
Date published: 2021-10-25
Q&A
If this is oval, what is the part number for the round ended version?
Hi, John!
Thank you for your question. The Delta RP10799 Diverter Assembly is the round-shaped diverter.
Best Regards,
Rosanna
Date published: 2024-03-28
how do you remove the diverter assembly
Hi gryfox64,
Thank you for your question. To remove the diverter, first remove the handle, then unscrew the metal sleeve. You can then pull the extender and diverter straight out. The handle may have a set screw (usually 3/32" Allen) in the side or a Phillips screw in the top, which may be covered by a cap.
Best regards,
Jon
Date published: 2024-03-28
Does anyone know the dimensions of this part? We have only been able to find a diverter that is 2 1/4 inches and we need one that is 2 inches. Does anyone know that the length of this diverter? Thank you
Hello Jarhead,
Thank you for your question. This diverter is 3.1" in length. Unfortunately, we do not make a diverter that is 2".
Best regards, Jon
Date published: 2024-03-28
I have purchased a diverter assembly which seems to be the same as the broken one I am replacing but it does not want to be inserted. Any Particular guidance
Thank you for your question, Toby! The diverter assembly needs to be inserted as seen in the parts diagram. If you need further assistance, please contact our customer service team directly at 1-800-345-3358 Monday-Friday: 8a.m.-8p.m. EST and Saturday: 9a.m.-6p.m. EST or via email at customerservice@deltafaucet.com.
https://media.deltafaucet.com/PartsDiagram/2653_2683_2861_2871__32922_Rev_C.pdf
Best regards, Edward
Date published: 2024-03-28
When changing the Delta RP17730 diverted valve on a three handled shower valve body, I noticed there are no seats or springs in the valve body?
Dear Larry,
Thank you for your inquiry! There not suppose to be any seats and springs in the valve behind the diverter of a Delta three handle shower unit. The seats and spring would only be installed in the back of the hot and cold water valves.
https://media.deltafaucet.com/PartsDiagram/2653_2683_2861_2871__32922_Rev_C.pdf
Best regards,
Tanya
Date published: 2017-03-07
What is the difference between the RP17730 and the RP19653 diverter stems?
Hi Mike, Thank you for your question!
The RP17730 is a diverter for a 3 handle tub/shower and the RP19653 is a diverter for a roman tub transfer valve.
Best regards,
Brandis
Date published: 2024-03-28
What is the proper orientation of the valve? In other words which way do you install? Where should the pad or stopper sit when you install?
Hi wvuman,
Thank you for your question! The diverter should be installed with the tan seal face down.
Best regards,
Jon
Date published: 2016-11-29
After replacing the diverter, when turning the handle to change from tub to shower or vice versa, it doesn't turn as freely as before. Is there something I can do to make it turn easier?
I had the same problem. The new diverter was difficult to insert and would not turn-in fact I broke the one Delta sent and had to get another at H.D. I had to CAREFULLY sand the plastic protrusions opposite the tan pad on the diverter to reduce their height. These protrusions are what is preventing the diverter from turning freely in the valve body. Sand a little at a time and check for fit often. You don't need to remove much. They are meant to keep pressure on the tan pad but are too tall and get jammed. Now my diverter works and turns freely.
Date published: 2024-03-28
