Hydrachoice®
View Full Hydrachoice® Bathroom Collection

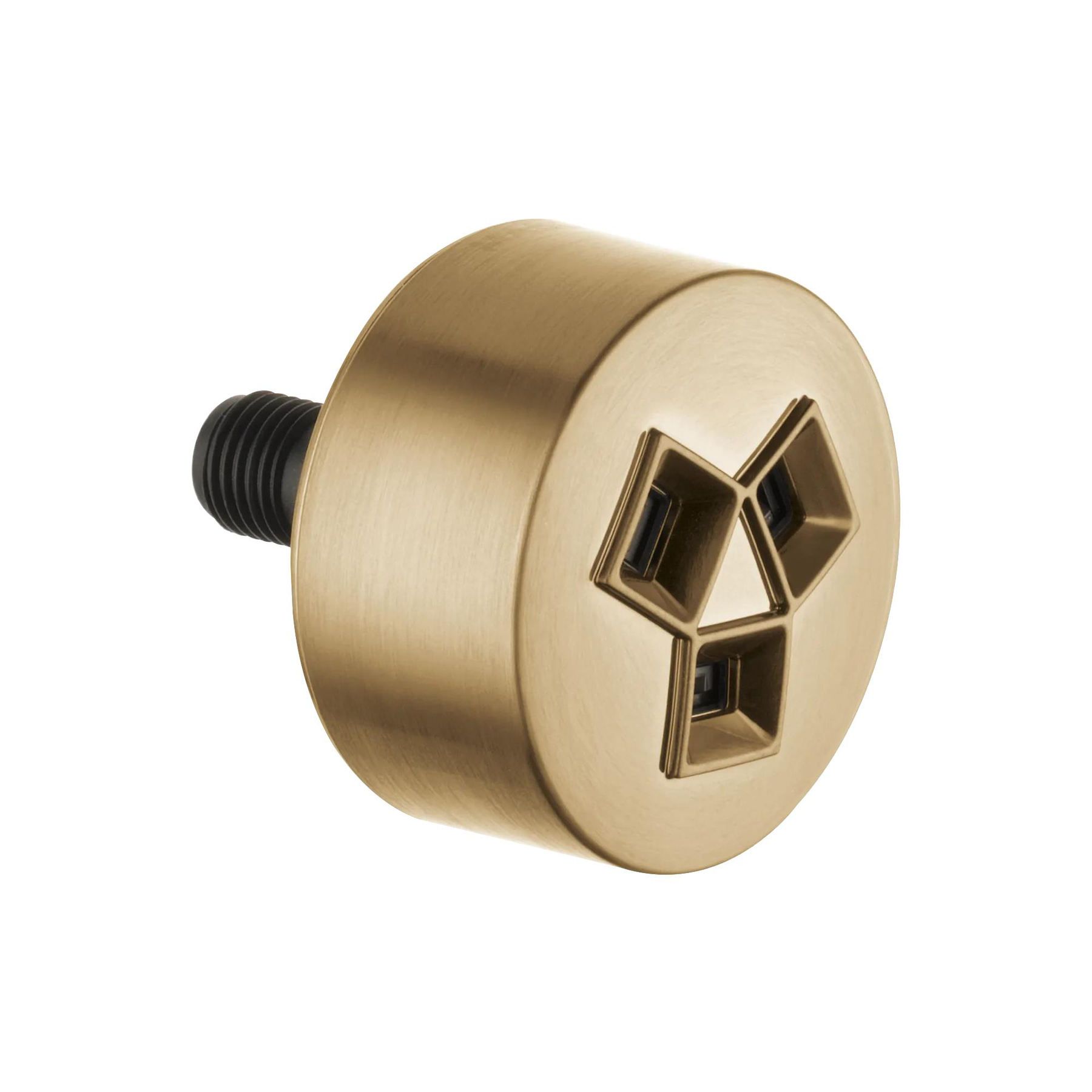

HydraChoice® Body Spray - H<sub>2</sub>Okinetic® Invigorating Spray Head in Champagne Bronze

Model#: SH5002-CZ
Add to Favorites
Find local Delta® installers.
Hydrachoice®
View Full Hydrachoice® Bathroom Collection
HydraChoice® Body Spray - H<sub>2</sub>Okinetic® Invigorating Spray Head in Champagne Bronze
Model#: SH5002-CZ
List Price: $5785
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Create a truly custom shower with this HydraChoice 1-Spray Invigorating Body Spray in Champagne Bronze with H2Okinetic Technology. Spray heads extend out of the wall when the water is turned on. Users can simply press the spray heads back into position when they are finished showering. Spray heads are easy and affordable to swap out, offering choice and differentiation in spray pattern and pressure before and after installation. By simply removing a set screw, you can transform your shower experience from a soothing to massaging or invigorating spray option. A ½ in. rough-in allows the body spray trim and spray head installation to occur after the rough-in stage is complete and the wall surface has been finished. The oscillating pattern of the water prevents the build-up of mineral deposits, making H2Okinetic spray holes self-cleaning. Adjust the spray 50 degrees in any direction to help you aim the water where you want it. Choose between a round or square trim option (sold separately) and four, interchangeable spray heads (sold separately) with H2Okinetic Technology or Touch Clean® spray holes. Available spray options are Invigorating, Soothing, Massaging and Full Spray.
  • Automatically extends when water is turned on
  • H2Okinetic increases the water's velocity to enhance spray performance and maintain temperature
  • Rotates up to 50 degrees in any direction
  • Rough, trim, and spray head required for complete unit
  • R50200 rough-in sold separately
  • Choose from T50010-CZ round and T50210-CZ square trim bodies in coordinating finishes (sold separately)
Technology and Special Features
Brilliance® Finish
H2Okinetic® Technology
H2Okinetic® PowerDrench® Spray
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Overall Height (in.) :
1-3/4
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 13ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Hello, I was wondering if there is some sort of water pressure adjustment for the body jet system? Can you make the pressure increase/decrease from the rough in or the jets? Thank you.

Asked by: TonyT
Hi, TonyT! Thank you for your question. The SH5002 body spray water pressure is not adjustable. The spray heads are interchangeable by the user if this one is too much pressure. The SH5000 is a softer spray. The SH5003 is a Soothing Spray Head, and the SH5005 is a Massaging Spray head. Hear are the links to these spray heads: https://www.deltafaucet.com/parts-product-detail?modelNumber=SH5000 https://www.deltafaucet.com/parts-product-detail?modelNumber=SH5003 https://www.deltafaucet.com/parts-product-detail?modelNumber=SH5005 Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

When the spray head protudes from trim does the water automatically start ?

the spray head requires trim , rough in to be complete but does it require a handle to turn on /off? Full assembly includes the spray head, trim sq or round, rough in, and turn on valve handle?
Asked by: Cyndi
Hello Cyndi, Thank you for your question! On the SH5002 when the water is turned on the head will automatically extend out. The rough in and trim has to be ordered separately for the spray head. Also, this does not include the control valve. You will need to choose your choice of R10000 universal valve and trim. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

massage, sooth, Invigorate.???

Seems we have names like massage, sooth, Invigorate. Is there a description that actually explains what each head type is best for? What can we expect each head to feel like or function? Thanks
Asked by: JRB2k
Dear JRB2K, Thank you for your inquiry. The massage, sooth, Invigorate and full body are spray pattern flow design/shape, for the different Delta H2Okinetic HydraChoice Body sprays. No matter the spray pattern of the body spray, it has a flow rate of 1 gpm at 80PSI. The H2Okinetic feature increases the water's velocity to enhance spray performance and maintain temperature. Best regards, Tanya
Answered by: Tanya
Date published: 2018-04-23

Smooth vs massage vs invigorating

My question is the same as that of patron JRB2K. What is the specific difference between these functions or water spray stistyles? I understand that it refers to the pattern etc but I donknow the difference between the patterns. Which gives the most intense, forceful spray etc? Thank you
Asked by: Amanda
Dear Amanda, Thank you for your inquiry. The Delta HydraChoice Body Spray SH5002-RB, has the Soothing spray that is the softest, followed by invigorating, and then massaging. All flow patterns have the same 1 gpm at 80 PSI, enhanced spray performance and maintained temperature features. I have included below, a video that shows the difference of the water flow with the different patterns. https://www.deltafaucet.com/cms/render/live/en/sites/delta/home/video-gallery/video-page.html?videoId=5vMMzIM5xok Best regards, Tanya
Answered by: Tanya
Date published: 2020-10-31

I used my body sprayers for a few years now and love them. But they now don&rsquo;t pop out as quick or at all. How do I maintain them?

Asked by: Macheu02
Hello, Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time. Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-01-22

Do they also retract when the water is shut off?

Asked by: Bob
Hello Bob, Thanks for your question. Unfortunately, this spray head does not retract back into the wall. You would need to push the spray head back in with your fingers. I hope this helps!
Answered by: DeltaFaucet4
Date published: 2024-03-28

Hi, My hydrachoice body sprays sometimes do not extend when activated. Is there something I should be doing for regular maintenance and how do I extend one that is stuck? I push stuck ones and they do not extend. Thanks

Asked by: Jim L
Hi Jim L, Please accept our sincere apology for the inconvenience you are experiencing. We are happy to help! Cleaning the trim module and the filter may help. If the issue remains, the RP82501 module may need to be replaced. See the trim manual here: https://media.deltafaucet.com/MandI/78403%20Rev%20E.pdf First, remove the sprayer by applying a wrench to the flats on the pop out mechanism and unscrew the sprayer counterclockwise. Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-01-31

Why are there no current reviews on this product?

Asked by: cj4540
Hello cj4540, Thank you for your question! We apologize that the information you are searching for was not readily available. We realize that can be very frustrating and I am happy to assist you! We thank you for being a loyal Delta Faucet customer. The Delta Faucet model SH5002 HydraChoice&reg; Body Spray - H2Okinetic&reg; Invigorating Spray Head In Chrome has not been reviewed by any customers since being released, so no reviews are available for it. We apologize for any inconvenience this may cause. Please contact us back directly via email with any further questions. Best Regards, Skyler
Answered by: Delta7
Date published: 2024-03-28
