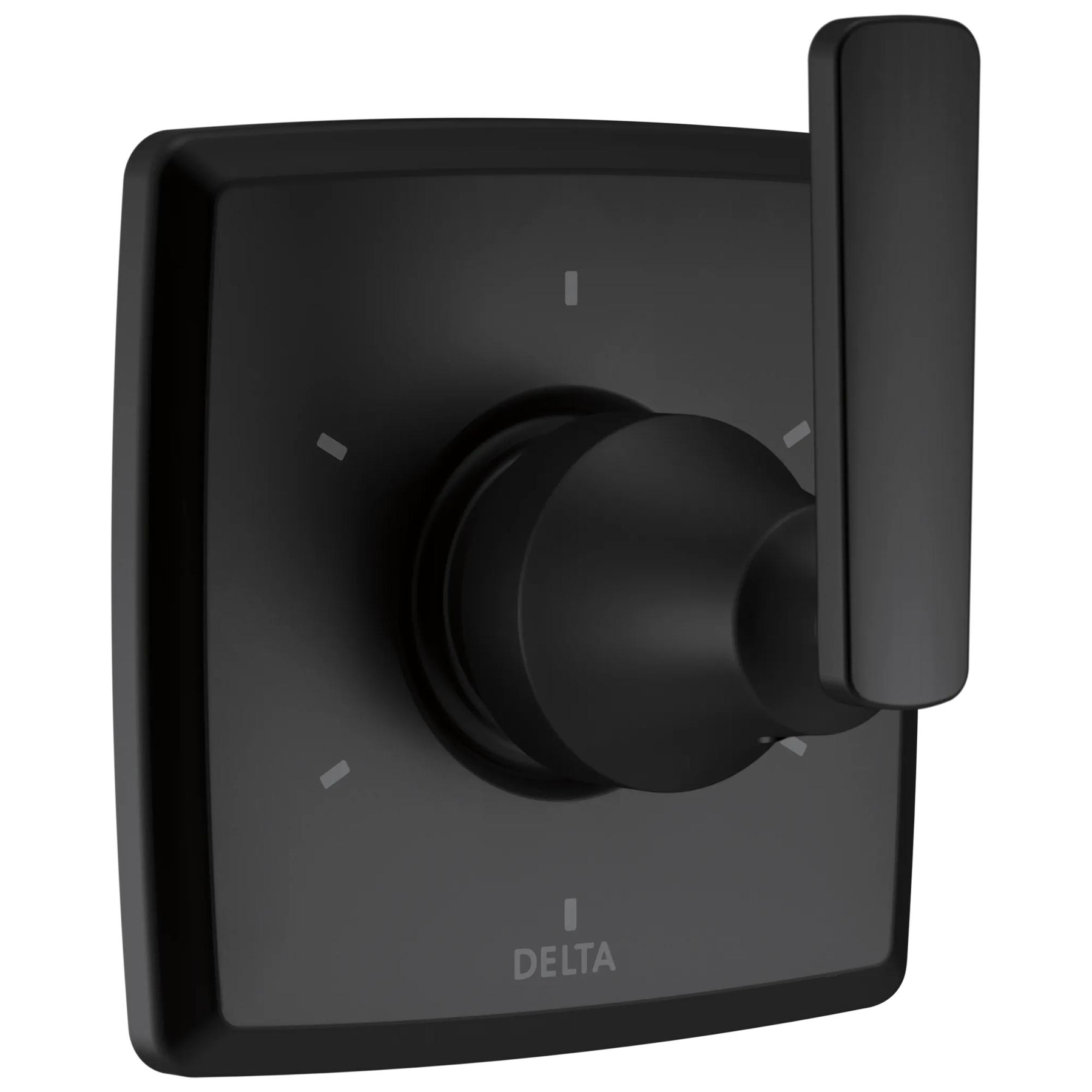

6-Setting 3-Port Diverter Trim in Matte Black
Model#:
T11964-BL
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
With sleek, angular lines and soft edges, the Ashlyn collection creates a modern appeal at an attractive price. Getting ready in the morning is far from routine when you are surrounded by a bath that reflects your personal style. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
- Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
- Rough-in valve R11000 sold separately
- Six function diverter with 3 individual positions and 3 shared positions
- Diverts the flow of water to custom shower body sprays, jets, and shower heads (sold separately)
- ADA Compliant
- Red/blue pad print temperature indicators on handle
- Perfectly coordinates with the Ashlyn bath collection
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Overall Height (in.) :
4-1/2
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 5 out of
5
by
Bri from
Delta Trim Out
[This review was collected as part of a promotion.] This was a great addition to my shower. We are very pleased with the color and how it matches so well with the rest of the bathroom.
Date published: 2025-10-10
Rated 5 out of
5
by
Charley from
Works beautifully
We added a wand to our bathtub hardware which required us to get the T11964 six function piece. Though it was complicated and the instruction could have been more explicit, After watching several YouTube videos and reading other information we were able to install the piece. Now it works beautifully giving us more options.
Date published: 2022-11-23
Rated 5 out of
5
by
amberg from
Easy to use
[This review was collected as part of a promotion.] We purchased this product for a new construction home to use with the body sprayers and hand held wand. Switching between the different functions is very smooth and looks really nice! I enjoy the various combinations of the water source that this product allows (i.e. body sprayers and shower head or just shower head).
Date published: 2020-02-02
Rated 5 out of
5
by
Boener89 from
New build
[This review was collected as part of a promotion.] We have bought Delta products in past. Very solid construction and easy to install.
Date published: 2020-01-15
Rated 5 out of
5
by
neppy5 from
Really stylish looking trim
Went with the Chrome finish and was installed by my handyman. Been using it for a few months without any issues. No water spots and easy to clean. Looks great and it's smaller than it looks in the picture, very sleek. In my setup it diverts between a shower head, dedicated shower handle, and a tub spout. Love having the flexibility.
Date published: 2018-11-17
Rated 5 out of
5
by
Ashleym from
FANTASTIC!
[This review was collected as part of a promotion.] I love everything about this prodcut. We use it with our body spray and jets and it super easy to switch between one main spray in addition to either having the the jets or body spray. You cannot have all through componets going at the same time (at least, not the way ours is set up). The Ventian Bronze color looks great against our subway tile as well.
Date published: 2018-03-05
Rated 5 out of
5
by
Mile from
Great Diverter Trim!
I purchased the Brilliance Stainless color. The color is great and works great with my other nickel/polished nickel items in the bathroom. The leer is very sturdy to the touch, and it provides smooth operation.
Great addition to any bathroom.
Date published: 2018-03-03
Rated 5 out of
5
by
Custom Interiors from
Ashlyn is a great looking set
Love Delta products! Ashlyn is a great looking set for a more modern feel!
Date published: 2015-09-18
Q&A
is there a larger trim plate
Thank you for your question, Robert! The escutcheon plate for this model is 4 1/2" (114 mm). Although the Ashlyn collection does not offer a larger plate, other Delta diverter trims do offer larger escutcheon trims such as the Pivotal diverter trim which features a 6 1/8"
(159 mm) plate.
https://media.deltafaucet.com/SpecSheet/DSP-B-T11899_B.pdf
Best regards, Edward
Date published: 2024-03-28
My installation is for a shower with one shower head and one handheld shower head. Do I need a two or three port?
Thank you for your question, Philip! You will need a two port diverter trim in order to diverter between using two products. There will also be a shared position for both.
https://www.deltafaucet.com/bathroom/product/T11864
Best regards, Edward
Date published: 2024-03-28
Does this include the 6 function cartridge?
Does this trim include the 6 function cartridge? If so what is the maximum water flow at 50PSI through a half inch inlet?
Hi MikeFromAiken,
Thanks for your question! The trim kit will include a 6-setting cartridge. Her is the approximate outlet flow rate at 50 PSI per series:
14 Series - 4.8 gpm
17 Series - 4.6 gpm
17T Series - 5.1 gpm
Best regards,
Jon
Date published: 2024-03-28
Diverter Settings?
If I have 2 shower heads and a tub spout is a 6 setting or 3 setting diverter needed?
Thanks in advance.
Hi ChrisfromLI, Thank you for your question. If you are going to use a diverting tub spout you would go with the 3 setting diverter. If you are installing a non-divertering tub spout and plan on plumbing the spout through the diverter you would use the 6 setting diverter.
Thanks,
Dave
Date published: 2024-03-28
If I order the 6 function diverter i don't see a bundle that includes the Ashlyn shower head. Is there a part number for the Ashlyn shower head so I can order one to match the other item in my bathroom? Thanks for your help.
Hello,
Thank you for your question!
Unfortunately we do not offer a bundle which includes this. We apologize for any inconvenience this may have caused.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-09-09
Does this also control hot and cold water? If so how? I see red and blue on the blank handle but I can’t figure out how that would work.
Hello AmyN!
Thank you for your question. The T11964-BL is a diverter trim and does not control the temperature. Unfortunately the incorrect handle is shown on the trim with the black finish. All other finishes pictured show the correct handle.
Best Regards, Shontay
Date published: 2024-03-28
Can I use this diverter alone in a Shower only situation? (Meaning this is not a tub and shower situation, just used only to turn on and off the shower and change temperature of water)
Hi RonD,
Thank you for your question about the Delta Faucet model T11964-SS Ashlyn® 6-Setting 3-Port Diverter Trim In Stainless. We will be happy to assist you as quickly as possible.
This diverter trim does not control temperature and would not be used as a positive shut-off. It would be used for switching between shower features, like a showerhead and hand shower.
Models T14064 and T17064 are mixing valve trims in the Ashlyn collection.
https://www.deltafaucet.com/bathroom/product/T14064.html
https://www.deltafaucet.com/bathroom/product/T17064.html
Please contact us directly if you have any questions or need additional assistance. Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-03-28
what additional items do i need to order for installation of the Ashlyn 6-Setting 3-Port Diverter Trim in Chrome.
Hi Valued Customer,
Thank you for your question.
This diverter trim does not control temperature and would not be used as a positive shut-off. It would be used for switching between shower features, like a showerhead and hand shower.
Models T14064 and T17064 are mixing valve trims in the Ashlyn collection.
https://www.deltafaucet.com/bathroom/product/T14064.html
https://www.deltafaucet.com/bathroom/product/T17064.html
Please contact us directly if you have any questions or need additional assistance. Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you!
Best Regards,
Themar
Digital Communications Specialist
Date published: 2025-09-08
