Pivotal®
6-Setting 3-Port Diverter Trim
Model#: T11999-SS

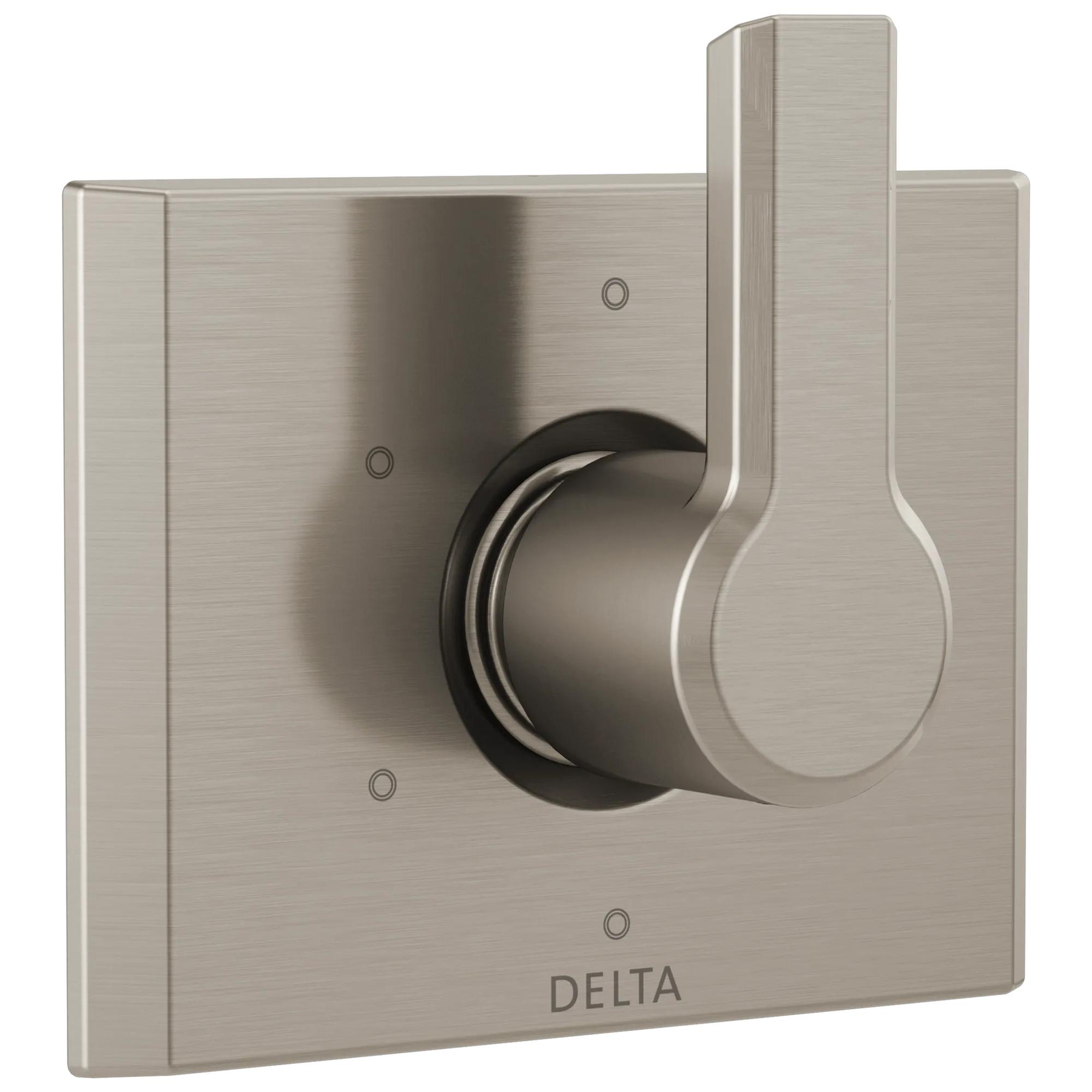

6-Setting 3-Port Diverter Trim
Pivotal®
6-Setting 3-Port Diverter Trim
Model#: T11999-SS
Finish: Stainless
List Price*: $351.30
PRODUCT FEATURES
The confident slant of the Pivotal Bath Collection makes it a striking addition to a bathroom's contemporary geometry for a look that makes a statement. This 3-port, 6-setting diverter trim allows for three individual and three shared position for use of your shower components. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • Trim kit only, must order MultiChoice universal valve R11000 separately to complete the unit
  • ADA compliant
  • 3-port, 6-position diverter trim
  • 3 individual and 3 shared positions
  • Monitor pressure balance valve keeps water temperature within a safe +/-3°F (+/-1.6°C), helping to protect you from sudden changes in hot or cold water pressure
  • 1/2 in. rough-in
  • Order installation extension kit RP75137 to add 1 in. to maximum installation thickness (sold separately)
Special Features
ADA Compliant
ADA Compliant
California Prop 65 WARNING
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Over All Height :
4-9/16
Connection Type :
NA
PART LIST
REVIEWS
Rated 5 out of 5 by from Great diverter easy to install and use [This review was collected as part of a promotion.] We used this diverter in our last build. It was well made, easy to install and had no issues during heavy useage in a Master bath. we purchased again in black for an updated look and once again easy install and works as it should no issue!!
Date published: 2020-01-30
Rated 5 out of 5 by from Sleek looking shower I had my plumber install this with the rest of my Delta Pivotal shower components and several Kohler body sprays. It works great and looks great. I've gotten several compliments from friends who have seen it. Thank you, Delta!
Date published: 2018-11-02
Rated 5 out of 5 by from Delta Diverter Love the look of it! Black matte finish. Quality product
Date published: 2018-02-09
  • y_2021, m_1, d_24, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_T11999-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

can i use this for a bathtub shower head and hand held shower

Asked by: john
Thank you for your question, John. This trim diverts between 3 components. For a shower head and handshower, we recommend using a 3-Setting 2-Port Diverter Trim such as the T11899-SS. Please be sure to use the top and left port and cap the right port. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2017-10-29

can i use this for just two shower heads

Asked by: Damon
Thank you for your question, Damon. This trim is designed to divert between 3 showering components. If you have only two shower heads, we recommend using a 3-Setting 2-Port Diverter Trim such as the T11899-BL. Please be sure to use the top and left port and cap the right port. https://www.deltafaucet.com/bathroom/product/T11899-BL Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-09-25

For a 3 position non-shared diverter, do I need to order the RP71718 cartridge separately?

Is there a trim set that comes with the RP71718 cartridge?
Asked by: Rusty
Thank you for your question, Rusty. The RP71718 would need to be purchased separately. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-11-09

Delta Model numbers T11999, R11000, T17T099-BL, R10000-UN, 51799, and 52664 Does this combo work? Missing anything? Is slide bar ADA compliant? If not what's the choice? Thx

Asked by: Buzz
Hi, Buzz! Thank you for your question. The shower and diverter combination with the T11999, R11000, T17T099-BL, R10000-UN, 51799, and 52664 will work together. We recommend also to add a wall elbow for the hand shower assembly. The Delta 51799 hand shower slide bar is not ADA compliant. Here are slide bars that are ADA compliant: https://www.deltafaucet.com/bathroom/showering/shower-components?categories=Delta_Bathroom_Showering_Shower+Components_Tub+Shower+Component&facetFeature=ADA Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-02-27

What would I need if I want to run 4 separate outputs individually - such as main shower, rain shower, body spray, and hand sprayer? Could I use two - 3-way diverters?

Asked by: Lori2
Hi, Lori2! Thank you for your question. The T11999-BL has 3 ports to have 3 separate shower units. If you are wanting a 4th shower unit, we recommend a separate valve for the 4th unit to turn on and off the unit separately. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-02-12

This does not control the temp, correct? What matching Pivotal component is required to adjust the Temperature setting?

Asked by: Yasmi
Thank you for your question, Sanchez5590! The diverter trim T11999-PN does not control temperature or volume. The Pivotal line offers various trim kits to complete this installation however. To control the temperature and volume, you will need to choose a 14, 17 or 17t series trim such as models T14099-PN, T17099-PN or T17T099-PN. I will include a link below to the options currently available in the Polished Nickel finish. https://bit.ly/2tpcS8q Best regards, Edward
Answered by: Delta Faucet
Date published: 2018-06-24

gpm

With 2 shower heads at 2.5 gpm can 5 gpm flow thu the 1/2" connections and supply adequate water ?
Asked by: Randy
Thank you for your question, Randy. The maximum flow rate from each port with be 5.0 GPM or more (depending on the valve trim series) at 60 PSI. Lower pressure and other factors can affect the maximum flow rate. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-11-09

Ok, too many part #'s....for three individual and three shared positions which Polished nickel Trim Kits and roughs are required? Model#: T11999-PN (+) (R11000) Model#: T17T099-PN (+) (R10000-UN)

Asked by: Yasmi
Hello Yasmi, Thank you for your inquiry! Correct, if installing the Delta Pivotal collection with a shower, two other showering items (shower head, hand shower, body sprays etc), TempAssure T17T099-PN, Rough-In valve R10000-UN, Diverter valve R11000 and the 6-Setting Diverter Trim T11999-PN would be valve and trims kits needed. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-06-26
