Stryke®
View Full Stryke® Bathroom Collection

14 Series Tub and Shower in Matte Black

Model#: T14476-BL
Add to Favorites
Find local Delta® installers.
Stryke®
View Full Stryke® Bathroom Collection
14 Series Tub and Shower in Matte Black
Model#: T14476-BL
List Price: $74200
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES

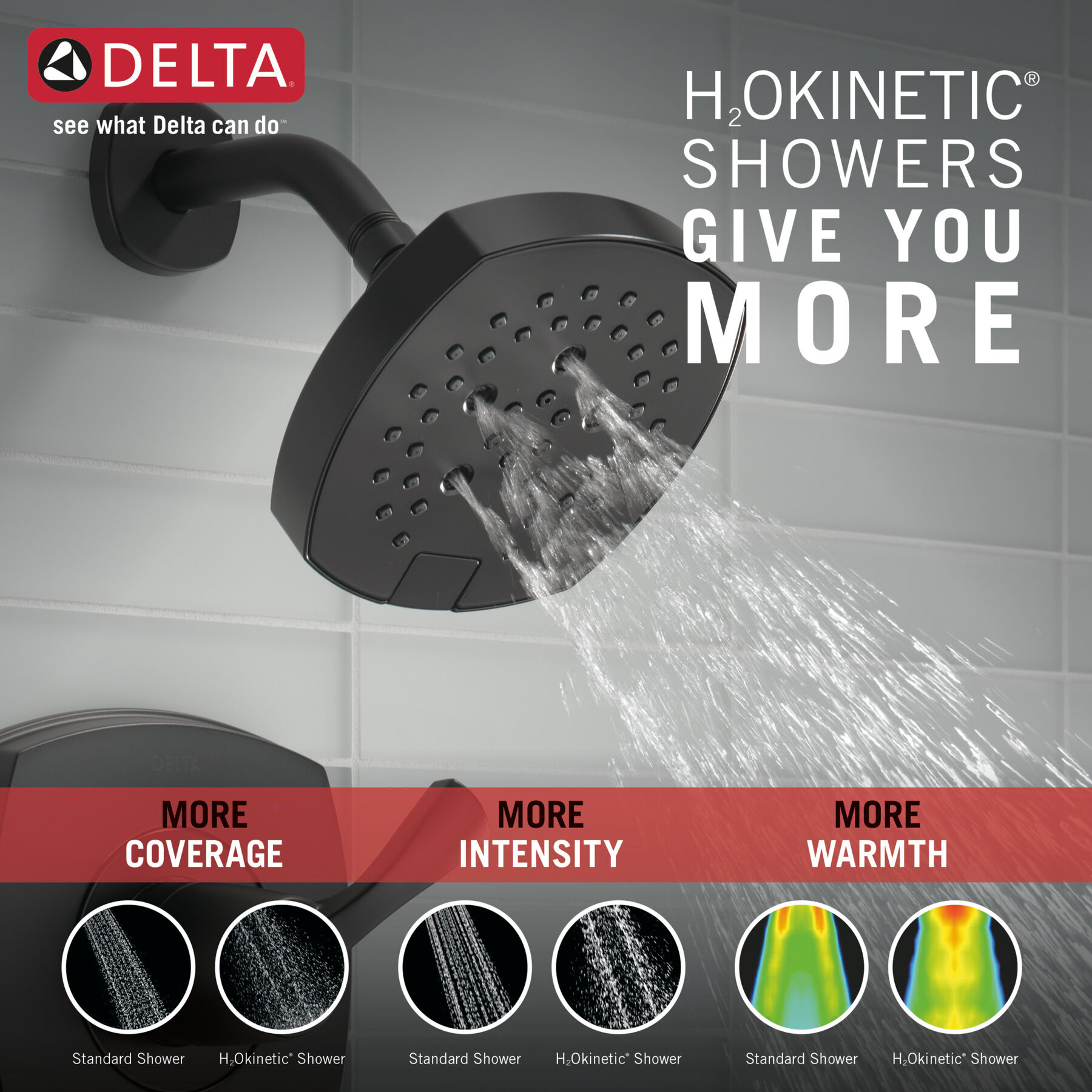

H2Okinetic® Shower technology sculpts water into a unique wave pattern, forming a powerful drench spray
  • H2Okinetic® gives you the feeling of more water without using more water
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Temperature only controlled with handle
  • 120° maximum handle rotation
  • All parts replaceable from the front of the valve
  • Red/blue pad print temperature indicator on the shower escutcheon
  • ADA Compliant metal lever handle
  • Monitor® pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Monitor® pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: H2OKinetic spray
  • H2Okinetic® spray creates a shower with more warmth, coverage and intensity
  • Matte Black cultivates a sophisticated air and coordinates flawlessly with most other fixtures and accents
  • Matte Black's bright tones are undeniably modern with a strong contrast
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Pull-up tub spout diverts the flow of water from the tub spout to the shower head
  • Back-to-back installation capability
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
MultiChoice® Universal Valve
H2Okinetic® Technology
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product

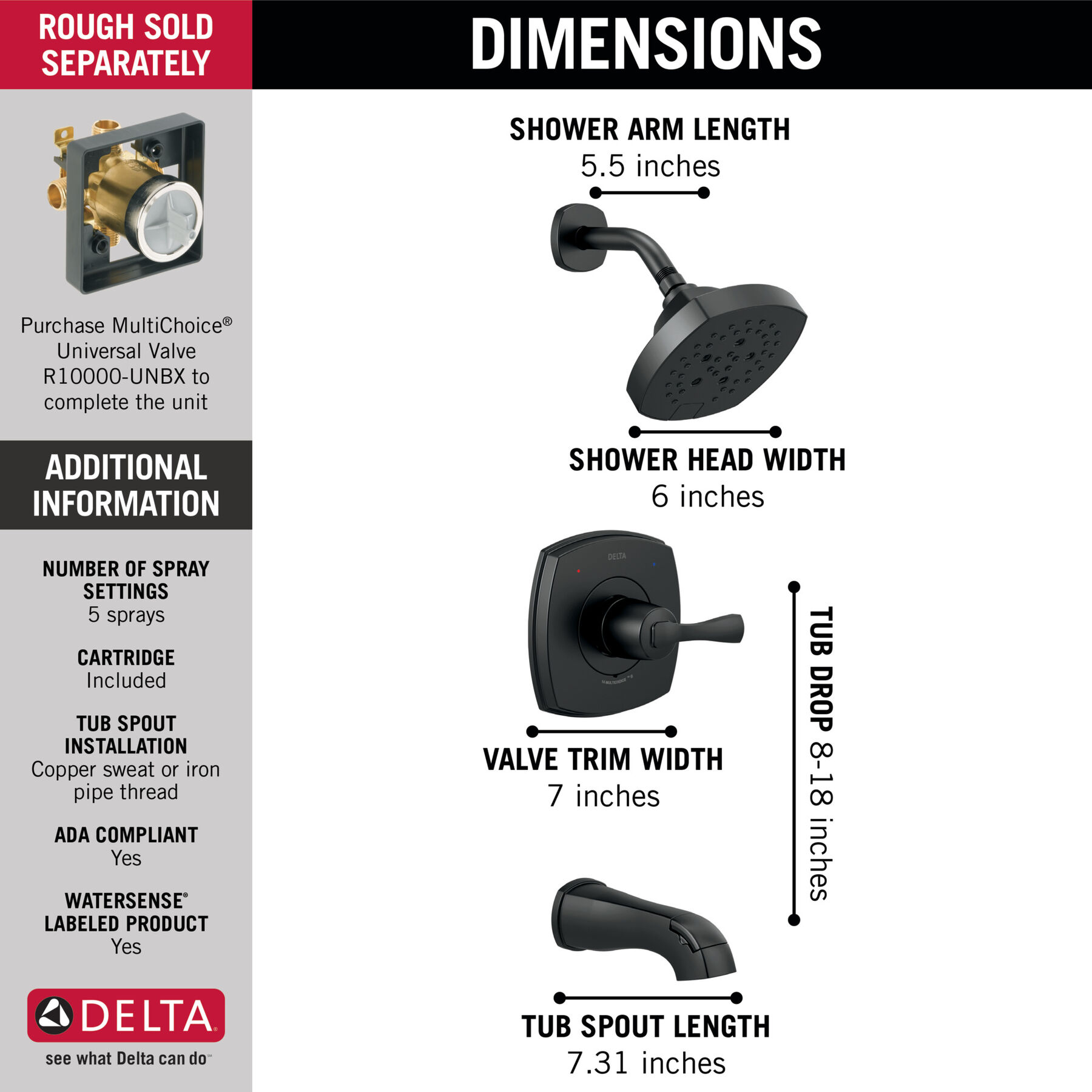

Installation Information
Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
7
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
Mike and Hanna
Delta logo thumb

Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.

Browse Videos
REVIEWS
Rated 1 out of 5 by from Horrible Design Bought 3 of these and they are HORRIBLE! I would give zero stars if possible. It is impossible to pull up the part that diverts water to shower and if you do get it up it won't go down. Literally feels like you will break it off the wall each time you try to change from tub to shower. DO NOT BUY THIS PRODUCT!
Date published: 2025-07-13
Rated 5 out of 5 by from Good Value Good quality and good price
Date published: 2023-03-19
Rated 1 out of 5 by from So disappointing Nothing but trouble! My first issue was in how difficult it is to pull up the part of the tub spout that diverts water to shower. It is not possible to get full diversion unless you turn off water first and even then it is extremely challenging to manipulate up. Horrible design. Now I am faced with the temperature adjustment handle coming loose so I have to fiddle with it to adjust temperature. It will actually fall off if I don’t hold it on. I am the only person to use this tub and I’m careful so all of this is not from misuse. Caution advised when considering this design!
Date published: 2023-03-16
Rated 1 out of 5 by from Poor design. Poor quality. It looks good. That is about the only good thing about this product. Quality and design are very poor. Shower head had pitiful water pressure. Also, it broke and had to be replaced after less than a year of use. It just started spraying water everywhere from the back of the head. It is very hard to work the pull on the tub spout when you need to switch water from the spout to the shower and back. You literally have to wrestle the thing up or down risking breaking the spout off the wall. The warranty for this product is tricky too. When something breaks, make sure you contact Delta customer service first, before you call your plumber! Even if you’re not a plumber yourself and not quite sure what you’re dealing with. Otherwise, your warranty will be no good. Anyways, save yourself the disappointment, opt for something else.
Date published: 2022-09-08
Rated 4 out of 5 by from Shower faucet I love the color......I just wish the shower hear was a little bigger and the shower arm going into the wall was curved upward and higher.
Date published: 2021-07-07
Rated 4 out of 5 by from Great features and beautiful look.. Works just fine for me. I like the fact that I can drizzle the water while I shave, Very nice and water saving function....
Date published: 2021-04-30
Rated 4 out of 5 by from Really pretty great! This is a great stationary shower system! The shower head has good water pressure and a few different settings to rotate though.
Date published: 2021-02-20
Rated 1 out of 5 by from Looks nice, functions terrible. This tub and shower faucet has a great design and looks nice...but it functions horribly. I installed a new valve and this Stryke set on my new tub install. Expensive mistake. While I like the look, the shower head is terrible. You push the lever to change the spray. One setting is just to drizzle. The other settings work ok, but they also drip a lot. It's very sloppy and sprays everywhere. The tub spout looks good as well. The design on the pull to make the shower floor is terrible. If the water is running you have to pull super hard for it to engage, then you're likely to only get it half way up. It seems you have to pull the tub faucet valve up before you start the water or you won't get the shower fully engaged. Poor design. I'd go with another style, or better yet, get a Kohler. Sorry I spent my money on this set.
Date published: 2021-01-16
  • y_2026, m_4, d_9, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.43
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_9
  • loc_en_US, sid_T14476-BL, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

Can this set be used for just a tub with no shower above? Is there a way to cap off the shower part?

Asked by: cindy
Hi, Cindy! Thank you for your question. The Delta Monitor T14476-BL Tub and Shower Trim Kit can be installed without having to use the shower head. The top port on the MultiChoice Universal R10000 Rough In Valve Body can be capped for tub-only installation. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

What other parts do you need for this set up? Rough in? Which one? Universal valves? Which one?

Asked by: White
Thank you for your question, White! Any of the Delta Multichoice Universal rough-in valves such as the R10000-UNBX would work with this trim; however, as it does include a tub spout, an "HF" or "High Flow" model will not, as this version does not include an open tub spout port. https://media.deltafaucet.com/SpecSheet/DSP-B-R10000%20Rev%20J.pdf Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Which drain assembly?

Asked by: White
Thank you for your question, White! We advise using a Delta bath waste assembly; however, these are not included with a shower trim and must be purchased separately. If you do not already have a Delta bath waste assembly installed, you will need to contact the manufacture of the original bath waste assembly to ensure the right size needed. https://www.deltafaucet.com/search-results?title=bath%20waste Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

is this product also with a plastic shower head and spout as your T14403 and 01 series are

Asked by: Carol
Hello Carol, Thank you for your inquiry! Yes, the shower head and tub spout of the Delta Stryke Tub and Shower T14476 model are non-metallic. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

I'm interested in the Stryke line, the widespread faucet, tub/shower valve combo, and accessories. When will they be available?

Asked by: KathyL
Hi, KathyL! Thank you for your question. The Delta T14476-SS and other Delta STRYKE™ products will be available by end of 2018. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

What size set screw do I need for the hot/cold lever

Asked by: Jerry
Hello Jerry! Thank you for your question and we are happy to help! You will need the part RP100375 for the set screw for the lever on the Delta T14476-BL. Please contact us directly for further assistance. Best Regards, Carrie
Answered by: Delta7
Date published: 2024-03-28

i can only get super hot water and cold water i am not able to get warm water even after adjusting the hot water scaling

Asked by: jluulala

How do you remove the “ beauty ring” of the back plate?

Asked by: Doona
Hello Doona, Thank you for your question! We apologize for the inconveniences you are experiencing and will be happy to help you. The Delta RP49089 Trim Ring just slides over the valve, to remove you just slide it off. Please feel free to contact us back for further assistance. Best Regards, Kelley
Answered by: Kelley
Date published: 2024-03-28
