Stryke®
View Full Stryke® Bathroom Collection

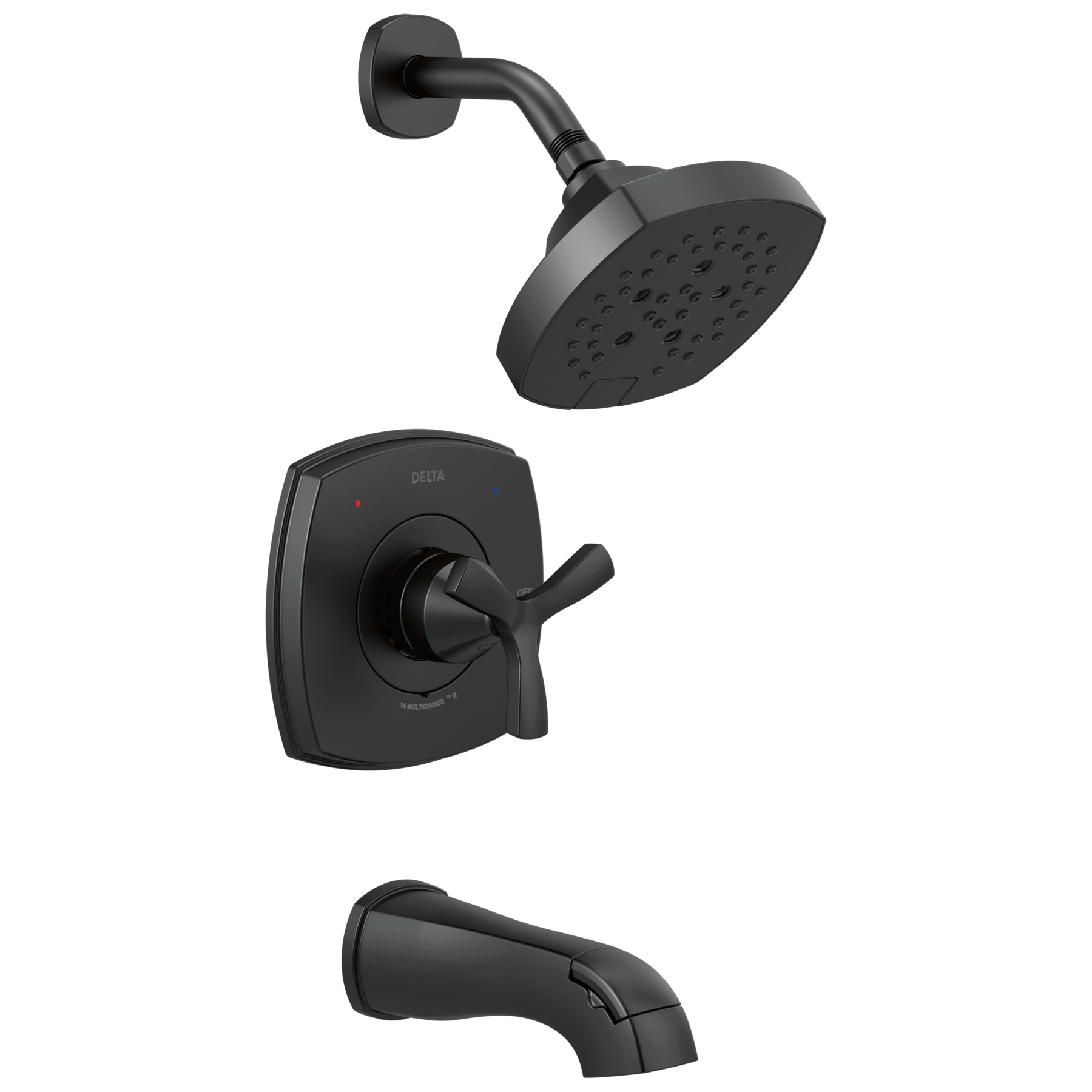

14 Series Tub and Shower in Matte Black

Model#: T144766-BL
Add to Favorites
Find local Delta® installers.
Stryke®
View Full Stryke® Bathroom Collection
14 Series Tub and Shower in Matte Black
Model#: T144766-BL
List Price: $85600
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
H2Okinetic® Shower technology sculpts water into a unique wave pattern, forming a powerful drench spray
  • H2Okinetic® gives you the feeling of more water without using more water
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Temperature only controlled with handle
  • 120° maximum handle rotation
  • All parts replaceable from the front of the valve
  • Red/blue pad print temperature indicator on the shower escutcheon
  • Helo spoke handles add a custom touch with their distinctive 3-spoke design
  • Monitor® pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Monitor® pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: H2OKinetic spray
  • H2Okinetic® spray creates a shower with more warmth, coverage and intensity
  • Matte Black cultivates a sophisticated air and coordinates flawlessly with most other fixtures and accents
  • Matte Black's bright tones are undeniably modern with a strong contrast
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Pull-up tub spout diverts the flow of water from the tub spout to the shower head
  • Back-to-back installation capability
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
MultiChoice® Universal Valve
H2Okinetic® Technology
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product

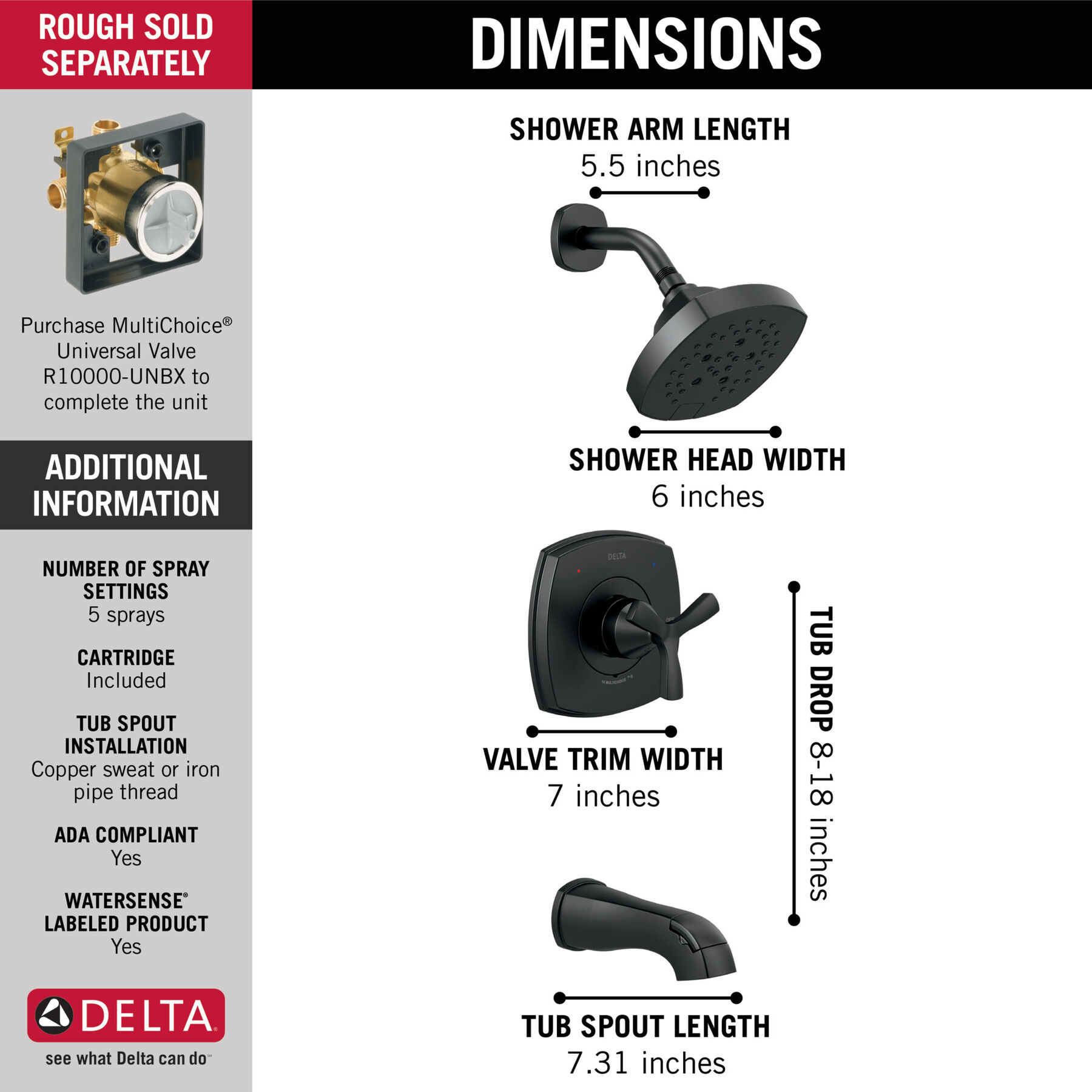

Installation Information
Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
7
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

What is the recommended spacing for the valve and the tub nipple ?  I am using the Delta multi choice valve

Asked by: Matthew3902
Thank you for your question, Matthew3902! We are happy to help. The distance between the valve body and tub spout must be between 8" and 18". A minimum of 1/2" copper or iron pipe must be used with only one elbow to the tub spout nipple. Do not use PEX tubing for the spout drop. The installation manual for the valve rough can be found at: https://media.deltafaucet.com/MandI/50353%20Rev%20L.pdf Best regards, Bryan
Answered by: Delta Faucet
Date published: 2024-03-28

what is the difference between shower model T144766 and T14476 How is the power of the shower of T144766 can i switch the settings?

Asked by: a roth
Hello a roth! Thank you for your question and we are happy to help! The difference between the Delta 14 Series Tub And Shower Model T14476 and the Delta 14 Series Tub And Shower Model T144766 is the handle. The Delta T144766 has a cross handle and the Delta T14476 has a lever handle. Both models have a GPM of 1.75 GPM @ 80 psi. There are no settings to be changed with these showers. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta customer. Best Regards, Carrie
Answered by: Delta7
Date published: 2024-03-28
  • y_2026, m_7, d_27, h_5CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_en_US, sid_T144766-BL, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 38ms
  • questions, product
