Tesla®

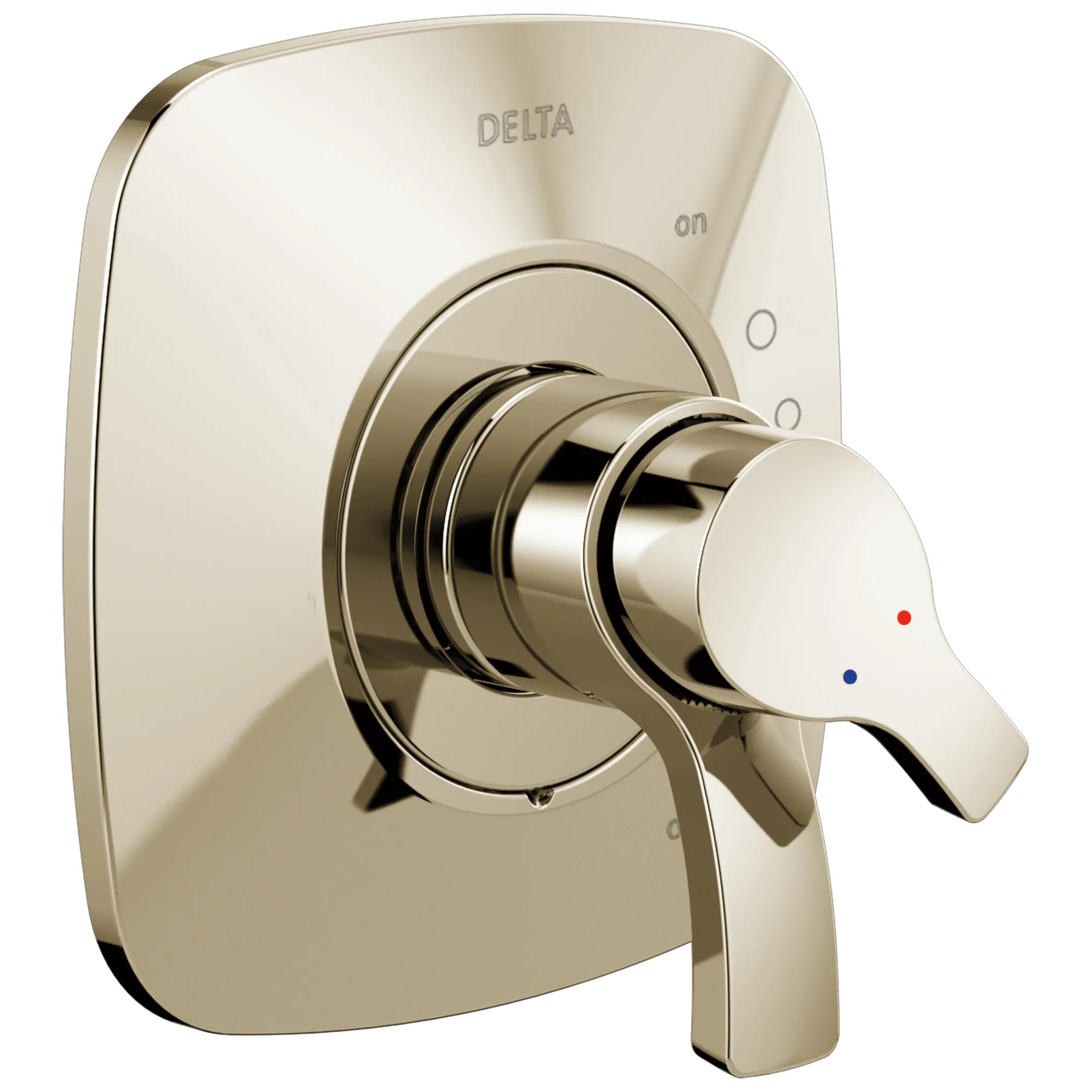

Monitor® 17 Series Valve Only Trim
Model#: T17052-PN
Finish: Polished Nickel
List Price*: $435.15
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Designed to look like new for life, Brilliance® finishes are developed using a proprietary process that creates a durable, long-lasting finish that is guaranteed not to corrode, tarnish or discolor. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. This glossy finish provides a delicate elegance that can make almost any room pop. The polished surface reflects back deep shadows from your space, creating contrast within the pale gold tones which takes on a new light from every angle.
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • ADA Compliant
  • Tesla Collection: Progressive. Organic. Evolved.
  • Valve is not included, must purchase separately
  • Backed by Delta Faucet’s Lifetime Limited Warranty
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Connection Type :
NA
PART LIST
REVIEWS
Rated 5 out of 5 by from Great shower trim kit Ordered for our master shower in our new home. Everything arrived on time. Looks great installed. Love the separate volume and temp controls.
Date published: 2018-11-19
Rated 4 out of 5 by from Great Product This was shipped immediately and is a very nice piece that will accent any bath. Sleek and simple yet eye catching. Haven't had a chance to get full use out of it as the bathroom remodel is still under way but would definitely recommend it
Date published: 2018-06-04
  • y_2021, m_1, d_24, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_T17052-PN, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
Q&A

does the 2.0 gpm figure given in the specs mean that this unit will allow a maximum of 2.0 gpm to flow to the shower head?

Asked by: David Johnson
Hi David, Thank you for your question! The shower head that comes with the T17252 or T17452 is designed to run at a maximum of 2.0 gpm. The approximate flow rate that is available from the valve is listed as "Tub Filler" on the flow rate chart. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-02-22

Can I use this with a shower head and rain can? Position 1 can be shower, 2 can be the can, 3 can be both? Temp is included on the knob? If not the case, what's the simplest way to satisfy two positions?

Asked by: Tony
Hi, Tony! Thank you for your question. The Delta Monitor T17052 valve trim kit will need to add an in-wall diverter assembly in order to have two shower components on at once or individually. The in-in wall diverter that matches the T17052 is the Delta T11852 diverter trim. Here is a link to this: https://www.deltafaucet.com/bathroom/product/T11852 Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-03-23

Is part of this handle plastic or is it all metal?

Asked by: steph27
Thank you for your question, steph27! I am very sorry for the confusion, however the volume handle and plate are metal. The temperature knob is non-metallic. Non-metallic products are beneficial in that they do not rust or corrode and help prevent heat transfer. We also have a Lifetime Limited Warranty on all parts and finish. Best regards, Edward
Answered by: Delta Faucet
Date published: 2018-06-26

AdA wall slide bar and hand shower

Does the T17052-PN shower faucet have the accessories ADA wall slide bar and hand shower system
Asked by: Dave
Hi Dave, Thank you for your question. Delta model T17052-PN down not come with a wall slide bar or hand shower system. Best Regards, Courtney
Answered by: DeltaFaucet12
Date published: 2016-08-30

how to remove the trim sleeve after handles removed?

How do I remove the trim sleeve to flip the cartridge (since hot and cold are reversed)? I have removed both handles, but how do I remove the trim sleeve over the cartridge. The installation manual doesn't show this exact trim, and it look like it would either just pull out or twist counter-clockwise, but it does not.
Asked by: E
Dear E, Thank you for your question. Normally, once the temperature dial and volume handles are both removed from the faucet, the sleeve assembly just pulls right off. You may need to remove the trim ring too, to get a better grip on the cylinder sleeve. https://media.deltafaucet.com/PartsDiagram/DPD-B-T17052.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2017-06-19

Do you need to order the shower arm and flange separatley? Or is there a Tesla 17 trim that comes with the arm and flange (just showerheadless)?

Asked by: Quinn
Dear Quinn, Thank you for your question. Yes, you would need to purchase the RP78720SS Shower Flange and RP40593SS Shower Arm separately. We do not make a 17 Series Tesla Shower Trim kit that comes less shower head (LHD). https://www.deltafaucet.com/bathroom/product/RP78720SS https://www.deltafaucet.com/parts-product-detail?modelNumber=RP40593SS Best regards, Tanya
Answered by: Tanya
Date published: 2017-04-08

i am looking to replace a Tesla T17052 cartridge. I have the cartridge which is great but there is not much room to pull off the trim sleeve. I notice on the answer below it was mentioned you can remove the trim ring. How do you remove it?

Asked by: Mike
Thank you for your question, Mike! The RP49089 trim ring on Delta Tesla model T17052 is removed by turning the ring counterclockwise. Best Regards, Benjamin
Answered by: Benjamin
Date published: 2020-04-22

How can I increase the hot water temperature from the faucet? I am just barely able to reach 100 degrees from the tub or shower and have much hotter water everywhere else in the home.

Asked by: Homeowner
Thank you for your question, Homeowner! You can set the maximum temperature by adjusting the Rotational Limit Stop. Please refer to page 7 of the Installation Instructions for help with this. https://media.deltafaucet.com/MandI/X00076652_G.pdf Best Regards, Benjamin
Answered by: Benjamin
Date published: 2020-04-22
