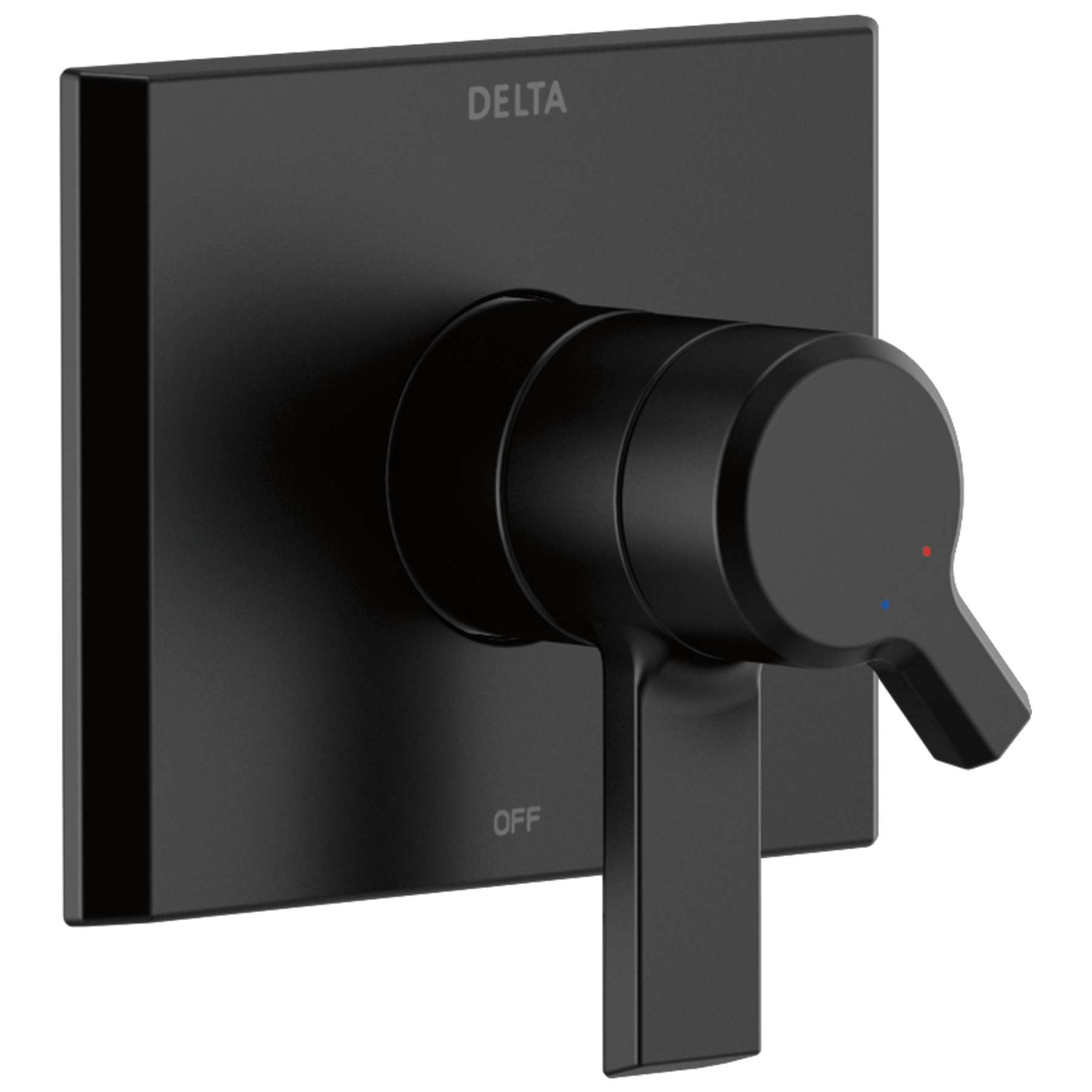

Monitor® 17 Series Valve Only Trim in Matte Black
Model#:
T17099-BL
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
The confident slant of the Pivotal Bath Collection makes it a striking addition to a bathroom's contemporary geometry for a look that makes a statement. Delta pressure-balance valves use Monitor Technology to protect you and your family from sudden temperature changes. With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
- Trim kit only, must order MultiChoice universal valve separately to complete the unit
- Control volume and water temperature independently with two separate handles for more refined control of your shower experience
- Lever handle controls volume
- Dial adjusts temperature
- Monitor pressure balance valve keeps water temperature within a safe +/-3°F (+/-1.6°C), helping to protect you from sudden changes in hot or cold water pressure
- Back-to-back installation capability
- Solid brass forged body
- Maximum dial rotation adjustable between 90° and 180°
- Red/blue pad print temperature indicators on temperature adjustment dial
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Overall Height (in.) :
5-1/2
Valve Type:
Dual-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 4 out of
5
by
Izzy55110 from
Modern looks
I bought this a month ago and so far we love it. I appreciate the modern yet minimal look.
Date published: 2019-11-13
Rated 5 out of
5
by
Mike from
Shower control
Works perfect sleek looking what a gem!!!
Date published: 2018-11-03
Q&A
I purchased the T17099-BL kit. The face plate keeps rotating out of position. It looks like the plumber didn’t install the set screw. Can you tell me what size set screw I need for the face plate?
Thank you for your question Robert!
The Set Screw RP51019 is 1/4-28 and .438 in length.
Best Regards,
Christina
Date published: 2024-03-28
Does this T17099 BL come with a cartridge? Thanks!
Hi, Noelp!
Thank you for your question. The Delta Monitor T17099-BL valve trim kit does include the RP46463 valve cartridge assembly.
Best Regards,
Rosanna
Date published: 2024-03-28
I've decided on this trim kit. It says to use the R10000-UN rough in valve. It is for a shower only installation. I'm not sure if I need the WSHF with the stops or the BXHF. Not sure what the BX part means. Any help is greatly appreciated.
Thank you for your question, xq89olp! This tub and shower trim kit can be used with any MultiChoice Universal rough valve body in the R10000 Series, however for a shower only installation, a HF (high flow) model is ideal as it does not have a tub spout port. The BX stands for single box model for valves that can be bought in bulk. The R10000-UNWSHF will work best for your installation.
https://www.deltafaucet.com/bathroom/product/R10000-UNWSHF
Best regards, Edward
Date published: 2024-03-28
Is this the trim kit I should get to use with the 51799-BL Pivotal H2Okinetic 3-Setting Slide Bar Hand Shower Faucet with H2okinetic Technology?? I am not using it with a shower head...just using the hand shower, so I don't need a diverter.
Hi, Steph!
Thank you for your question. The Delta Monitor T17099 trim kit will work with our Delta 51799-BL hand shower unit.
Best Regards,
Rosanna
Date published: 2024-03-28
Does this trim kit include a thermostatic cartridge? If not, which model should be purchased?
Hello WestHamPaul,
Thank you for your question. The Delta Pivotal TempAssure Valve Trim T17T099-SS would be the correct kit, that comes with the RP47201 Thermostatic cartridge assembly in the box.
https://www.deltafaucet.com/bathroom/product/T17T099-SS
Best regards,
Tanya
Date published: 2024-03-28
I need a tub faucet plus handle (non diverting) for a tub. No shower head needed. Can I use this handle with the Trinsic Model#: RP77350?
Hi Macanna,
Thank you for your question about the Delta Faucet model T17099-BL.
Yes, this valve trim can be used with a non-diverter tub spout like RP77350. Make sure the R10000 valve rough is not an HF high flow shower only model, and plug the shower outlet.
Please reach out with any additional questions!
Best Regards,
Bryan
Date published: 2026-02-09
How do I remove temp handle to adjust it, water isn’t hot enough
Is the shower arm and flange included?
Hi MNbathroom,
Thank you for contacting Delta Faucet Company. Please accept our sincere apology for the inconvenience you are experiencing locating this information. We will be happy to assist you.
The Delta Faucet PIVOTAL® Monitor® 17 Series Valve Only Trim In Matte Black MODEL#: T17099-BL is a valve trim only.
Thank you for being a loyal Delta Faucet customer. We look forward to continuing to serve you. Please feel free to contact us back for further assistance.
Best Regards,
Kelley
Date published: 2024-03-28
