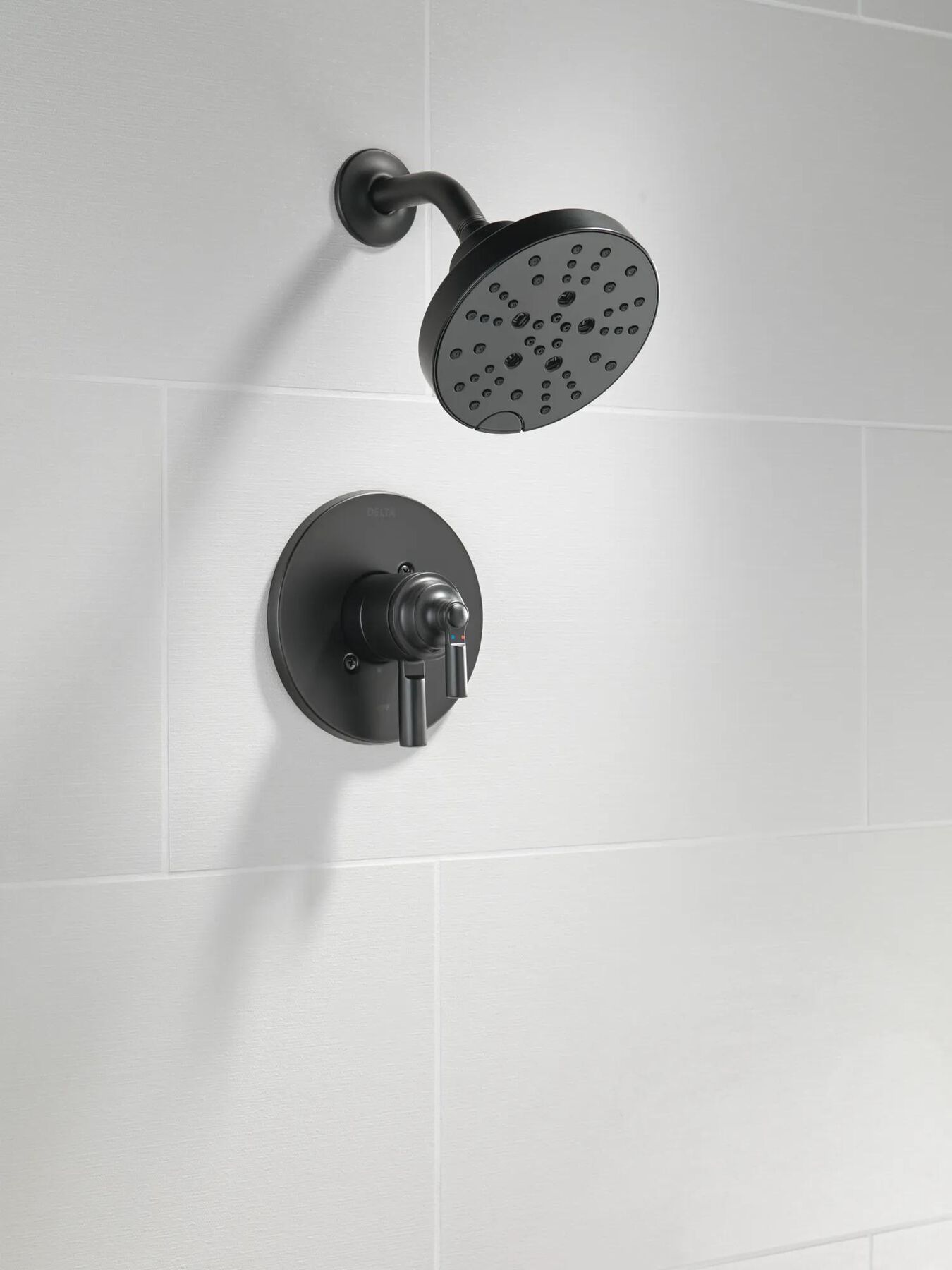

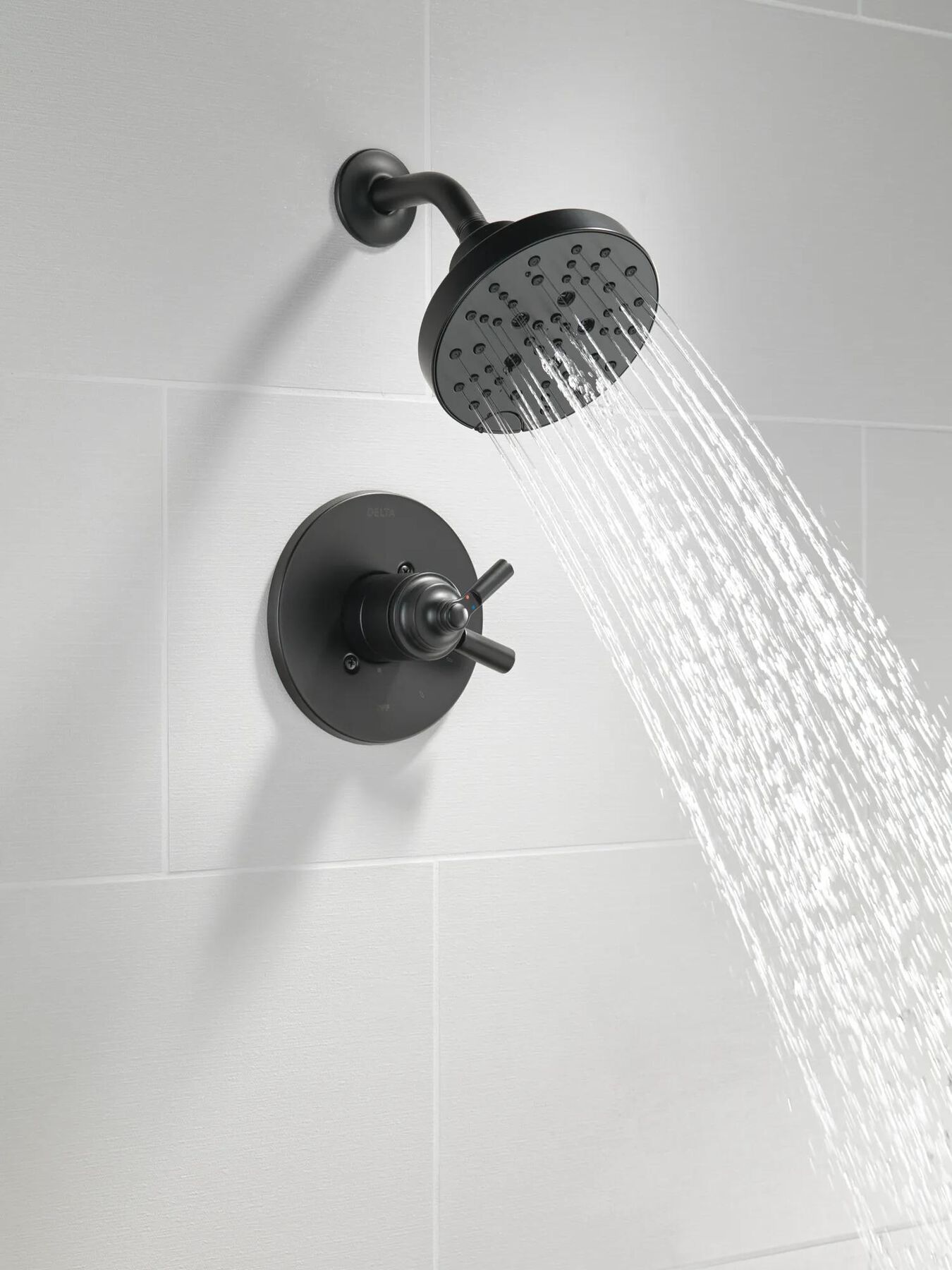

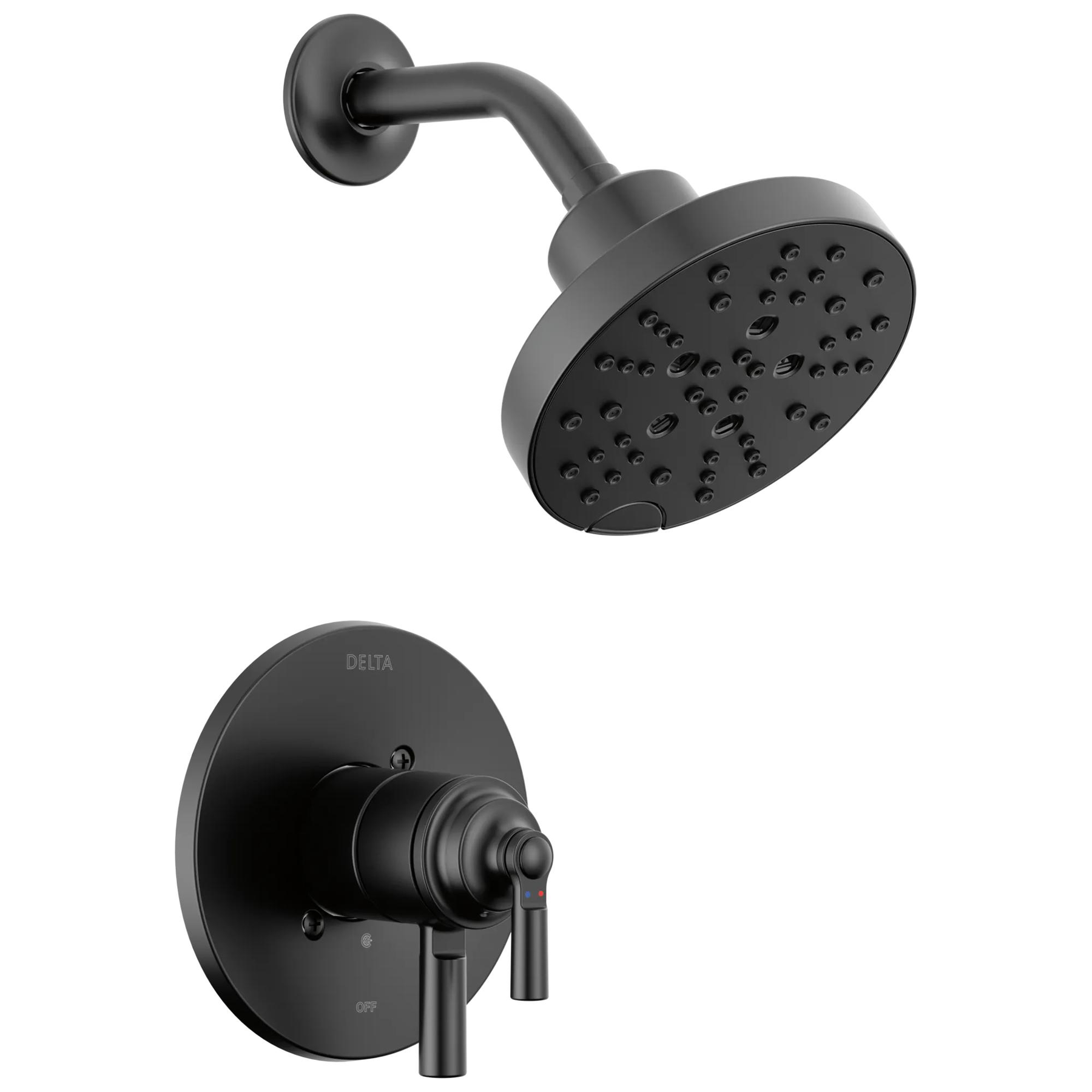

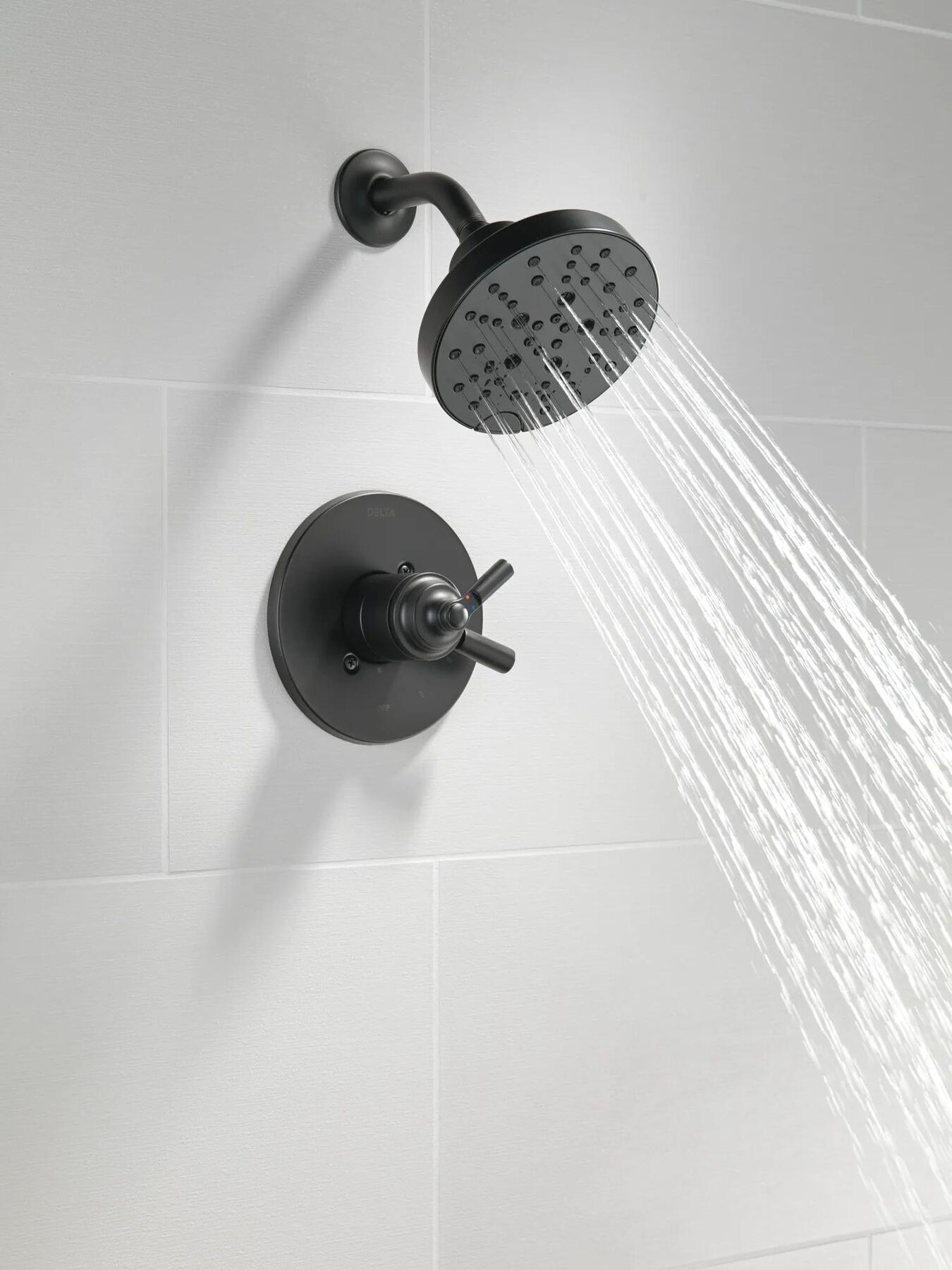

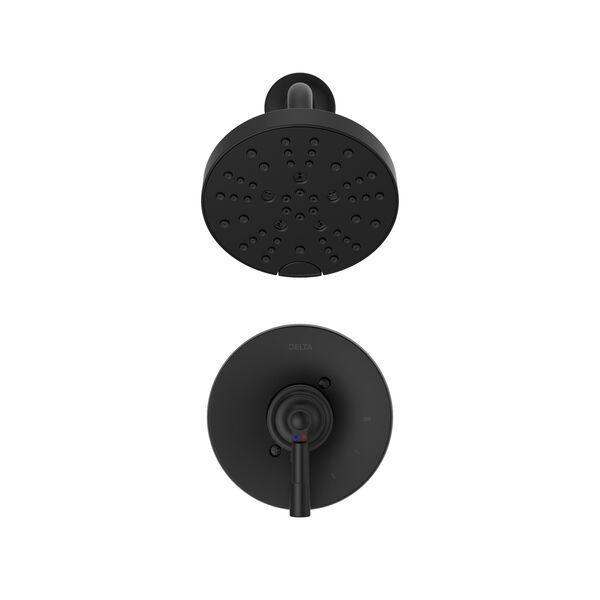

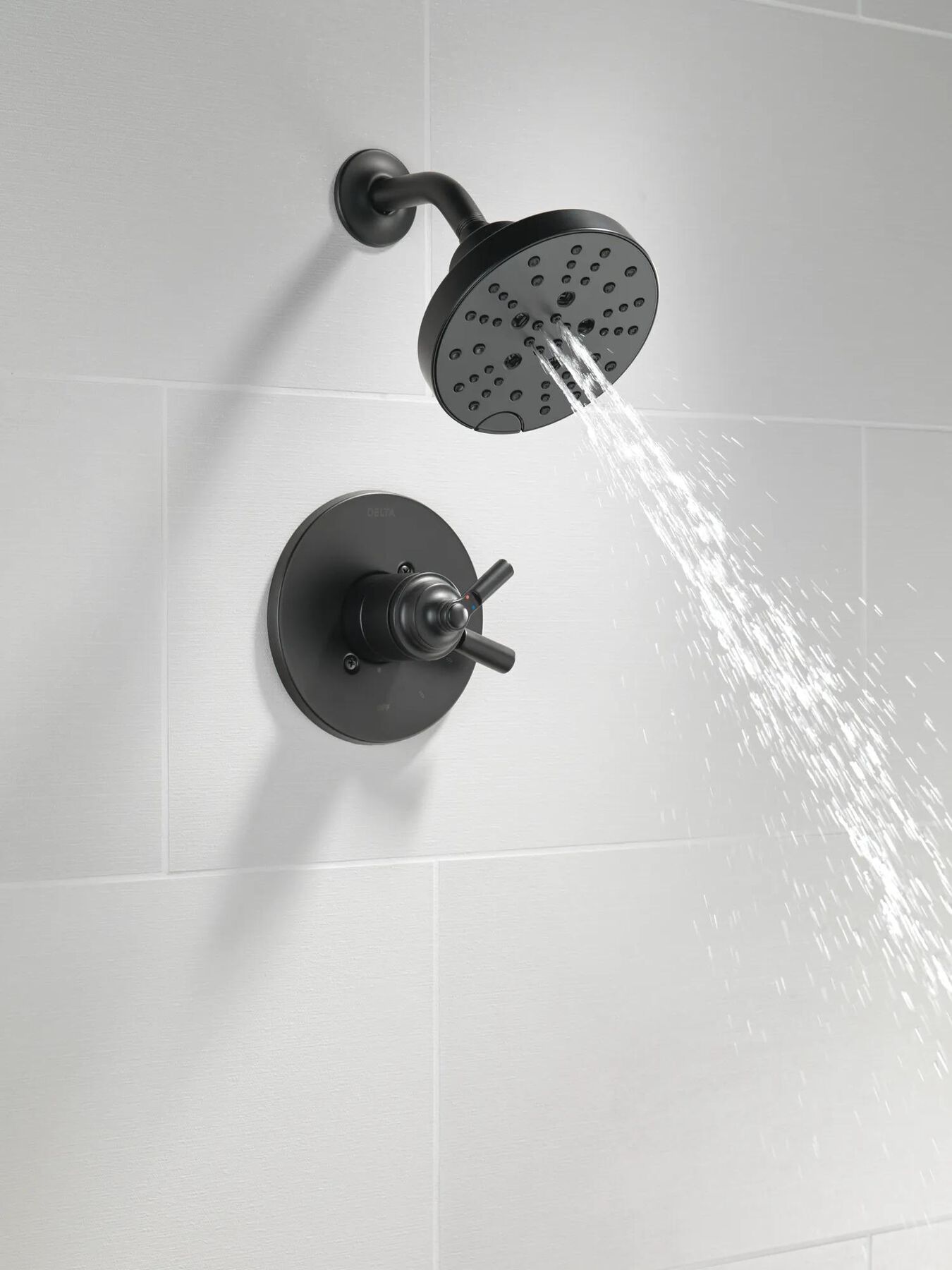

Monitor® 17 Series Shower Trim in Matte Black

Model#: T17235-BL
Monitor® 17 Series Shower Trim in Matte Black
Model#: T17235-BL
List Price: $38500
PRODUCT FEATURES
The Saylor® Bath Collection is an intriguing blend of traditional and contemporary design elements with strong, geometric forms and hints of industrial style in the handles. With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle—without interrupting your set temperature. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. While other products may gather unsightly mineral buildup over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look — with no need for soaking or the aid of chemical cleaners. The pause setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. This spray setting helps you conserve water, so you can worry less about depleting your supply of hot water — and you help the environment too. Delta WaterSense® labeled faucets, showers and toilets use at least 20% less water than the industry standard — helping you save water without compromising performance. You can install with confidence, knowing Delta® products are backed by our Lifetime Limited Warranty.
  • Perfectly coordinates with the Saylor® Bath Collection
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: H2Okinetic® spray, Full Body spray, Full spray with Massage, Massaging spray, and Pause
  • H2Okinetic® Technology showers feel like more water and more pressure, with more coverage
  • H2Okinetic® PowerDrench® Spray creates powerful water patterns, for an energizing experience

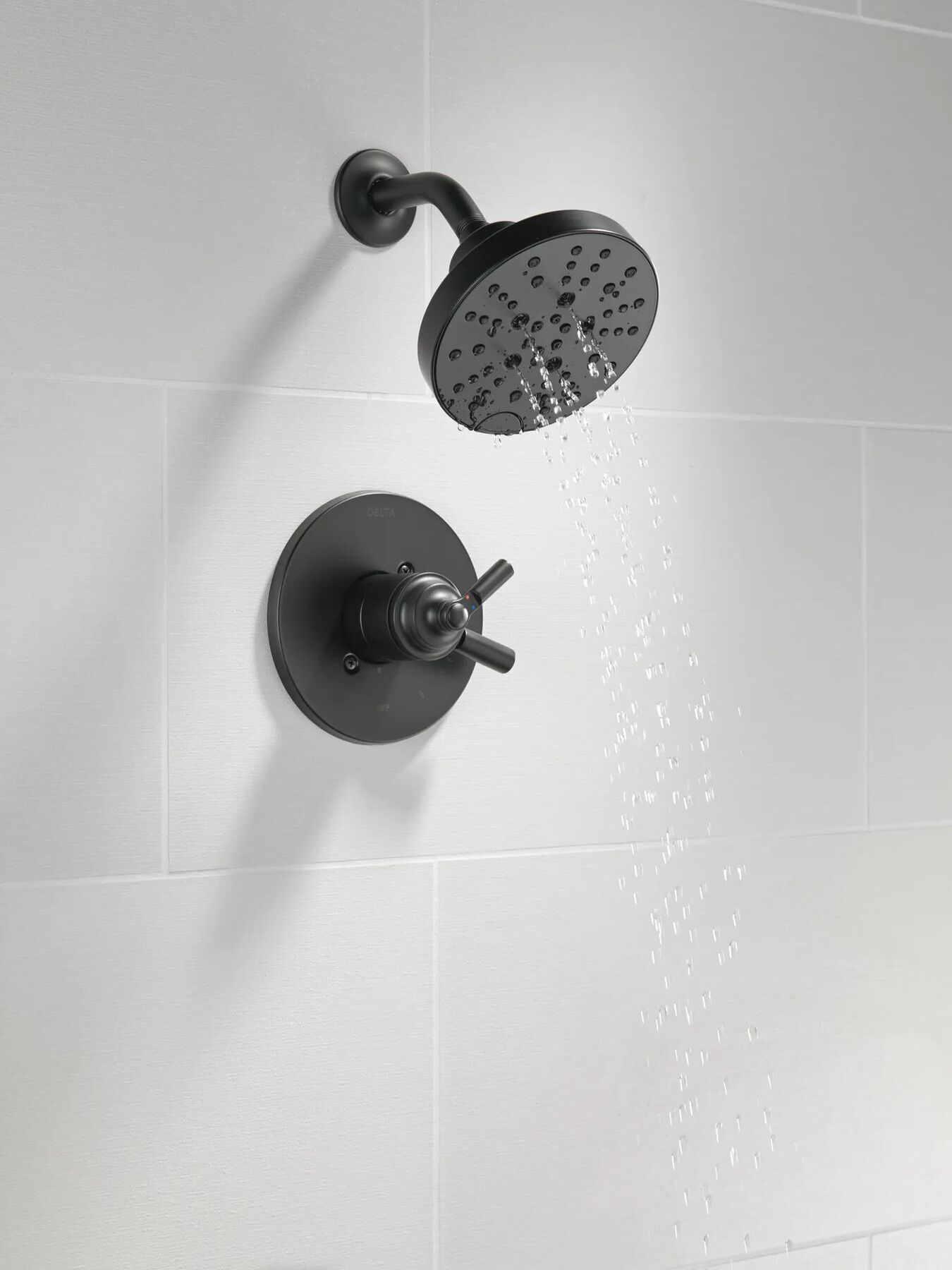

  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head and hand shower with the touch of a finger

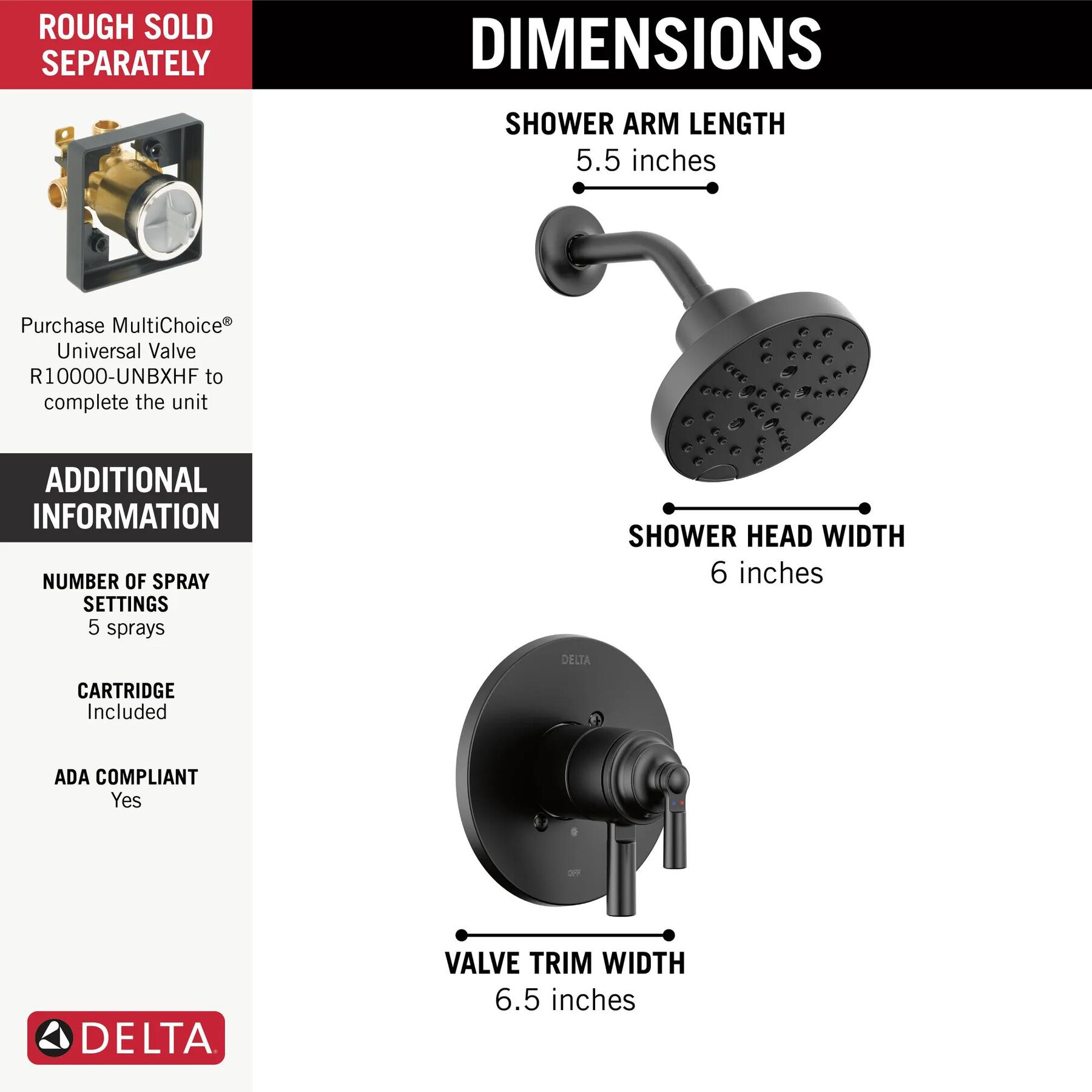

  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 Series) separately to complete the unit
  • Back-to-back installation capability
  • ADA Compliant
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Backed by Delta's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
14
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Looks great Haven’t been able to us yet
Date published: 2026-03-03
Rated 1 out of 5 by from Color Champagne Bronze color has a pink tone. I purchased other Delta Champagne Bronze for my kitchen a few months ago and it did not have a pink tone. I’m very unhappy about this. I didn’t notice it until it got installed. Delta should unify their colors so that you know what you’re getting.
Date published: 2025-11-19
Rated 4 out of 5 by from nice but way over priced for over half plastic lots of plastic for price
Date published: 2025-08-07
Rated 5 out of 5 by from Beautiful and contemporary! It a beautiful shower fixture. However, it does show water spots easily. But I love it!
Date published: 2025-07-09
Rated 5 out of 5 by from Great One There is nothing to dislike. Easy to use, super easy to clean. I love the flow adjustment. The color is perfect and matches all other Delta faucets.
Date published: 2025-05-16
Rated 5 out of 5 by from [This review was collected as part of a promotion.] We did this twice for the same client. It looks amazing and just as good as the ones costing thousands! We did one with tub filler and the other for customer shower.
Date published: 2025-04-11
Rated 5 out of 5 by from My Head (ah, showerhead)! [This review was collected as part of a promotion.] This showerhead unit with a sleek style is my favorite. It is quiet and runs well giving me an even flow of warm water. I hope it will last for a long time to give me a moment of relax in a luxury atmosphere.
Date published: 2025-03-26
Rated 4 out of 5 by from Delta shower head looks good [This review was collected as part of a promotion.] These Delta shower controls look good, easy to install, plumber had no complaints.
Date published: 2025-03-22
  • y_2026, m_6, d_16, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_18
  • loc_en_US, sid_T17235-BL, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

The temperature knob is coming loose on our installed product. What tool is used to tighten it, and where is the spot on the faucet to tighten this? We see a small hole covered by a removable rubber tab, so perhaps that is the spot, but what tool?.

Asked by: JayW
Hello! You will remove the set screw cover (removable rubber tab) then use a 3/32" Allen wrench to tighten the screw beneath it. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-12-31

Are the handles metal or plastic?

Asked by: Angela
Hello, Thank you for your question! The handles are both metal. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-02-21

Model#: T17235-CZ When I switch to pause for my new showerhead setting, it will not switch back over to another setting unless I turn the water off then back on. Is this how it should work or is the button not working properly? Why have a pause then?

Asked by: INeedtoKnow
Hello, Thank you for your question! The pause setting will remain engaged until you manually switch to another setting. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-09-11

Which shower head comes with this bundle? Do you sell the shower head separately, if so what is the model #? Does the head swivel? Is this a "Rain" showerhead?

Asked by: WantNewShower
Hello Valued Customer, Thank you for contacting Delta Faucet Company! Our T17235-CZ includes the valve trim and the shower head, shower arm, shower flange. The shower head can be purchased separately and the part number is 52668-CZ in our Champagne Bronze finish. Most of our standard shower heads will swivel 20 to 22 degrees in all directions. We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Delta
Date published: 2025-02-10

Our shower was built with a Series 1700 Monitor faucet (shower only) in 1997. Will a new T17235-SS-1 Shower faucet work with a replacement RP32104 Cartridge, or will it require a new valve?

Asked by: Mike33

Will the cartridge assembly fit a pre-2006 valve rough? My current shower valve uses a type “P” cartridge.

Asked by: Anonymous
Hi mikadams, Thanks so much for contacting Delta Faucet Company! The T17235 would retro fit the pre-2006 1700 rough valve only. Please contact us directly if you have any questions or need additional assistance. Best Regards, Nicole Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

How do you change the spray on the different shower settings?

Asked by: JCK5
Hi JCK5, Thanks so much for contacting Delta Faucet Company! To change spray modes on the SAYLOR™ Monitor® 17 Series Shower Trim MODEL#: T17235 shower head, push the button to the desired setting. Please reach out with further questions! Best Regards, Kelley Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-06-23

what is the recommended valve body for the saylor 17 shower trim

Asked by: terry
Hi terry, Thank you for your question! For this model we recommend the R10000-UNWSHF. Please see the following link for more information. https://www.deltafaucet.com/bathroom/product/R10000-UNWSHF.html Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-07-05
  • y_2026, m_6, d_16, h_13CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_15
  • loc_en_US, sid_T17235-BL, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 6ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $24.90
Online Price: $19.92
Free Ground Shipping All Orders $49+

RP46073

3.89 9
Image-RP100154

DELTA

DELTA Tub Spout Adapter - Tri Universal

List Price: $35.80
Online Price: $28.64
Free Ground Shipping All Orders $49+

RP100154

1.60 5
Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

BUNDLES FEATURING THIS PRODUCT

Only at Online Retailers
Image-Master-FVS2-SA3101
Only at Online Retailers

Saylor®

Saylor® Shower Trim with High-Flow Rough Bundle - 17S

List Price: $345.20 - $487.20
Standard Finishes

FVS2-SA3101

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
