Tesla®
Monitor® 17 Series H<sub>2</sub>Okinetic® Shower Trim
Model#: T17252
Finish: Chrome
List Price*: $415.65
PRODUCT FEATURES
Delta® H2Okinetic® Showers look different because they are different. Using advanced technology, H2Okinetic showers sculpt water into a unique wave pattern, giving you 3X the coverage of a standard shower head.* The end result is a shower that provides more coverage, more warmth and more intensity for a truly drenching shower experience. With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. The pause setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. This spray setting helps you conserve water, so you can worry less about depleting your supply of hot water - and you help the environment too. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
  • H2Okinetic Shower technology sculpts water into a unique wave pattern, forming a powerful drench spray
  • Gives you the feeling of more water without using more water
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: H2OKinetic spray, Full Body spray
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings

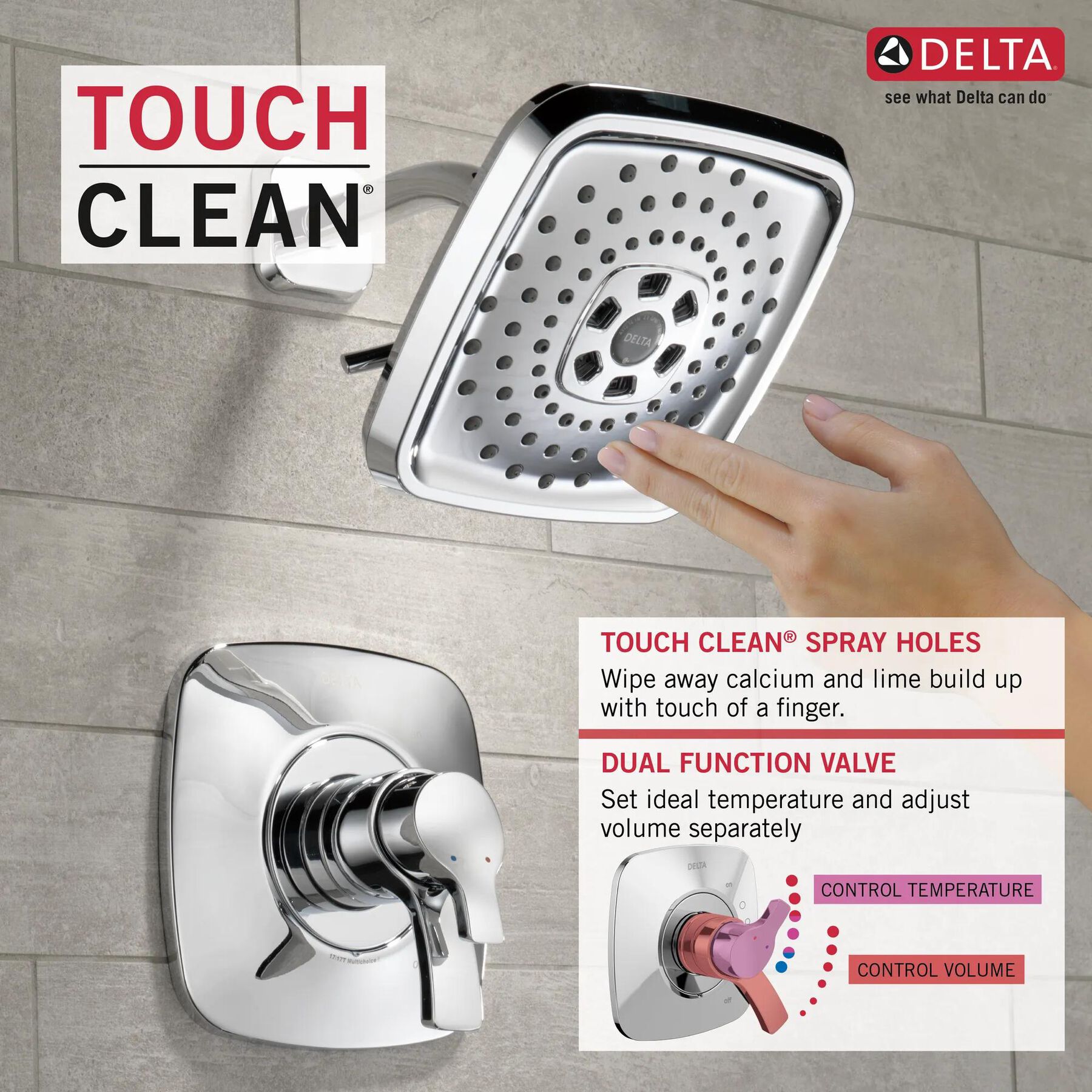

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger

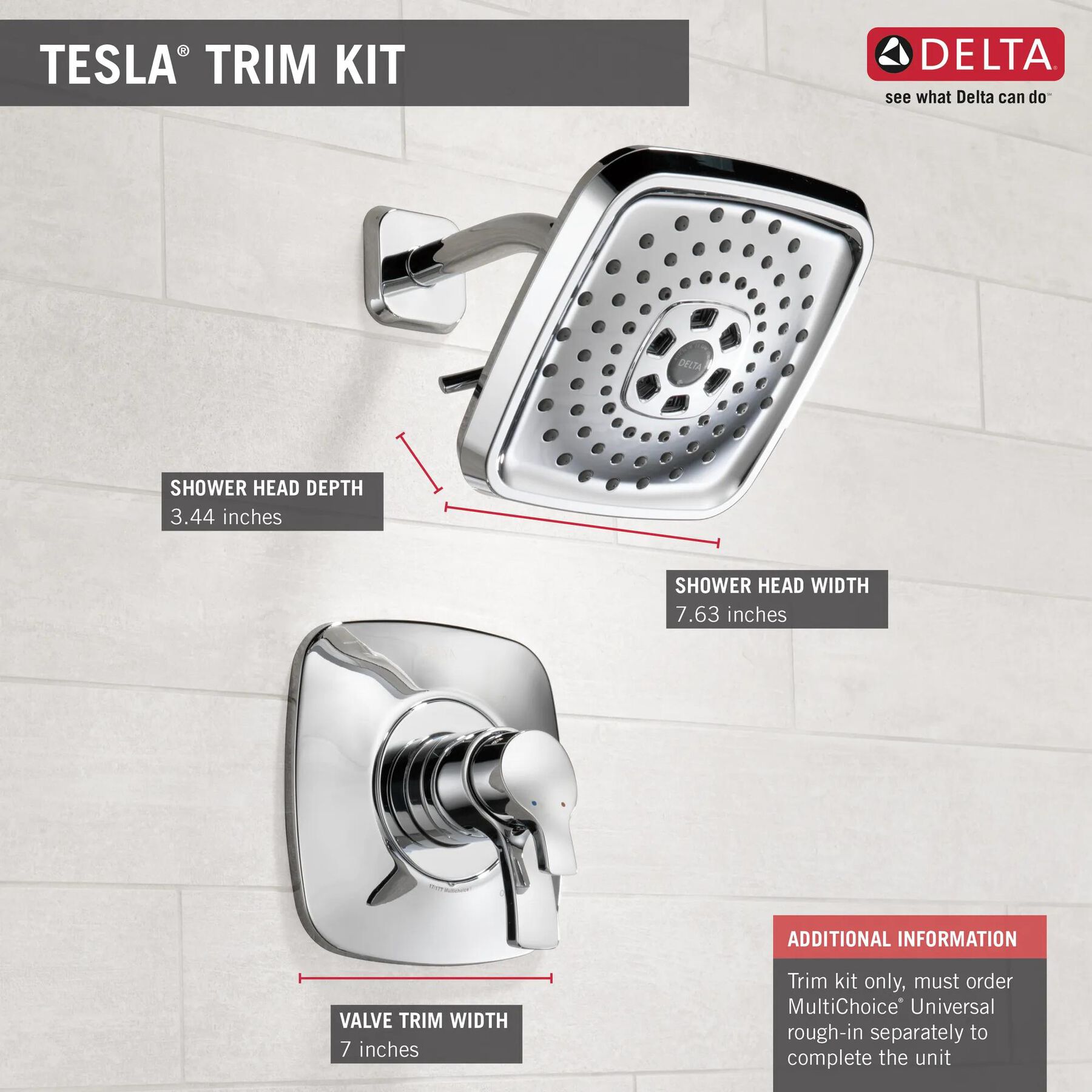

  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • ADA Compliant
  • Valve is not included, must purchase separately
  • Wipe away calcium and lime build-up with Touch-Clean spray holes
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Eco-Friendly
WaterSense® Labeled
SUPPORT
PART LIST

PART LIST

REVIEWS
Rated 5 out of 5 by from Delta faucett Love it. It looks wonderful and works as good as it looks. It is a quality product, which is what we wanted.
Date published: 2020-10-23
Rated 5 out of 5 by from Great Quality We are very happy with the quality of this shower and the service we received. We particularly like the fact that this shower head provides a rain experience, but also has the option of a full shower with good pressure. It certainly added the wow factor to our new shower!
Date published: 2019-11-15
Rated 5 out of 5 by from Great all around [This review was collected as part of a promotion.] Love the water flow from both the shower head and the wand. We also love that you can set the water temperature once and never have to adjust. Pieces are well built with only a few items that are plastic. This is a great upgrade.
Date published: 2019-10-08
Rated 5 out of 5 by from Great Trim Kit [This review was collected as part of a promotion.] This trim kit is great! The construction is solid and feels heavy. The finish is of great quality also and even after accidentally dropping it, there was no scratch. Installation was pretty basic and the seal between the handle cover and the wall tile is seamless. The shower head sprays evenly and supports our good water pressure just fine.
Date published: 2019-10-08
Rated 5 out of 5 by from Great product [This review was collected as part of a promotion.] Love it. On/off and hot/cold function work independently. I set it to the water temp I like and it stays in place... just turn on the water and step in the shower! It’s easy to adjust the spray as well.
Date published: 2019-06-24
Rated 5 out of 5 by from Excellent Product! [This review was collected as part of a promotion.] Great water pressure and looks sleek! We couldn't be happier.
Date published: 2019-05-03
Rated 5 out of 5 by from Jewelry for your shower! The Tesla shower head is so beautiful it’s like adding a statement piece to the area. It works great. The shower arm is a bit short because we have a small ledge in the shower. We purchased an extension arm and it’s perfect!
Date published: 2019-03-07
Rated 5 out of 5 by from very well built, great look. Elegant look
Date published: 2019-03-02
  • y_2021, m_3, d_1, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_15
  • loc_en_US, sid_T17252, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

I had 2 Tesla 17 Series shower heads/handles installed by a plumber, there is a lot of play in both volume control knobs but the temperature control knobs are nice &amp; snug. Is there a way to tighten the volume control knob so they are not so loose?

Asked by: SteveB
Hi, SteveB! Thank you for your question, and I am sorry to hear that you are experiencing an issue with your Delta Monitor T17252 shower unit. We recommend to remove the temperature knob and cover, push the sleeve assembly back as far as it can go. This will allow the volume handle assembly to be pushed back further and the temperature knob and cover to be tightened so that the volume handle does not have so much play. If this does no fix the issue, please contact our Delta Customer Service line at (800)345-3358. We are available Monday-Friday, 7am-7pm, CST and Saturday, 8am-5pm, CST. You may also email at customerservice@deltafaucet.com. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-09-27

What is the difference between the 17 series and the 17T series?

What is the difference between the 17 series and the 17T series? I know the T is for Thermostatic, but I am not able to find the benefit of it. I am trying to determine if the extra money is worth it between the 17 to the 17T.
Asked by: Nancy
Hi Nancy, Thank you for your question! Both of the Monitor 17 series and the TempAssure 17T series use a dual-control handle to set the best temperature and volume. However the 17 series uses a pressure-balanced cartridge, while the 17T uses a thermostatic cartridge. Thermostatic cartridges measure and monitor the temperature of the water and automatically adjusts to maintain a more precise water temperature. Monitor cartridges keep water temperature within +/- 3 degrees Fahrenheit by measuring the pressures of the hot and cold water supply coming into the shower system. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2016-06-30

R10000-UNWSHF

Is it better to install this HF valve for the valve trim? What would be the difference vs. the regular flow?
Asked by: shaun
Hi shaun, Thank you for your question! You will not notice a difference in flow with only one shower head. The High Flow version is designed for a higher output for running multiple shower heads. The R10000-UNWSHF valve does not have a bottom port. On a non-HF valve, the bottom port must be capped off for a shower only installation. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-04-07

can the Tesla Monitor H2Okinetic Shower be used as a rain head shower?

Asked by: Jeff
Thank you for your question, Jeff. The shower head can be used as a rain can shower head with a 90 degree shower arm such as RP46870 or a ceiling mount arm such as RP61058. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP46870 https://www.deltafaucet.com/bathroom/product/RP61058 Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-12-26

Can shower handles be adjusted to increase the temperature of the water? All my other showers in the house get scalding hot....my new Delta is lukewarm when the handle all the way to hot.&nbsp;

Asked by: Carol o
Thank you for your question, Carol! The Rotational Limit Stop can be adjusted to raise or lower the maximum temperature. Here is a link to our How-To video for adjusting the stop: https://www.deltafaucet.com/video-gallery/video-page?videoId=n2_uZ7wgV1I Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2018-11-14

Can water spray from outer rings and inner rings at same time?

Asked by: DeDe
Hi, DeDe! Thank you for your question. The shower head has three settings, Full Body Spray, H2Okinetic&reg; Spray, and a pause setting. The Full Body Spray will only spray out of the outer rings and the H2Okinetic&reg; Spray will spray out of the inner rings. The outer and inner rings will not spray at the same time. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-05-19

My Delta Monitor 17 series H20 Kinetic shower head is beautiful but the water temperature is only slightly warm. Sadly, can not use it on a cold morning! How do I change the maximum temperature? Do I need to call a plumber or can I do it myself. I hope!

Asked by: Roberta
Thank you for your question, Roberta! You can set the maximum temperature by adjusting the Rotational Limit Stop. Please refer to page 7 of the Installation Instructions for help with this. https://media.deltafaucet.com/MandI/X00076652_G.pdf Best regards, Jon
Answered by: Delta Faucet
Date published: 2018-11-16

What's the construction material of shower head, handles and trim?

Most shower heads are plastic. Are the handles and trim metal?
Asked by: Nick
Thank you for your question, Nick. The shower head and temperature knob are non-metallic. The other trim parts are metal. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-05-09
