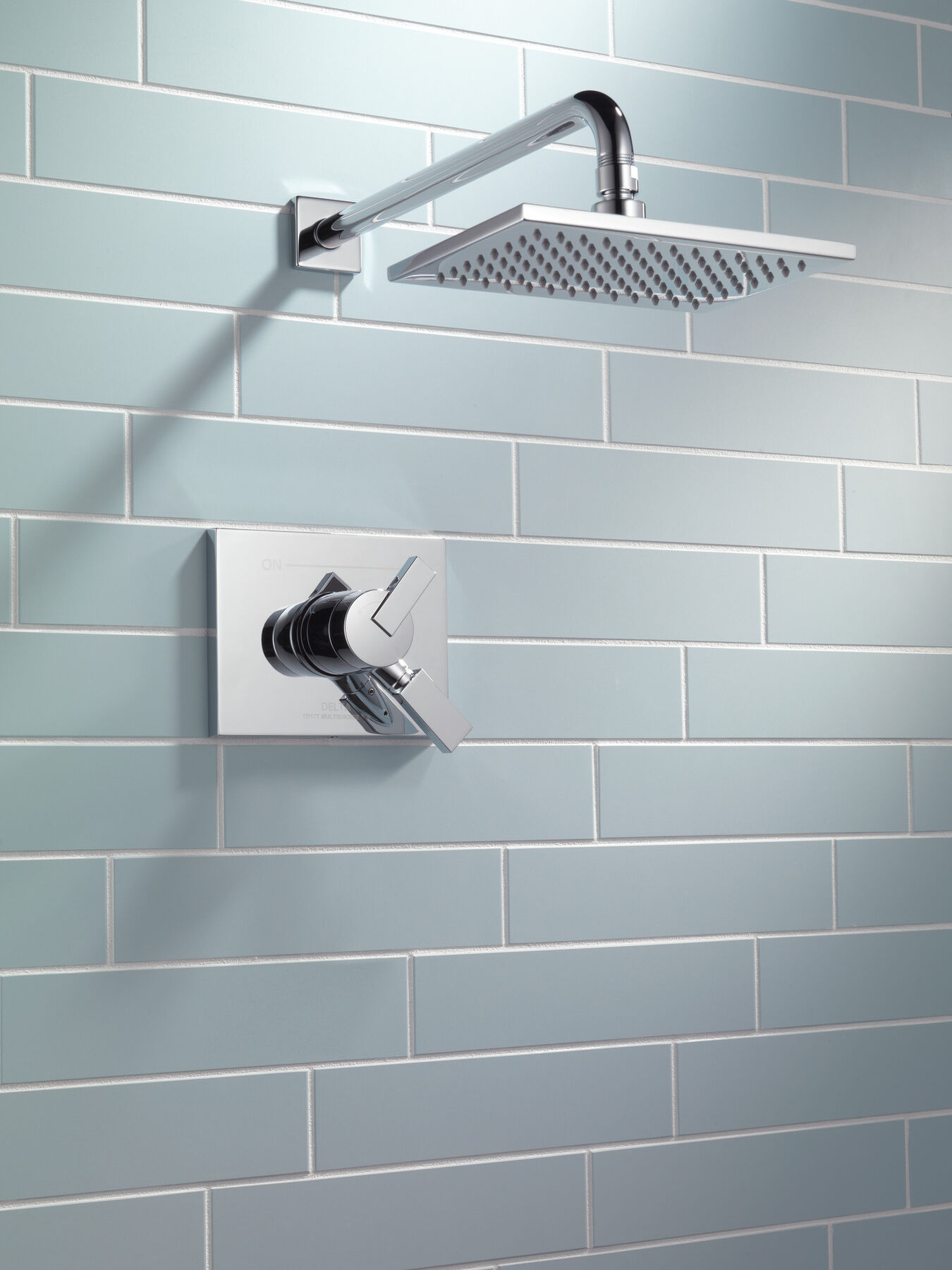

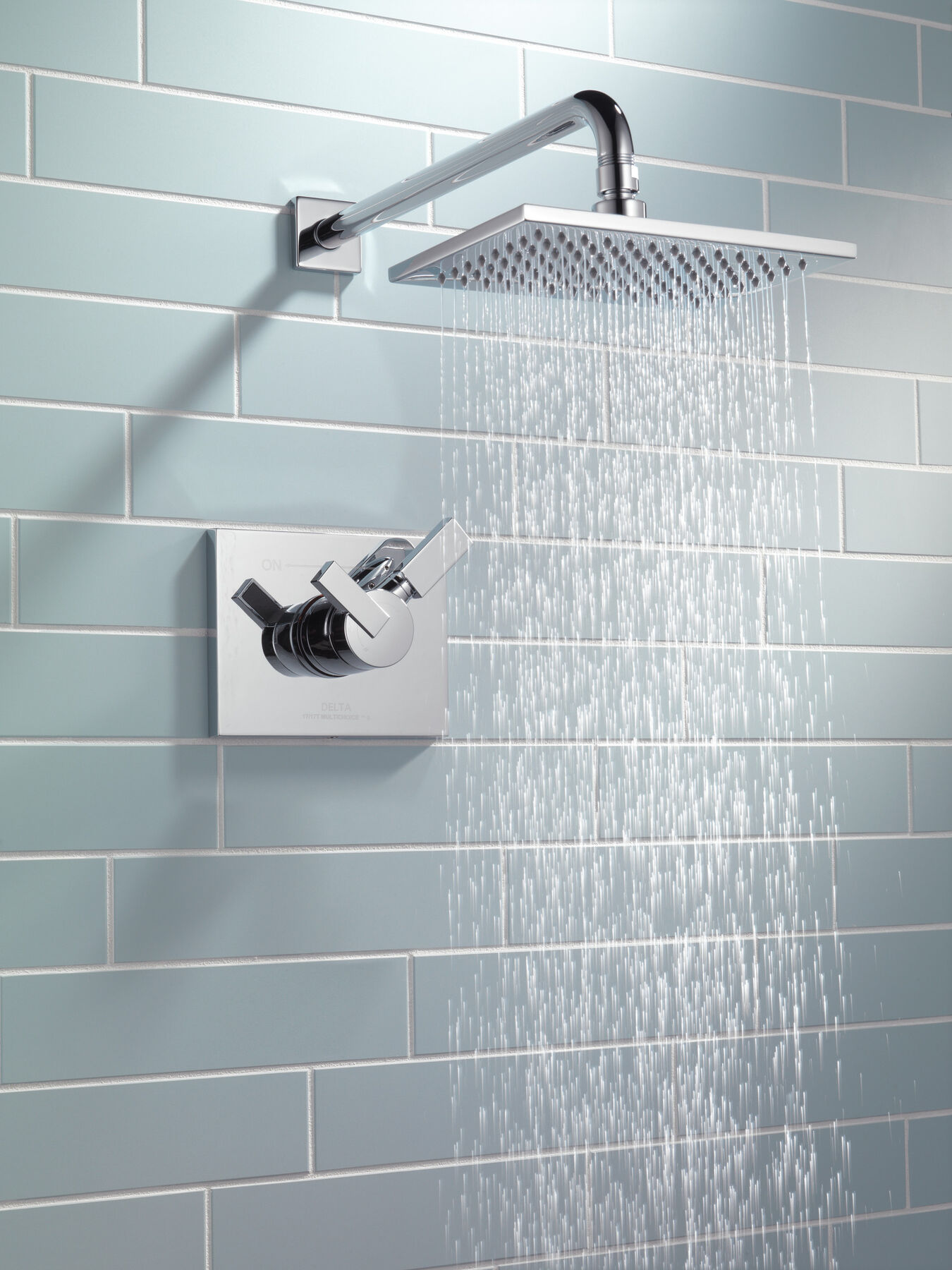

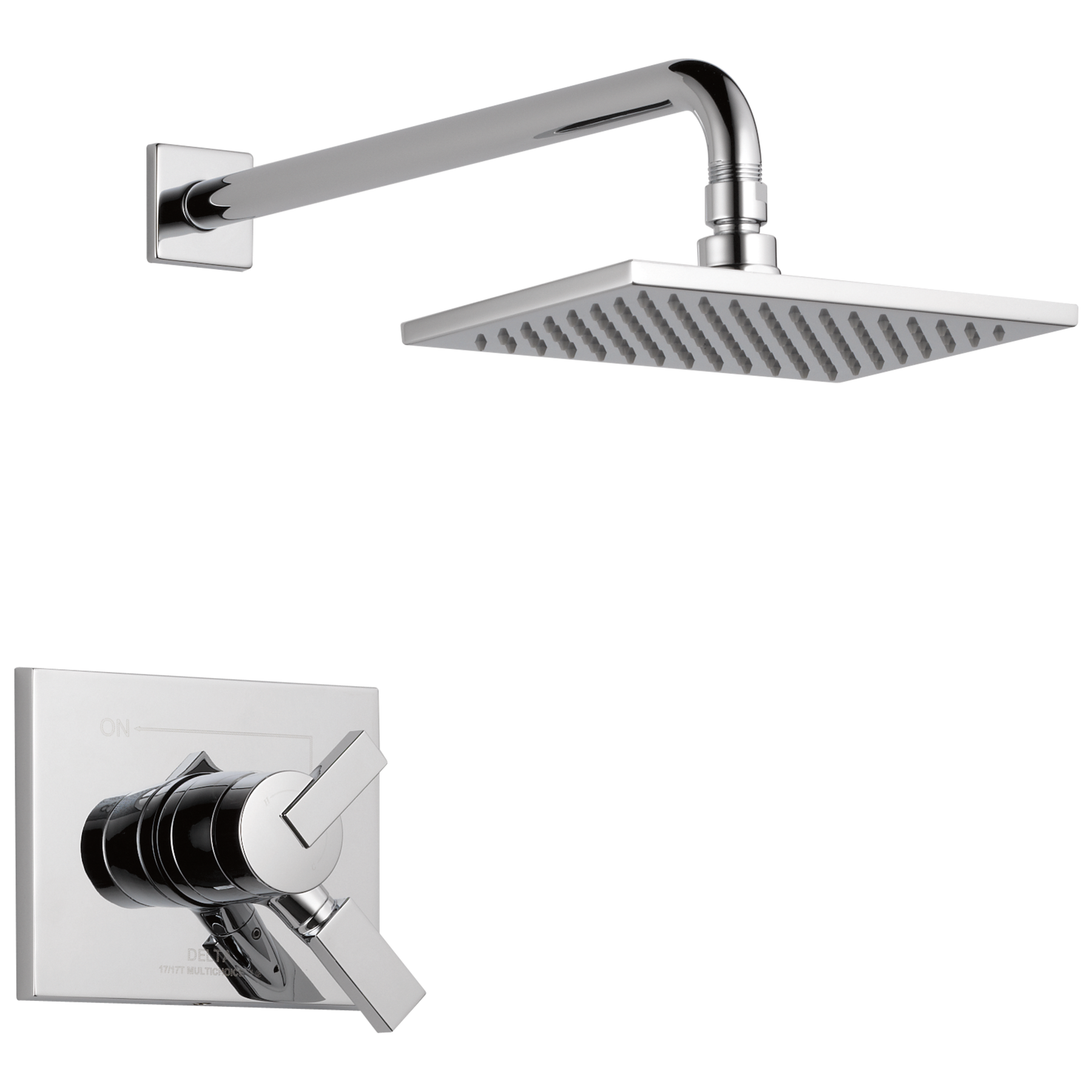

Monitor® 17 Series Shower Trim in Chrome

Model#: T17253
Add to Favorites
Find local Delta® installers.
Vero®
View Full Vero® Bathroom Collection
Monitor® 17 Series Shower Trim in Chrome
Model#: T17253
List Price: $72800
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia.

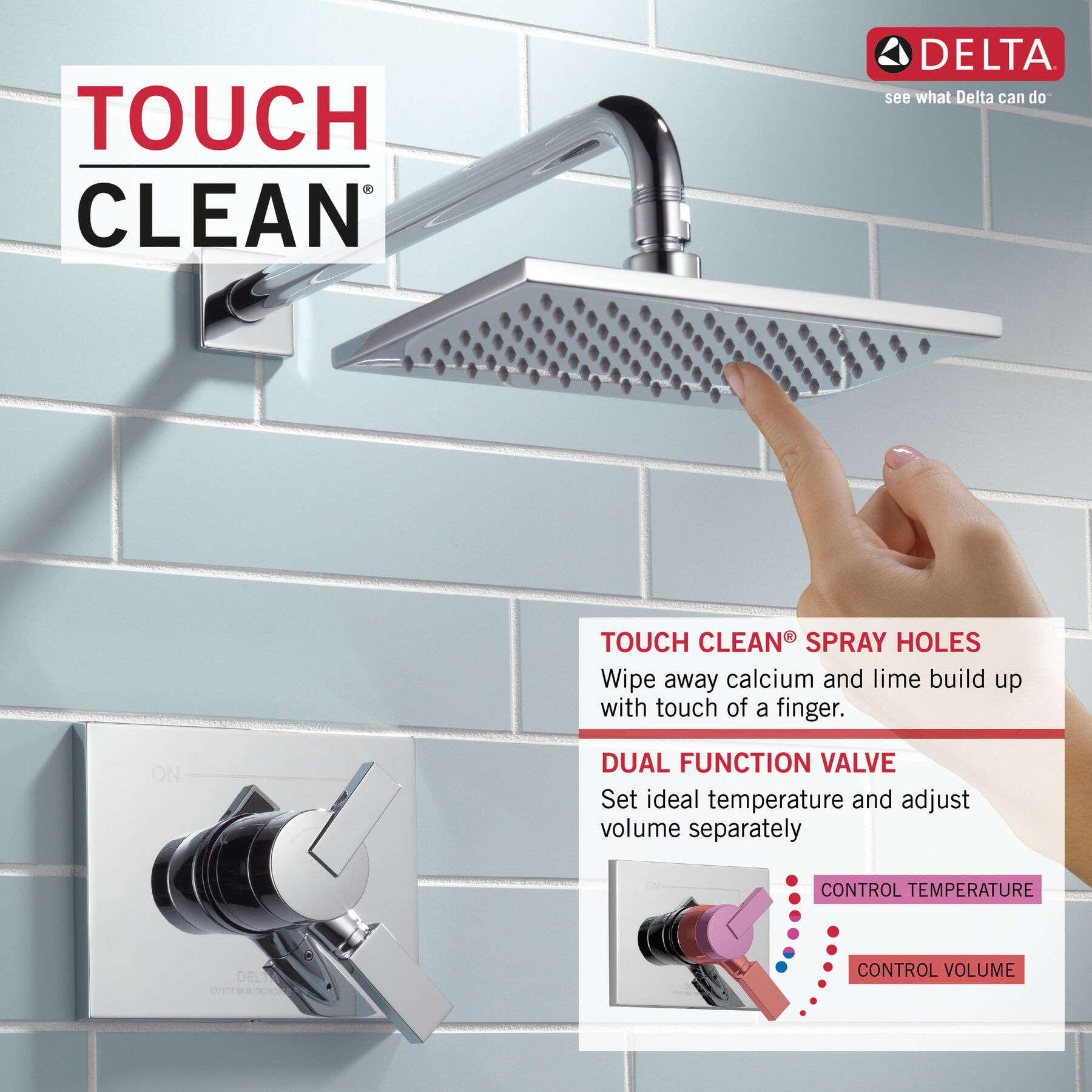

  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: Full Body spray
  • Full body spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles

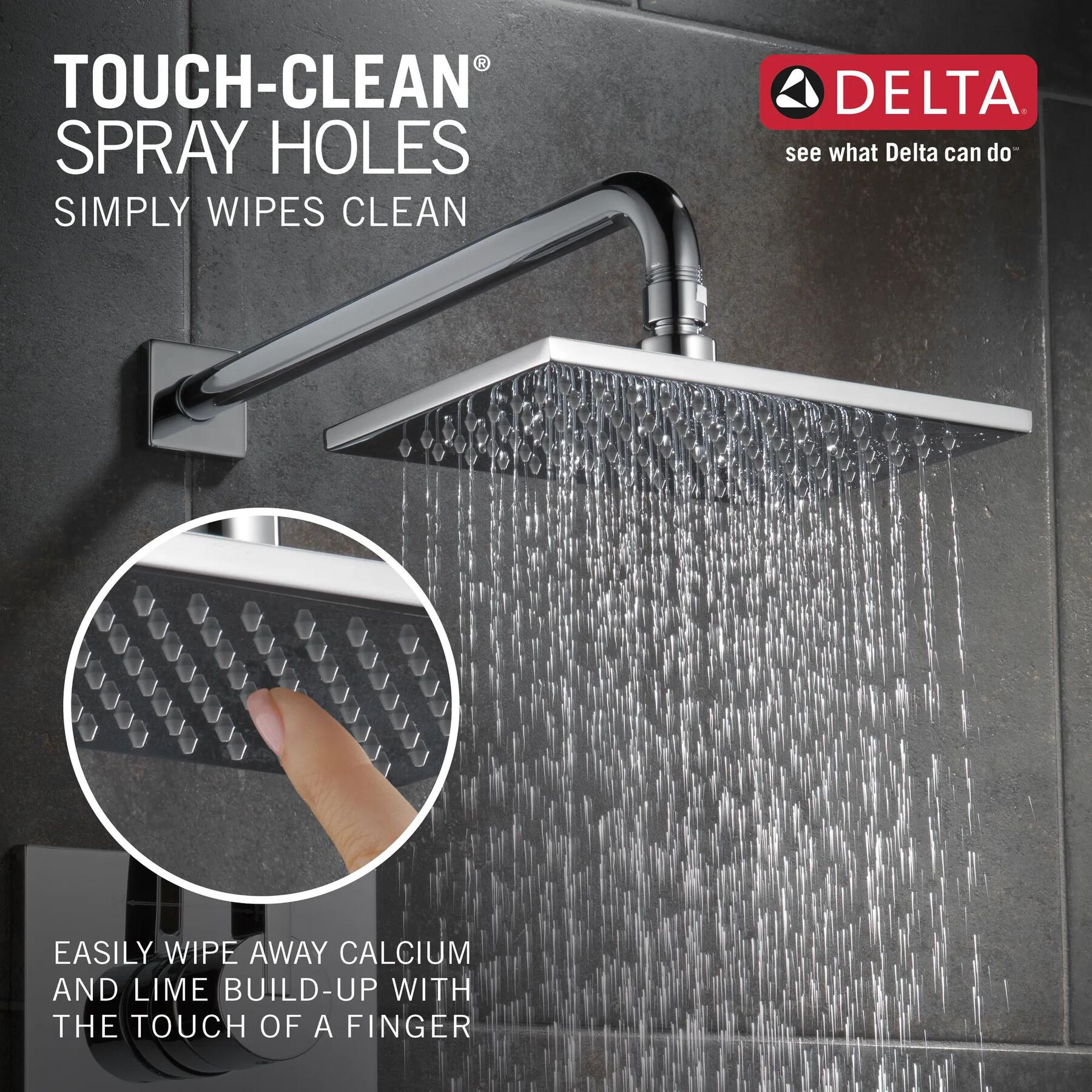

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • ADA Compliant
Technology and Special Features
ADA Compliant
Volume Control
Touch-Clean®
MultiChoice® Universal Valve
Monitor®
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

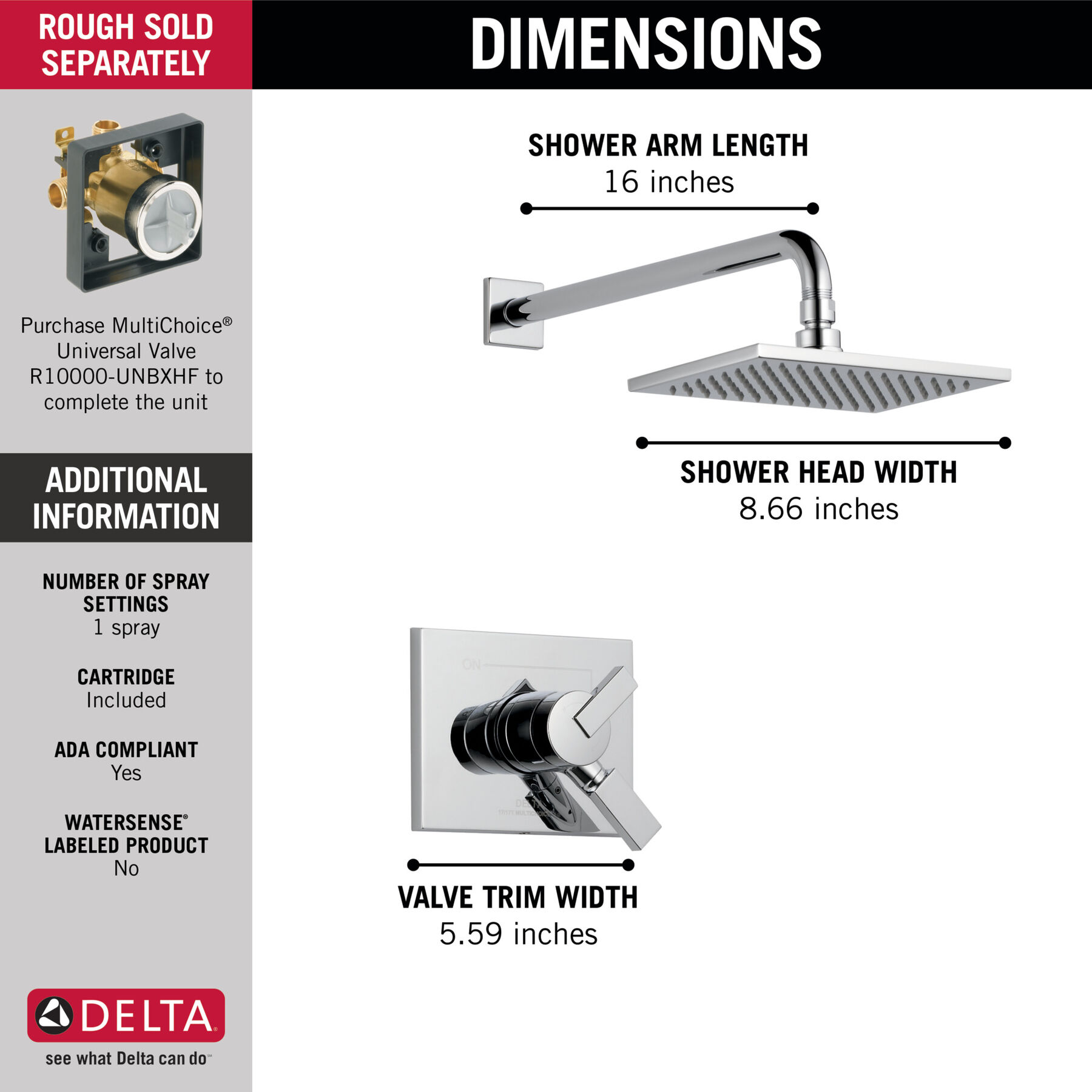

Flow Rate :
2.50 gpm @ 80 psi, 9.5 L/min @ 552 kPa

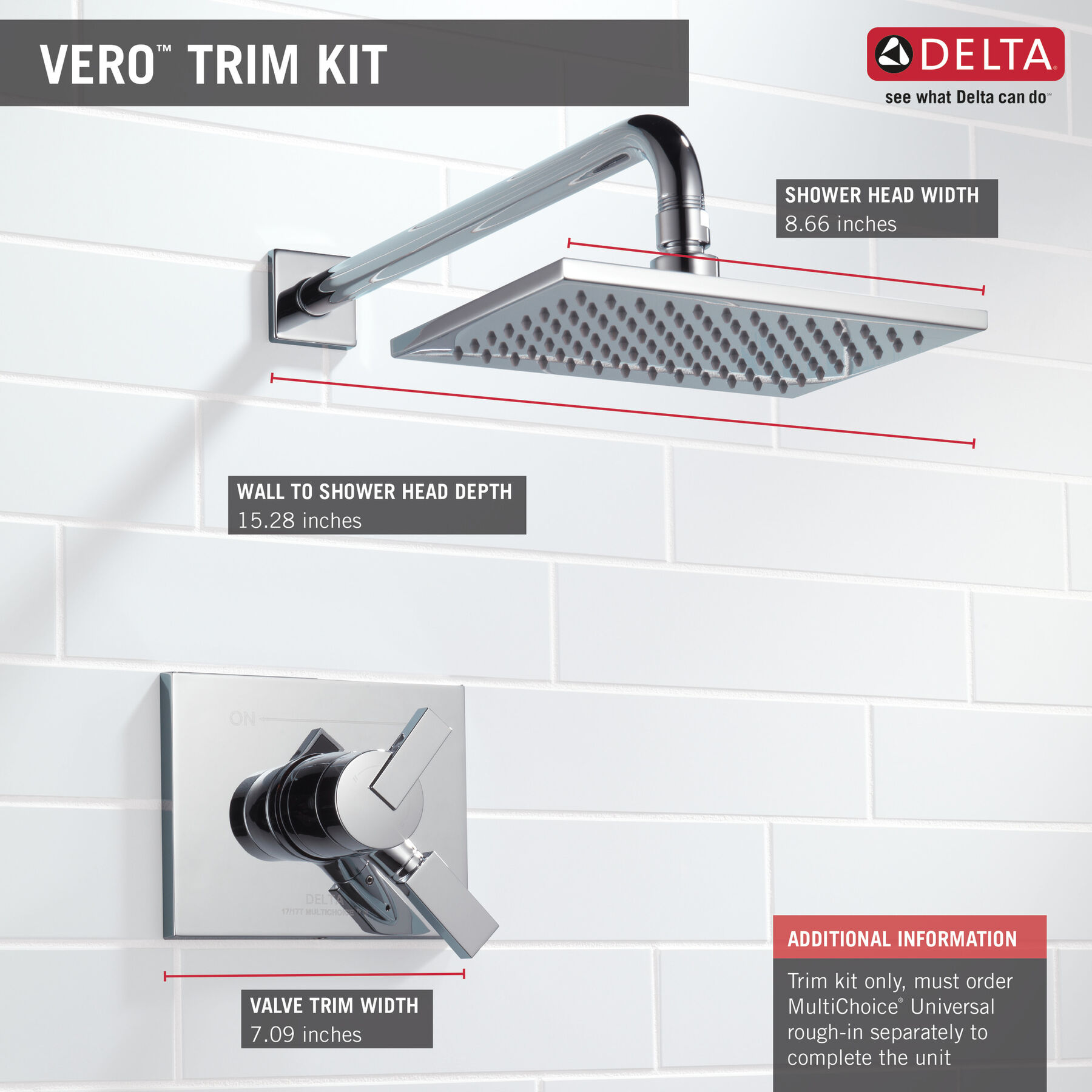

Overall Height (in.) :
7-19/32
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 4 out of 5 by from Great hardware, high maintenance finish Excellent hardware a quality, however stainless finish from Delta is very prone to fingerprints and watermarks. Develops a dark patina after every use regardless of cleaning.
Date published: 2026-02-19
Rated 5 out of 5 by from Delta shower head Beautiful faucet great water pressure handle is a little strange with placement at an angle but will get used to it
Date published: 2025-12-14
Rated 5 out of 5 by from Great product [This review was collected as part of a promotion.] We always use Delta faucet trim and valves in our bathroom remodeling business. THey are the best blend of quality and value. The Vero trim is a favorite of our customers. I recommend it to anyone looking for a good shower kit for the $.
Date published: 2025-10-10
Rated 5 out of 5 by from [This review was collected as part of a promotion.] My customer is happy with overall.
Date published: 2025-10-10
Rated 1 out of 5 by from Good quality, 1 missing piece. Everything was great until...missing piece for the handle, now on back order. Seems to be a common problem, but we can operate the shower until the piece arrives. Love everything else about the purchase.
Date published: 2025-06-18
Rated 2 out of 5 by from Shower head failure The product has worked fine but we noticed the venetian bronze finish is starting to discolor and the rubber nozzles are worn out to the point where the water spray everywhere and not like a rainfall
Date published: 2025-06-14
Rated 3 out of 5 by from Frequent Valve Replacement Great shower but the valve needs to be replaced often. Expect a quality durable valve for an expensive shower system.
Date published: 2025-03-02
Rated 5 out of 5 by from Shower head and controls [This review was collected as part of a promotion.] The champagne bronze color looks really good. It was easy to install and the performance is excellent. The dual control for volume and temp lets you get exactly the shower stream you prefer. I was afraid that the limited shower head openings would greatly reduce the water volume but somehow it creates increased pressure to give a strong and adequate water stream for a great shower experience.
Date published: 2025-02-14
  • y_2026, m_6, d_22, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_127
  • loc_en_US, sid_T17253, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
Q&A

Vero Monitor 17 Shower Trim w/ handshower

I'm wondering if I have everything I need to complete the installation. I need shower/tub spout/handshower setup. Here's my list: DELTA FAUCET R10000-UNBX MultiChoice(R) Universal Tub and Shower Valve Body DELTA FAUCET T17453 Vero Monitor 17 Series Tub and Shower Trim, Chrome DELTA FAUCET T11853 Vero 3 Setting Diverter, Chrome DELTA FAUCET 50570 Wall Elbow Square, Chrome DELTA FAUCET R11000 3/6 Setting Diverter Rough DELTA FAUCET 55530 Vero Wall-Mount Handshower, Chrome Please advise.
Asked by: Gogi
Hi Gogi, Thank you for your question! The products that you have listed will be all that you will need for your desired setup. Thanks, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Do you need to purchase a universal Shower Valve Body separtely with the T17253 ??

Is there a Shower only valve that is recommended (no tub).
Asked by: Neil
Dear Neil, Thank you for your inquiry! The Delta Vero Shower T17253 is a trim kit only, you will need to purchase the rough-in valve separately. The R10000-UNBXHF is a shower only MultiChoice Rough-In valve assembly. https://www.deltafaucet.com/bathroom/product/R10000-UNBXHF Best regards, Tanya
Answered by: Tanya
Date published: 2017-05-16

Contractor installed the shower faucet but it is not flush to the tile are there more detailed installation instructions

Delta T17253 Vero Monitor 17 Series Shower Trim
Asked by: Rob
Hi Rob, Thank you for your question. I have attached the instruction manual for the R10000 rough in valve below. Step 1 covers the depth at which the valve should be plumbed to insure that the trim mounts properly. Thanks, Dave http://www.deltafaucet.com/customersupport/documentation/r10000-unbxhf.html?document=mi&fromDetailArea=bath&documentIndex=0#flashWrapper
Answered by: DeltaFaucet2
Date published: 2024-03-28

I bought 4 of these for new homes in California. They require max 2.0 GPM flow rate. Please let me know the spec and if we can use pressure reducer to meet the spec.

Asked by: Hamid
Thank you for your question, Hamid! Model T17253 has a shower head with a 2.5 gpm flow rate @ 80 PSI. Because the shower head is not WaterSense labeled, it can not be sold in, or shipped to the state of California. However, Model T17253-WE has the exact same design, and includes a shower head that is WaterSense labeled. I have included a link to the valve trim's web page for you to refer to. https://www.deltafaucet.com/bathroom/product/T17253-WE Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2024-03-28

Suitable installation height from floor to shower head for T17253?

I would like to know what the normal height from floor to shower head is to install for T17253.
Asked by: Paul
Hi Paul, Thank you for your question! We do not have an exact recommend height for our shower heads. Instead, we recommend that the head be installed about 6 inches above the tallest user in your home. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Does a valve come with this shower or do I need to purchase one separately? If so, would the Multichoice Universal Valve be acceptable?

Asked by: JD
Thank you for your question. Delta Faucet model # T17253 does not include the valve in the box. It does need to be purchased separately. We recommend the R10000-UNBX rough-in valve.
Answered by: Delta1
Date published: 2024-03-28

Is there any difference between the Chrome and the Stainless besides color and price?

Asked by: Mark
Hi, Mark! Thank you for your question. There is not other difference between the Delta Monitor T17253 Shower Faucets besides the finish and pricing. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

What diverters and valves do I need to add a handshower to this?

Asked by: Chuz
Thank you for your question. When adding a hand shower to your existing faucet, we would recommend using Delta Faucet model #R11000 diverter rough and Delta Faucet model #T11853 3-setting 2-port diverter trim.
Answered by: Delta1
Date published: 2024-03-28
  • y_2026, m_6, d_22, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_62
  • loc_en_US, sid_T17253, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 9ms
  • questions, product
PART LIST

PART LIST

1 2 >
Image-Master-RP53419

Arzo®

Arzo® Tub Spout - Pull-Up Diverter

List Price: $185.60 - $279.10
Free Ground Shipping All Orders $49+

RP53419

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-RP28598

Delta®

Delta® Decal - Hot / Cold Indicator - 17 Series

List Price: $8.30
Online Price: $6.64
Free Ground Shipping All Orders $49+

RP28598

3.40 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-Master-RP62956

Vero®

Vero® Temperature Knob & Cover - 17 Series

List Price: $35.30 - $59.30
Free Ground Shipping All Orders $49+

RP62956

Image-RP62958

Vero®

Vero® Escutcheon & Gasket - 17 Series

List Price: $107.10
Online Price: $85.68
Free Ground Shipping All Orders $49+

RP62958

Image-Master-RP62957

Vero®

Vero® Metal Lever Handle Kit - 17 Series

List Price: $90.85 - $144.85
Free Ground Shipping All Orders $49+

RP62957

Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $24.90
Online Price: $19.92
Free Ground Shipping All Orders $49+

RP46073

3.89 9
Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.17 12
Image-Master-RP51035

Delta®

Delta® Bracket & Screws - Shower

List Price: $36.35 - $47.95
Free Ground Shipping All Orders $49+

RP51035

Image-Master-RP50880

Delta®

Delta® Trim Sleeve - 17 Series

List Price: $25.10 - $52.80
Free Ground Shipping All Orders $49+

RP50880

Image-Master-RP51034

Vero®

Vero® Flange - Shower

List Price: $26.45 - $47.45
Free Ground Shipping All Orders $49+

RP51034
