Monitor® 17 Series Shower Trim with In2ition® in Matte Black

Model#: T17264-BL-I
Monitor® 17 Series Shower Trim with In2ition® in Matte Black
Model#: T17264-BL-I
List Price: $48500
PRODUCT FEATURES
The sleek, angular lines and soft edges of the Ashlyn™ bath collection create a modern appeal at an attractive price. The Delta® In2ition® Two-in-One Shower features a detachable hand shower which can be used separately from or simultaneously with the shower head. This integrated dual-functionality gives you maximum flexibility without sacrificing warmth, as you can choose to have water streaming from the shower head only, the hand shower only or both the shower head and hand shower at once. Set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. The pause setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. This spray setting helps you conserve water, so you can worry less about depleting your supply of hot water - and you help the environment too. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.

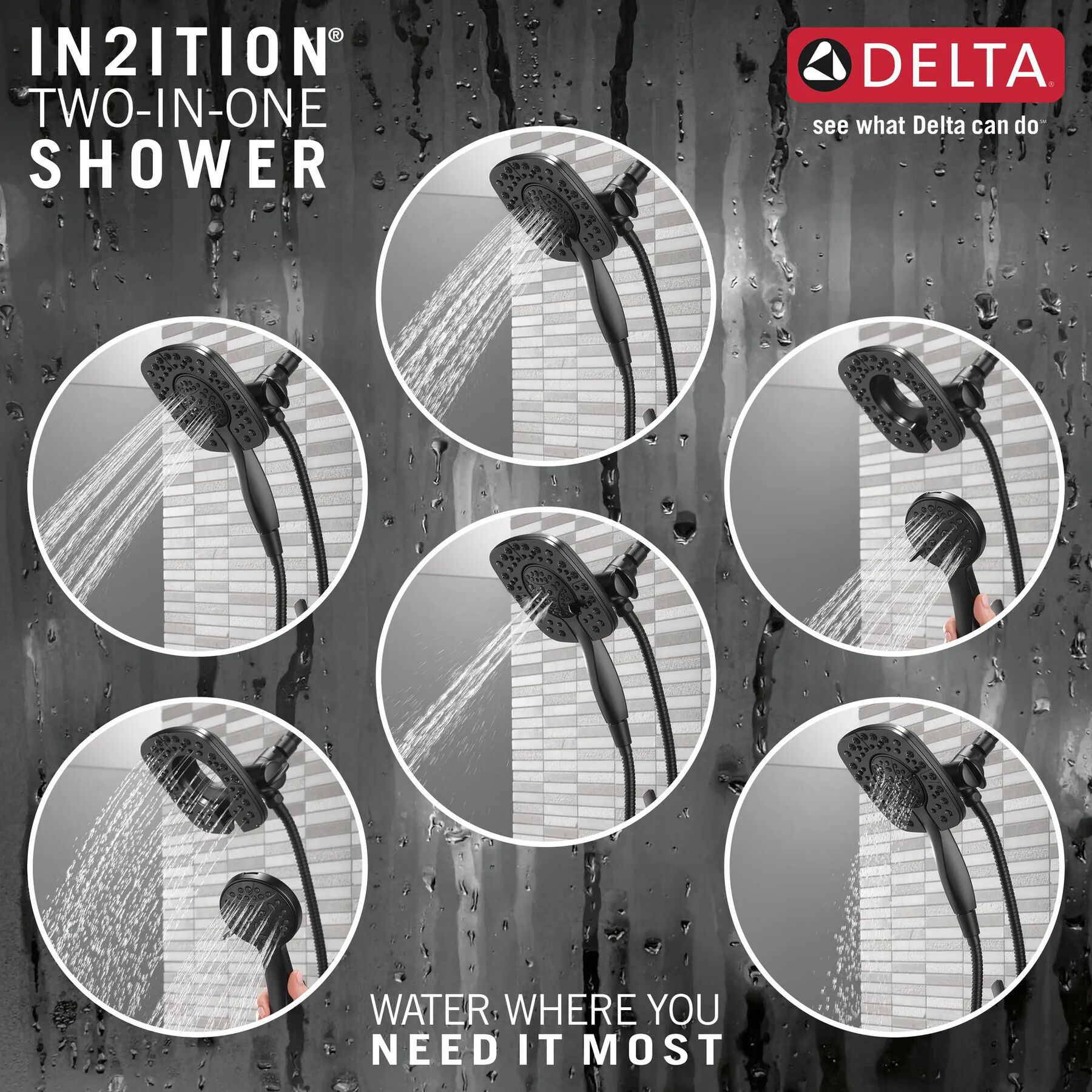

  • The In2ition Two-in-One Shower gets water where you need it most using the integrated shower head and hand shower separately or together
  • Perfect for bathing loved ones and pets as well as keeping the inside of your shower and tub clean
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: Full Body Spray, Massage Spray, Full Body with Massage Spray, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings

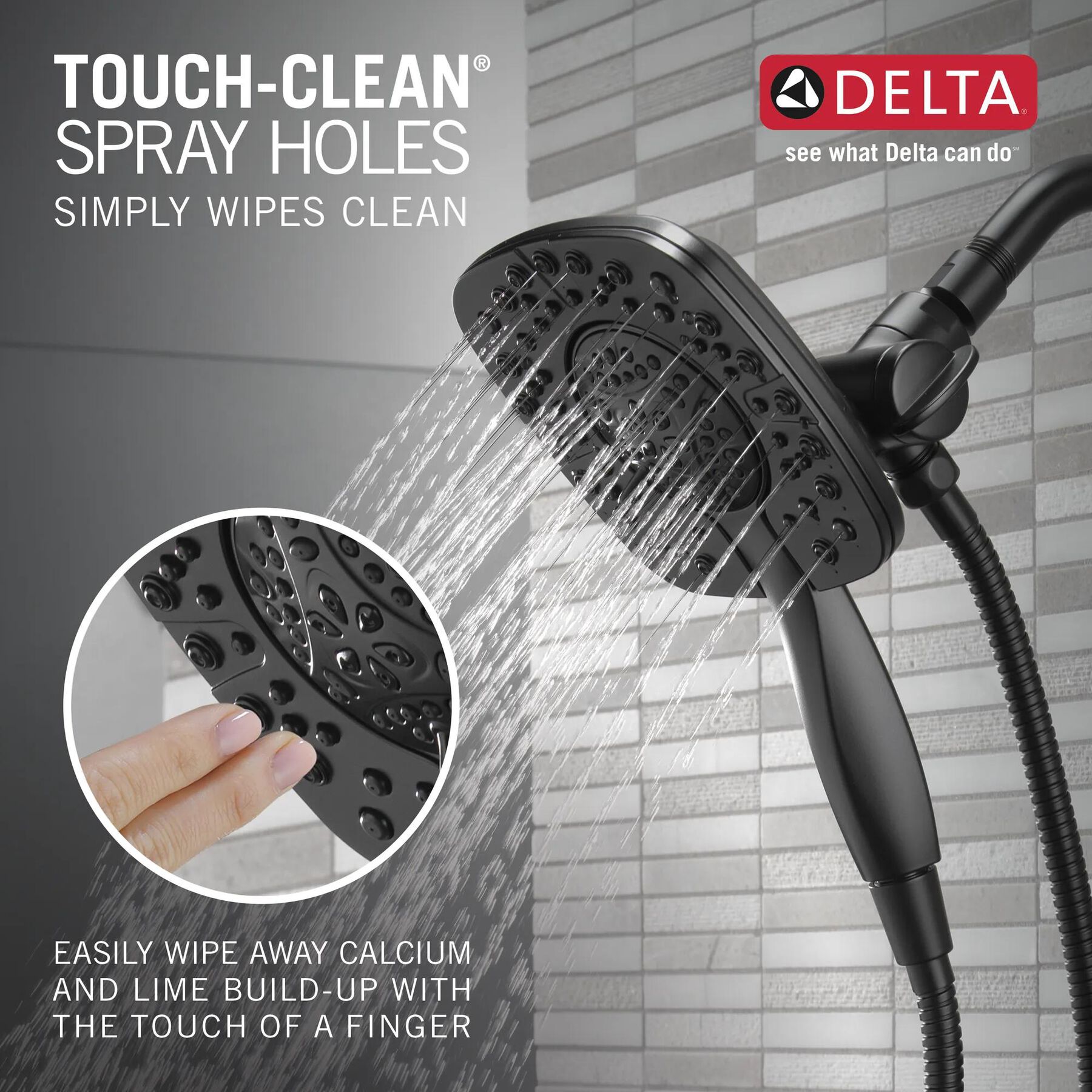

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • ADA Compliant
  • WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Perfectly coordinates with the Ashlyn bath collection
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
In2ition®
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Installation Information

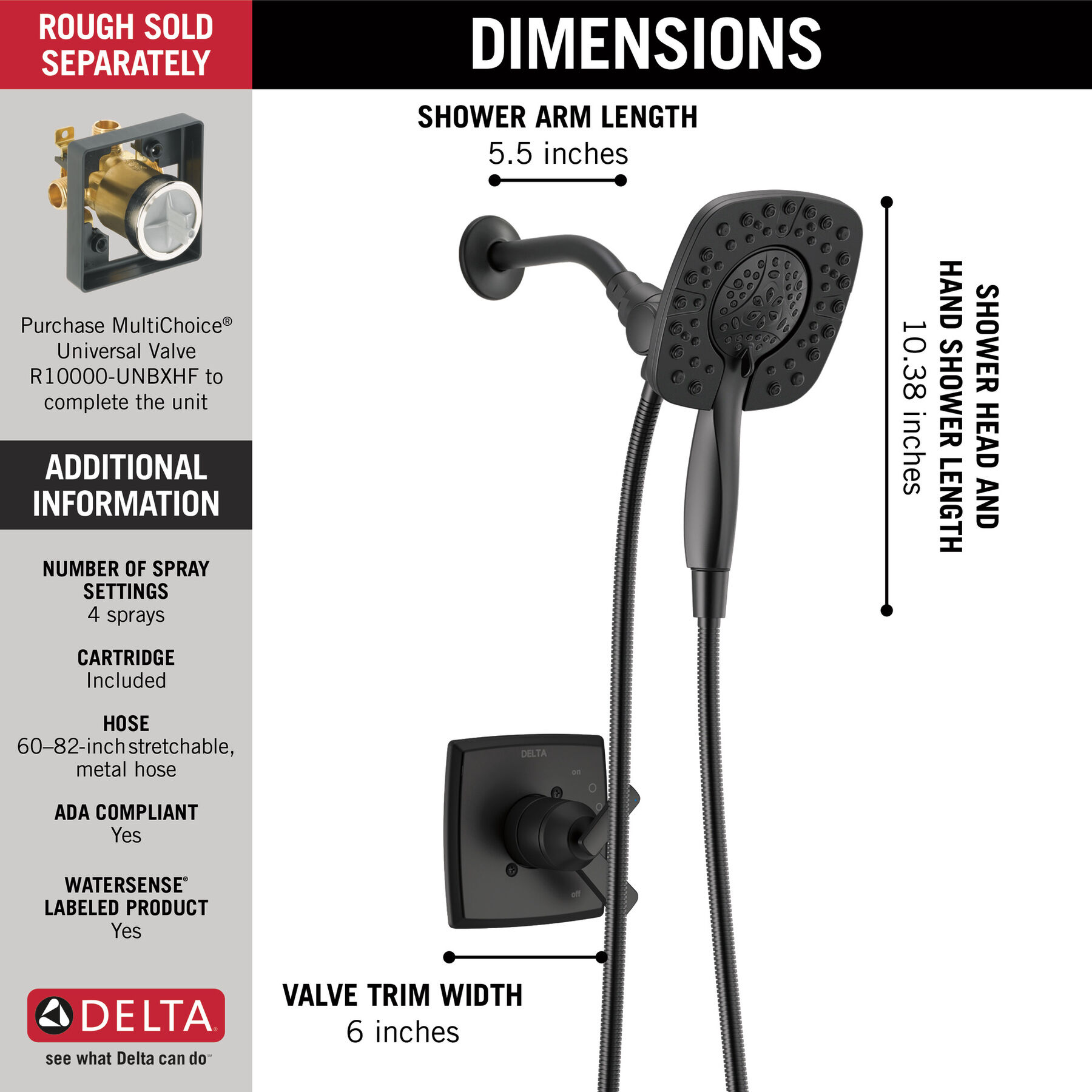

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
12
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Does the Ashlyn have volume control-compare seems wrong

Hi, I am redoing my existing shower, and want to replace the valve too and increase shower height....Couple of questions: a. Where as when I compare this model with the Linden model, it says Linden has volume control but this does not. That seems wrong. When I look at the Ashlyn valve, it seems to have both volume and temperature handles, just like Linden. Can you please confirm if your compare feature is incorrect? b. Other than buying the multichoice universal valve, do I need to buy anything else? c. I love high pressure spray from my shower. Will the UNBXHF multichoice valve help in increasing pressure (vs without HF)? d. Also, is there a model that has h2okinetic, in2ition technology AND volume control (so that I can set the temperature, and only move the volume lever)? Any other model you recommend for high pressure spray performance and in2ition technology? Thank you!
Asked by: Miltexas
Hi Miltexas, Thank you for your questions! a) This model does have a volume control, as will all 17 series models. b) No additional parts will be needed to use your shower, other than the R10000 rough-in valve. c) The high-flow (HF) rough-in valve will provide more water flow from the valve outlet if you are adding additional components, such as a hand shower or body spray. However, the flow rate of the included shower head will not be increased beyond 2.5 gpm with an HF valve. d) At this time we do not have a complete trim kit that includes an In2ition shower head with H2Okinetic technology. However, you could purchase one separately to use with a Valve-only trim (along with the RP6023 and RP6025 shower arm and flange). H2Okinetic In2ition shower heads: http://www.deltafaucet.com/bath/showering-components/filter-results.html?sort=pricehighlow&tech=in2ition&tech=h2okinetic&function=bath-showering-components Valve only trim: http://www.deltafaucet.com/bath/details/t17064.html Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

The water isn't hot enough when we turn the water on full. Is there a way to get the adjust to get more hot water?

Asked by: WOLFE59
Hi, Wolfie! Thank you for your question. There is a rotational limit stop (RLS) at the temperature control to adjust the hot water limit. To adjust the RLS, first remove the temperature cover and take a phillips head screw driver and turn the set screw counter clockwise to remove. Remove the gray knob. Behind the knob, you should see a black disk. Take the disk and take it out and place the disk to the hotter side. The hot side should be up against the iron piece that is sticking down on the volume handle. Once adjusted, reinstall all handle parts. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Can this fixture be used as an outdoor shower in Maryland?

Asked by: Naptown
Hi Naptown, Thank you for your question. This unit can be installed outdoors, but must be winterized. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Can the showerhead be adjusted to different angles?

Hi, Is the showerhead on this model adjustable so that the angle of the water spray can be moved (straight down or angled to spray further from the shower wall) or is the showerhead in a fixed position that can't be moved?
Asked by: Meg
The shower head can tilt. Because if the hose it would not be able to point directly down link a rain shower head.
Answered by: FrustratedPhill
Date published: 2024-03-28

My plumber installed the valve too deep and so with the escutcheon, the handle cannot reach the rotational limit stop (R32102) and the screws (R12630) are now too short. Do you have any kind of extender so the handle can reach as well as longer screws?

Asked by: TYNY
Hello! Please see the following link for the 17 series extension kit which can provide up to an additional 1-3/4 in. of wall thickness. http://deltafaucet.com/parts/product/RP77992.html Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2026-02-18

is there a way to increase the overall water pressure?

Asked by: Fireman48
Hi, Fireman48! Thank you for your question. The T17264-RB-I has a 2.0 per minute flow rate. There is not a way to increase the water pressure. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-06-23

Can l an Ashlyn Monitor 17 Series T17264 be installed in a R10000-UNWSHF valve? i.e. High Flow Valve?

Asked by: Nate
Thank you for your question, Nate! Yes, you can use the R10000-UNWSHF valve body, with the T17264-I valve trim. Because the bottom port is pre-plugged on the R10000-UNWSHF valve body, you will not be able to use a tub spout. Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2024-03-28

I HAVE THE TEMP CONTROL UP THE WHOLE WAY AND IT WASN'T HOT ENOUGH. i THEN TURNED MY WATER HEATER UP AND IT IS HOTTER, BUT NOT AS HOT AS WE LIKE IT. WHAT CAN WE DO TO GET THIS HOTTER? OTHER FAUCETS ARE HOT AND I WON'T TURN THE WATER HEATER UP ANY MORE.

Asked by: WOLFE59
Hello Wolfie, Thank you for your question. There is a rotational limit stop (RLS) at the temperature control to adjust the hot water limit. To adjust the RLS, first remove the temperature cover and take a Phillips head screw driver and turn the set screw counter clockwise to remove. Remove the gray knob. Behind the knob, you should see a black disk. Take the disk and take it out and place the disk to the hotter side. The hot side should be up against the iron piece that is sticking down on the volume handle. Once adjusted, reinstall all handle parts. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_84
  • loc_en_US, sid_T17264-BL-I, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 26ms
  • questions, product

BUNDLES FEATURING THIS PRODUCT

Only at Online Retailers
Image-Master-FVS17264-BL-I
Only at Online Retailers

Ashlyn®

Ashlyn® Shower Trim with Rough Bundle

List Price: $573.20
Standard Finishes

FVS17264-BL-I
