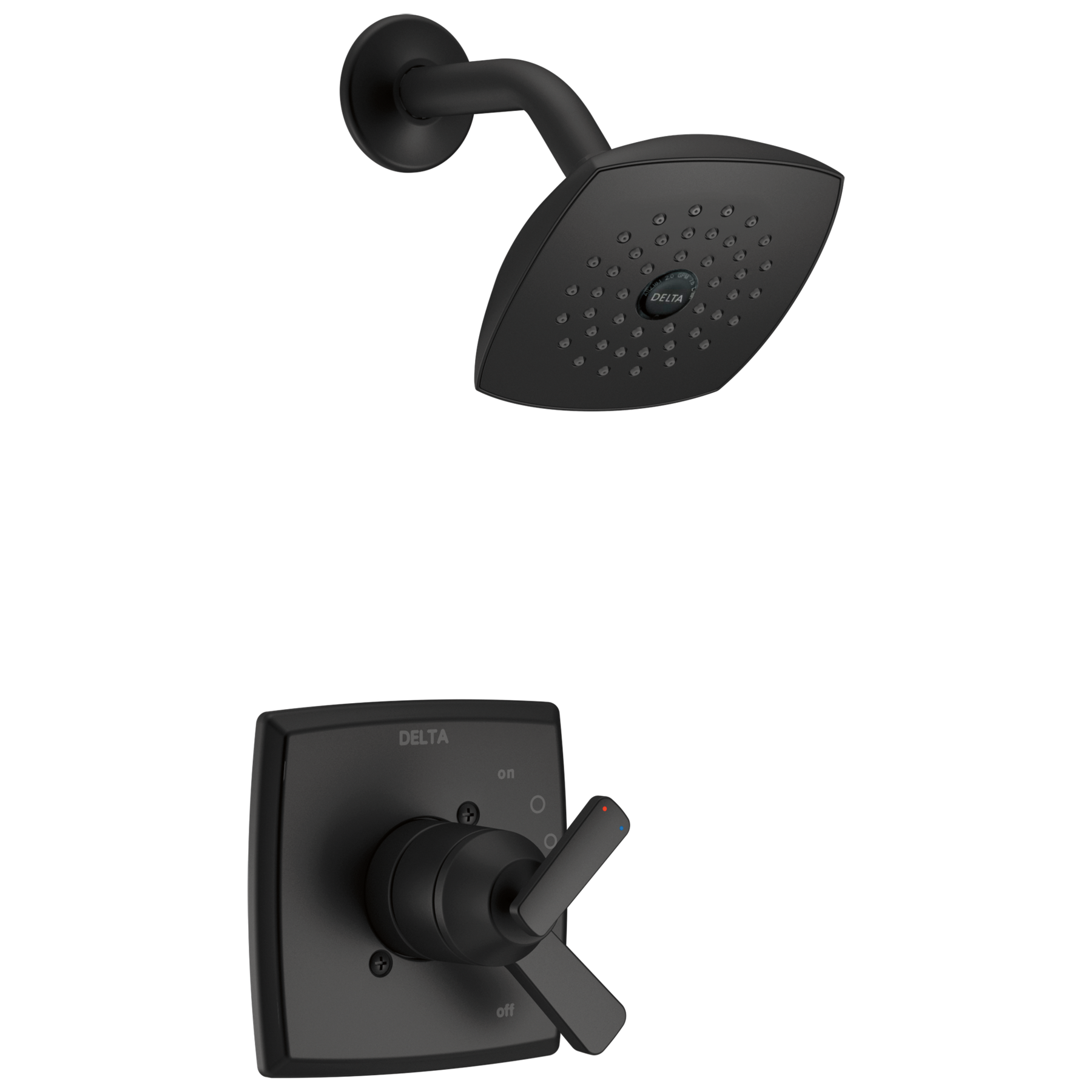

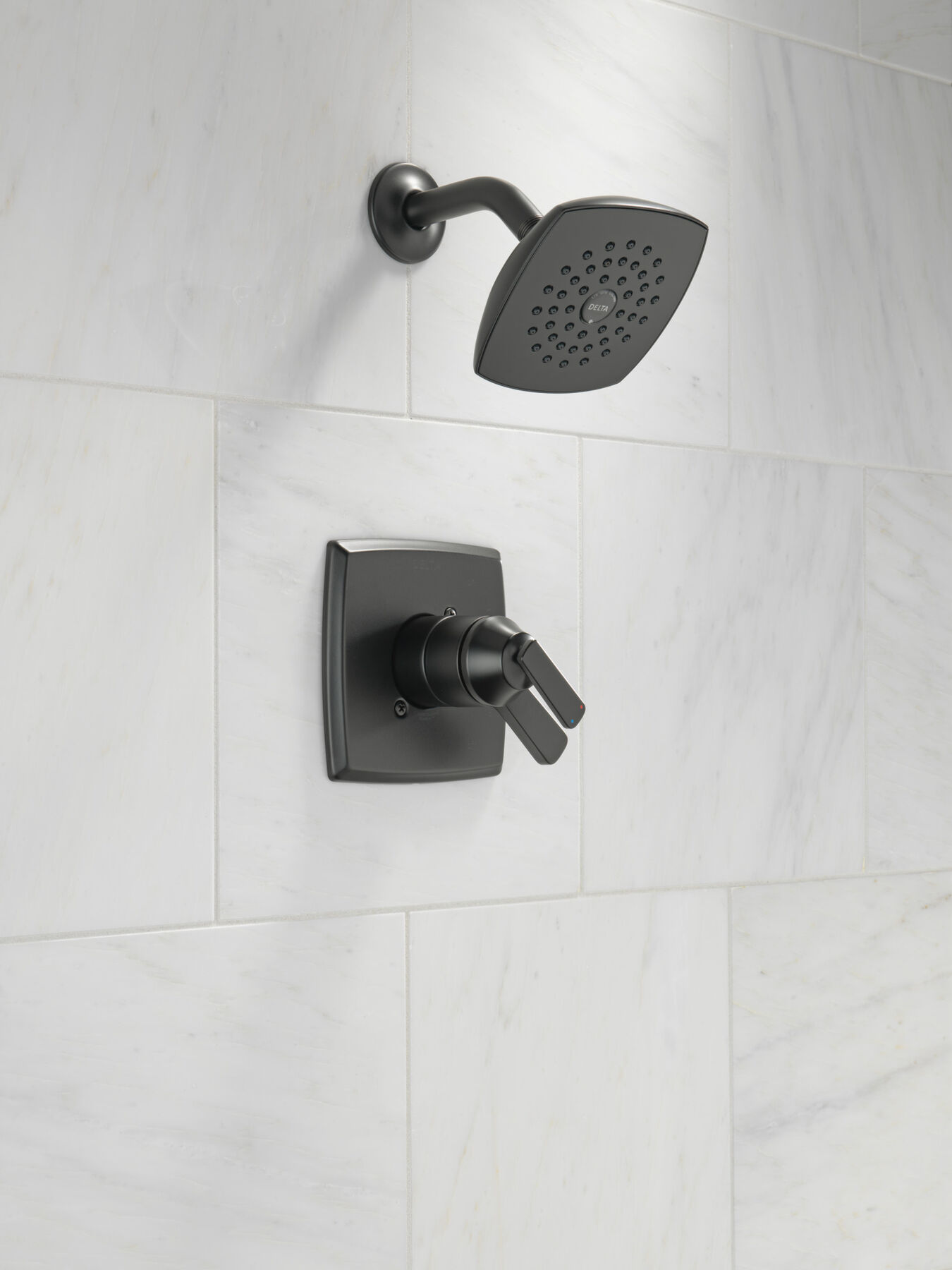

Monitor® 17 Series Shower Trim in Matte Black
Model#: T17264-BL
List Price: $39900
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: Full Body spray
  • Full body spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles

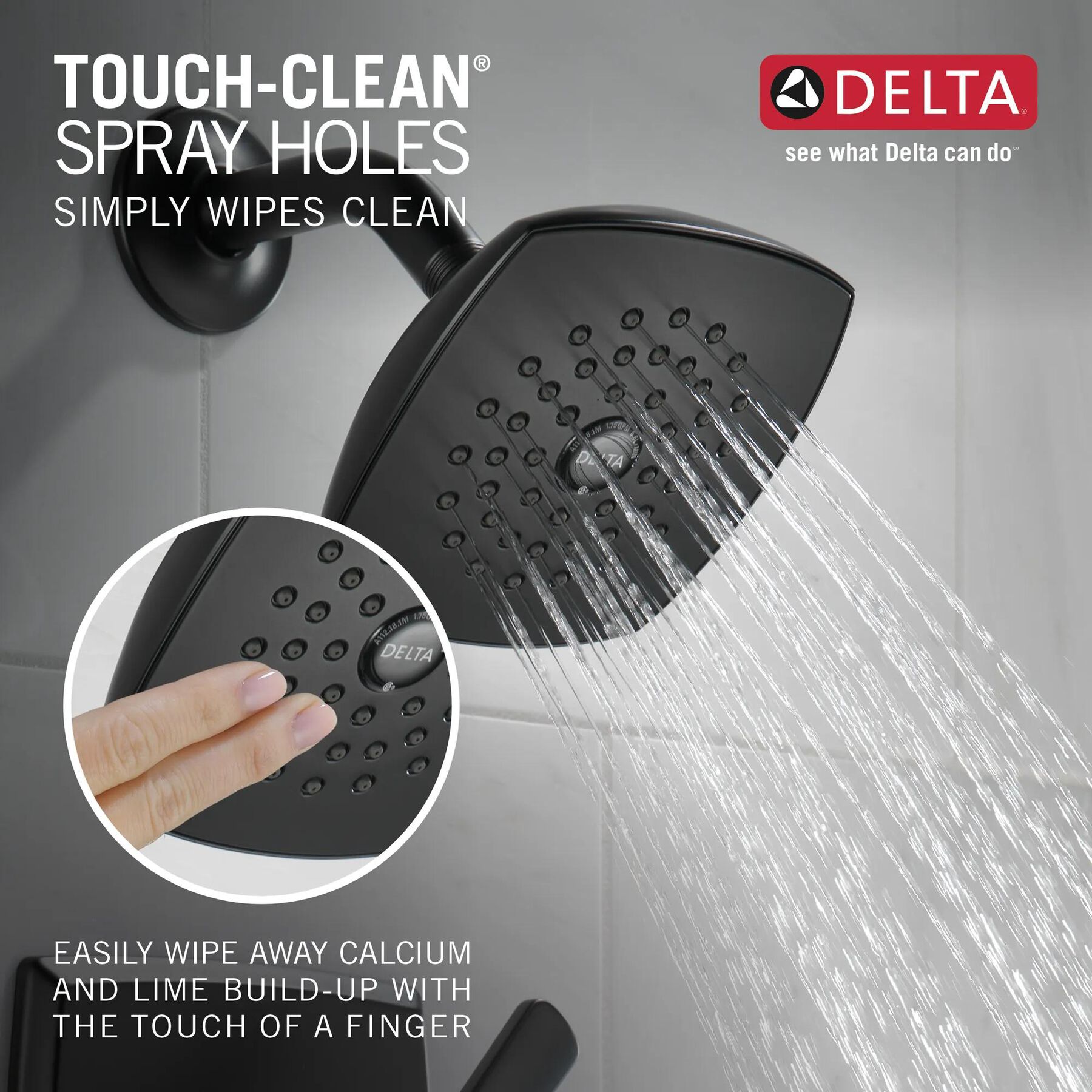

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • ADA Compliant
  • WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Perfectly coordinates with the Ashlyn bath collection
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
5-3/16
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Delta Shower head Great shower head and controls with a good spray.
Date published: 2026-03-14
Rated 2 out of 5 by from Not worth the price. This product is not worth the steep price. The whole thing is made of what feels like cheap plastic. It's probably some form of polycarbonate but it doesn't say that anywhere on the product page and for the price it's something I would have liked to have known before purchasing. It all feels and sounds very cheap. The two handles do not move independently. Anytime you move the pressure handle it brings the temperature handle with it and if you don't have it fully open that you can't reach the full range of temperatures. The two handles also sit too far apart from each other and the pressure handle is wobbly. Again for the price this shower trim is NOT worth it. Don't buy.
Date published: 2025-09-04
Rated 5 out of 5 by from Delta shower fixtures Quality products, competitive prices
Date published: 2025-02-10
Rated 5 out of 5 by from Delta makes great products Shower head works perfectly
Date published: 2025-02-06
Rated 5 out of 5 by from Water Control The shower head & water flow controls looked great & work great. The installation instructions were easy to follow
Date published: 2024-03-20
Rated 3 out of 5 by from too much plastic works fine but there is are more plastic parts than I was expecting
Date published: 2024-02-28
Rated 1 out of 5 by from Wobbly Temperature Control Knob We have had this unit installed for approximately 10 months. The temperature control knob is extremely wobbly and feels cheap. For as expensive at this shower system costs, the fit and finish of this does not hold up. Tried to contact Delta for warranty support but had a hard time getting through as there were 23 other people on hold. Left a message for call back. Will update review as more info becomes available. Tried to upload YouTube video.
Date published: 2024-02-10
Rated 5 out of 5 by from Attractive and great quality Beautiful shower trim and great quality. The dual function handle is a must!
Date published: 2024-01-04
  • y_2026, m_6, d_24, h_5
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_53
  • loc_en_US, sid_T17264-BL, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 50ms
  • reviews, product
Q&A

What is the gallon per minute

Asked by: Water
Hello Water, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet ASHLYN® Monitor® 17 Series Shower Trim MODEL#: T17264-BL flow rate is 1.75 GPM @ 80 PSI from the showerhead and the tub spout flow rate is 6.2 GPM @ 60 PSI with R10000-UNBX. Please see the technical specification link below. https://media.deltafaucet.com/SpecSheet/DSP-B-T17064%20Rev%20H.pdf Thank you for being a loyal Delta Faucet customer. Please contact us back with any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

I have a RP32104 cartridge and was hoping to find out if this model is compatible with this cartridge.

Asked by: atm91
Hi atm91, Thanks for your question regarding T17264-BL! Yes, the RP32104 would fit the new trim kit. The RP22734 bonnet nut may need to be updated to allow for the new trim to fit properly. Please feel free to contact us with any questions or for further assistance. Best Regards, Emma Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

Can a thermostatic cartridge be ordered/used with this (Ashlyn) trim? Using the R10000-UNWSHF valve.

Asked by: FSinTN
Hello FSinTN, Thank you for contacting us, I would be happy to help you. Our R10000-UNWSHF is a universal valve, Which mean any of our T13/14, T17 or 17T trim kit and cartridge can be used. If you want to update to the Thermostatic cartridge you will need to update the trim, due to the cartridge is larger and you would need the larger handles to go with it. Please contact us back if you have any questions or need further assistance.  Best Regards,  Nicole
Answered by: Delta7
Date published: 2024-03-28

I have R60000-UNBXHF Delta/brizo multi choice valve will the Ashlyn 17 series T17264-BL be compatible?

Asked by: Liz Harrington

I recently purchased the Ashland and shower trim part number T17264 Dash BL. I did not get any instructions with this and I don’t want to miss installing any of the parts included. Can you please email me or let me know or I can get the instructions

Asked by: Barb
Hello Barb, Thank you for contacting us. We apologize that the install instructions were missing from your Delta Faucet model T17264-BL Monitor® 17 Series Shower Trim and I am happy to help you. We thank you for being a loyal Delta Faucet customer. Please refer to the below installation guide for assistance in properly installing your product. https://media.deltafaucet.com/MandI/107529%20Rev%20D.pdf Please contact us back directly via email with any further questions. Best Regards, Skyler
Answered by: Delta7
Date published: 2024-03-28

Hello, just wanted to double check which rough-in valve, with shut offs, to use with the T17464-BL Ashlyn trim ??

Asked by: Dave C
Hello, Dave! Thank you for contacting us at Delta Faucet! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you. This Delta Faucet model T17264-BL Ashlyn® Monitor® 17 Series Shower Trim In Matte Black will utilize model R10000-UNWS MultiChoice® Universal Tub / Shower Rough - Universal Inlets / Outlets. Please see the following link for more information. https://www.deltafaucet.com/bathroom/product/R10000-UNWS.html Please contact us directly by phone at 1-800-345-3358 or email at customerservice@deltafaucet.com if further assistance is needed at this time.   We appreciate your loyalty to Delta Faucet Company. Best Regards, Tim
Answered by: Delta
Date published: 2024-03-28

Can this shower head be mounted to the ceiling?

Asked by: Donna
Hello! Yes, it can be mounted to the ceiling. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Digital Specialist
Date published: 2026-06-16

Will the shower arm RP46870BL work with these flanges and head?

Asked by: Yena
Hello Yena, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet DELTA® 16" Shower Arm MODEL#: RP46870BL is a universal shower arm, which will attach to our flanges and shower heads. Thank you for being a loyal Delta customer. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

I have the Victorian monitor 17 from years ago (valve with white top). will this fit on the that set up?

Asked by: chad
Hello, Thank you for your question! Yes, this will install onto your existing valve. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-10-16

I purchased the Ashlyn shower trim. Should there be some type of plug for the hole where the handle screw is? As is right now, when the handle is turned to ON the hole is facing straight up, and it looks like water would easily get inside the handle

Asked by: JJ Todapackers
Hello JJ Todapackers, Thank you for your question! I am happy to help you! Our Delta T17264 does not have a set screw cover however, we recommend using a small amount of clear silicon will help to prevent water from getting inside and corroding the set screw. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

Turns out I had the wrong model number, but I got a lot of great advice on the last question I had. I have a leak from the faucet and need to know what are the parts for the best and worst-case scenario that I need to fix it, and how to flush. Thanks

Asked by: Chris
Hello Chris, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available for our Delta Faucet Ashlyn® Monitor® 17 Series Shower Trim, model T17264; however, I am happy to assist you! If this unit is having a leaking issue, we first would recommend a flush, If the flush does not work we then would ask to replace the RP46073 Cartridge Adapter. Lastly, if that does not fix the issue, then we would recommend replacing the whole cartridge, RP46074. Please see the parts diagram link below, as well as the flushing instructions. https://media.deltafaucet.com/PartsDiagram/DPD-B-T17064%20Rev%20B.pdf To flush the open valve without the cartridge, please follow the directions below. 1) Remove the handle by loosening the set screw on the side of the base of the handle. The set screw is either a 1/8" or 3/32" Allen screw. So you will need to use the appropriate size Allen wrench to loosen it. Loosen it just enough to be able to easily pull the handle off. * Note. If there is calcium build-up at the base of the handle, it may be necessary to soak it in a 50/50 solution of vinegar and water. Simply saturate the rag with the 50/50 solution, wrap it around the handle base and place a plastic bag over it. I would recommend do this the night before removing the handle. You will also need a Phillips screwdriver to remove the screw under the temperature knob. 2) After removing the handle, remove the trim sleeve. 3) Then you will need to remove the bonnet nut. The bonnet nut is the threaded ring at the valve opening. It unscrews counterclockwise. You will need a pipe wrench or a pair of channel locks. 4) After removing the bonnet nut, you will need to pull the cartridge straight out. You may need a small, skinny bladed screwdriver to wedge in between the lip of the cartridge and the valve to help start it out. 5) Once the cartridge is removed, you will have an open valve body. 6) Next, shut the shower door or curtain and turn the water on to the valve. Water should gush out, much like an open fire hydrant. Have someone observe if there is good water pressure coming out of the valve and let it flush for 30 seconds. 7) Re-install the cartridge and re-assemble in reverse of how it was disassembled. The Tub/Shower should then have a good flow. If it does not, the cartridge will need to be replaced. Thank you for being a loyal Delta Faucet customer. Please feel free to contact us back with any further questions. Best Regards, Emma
Answered by: Delta7
Date published: 2024-03-28

T-17264 water will not get hot must be pressure regular how to I fix

Asked by: Rowe

Can I replace a monitor 17 cartridge with a monitor 14 cartridge and then use the 14 setup?

Asked by: Chad
Hi Chad, Thank you for your question! Yes, you can install a 14 series trim kit and use the included cartridge. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-10-25

Hello! Can I use the Delta ashlyn shower head and trim in Venetian bronze for an outdoor shower that has a cover? Thanks!

Asked by: Anya
Hello Anya, Thank you for your question, I would be happy to help you. Our faucets are not recommend for outdoor use due to possible void of warranty if non manufactures defect occurs. Please contact us back for any further questions or concerns. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

How do you remove handle that has no screw holding it on.? Delta Diverter Trim T11864-ss

Asked by: Donnie
Hello Donnie, Thank you for your question about the Delta Faucet model T17264-SS ASHLYN® Monitor® 17 Series Shower Trim. I apologize for any difficulty finding this information. We are happy to help! To remove the temperature knob, disengage the rear snap on the temperature control cover and then unhook the front of the cover from the knob. See the manual for more information: https://media.deltafaucet.com/MandI/107529%20Rev%20D.pdf Please reach out at customerservice@deltafaucet.com or 1-800-345-DELTA if you have any questions or need additional assistance. Thank you for being a loyal Delta Faucet customer. Best regards, Bryan
Answered by: Delta Faucet
Date published: 2024-03-28

what is your best recommendation for cleaning and/or polishing Ashlyn stainless faucet?  Thank you

Asked by: Sandra
Hello Sandra, Thank you for your question about the Delta Faucet model T17264 Ashlyn® Monitor® 17 Series Shower Trim. I apologize for any difficulty finding this information. I know that can be frustrating. We are happy to help! Always blot dry any water from the faucet surface. Allowing water to evaporate on the surface can lead to a build-up of mineral deposits. Cleaning with a damp non-abrasive sponge and buffing it dry with a clean soft cloth should help keep your product looking beautiful. To remove water spots, use warm water and a soft, damp cloth. See here for more information: https://support.deltafaucet.com/s/article/How-should-I-clean-or-maintain-the-finish-on-my-faucet-1628028364995 Please reach out at customerservice@deltafaucet.com or 1-800-345-DELTA if you have any questions or need additional assistance. Thank you for being a loyal Delta Faucet customer. Best regards, Bryan
Answered by: Customer Service
Date published: 2024-03-28

I installed the T17264 (R10000 unvx rough-in) valve in a shower enclosure. It worked well for about 3 years, but now the water would only barely warm up. The same bathroom sink gives hot water. Broken O-ring, failed cartridge?

Asked by: kent
Hello Customer! Thank you for your question and we are happy to help. The Delta T17264 rotational limit stop may need to be adjusted or it may need repair parts like the seats and springs. Please contact us directly for further assistance. Best Regards, Carrie
Answered by: Customer Service
Date published: 2024-05-02

Am I able to purchase this set and then swap out the shower head to a H2O 5 setting head (Model # 52664-BL)?

Asked by: tonya4321
Hi tonya4321, Thank you for your question about the Delta Faucet model T17264. Yes, the included shower head can be replaced with a model 52664-BL or other Delta shower heads. Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-07-21

how far above the shower head is the water outlet pipe to be placed for Ashlyn shower head

Asked by: ak104
HeHello ak104 , Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet DELTA® Ashlyn® Monitor® 17 Series Shower Trim In Chrome MODEL#: T17264 hs no set measurement for the showerhead to the valve. Thank you for being a loyal Delta customer. Please feel free to call, email, or message us on social if there is anything else you need. Best Regards, Themar Customer Service Representative
Answered by: Delta
Date published: 2024-03-28

Does the temperature cap and handle just pop off of the T17264? I'm assuming so since I can't find a setscrew?

Asked by: Bones
Hello! Yes, the temperature dial just pops off. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Digital Specialist
Date published: 2026-06-11

Showerhead dripping, need repair advice

Asked by: Barb
Hi Barb! Thank you for your question and we are happy to help. We are sorry to hear about your experience. You may need repair parts. Please contact us directly via a phone call or send us an email for further assistance. Best Regards, Carrie
Answered by: Customer Service
Date published: 2024-04-19
