Leland®

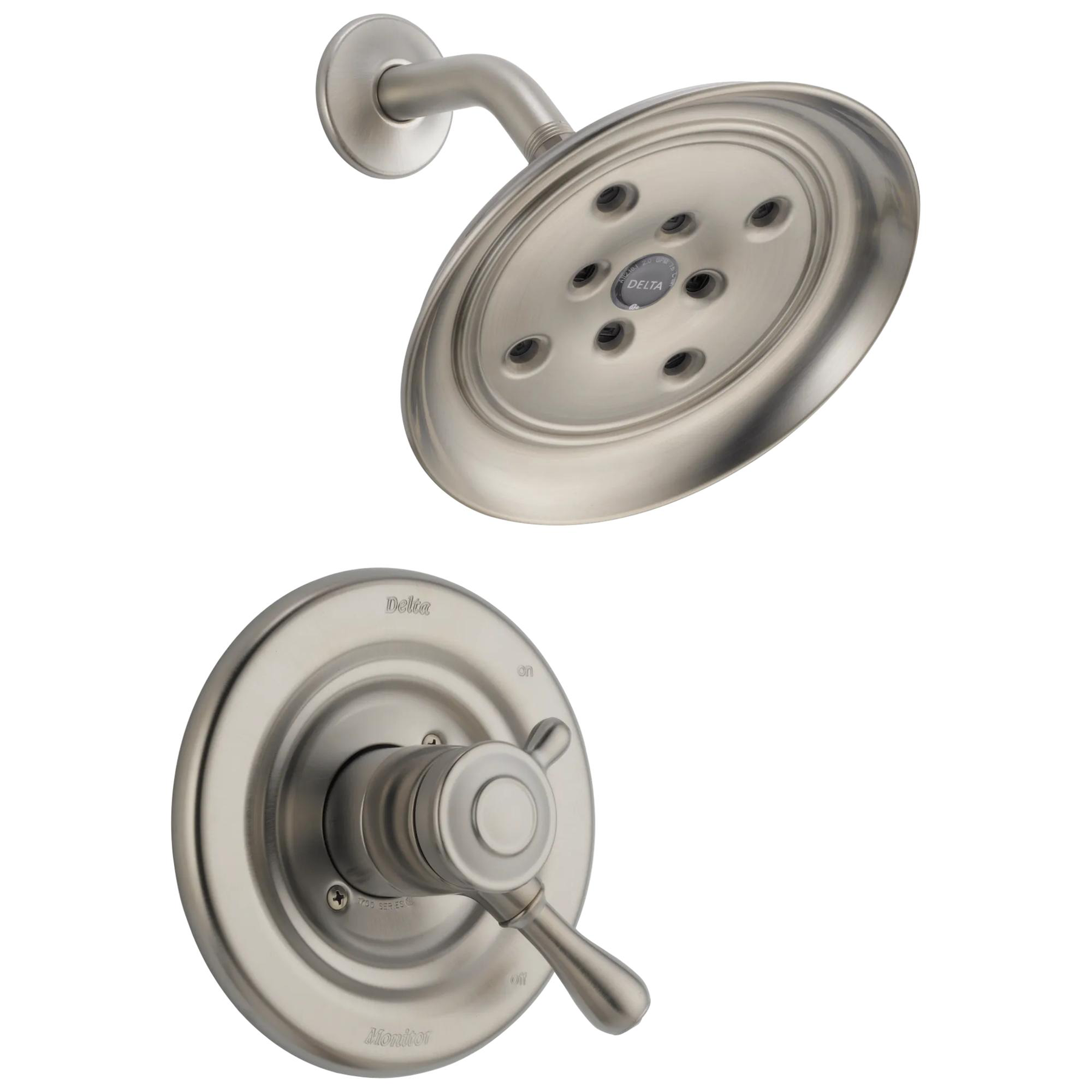

Monitor® 17 Series H2Okinetic® Shower Trim in Stainless

Model#: T17278-SSH2O
Leland®
Monitor® 17 Series H2Okinetic® Shower Trim in Stainless
Model#: T17278-SSH2O
PRODUCT FEATURES
Prepare yourself for the feeling of more water with H2Okinetic Technology®. H2Okinetic® provides a truly better shower experience. The warm, drenching water coverage is the result of a denser water pattern and larger droplets that retain their heat longer to soothe and revitalize. Delta is committed to supporting water conservation around the globe and has been recognized as WaterSense® Manufacturer Partner of the Year in 2011, 2013, and 2014. Monitor® faucets feature exclusive pressure balance valves to keep water temperature within a safe ±3.6° F (±1.7° C), protecting you from sudden changes in hot or cold water pressure. Monitor valves also feature an adjustable high-temperature limit stop that, when properly, set helps ensure the handle cannot be turned to a position that is too hot for comfort.
  • H2Okinetic Technology® sculpts the water into a unique wave pattern, giving the feeling of more water without using more water
  • WaterSense® certification promotes water conservation
  • Pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Dial adjusts temperature - Handle adjusts volume
  • 1.50 gpm @ 80 psi, 5.7 L/min @ 550 kPa maximum water usage
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Spray settings include: H2OKinetic
  • Assembled dimensions: 10-3/32 in. H x 10-3/8 in. D x 7-19/32 in. W
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
Volume Control
Brilliance® Finish
Water-Efficient
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Installation Information
Flow Rate :
1.5 gpm @ 80 psi, 5.7 L/min @ 552 kPa
Overall Height (in.) :
10-3/32
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 9ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 7ms
  • questions, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
PART LIST

PART LIST

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP6025PR

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025PR

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP28795

Delta®

Delta® Escutcheon - Monitor® 17 Series

List Price: $72.65 - $220.25
Free Ground Shipping All Orders $49+

RP28795

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP28598

Delta®

Delta® Decal - Hot / Cold Indicator - 17 Series

List Price: $8.30
Online Price: $6.64
Free Ground Shipping All Orders $49+

RP28598

3.40 5
Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
