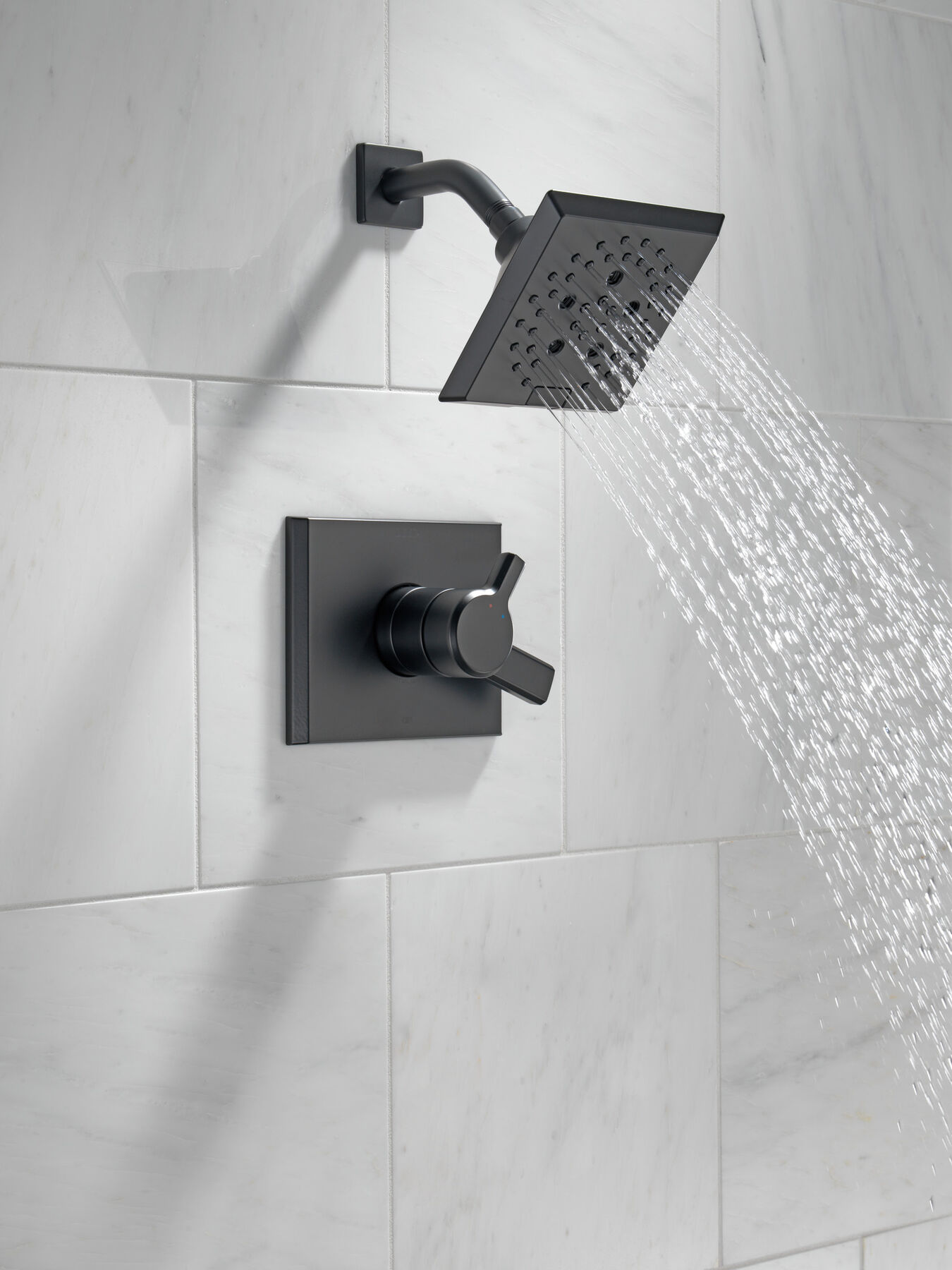

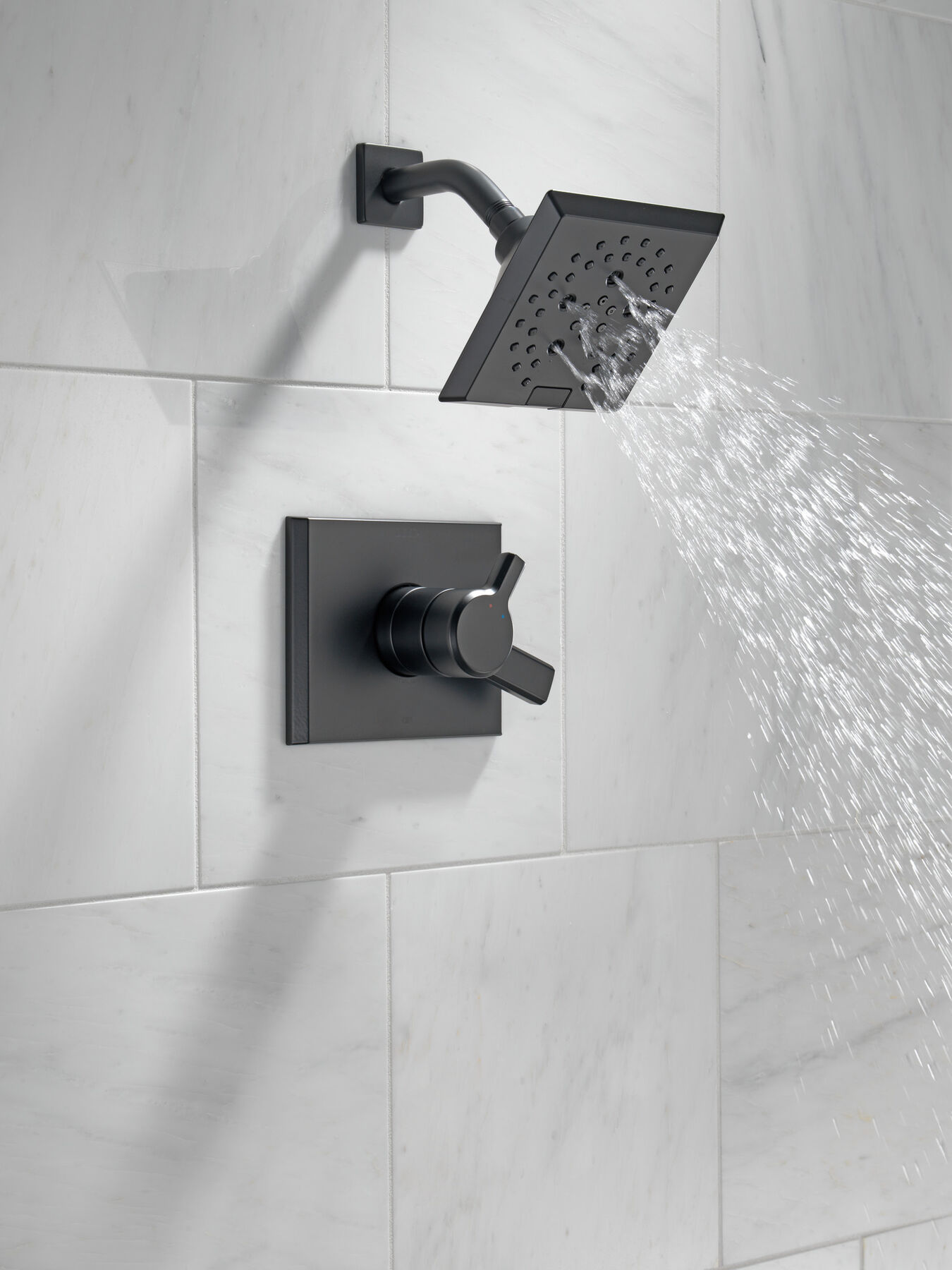

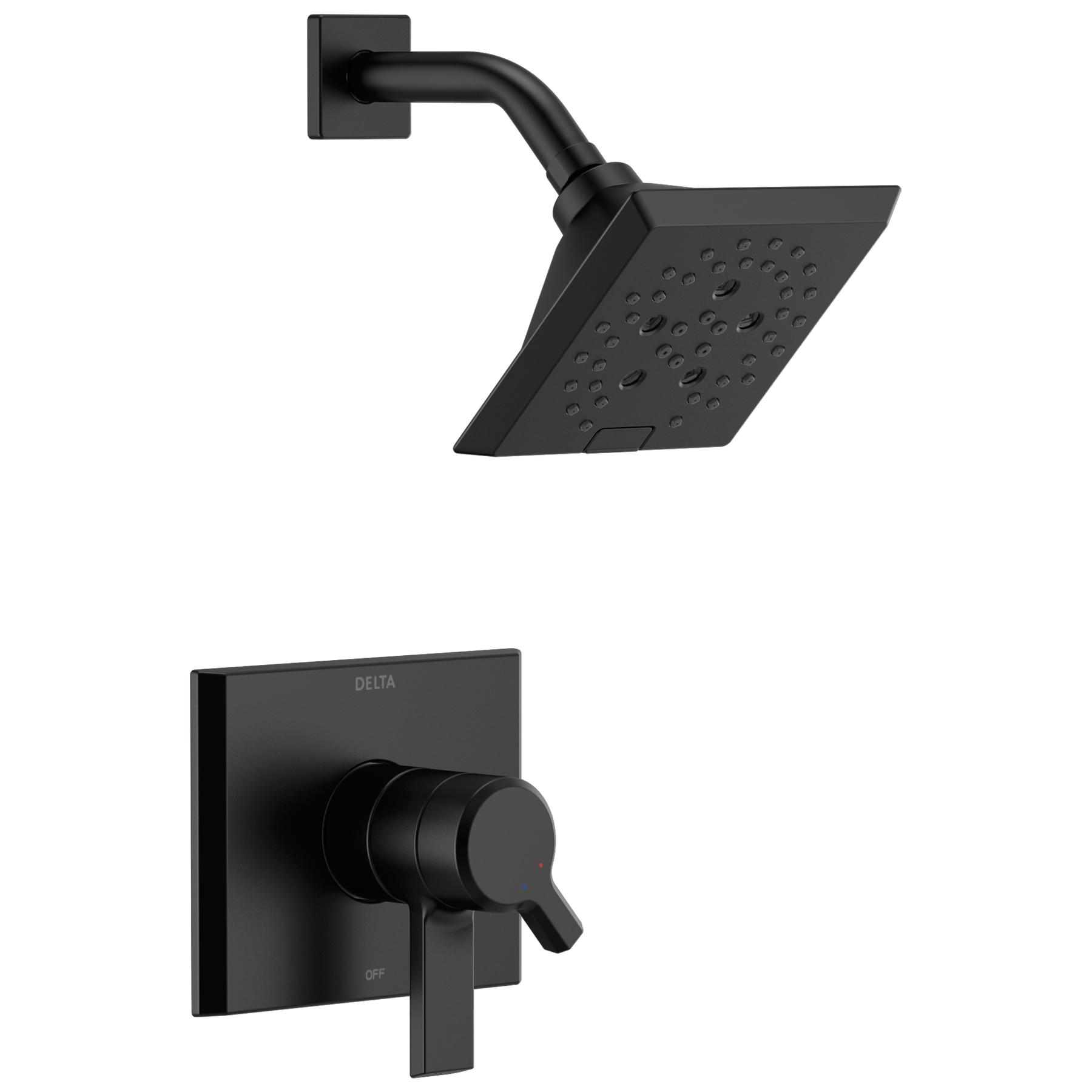

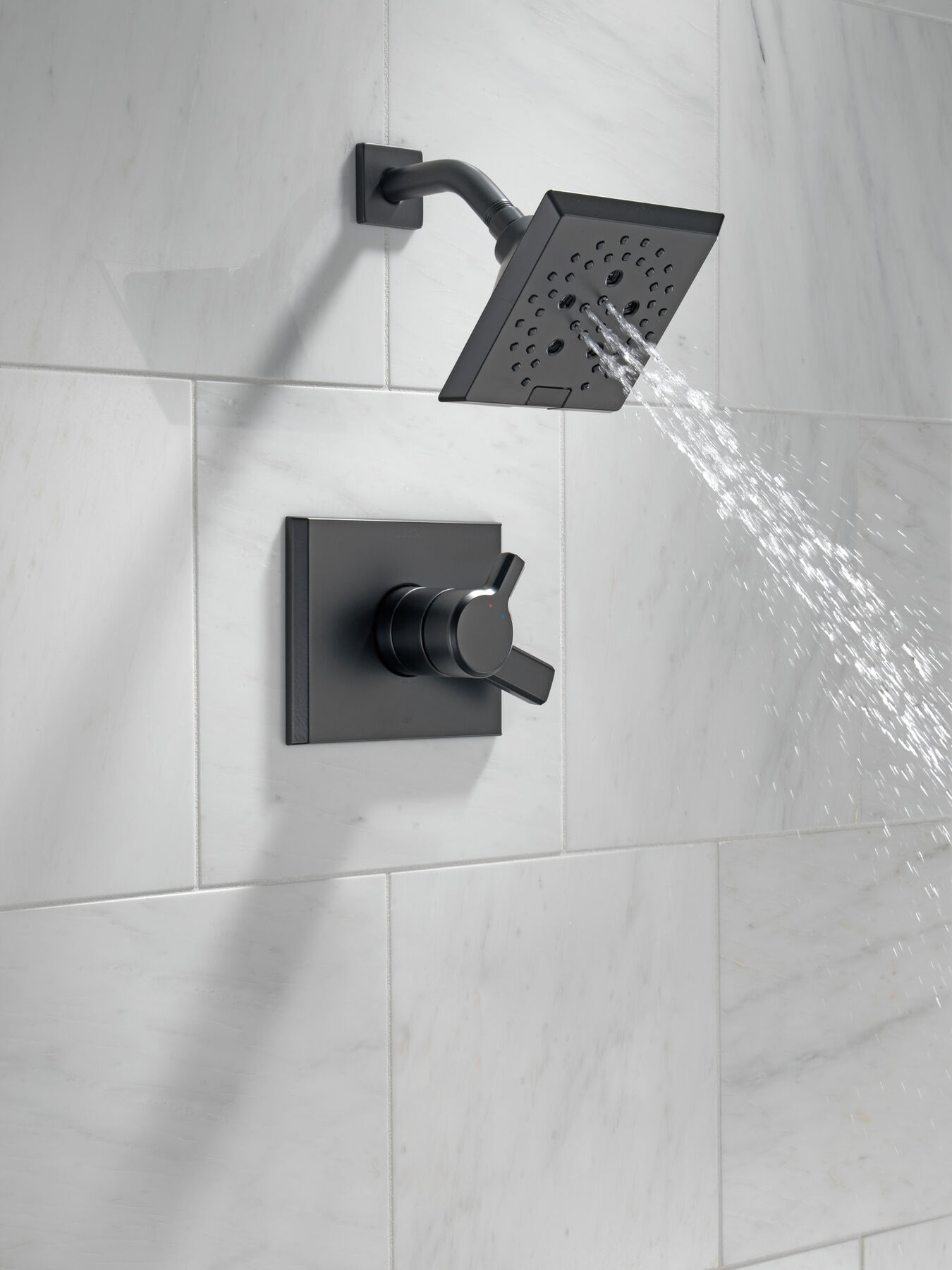

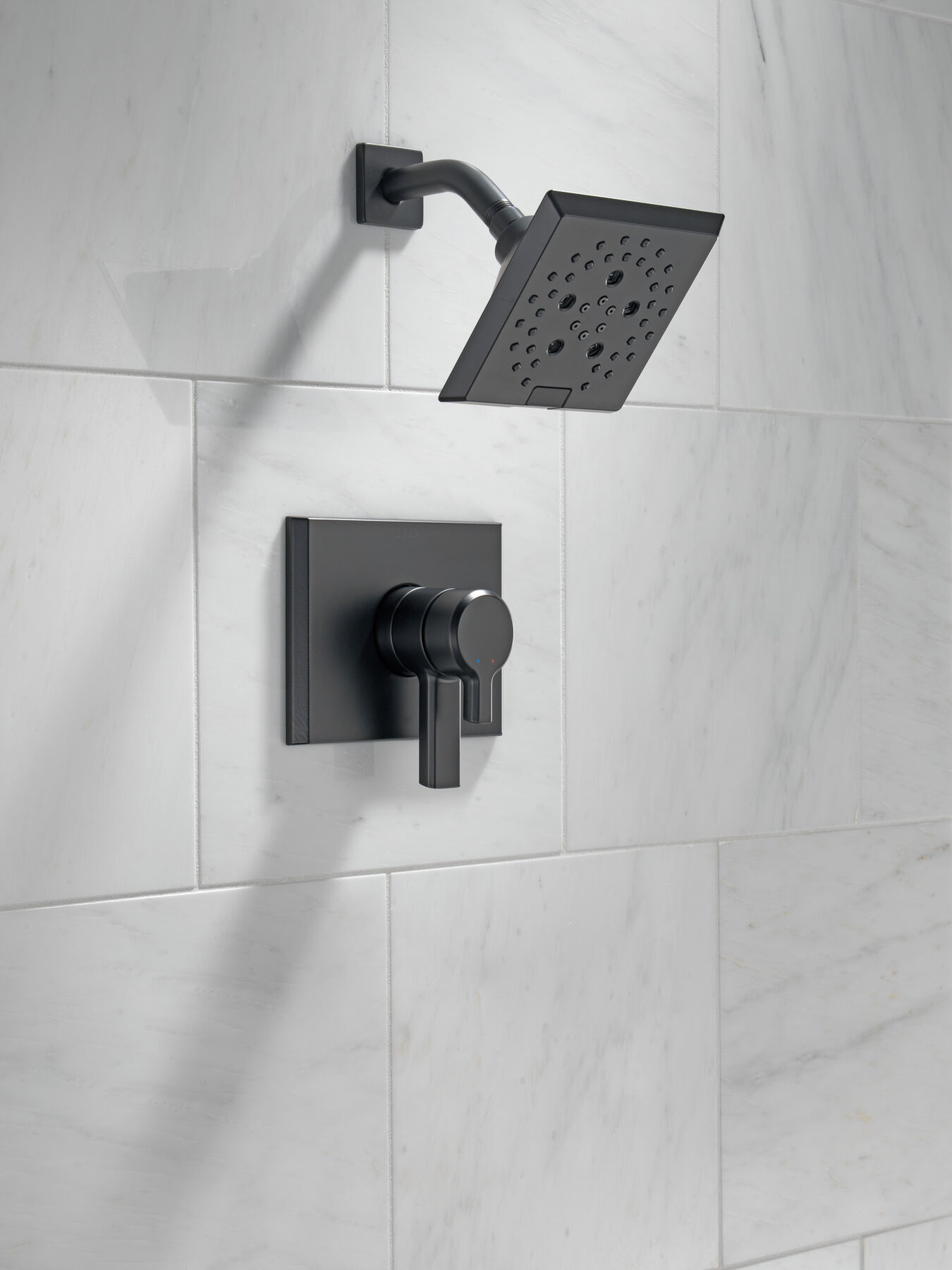

Monitor® 17 Series H<sub>2</sub>Okinetic® Shower Trim in Matte Black

Model#: T17299-BL
Add to Favorites
Find local Delta® installers.
Pivotal®
View Full Pivotal® Bathroom Collection
Monitor® 17 Series H<sub>2</sub>Okinetic® Shower Trim in Matte Black
Model#: T17299-BL
List Price: $98500
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The confident slant of the Pivotal Bath Collection makes it a striking addition to a bathroom's contemporary geometry for a look that makes a statement. Delta H2Okinetic Showers look different because they are different. Using advanced technology, H2Okinetic showers sculpt water into a unique wave pattern, giving you 3X the coverage of a standard shower head. With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • Trim kit only, must order MultiChoice universal valve separately to complete the unit

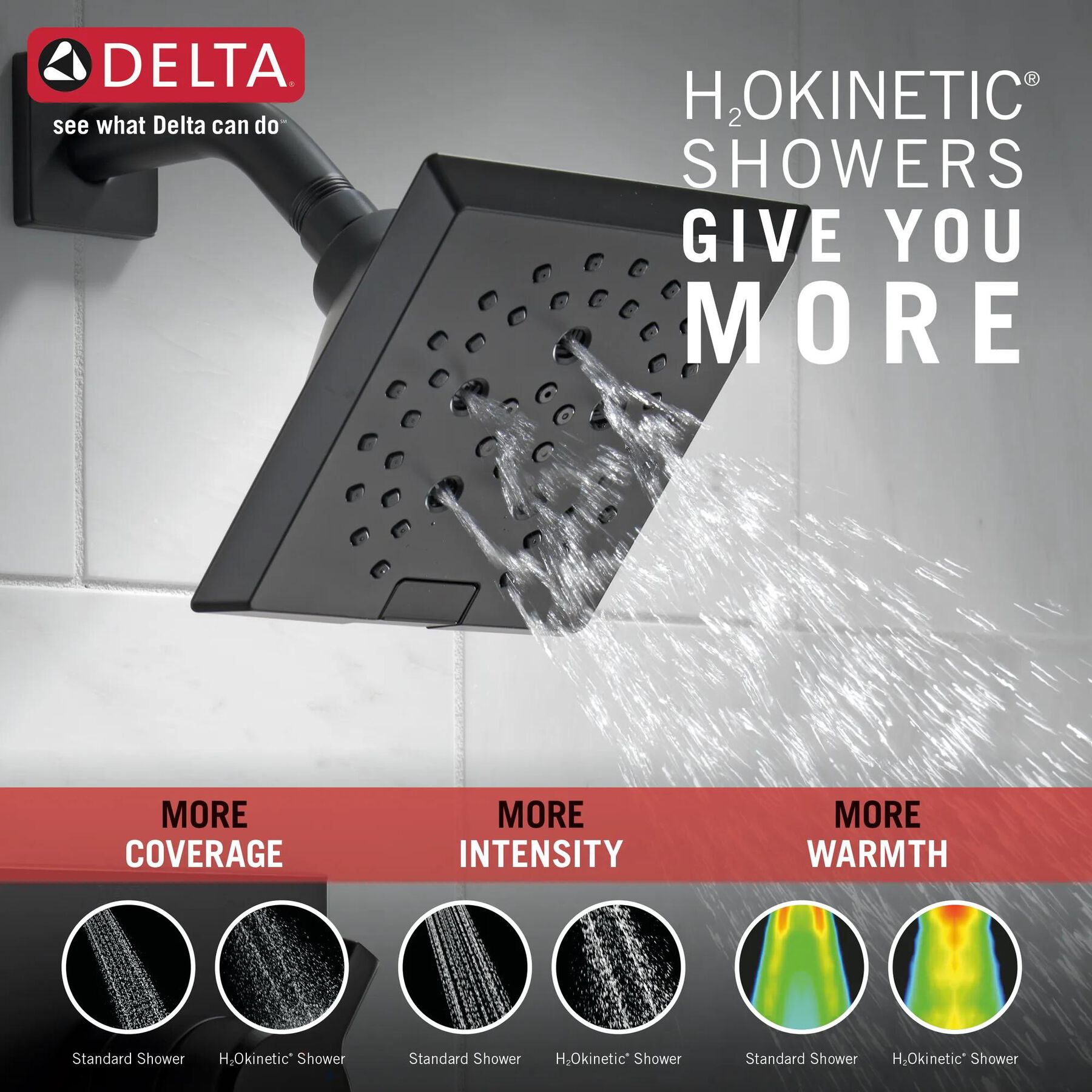

  • H2Okinetic shower technology sculpts water into a unique wave pattern, forming a powerful drench spray
  • Gives you the feeling of more water without using more water
  • Spray settings include: full body spray, H2Okinetic spray, full spray with massage, massage spray, and pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
  • Back-to-back installation capability
  • Solid brass forged body
  • Red/blue pad print temperature indicators on temperature adjustment dial
  • ADA compliant

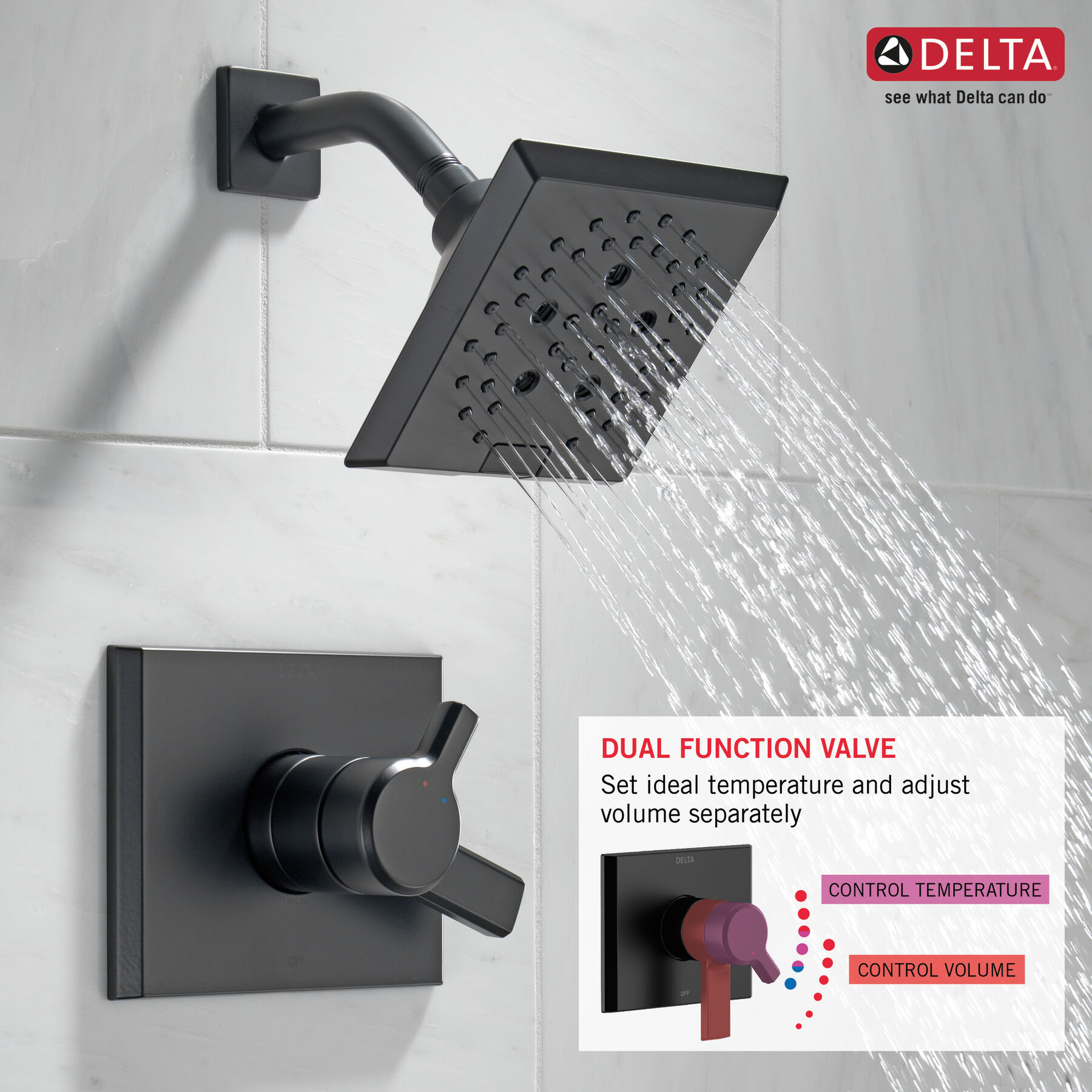

  • Control volume and water temperature independently with 2 separate handles for more refined control of your shower experience
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

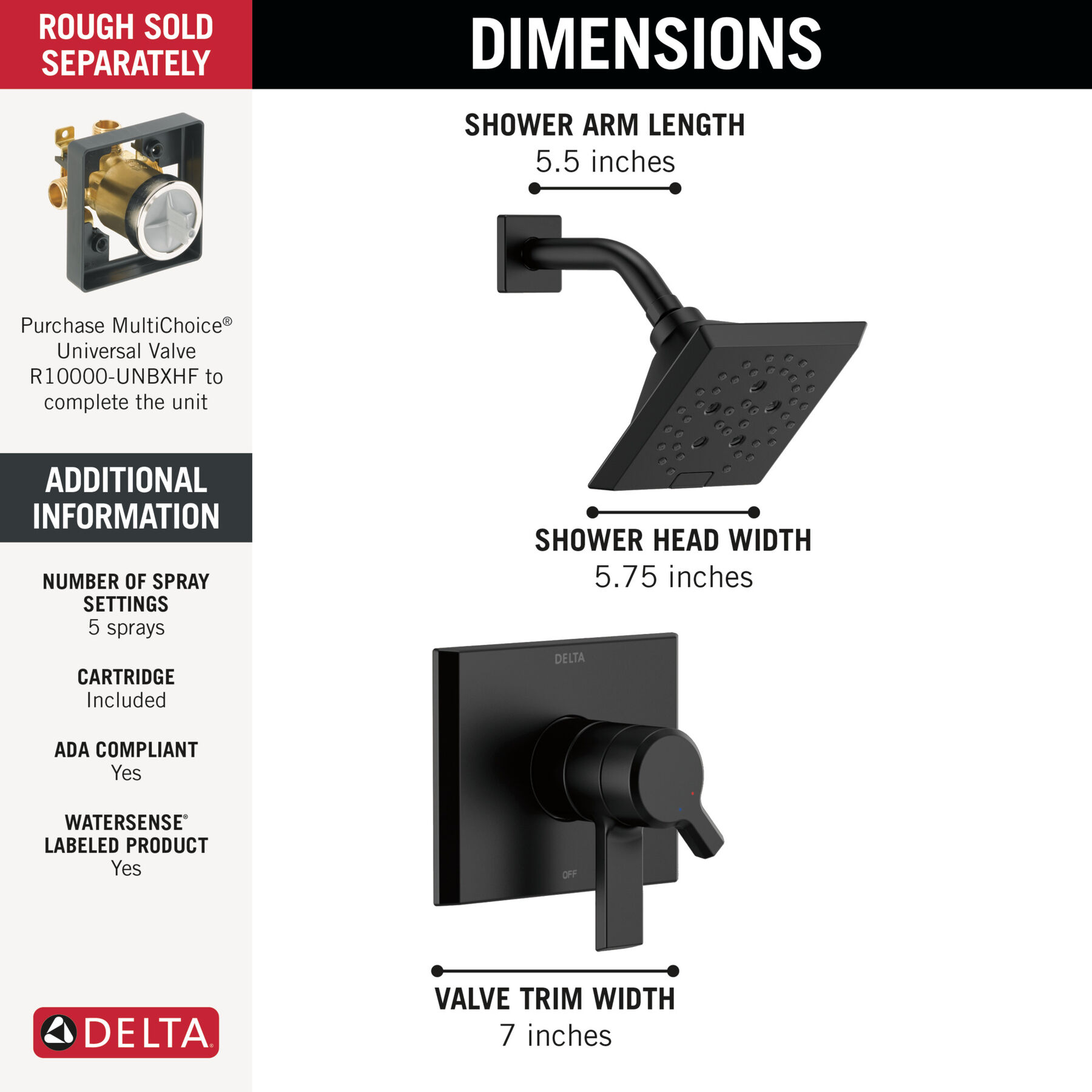

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
5-1/2
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Worth It Wonderful experience. Great pressure and beautiful
Date published: 2024-11-03
Rated 5 out of 5 by from The quality of the product is good the shower flows good Good product is good chrome and style are excellent and the shower force is very good
Date published: 2024-04-22
Rated 5 out of 5 by from Looks and function are top notch! Ordered the whole set with hand shower. This was the best item i found- and we looked at a few. It is very nice. Other reviews mentioned that the shower head was not multifunctional, but you need to press hard then release the switch to change spray patterns.
Date published: 2024-03-30
Rated 2 out of 5 by from Nice style, but shower head is mediocre We really like the style of this set, but the water flow out of the shower head is terrible, and the button on the head doesn't switch modes. Either we got a dud or it is a disappointing product. Finding a decent California-compliant shower set is tough, and I would avoid this one.
Date published: 2023-01-22
Rated 1 out of 5 by from Shower Head I have only had this shower system for a short time and the shower head is spraying out from the top and side of unit. It sprays over my glass shower wall and is making a mess. I'm not sure how to fix this problem other than return it for a new shower head. Which I'm not sure if its still under warranty.
Date published: 2022-06-03
Rated 5 out of 5 by from Delta is the best The matte black works beautiful in our new bathroom
Date published: 2022-05-15
Rated 5 out of 5 by from I love this shower faucet! I absolutely love and am pleased with the Delta Stainless Faucet- T17299-SS-PR. I was remodeling my bathroom and this shower fixture was a perfect fit for my bathroom. Delta has outstanding great products. The installation was pretty easy and after installation, I have had no issues using it. With the 2 handles, I can regulate the water pressure and the temperature separately. I love this feature and I love my showers now. I’m very happy with this!
Date published: 2022-01-21
Rated 5 out of 5 by from Nice shower fixture I am in the process of remodeling my bathroom and I needed a shower fixture. I liked the aesthetics of this one and I knew Delta was a quality product. The installation was straightforward and the shower works great. Would definitely recommend it.
Date published: 2021-12-06
  • y_2026, m_7, d_2, h_11
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_25
  • loc_en_US, sid_T17299-BL, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

I am missing piece 12 &ldquo;cover&rdquo; can we get a replacement. &nbsp;Monitor&reg; 17 Series H2Okinetic&reg; Shower Trim in Matte Black

Asked by: Mark
Hello, Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time. Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2024-12-09

I have the Montiro 17 series shower trim installed. However the water temperature is not getting warm when the temperature handle is adjusted all the way towards hot, it only gets luke warm. How do I adjust the mixing of the hot and cold water

Asked by: Cathy
I just had the same problem, page seven dosn't show the picture of that model.The black part inside (round ) should have a arrow to turn left but doesn't. Take out and rotate left for hot .put back together.
Answered by: Tone
Date published: 2024-03-28

I HAVE A T17299-PN FAUCET ONLY FOR SHOWER. WHAT VALVE TO I BUY?

Asked by: Bernard
Hi, Bernard! Thank you for your question. The Delta Monitor T17299-PN Shower Trim Kit will work with any of our Delta MultiChoice Universal R10000 Rough In Valve Bodies. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Does this shower head use a standard ball joint for pivoting? Thank you!

Asked by: DonJ
Hello DonJ, Thank you for your question regarding the Delta Pivotal Monitor&reg; 17 Series H2Okinetic&reg; Shower Trim. This shower head does, indeed, use a standard pivoting ball joint, allowing it to be adjusted to your liking. If you ever have any other questions, concerns, or require anything further please feel free to give us a call at 800-345-3358 and we will be happy to assist you in any way that we can. Thank you again! Matthew Delta Faucet Company Consumer Care
Answered by: Consumer Care
Date published: 2024-03-28

Our tub water is not hot at all. It is warm. How can I adjust the temperature to get hot water? It is a Moniter. I can't see a model number on it.

Asked by: Debra
Hi, Debra! Thank you for your question. here is a rotational limit stop (RLS) at the temperature control to adjust the hot water limit. To adjust the RLS, first remove the temperature cover and take a phillips head screw driver and turn the set screw counter clockwise to remove. Remove the gray knob. Behind the knob, you should see a black disk. Take the disk and take it out and place the disk to the hotter side. The hot side should be up against the iron piece that is sticking down on the volume handle. Once adjusted, reinstall all handle parts. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Monitor 17 vs. Monitor 14? What's the difference?

Asked by: chris
Thank you for your inquiry, Chris! The Delta Pivotal 17 Series H2Okinetic Shower Trim T17299 is designed to control volume and temperature separately. The handle of the 14 Series Shower units are designed with one constant volume and the further to the left it roates the hotter the water gets. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Our plumber just installed our Monitor&reg; 17 Series H2Okinetic&reg; Shower Trim in Black Matte. What is the process to use the 4 other shower modes as described in the video?

Asked by: Panamapt
Hi Panamapt, Thank you for your inquiry! The shower head that comes the Delta Pivotal Shower T17299 faucet is a five setting unit. The setting are Full Body Spray, Pause, Massaging Spray. Full Spray with Massage and H2Okinetic&reg; Spray. These features can be engaged by pressing the button on the bottom of the face of the shower head. https://media.deltafaucet.com/SpecSheet/DSP-B-T17099%20Rev%20B.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

What material is the shower head made of? Is it constructed of plastic?

Asked by: Gert
Hello Gert, Thank you for your question regarding the Delta Pivotal&trade; Monitor&reg; 17 Series H2Okinetic&reg; Shower Trim and I am happy to assist you today. The shower head included with this model is constructed of engineered plastics and the ball joint assembly which connects to the shower arm is composed of metal. Please feel free to give us a call if we can assist you with anything else going forward at 800-345-3358. Thank you, Brandy Delta Faucet Company Customer Service
Answered by: Brandy
Date published: 2024-03-28
