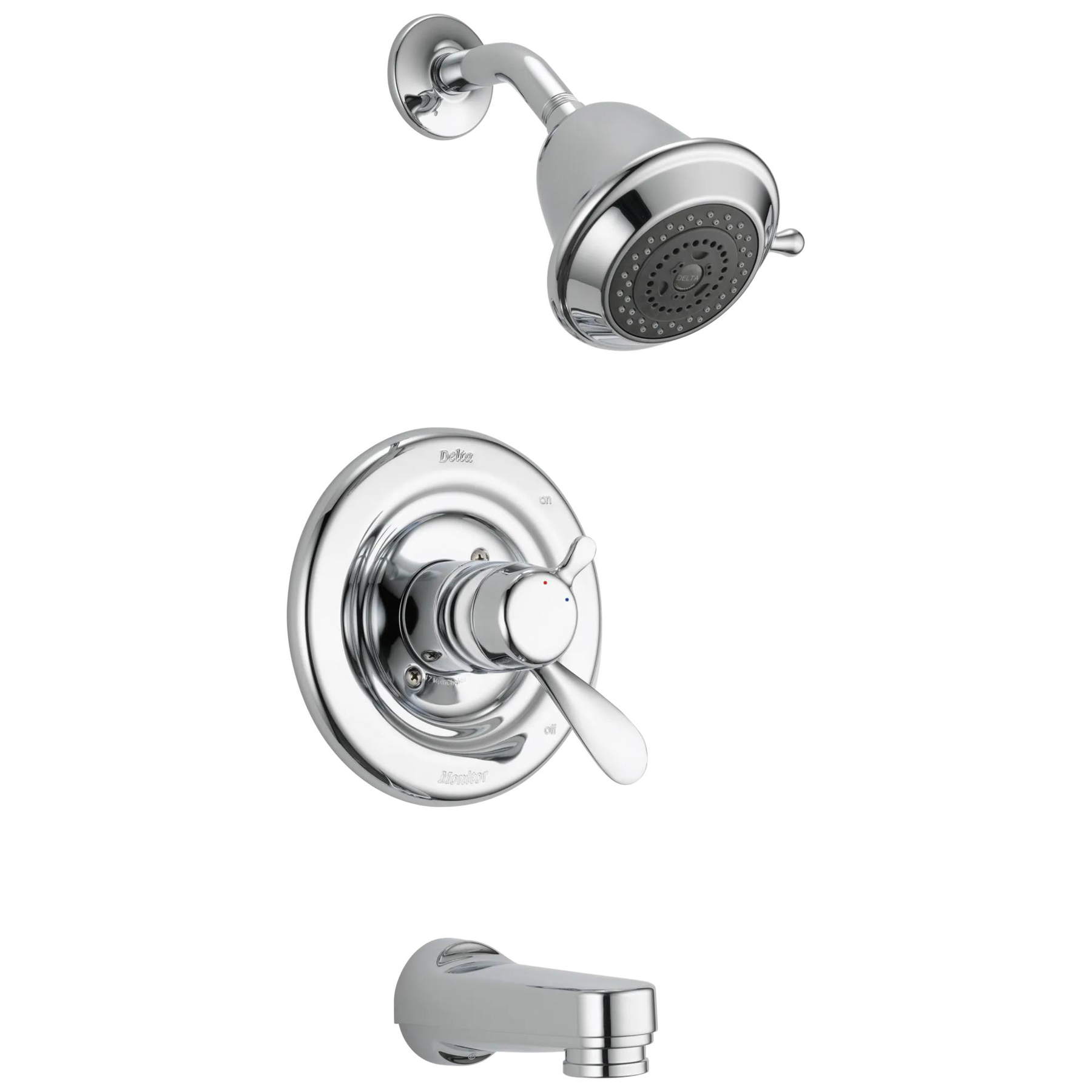

Monitor® 17 Series Tub & Shower Trim
Model#: T17430-SOS
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Model#: T17430-SOS
Finish: Chrome
List Price*: $213.30
  • WaterSense certification promotes water conservation
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and hand shower with the touch of a finger
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Spray settings include: Full Body, Massaging, Soft Drench
  • Valve is not included, must purchase separately
  • Easily wipe away build up with Touch-Clean spray holes
  • Backed by Delta Faucet’s Lifetime Limited Warranty
WaterSense® Labeled
Special Features
California Prop 65 WARNING
Rated 4 out of 5 by from Master Bath Love my new faucet. I am bubble bath person and wanted to run the hot water at a low volume when I soak. This faucet has the capability to do that. You can preset the temp to your liking and it will be ready for your next shower or bath. An an easy install. Only negative is the spout is plastic. Was surprised as it was kind of pricey to have cheap plastic. FYI: You have to purchase the valve separately.
Date published: 2019-10-08
Rated 4 out of 5 by from Solid Product From A Reliable Company I had considered a number of different brands, some of which are fancier and more expensive, and possible better, possibly not. In the end I settled for another Delta product. I've used them every time I've installed fixtures in my home. They are one of the few long-standing brands I do trust. You can get replacement parts and they honor their warranty. Plumbers are familiar with them, the mixing valves are universal within their product line, so that is a great feature. It's too soon to judge how well the finish will hold up but so far everything seems to be working.
Date published: 2018-12-22
Rated 5 out of 5 by from Great Performance The shower head looks quite unusual, but it works like a charm: strong water flow and nice spray settings. Much better than those hip, big flat rainfall shower heads. Control works like a thermostat, the whole thing is ADA compatible and of very good quality.
Date published: 2012-07-18
Rated 5 out of 5 by from Great tub/shower control At first I was surprised by how big the shower head is -- it is BIG. But it works well -- we have pretty low water pressure, but with this shower head, you can't tell. The handle is nice too. You set the temperature (hot-cold balance) you want and it'll come on at that temp every time.
Date published: 2008-10-03
  • y_2021, m_2, d_25, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_US, sid_T17430-SOS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product

How does one disassemble the handeles

Asked by: Phillip
Hi, Phillip! Thank you for your question. To remove the handles, first remove the temperature cover by pulling the cover straight off. Unscrew the Phillips head screw to remove the temperature knob. Remove the knob and the rotational limit stop. Pull the volume control handle straight off. The sleeve can be pulled straight off, as well. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-01-27

how do you turn on the shower with model T13420-PBSHCPD?

Asked by: GWEN
Hi Gwen, Thank you for your question. The model T13420-PBSHCPD is equipped with a pull down spout diverter. Just pull down on the underneath portion on the spout where the water comes out to divert to the showerhead. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2018-09-03

How do I remove the twist & turn stopper to clean hair out of the drain?

Asked by: Dmarie60
Thank you for your question, Dmarie60! Our shower trims do not include a stopper assembly and removal of this stopper would depend on if it is an actual Delta product or one made by another manufacturer. Typically our bath waste assembly will include the Delta logo on the overflow plate with two screws on either side. If this is our product, to remove the stopper assembly, you should be able to pull it up and then unscrew the top counter-clockwise. You may need a wrench to hold the nut in place. Please contact us directly if you have questions or need further assistance. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2020-05-01

Is the tub spout metallic or nonmetallic??

Asked by: jagr
Hi jagr, Thank you for your question. This unit comes with the non-metallic RP5836 slip-on spout. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-04-28

Is it possible to order replacement pieces or do you have to buy a entire trim set?

Asked by: Sipp
Thank you for your inquiry, Sipp! Yes, the trim parts and valve cartridge of the Delta Classic 17 Series T17430-SOS faucet model are available for ordering separately. Please see page 2 of the below Parts diagram for this faucet. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2019-02-05

I want a faucet etc where I can adjust the volume of H2O (get a small stream of warm H2O and temp separately with no water restriction

Site specs state "2.00 gpm @ 80 psi, 7.6 L/min @ 550 kPa maximum water usage The plumbers have me very confused. Some say there is something in the "cartridge" that prevents water from getting very hot and restricts flow. Does this mean if U have long hair and it takes a bit of volume and a bit longer to get soap outta hair that we will get frozen at the end or that the stream of water will be very weak?????
Asked by: PJ
Hi PJ, Thank you for your question. Our 17 series trims offer separate temperature and volume control that will allow you to adjust the water volume. The T17430-SOS is capable of producing approximately 6 gallons per minute flowrate at 60psi. The showerhead that comes with this model has a max flowrate of 2.0 gpm. The maximum flowrate allowed in showerheads is 2.5 gpm. We do not offer a faucet with unrestricted flowrates out of the showerhead. All of the cartridges are equipped with a rotational limit stop that allow you to set the max hot water temperature for the faucet. This feature is to protect against scalding. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2015-05-13

My Delta Monitor-series #17 shower control valve slowly leaks at shower head. It is 3.5 yrs old. Do I need to replace just the small rubber inserts & springs deep in back or the Control-body value or both?

Asked by: Jerrold
Hi, Jerrold! Thank you for your question, and I am sorry to hear that you are experiencing a leak from your Delta T17430-SOS faucet. We recommend to replace the RP46073 adapter assembly. This adapter assembly includes the seats, springs, and quad seals. Here is a link to the kit: Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-01-03

I have an old Delta monitor shower faucet and I'm looking for a new handle.

It had a "crystal" handle for the volume control and was installed in my house ca 1992.
Asked by: Ken
Thank you for your question. Based on your description of your handle, it sounds like you have a1300/1400 series. The model number for a crystal handle is Delta Faucet model # H71.
Answered by: Delta
Date published: 2020-05-01
