Dryden™

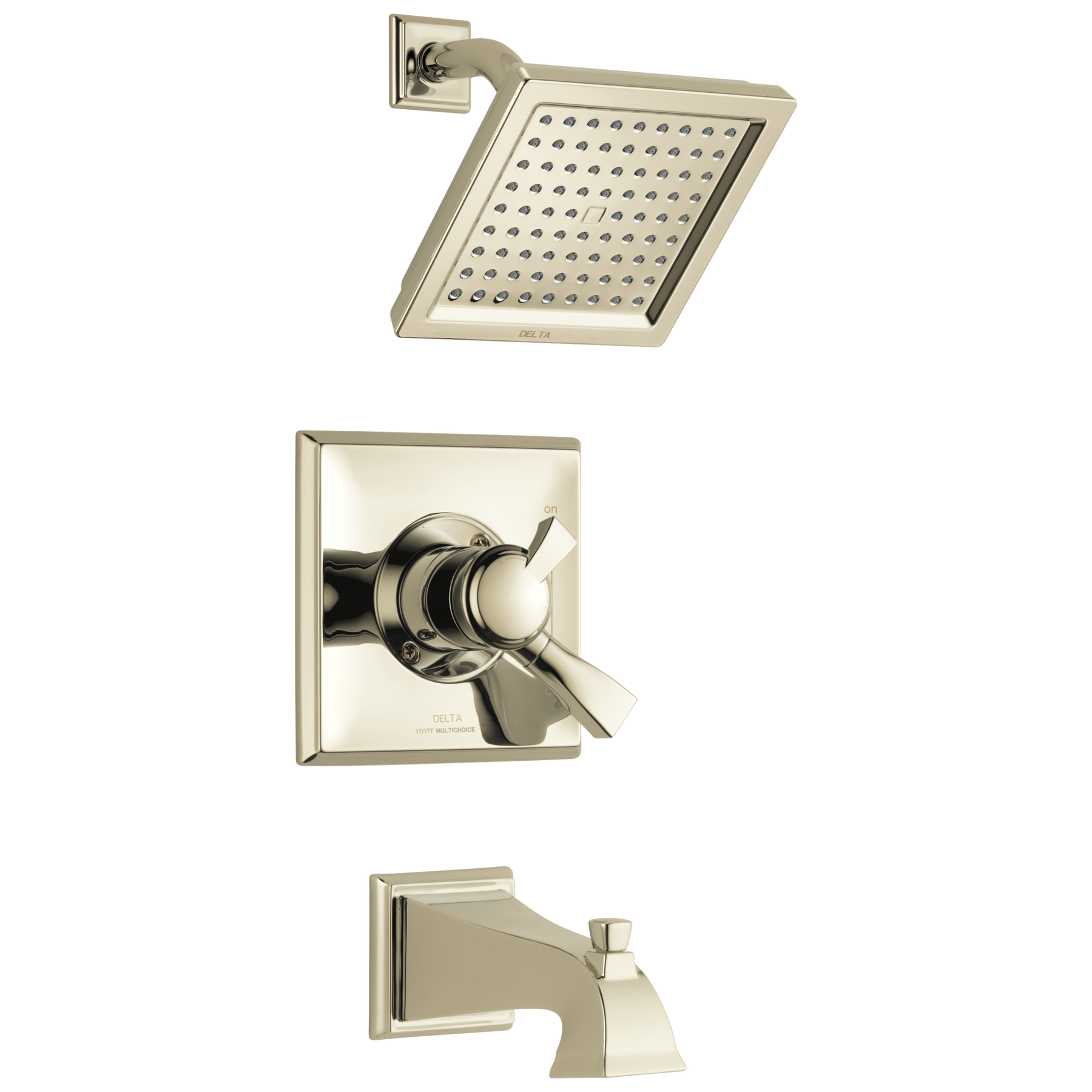

Monitor® 17 Series Tub & Shower Trim
Model#: T17451-PN
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Dryden™
Monitor® 17 Series Tub & Shower Trim
Model#: T17451-PN
Finish: Polished Nickel
List Price*: $426.00
PRODUCT FEATURES
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure

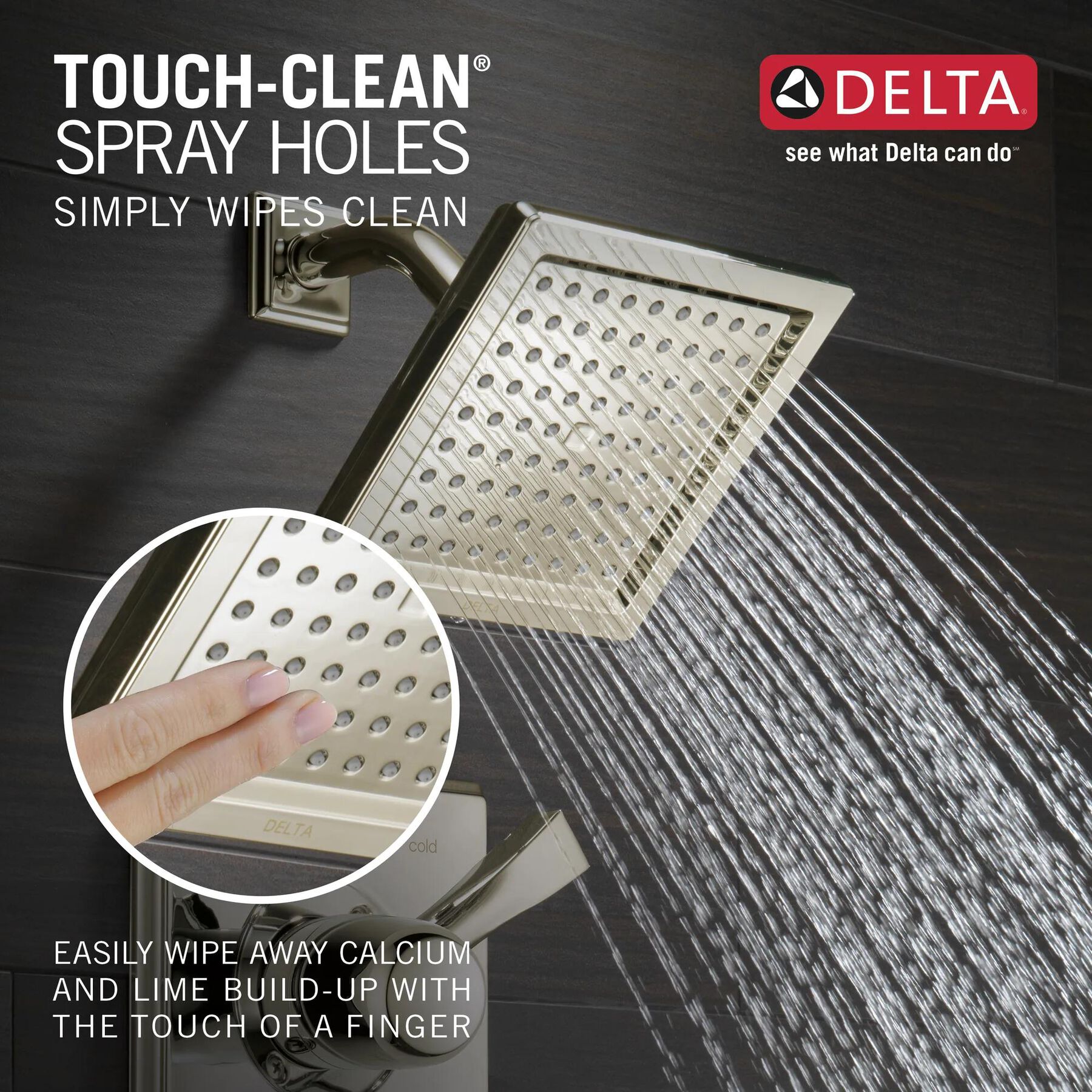

  • Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and hand shower with the touch of a finger

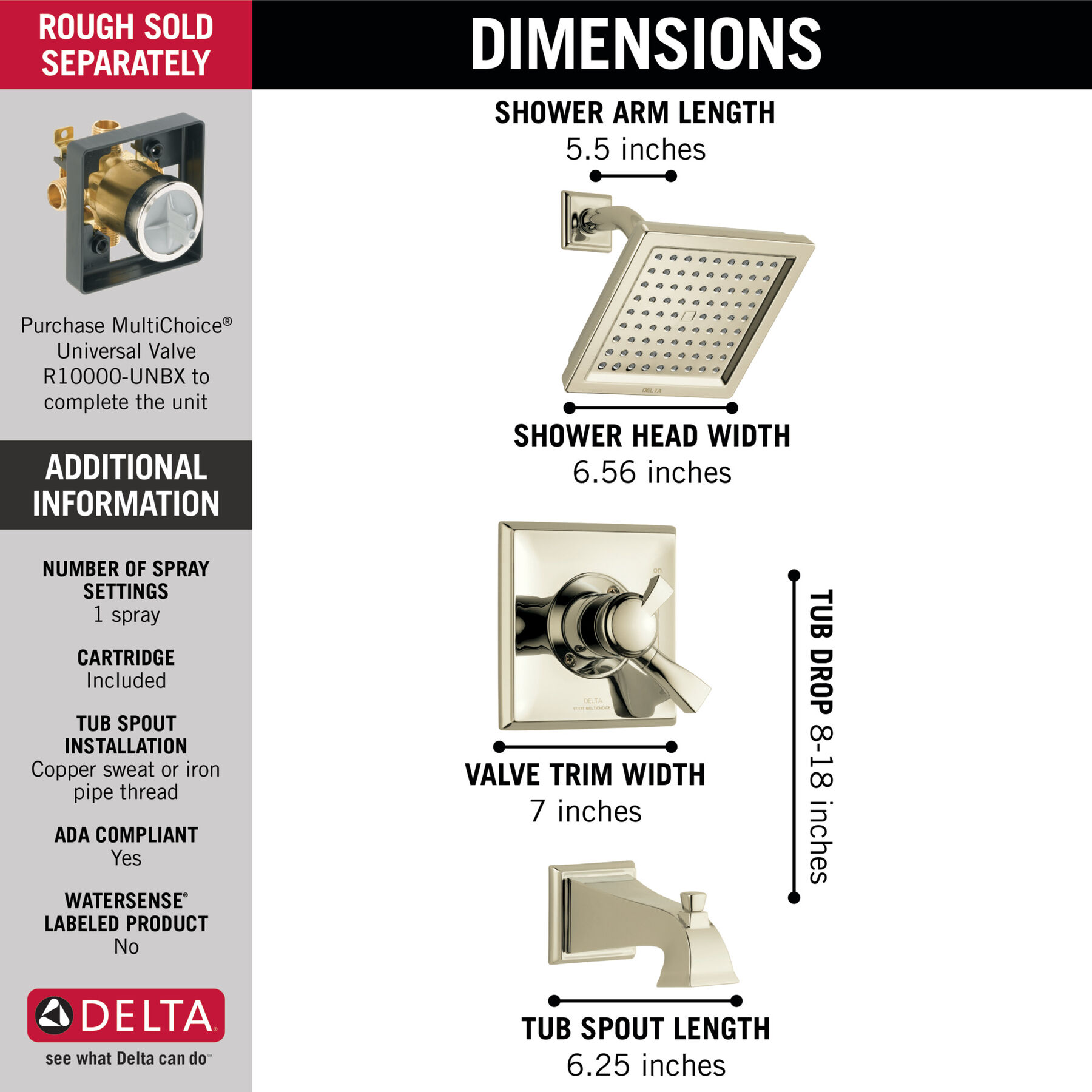

  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Spray settings include: Full Body
  • Valve is not included, must purchase separately
  • Monitor Valve protects from rapid changes in hot or cold water
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Technology
Special Features
California Prop 65 WARNING
SUPPORT
Product Support, Repair Parts & Technical Specifications
PART LIST
REVIEWS
Rated 4 out of 5 by from Great look Are there different water flow settings? I want to be able to have water only come out of some holes
Date published: 2019-10-15
Rated 1 out of 5 by from Tub Facet is horrible I love the shower head and the knob! But the tub facet/spout is horrible, it feels like plastic, very light and the water flow is bad. The way it is made, the water is attempting to only run on the rim of the facet (like in a square) and not down the middle which causes a very bad water flow. I have had two different plumbers come and look at it and they both said the same thing, its the way the product is made. I had to order a new spout/facet. I am ordering another Delta product but the spout will be a round one this time instead of square. I am hoping the water will run just fine with the round spout.
Date published: 2019-08-09
Rated 1 out of 5 by from Beware We purchased this shower set and loved the look until we started using it! Water stains galore that could not be removed with the 50/50 vinegar solution nor Bar Keepers Friend as suggested by Delta. Do not purchase the brushed nickel! Terrible! So disappointing for a new shower.
Date published: 2018-03-06
Rated 4 out of 5 by from Great fixture, tricky install I bought and installed this fixture last fall, the water temperature setting is a little tricky to initially install but after about 15 or 20 minutes of work it is just fine. Cleaning is a breeze and it looks great against white subway tile with grey grout.
Date published: 2017-07-19
Rated 2 out of 5 by from great aesthetics and function, but minor annoying drip from showerhead We got the Delta Dryden for 2 new bathroom builds, and they were installed by our plumber. The thermo/volume controls are fantastic, and we love how it looks in our bathrooms. Easy to clean the shower nozzles by just rubbing over them with your fingers. However, as another reviewer has noted, there is an annoying drip from the corner of the showerhead when water is on. Also, the hot/cold "sticker" on the thermo control started to peel off after only a year of use.
Date published: 2017-06-28
Rated 5 out of 5 by from Clean lines and great finishes This set up is great for quality, value and multiple finish options. I've installed the Dryden collection in a variety of style applications...it lends itself to many different looks based upon the surrounding selections and the finish that is chosen. Beyond aesthetics, Delta delivers a long term quality for a reasonable price. Its the brand of choice for nearly all of our residential projects.
Date published: 2017-06-17
Rated 5 out of 5 by from Beautiful and Functional Very happy I purchased this and other items from the Dryden collection. Look is very compatible with our 1927 Arts & Crafts Bungalow.
Date published: 2017-06-14
Rated 5 out of 5 by from Excellent quality I love it great look and sleek design
Date published: 2017-06-14
  • y_2021, m_1, d_22, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_22
  • loc_en_US, sid_T17451-PN, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

Dryden shower head

Is the Dryden shower head adjustable? I saw the moen Weymouth shower head & even though it is a "rain" shower, specs say it has 3x more water pressure. I guess I'm wanting the best of both worlds. Does the Dryden shower head have pressurization. Thx
Asked by: Bill
Thank you for your question. Delta Faucet model # T17451-RB has a showerhead that flows at 2.5 gpm at 80 psi. This is the only flow available for the showerhead.
Answered by: Delta1
Date published: 2013-10-22

Where can I find a drain assembly, preferably a pop up style drain, as well as an overflow cover to match this set?

Asked by: Laura
Hi, Laura, Thank you for you question. We do have a push pop up bath waste assembly complete with an overflow cover to match the Champagne Bronze finish. The model number is RP693CZ. Here is the link for this on our website: https://www.deltafaucet.com/bathroom/product/RP693CZ Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-01-06

we installed a new Delta dryden T17451 tub/shower trim, we have the following problems: 1. turning the temperature lever 1/2 way in the counter-clockwise direction, allows water to come out of the shower head. also hot water on cold side.

Asked by: Carlo
Hello Carlo, Most likely you are experiencing "shower-rise," where the water can’t get out of the spout as fast as it flows through the valve. This causes the water to back up and come out the shower head. There can be one of several reasons for this: 1. The valve could be upside down. 2. The length from the valve to the tub spout is outside of the 8" to 18" rule. 3. There is more than one 90-degree angle. 4. Something other than copper or galvanized pipe going to the spout was used. 5. The most common reason is that there is something restricting the water flow to the spout (for example, solder or something lodged in the pipe). Something is impeding the flow of water to the spout and causing it to back up and go out of the shower head. If this is the cause of shower-rise, it is possible to remove the blockage by removing the tub spout, and then feeding a plumber’s snake or a speedometer cable up through the tub drop. The act of feeding it causes it to twirl and loosen the blockage. Be sure to flush the valve before reinstalling the tub spout. Be sure to check the tub spout itself for blockage. Please feel free to call, email, or message us on social if there s anything else you need. Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Delta Faucet
Date published: 2019-05-21

can you extend the pipe to the shower head to allow for less of an angled spray (more similar to the head position of the Vero collection?)

Asked by: Suzanne
Hi, Suzanne! Thank you for your question. The shower arm featured in the Vero Collection is part number RP46870SS. Here is a link to the shower arm: https://www.deltafaucet.com/parts-product-detail?modelNumber=RP46870SS Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-02-27
  • y_2021, m_1, d_22, h_17CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_4
  • loc_en_US, sid_T17451-PN, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 48ms
  • questions, product
Mike and Hanna
Delta logo thumb

Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.

Delta BiLT app
BiltLogo IntelligentInstructions Horizontal

Installation made easy. Download the free BILT app to access step-by-step 3D interactive instatuctions.

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
