Vero®
Monitor® 17 Series Tub & Shower Trim
Model#: T17453-RB
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Vero®
Monitor® 17 Series Tub & Shower Trim
Model#: T17453-RB
Finish: Venetian Bronze
List Price*: $691.85
PRODUCT FEATURES
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure

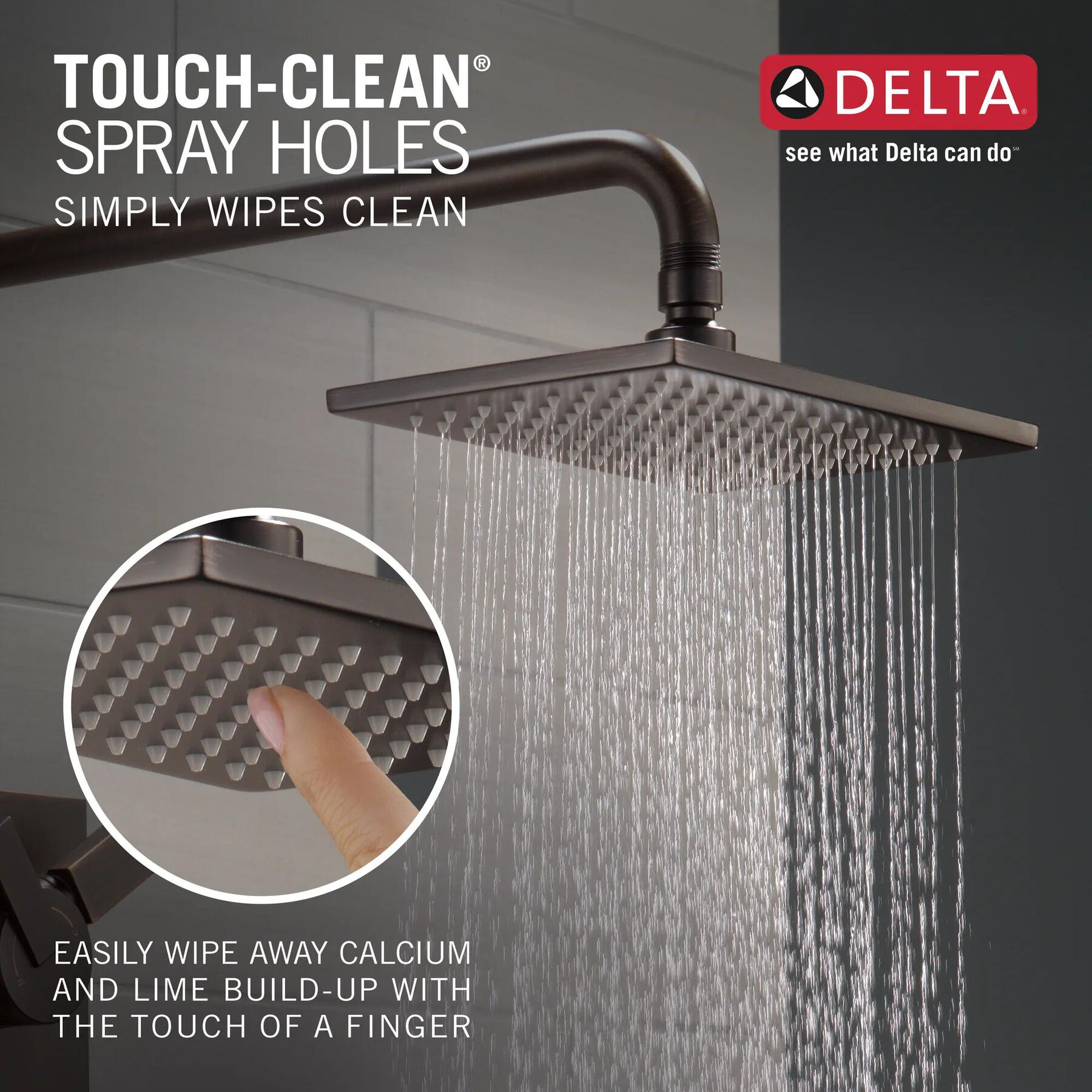

  • Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and hand shower with the touch of a finger
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Spray settings include: Full Body
  • Valve is not included, must purchase separately
  • Monitor Valve protects from rapid changes in hot or cold water
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Technology
Special Features
California Prop 65 WARNING
SUPPORT
Product Support, Repair Parts & Technical Specifications
PART LIST
REVIEWS
Rated 5 out of 5 by from Nice shower experience Beautiful. Gentle shower head. Everything works great! I don't have spotting on the faucet if you keep it clean and wipe the water off.
Date published: 2020-11-30
Rated 5 out of 5 by from Delta Champagne bronze shower Need to order the drain and overflow It’s a beautiful fixture!
Date published: 2020-09-21
Rated 4 out of 5 by from Great shower head Excellent shower head lot of pressure. Open/close knob it a little flimsy. Plumber had some trouble putting it together.
Date published: 2019-01-03
Rated 5 out of 5 by from Delta Veronica series Tub shower package. Tub shower package. I have use this series for eight projects each of my clients I thoroughly impressed with the operation of these units. Once I show this system and how it works through a demonstration of a previous installation via another clients Installation,. The response has been; “that’s what I want just like this one “ . I’ve had no complaints or callbacks from not one of the eight clients where I made installations of this product six years and counting. Highly recommended. My go to system. IB
Date published: 2018-12-28
Rated 5 out of 5 by from Raymond Bailly Best valve in the market, easy to manipulate and excellent design
Date published: 2018-12-22
Rated 4 out of 5 by from Perfect Showering I renovated my bathroom and wanted the Delta Vero line in it. The local plumbing store wanted an absurd amount for this shower setup. Got it on Build.com for less. The unit is elegant, not too modern, but not too classic..more minimalist than anything. Easy to install. This is considered an "architectural" line product, so its a tad better than consumer grade stuff you get from Home Depot. Has an excellent finish and feels of solid quality...not like the stuff you would pick up at Home Depot. It comes in two different cartage/plate, so you just have to make sure you pick the correct setup. Installation is easy. independent temperature and pressure controls are wonderful. Easy to clean and use.
Date published: 2018-11-03
Rated 4 out of 5 by from Great rain shower effect; shows water spots Good water pressure (could be more but generally thought it was good compared to many other rain shower effect showerheads I've tried) and disbursement with this showerhead. It extends quite far from the wall, which is great if you're building a shower for two (I also got the hand sprayer). Loved the sleek style. Only downside I have is that with the brushed nickel finish, you can see water spots after each shower on the hand shower wand and showerhead, which is annoying because it's not something you can prevent other than by literally wiping it all down after each and every shower.
Date published: 2018-11-02
Rated 5 out of 5 by from sharp looking and super-functional We have installed two of these in our home and love the look, as well as the functionality of being able to leave the temperature set and separately turn it on and off.
Date published: 2018-09-07
  • y_2021, m_1, d_24, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_20
  • loc_en_US, sid_T17453-RB, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

What is the area coverage of the shower head square?

Asked by: cfarm
Hi Cfarm, Thank you for your question. The shower head that comes with the Delta Vero Tub and Shower Trim T17453, is a full body spray patterned shower head that is 8 5/8" across and 5 11/16" in length. The spray pattern will be larger than just the size of the shower head itself depending on pressure and distance. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-07-10

tub spout installation

Need confirmation regarding copper pipe type installation of the Vero tub spout. With respect to the supplied adapter (o-ring on one end and double-sided thread other end), the o-ring end is always towards the tub spout? The schematic picture on the spout packaging seems to indicate this as the direction, but the adapter will only screw in so far. Which end is soldered onto the copper pipe?
Asked by: Mike
Thank you for your question. Delta Faucet model # T17453 has a tub spout that can be either sweat onto a copper pipe or thread onto an iron pipe. Included here are the instructions for installing your faucet. On page 12 are the instructions for your tub spout. http://www.deltafaucet.com/customersupport/documentation/t17453.html?document=mi&documentIndex=0#flashWrapper
Answered by: Delta1
Date published: 2014-02-03

Can this system also be combined with the hand-held 57530 Vero Full Slide Bar Shower Head? Would I need to purchase any other parts?

Asked by: Tasharhorn
Hi, Tasharhorn! Thank you for your question. To use both the shower head from the Delta Monitor T17453-CZ and the hand shower from the Delta 57530 Vero Full Slide Bar, we do recommend to add the matching diverter trim kit and diverter rough valve body, R11000. Here are the links to these units: https://www.deltafaucet.com/bathroom/product/T11853-CZ https://www.deltafaucet.com/bathroom/product/R11000 Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2020-04-30

I would like to know if you can mount the shower head to the ceiling instead of the wall using the Delta classic ceiling mount shower arm?

Asked by: jenyeza
Thank you for your question, jenyeza! This shower head can be installed on any of our ceiling mount shower arms. Best regards, Edward
Answered by: Delta Faucet
Date published: 2018-09-16

What is the maximum length of shower head extension?

Would like to extend shower head from wall 20-24" inches. Will it be able to handle weight of shower head. Does Delta sell anything longer than 16" inches?
Asked by: Steve
Thank you for your question. Delta Faucet model # T17453 has a shower arm that extends out for 15-9/32 inches. We do manufacture a shower arm that extends from 13"-22" and that model number is U6930.
Answered by: Delta1
Date published: 2013-10-22

Slip-On tub spout installation

In case C_1 - "Slip-On tub spout installation" in manual, for the spout included in the pack, there is no O-ring inside the spout touching cooper pipe and so water will leak. Also if you slide spout over copper tube there is no set screw under it to tighten. So what is the solution?
Asked by: Ali
Thank you for your question Ali. Model # T17453 has a tub spout that can be either sweat onto a 1/2" copper pipe or thread onto a 1/2" iron pipe. The RP12307 adapter assembly is included for this purpose. I apologize for any confusion as the instructions show general installation methods which vary from home to home. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2017-08-13

For the tub and shower trim T17453, if I want to add a handheld shower such as 57530, will the following be all that I need? One of the R10000 multichoice rough valves, R11000 diverter rough, T11853 3-setting 2-port diverter trim, elbow for handshower?

Asked by: Steve K
Hi, Stevek! Thank you for your question. The Delta Monitor T17453 tub and shower trim will work with the R10000 MultiChoice Universal rough valve, the R11000 diverter valve, along with the T11853 3-setting 2-port diverter trim, the 57530 hand shower unit, and wall elbow. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-03-06

Hi, is the RP12307 adapter assembly included in this package or is it sold separately?

Asked by: Mario
Hi, Mario! Thank you for your question. The Delta Monitor T17453-CZ Tub and Shower Trim kit does include the RP12307 adapter assembly. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-09-04
