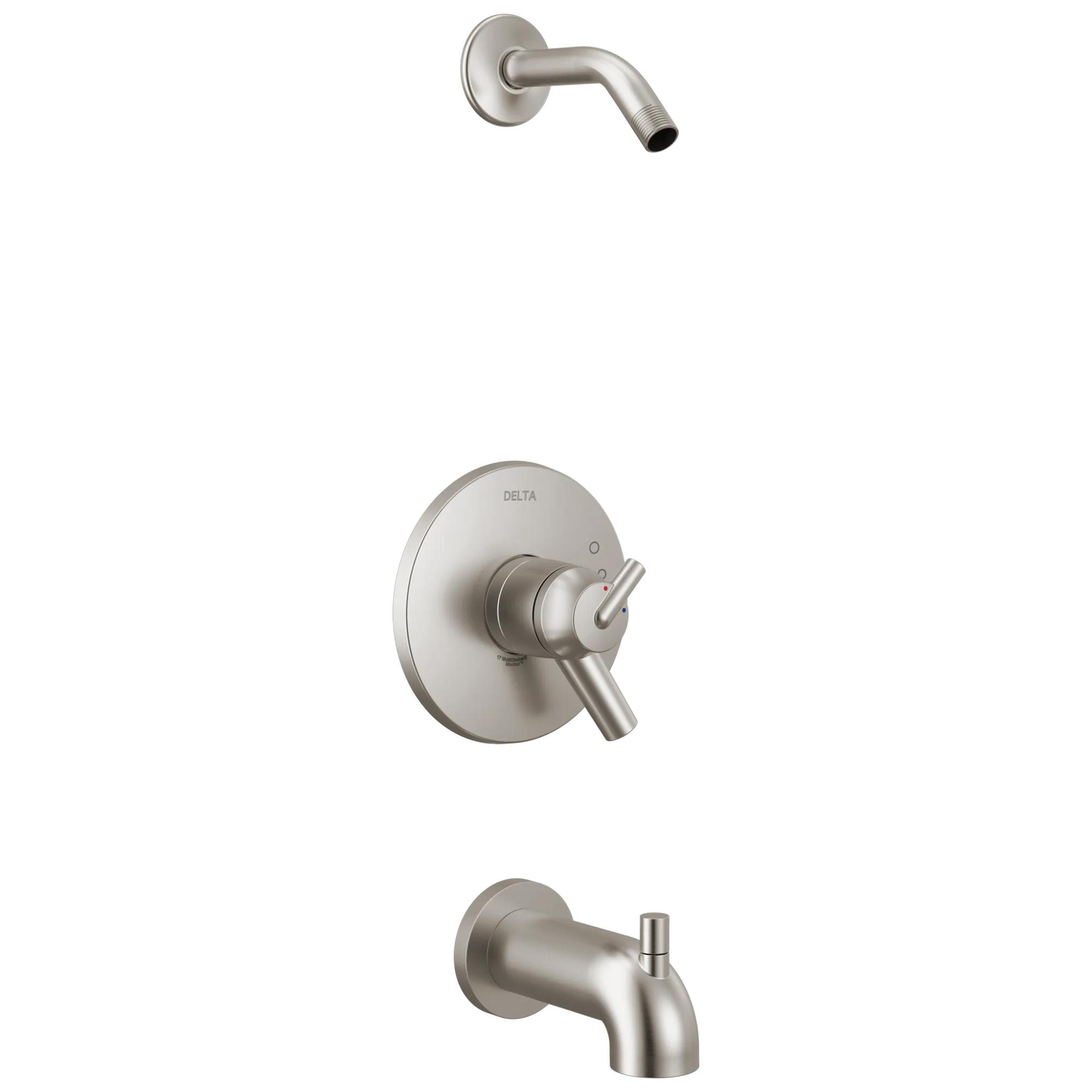

Monitor® 17 Series Tub & Shower Trim - Less Shower Head in Stainless
Model#:
T17459-SSLHD
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
Monitor pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
- Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
- LHD= Less shower head (order separately)
- Single function operation
- Single lever handle for ease of temperature control
- Single lever handle for ease of temperature control
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Overall Height (in.) :
12-3/16
Valve Type:
Single-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 4 out of
5
by
Delta from
[This review was collected as part of a promotion.] Looks great and has many fearures. Plastic gear ring for temp control is easily broken. Stop tabs aren't strong.
Date published: 2025-10-12
Rated 5 out of
5
by
billy bob houses from
Great product
[This review was collected as part of a promotion.] This is a great product. Bought many times for houses. We use it in multiple bathrooms and have never had any issues. Will keep buying
Date published: 2025-03-14
Rated 1 out of
5
by
AEM from
Low quality plastic parts
Temp control and tub spout are cheap plastic, not metal.
Date published: 2021-07-13
Rated 4 out of
5
by
Anonymous from
So far, so good
Overall, I am happy with this trim kit, but there are a couple of things I wish were different. There is a lot of plastic that makes up the internal components, which worries me long term. The visible trim pieces are all metal, except for the handle that regulates the temp. That one is plastic. When installing, there is a gap between the temp handle and on/off handle that I wish was less noticeable. So far, it's all doing its job and looks nice from a distance.
Date published: 2021-04-05
Rated 2 out of
5
by
LowflowJoe from
Tub faucet flow rate is unacceptable
Just had this installed with a new large tub. The flow flow rate to the tub is abysmal. I haven’t fully measured but it couldn’t be more than than 2.5gpm. Had the plumber come back to inspect and his response was everything is installed properly and that’s just how they make them now. All information I’ve found from Delta leads me to believe I should be getting at least 5gpm. What we’re getting is unacceptable for filling a tub. Looks like our only options now is to deal with it or attempt my own modification of the cartridge valve assembly to increase flow rate.
Date published: 2021-04-02
Rated 4 out of
5
by
DM from
[This review was collected as part of a promotion.] Good and solid product.love the ability to control the volume independent of the temperature.
Date published: 2019-12-24
Rated 4 out of
5
by
Aaron from
Looks and works great.
The water pressure from the tub faucet is lower than the previous faucet. I have no idea why...could be a problem with the valve and not these components. Other than that it looks and works great. Easier for my little kid to use since she doesn't need to adjust the temperature.
Date published: 2019-06-24
Rated 5 out of
5
by
patricia from
I love this Tub and Shower trim package. Excellent quality, easy to install for my plumber. Great product.
Date published: 2018-12-22
Q&A
will this unit yield 2.5gpm when used with Delta® In2ition 2-in-One 4-Spray Hand Shower/Shower Head Model Number: 58467-SS ?
Hello barryw,
Thank you for your question. Yes, the Delta In2ition 4-Setting 58467-SS model has a flow rate of 2.5 GPM at 80 PSI and installing the Trinsic Tub and Shower T17459-SSLHD would not affect this.
Best regards,
Tanya
Date published: 2024-03-28
It seems that the T17459-LHD (Monitor 17 Tub and Shower Trim Less Shower Head) doesn't come in RB (Venetian Bronze) -- what individual components would I need to order instead? (We'll be using the 58680-RB25 as the shower head.)
Hello Kelly,
Thank you for your question. The Delta Trinsic Valve Trim T17059-RB, RP73371RB tub spout, RP6023RB shower arm and RP6025RB shower arm flange can be purchased as separate parts for your installation. Please feel free to call, email, or message us on social if there is anything else you need.
Best regards,
Tanya
Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Date published: 2024-03-28
does this have metal or non-metal trim
Are the tub spout, lever and back plate made of metal or non-metal?
Hi, Mango19!
Thank you for your question. The T17459-LHD unit escutcheon plate and handle are metal. The diverter tub spout assembly is non-metal.
Best Regards,
Rosanna
Date published: 2024-03-28
Additional Parts
I have this kit.
What else will I need to complete installation?
Hello Ray, Thank you for your question!
The T17459-LHD is a trim only ( less shower head). You will need to order a Universal rough in valve ( such as the R10000-UNBX) and your choice of shower head which is not included with the trim.
Best regards,
Brandis
Date published: 2024-03-28
Hi, The model#58680-25 works with T17459-LHD? If so, can you tell us what are other components I need to purchase.
Hi, Chris!
Thank you for your question. The Delta Monitor T17459-LHD Tub and Shower Faucet does work with the Delta 58680-25 HydroRain® H2Okinetic® 5-Setting Two-in-One Shower Head. This shower head will thread right onto the shower arm of the Monitor T17459-LHD Tub and Shower Faucet and nothing else is needed for this application.
Best Regards, Rosanna
Date published: 2024-03-28
I recently had a Delta T17459-SSHLD installed in my bath tub. My water temperature is 140 degrees. The hot water in all of my faucets tests to that temperature except this one, the hottest it will run is 103 degrees. How do I increase the temperature
Hi Kenny,
Thanks so much for contacting Delta Faucet Company!
I apologize for the temperature issue you are experiencing and am happy to help. Please see the following link for a How-To video on adjusting the rotational limit stop to allow more hot water into the mix.
https://www.youtube.com/watch?v=oTGxt9GXsvs
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-03-28
Hi I'd like this exact same kit but with a thermostatic cartridge. Does that kit exist? Same idea, will the one-size RP47201 thermostatic cartridge fit this kit? Thank you!
Hello, home install
Thank you for contacting us at Delta Faucet! I apologize for this information not being available to you but I will be happy to help!
Unfortunately, we do not currently offer this Delta Faucet model T17459 Trinsic® Monitor® 17 Series H2Okinetic® Tub & Shower Trim In Chrome in a thermostatic version. The RP47201 can not be used with this model. We apologize for any inconvenience this may have caused.
Please contact us directly if further assistance is needed at this time.
We appreciate your loyalty to Delta Faucet Company.
Best Regards,
Tim
Date published: 2024-03-28
I bought these set already but I would also like to add a handheld shower separate from the head shower. Can I still use these set and buy additional parts to have 3 separate share positions or what other set can I buy ? Thank you
Good morning Maryt!
Thank you for your question! I am happy to help you.
This trim kit can be used with a diverter and hand shower. To use the diverter, you will need to use an R11000 valve and a T11859 diverter trim kit.
Please contact us back for any further questions.
Best Regards,
Frank
Date published: 2024-03-28
