Monitor® 17 Series Tub and Shower Trim in Champagne Bronze
Model#:
T17464-CZ
PRODUCT FEATURES
While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Champagne Bronze has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
- Monitor pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure

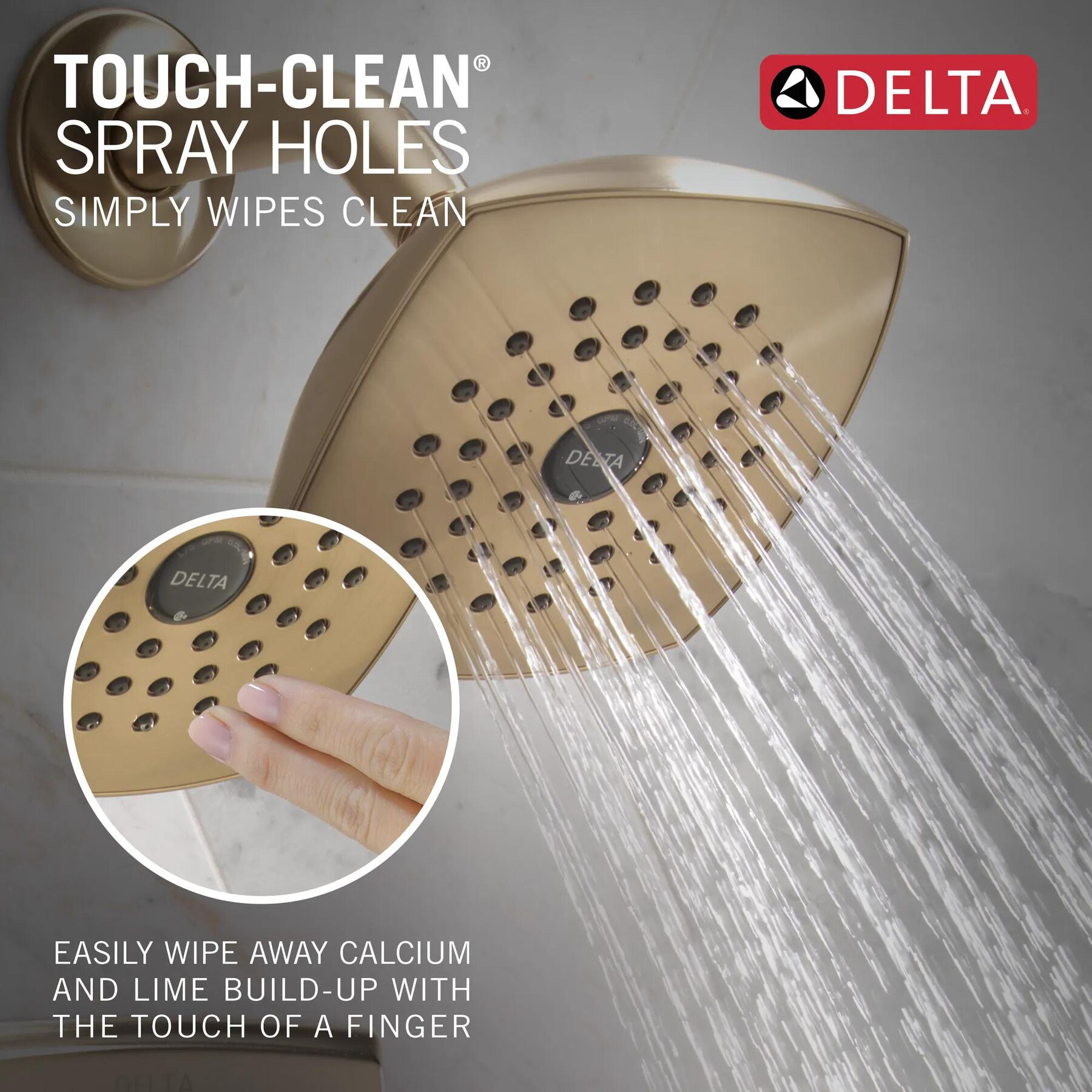

- Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and hand shower with the touch of a finger

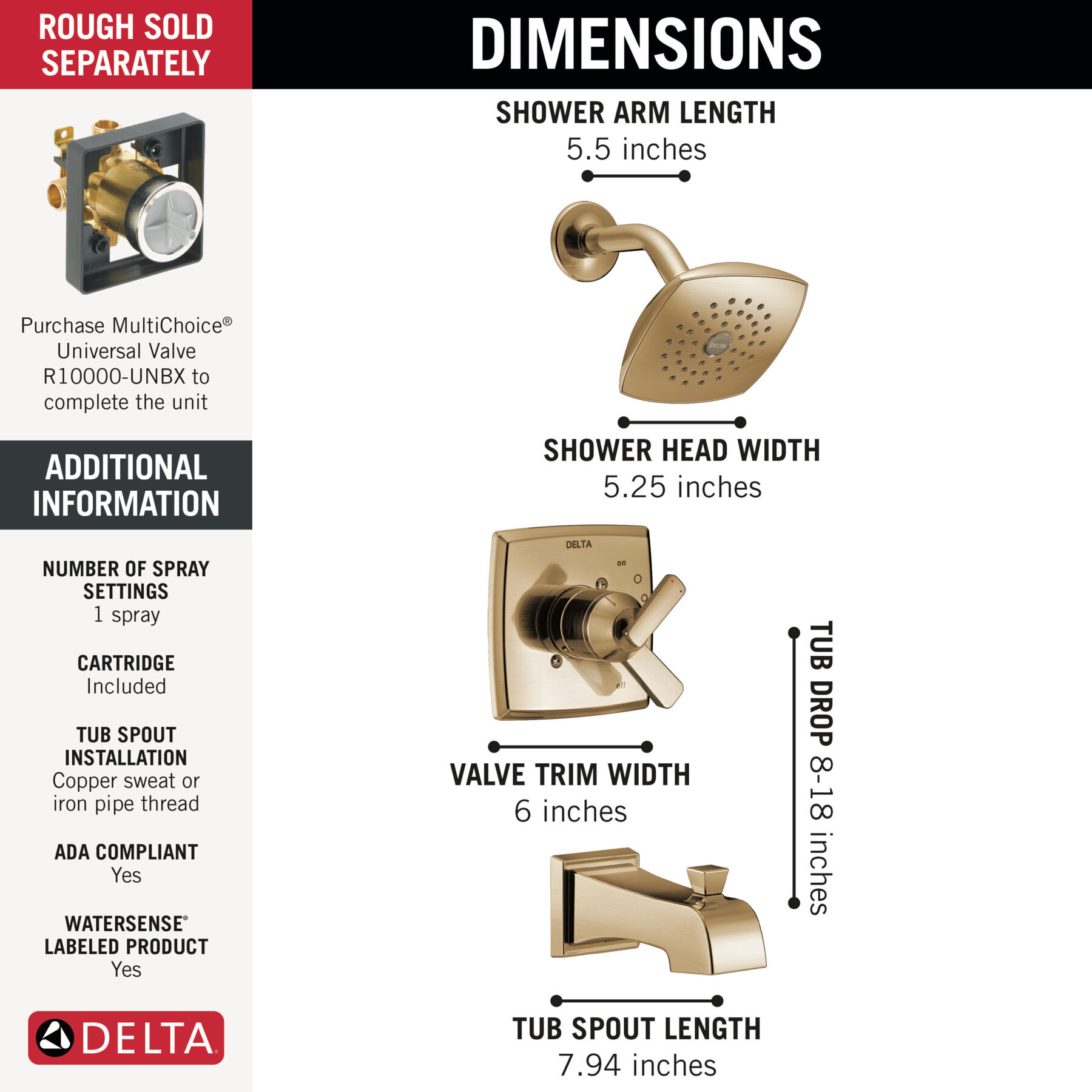

- Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
- Meets standards set by Americans with Disabilities Act (ADA)
- Spray settings include: Full Body
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
3
Valve Type:
Dual-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 5 out of
5
by
Jlgute from
Great look
Love the look, quality product. Some plastic parts but main components are sturdy.
Date published: 2024-01-02
Rated 5 out of
5
by
EJ from
Product as described
Product was sent as describe, package was factory sealed. Opened packaging, parts came in smaller individually wrapped bags,excellent condition
Date published: 2023-12-05
Rated 4 out of
5
by
M from
Better than most
Better quality than most other brands - but one of the dual function handles is metal and the other plastic. Shower head has a decent flow.
Date published: 2023-08-12
Rated 5 out of
5
by
MWA from
Remodeled this bathroom with Delta faucet kit
I've used these faucets many times with no issues. My plumber tells me they are good quality and problem free.
Date published: 2022-02-22
Rated 5 out of
5
by
Jay from
Koehler bathtub faucet/shower set.
Looks great, but was surprised spout was plastic.
Date published: 2021-09-13
Rated 1 out of
5
by
Anonymous from
Plastic
It the whole thing was plastic. Not At all as advertised. The woman I spoke to was very nice and apologetic. Easy return
Date published: 2021-05-25
Rated 5 out of
5
by
KK from
Just buy it
Beautiful finish easy install
Date published: 2020-12-17
Rated 5 out of
5
by
Sean from
Great Faucet
[This review was collected as part of a promotion.] I am a builder. I use this in all my homes and my own personal home. It is nice to be able to adjust the water volume and temperature
Date published: 2019-08-09
Q&A
Does the tub spout come as a slip on type? I received the type where you have to solder an adapter onto the copper pipe.
Ashlyn series 17 tub and shower trim
Hi, Bill D!
Thank you for your question. Unfortunately, we do not have this exact diverter tub spout in the slip on type installation. We do have a slip on spout in the Venetian Bronze. The part is RP83676RB. Here is a link to this tub spout assembly:
https://www.deltafaucet.com/bathroom/product/RP83676RB
Best Regards,
Rosanna
Date published: 2017-04-29
Your owner's manual says, "To clean, simply wipe gently with a damp cloth and blot dry with a soft towel." Ok, how do I get the white water spots off??? Following your directions does NOTHING.
Hi, Vicki!
We appreciate your purchase and are happy to help guide you with the best care recommendations for your new product.
Although our finishes are extremely durable, they may be damaged by harsh abrasives or polish. To clean, we recommend simply wiping with a gentle damp cloth and then blotting dry with a soft towel.
If water deposits are especially troublesome, you may use a 50/50 mixture of white vinegar and water to remove them. White vinegar is strong enough to dissolve mineral deposits, yet mild enough not to damage our finishes.
Note: Please be aware white vinegar may stain some porous materials like untreated stone. If you have an unsealed tile or counter top, please take care when cleaning your products.
If you’d prefer using a chemical cleaning product, our finishes may be cleaned with the following household cleaners: Formula 409® Antibacterial All-Purpose Cleaner, Fantastic® All-Purpose Cleaner, or Windex® Original Glass Cleaner, when used according to the manufacturer’ instructions.
Any cleaners not listed above may be tried if they do not contain hydrofluoric, hydrochloric and/or phosphoric acids or similar caustic agents. Some examples of chemical cleaners to avoid are: green Scotch-Brite Heavy Duty Scrub Sponges, Scrubbing Bubbles Bathroom Cleaner and Lysol Basin Tub, and Soft Scrub and Tile Cleaner.
Note: Any products that state on the label that they remove tarnish and rust will most likely harm the finished products.
Most drain cleaners may be used when following their specific directions and not allowing exposure to the finish longer than 30 minutes.
If you would like to further discuss the care of your unit, you may contact our residential warranty line directly at 800-345-3358 (prompt 2, then 4). We are available Monday through Friday 8a.m. to 8p.m. and Saturdays from 9a.m to 6p.m. Eastern Standard Time.
Best Regards,
Rosanna
Date published: 2024-03-28
Where can I find a bath drain and overflow kit(preferably with cable) or at least the SS drain trim kit to match the Ashlyn T17464-SS valve and trim?
Hi, Nick Name.
Thank you for your question. We do not currently make bath drain and overflow kits with a cable. We recommend to check with your local hardware or plumbing store for assistance with finding a bath drain and overflow kit for your bath tub.
Best Regards,
Rosanna
Date published: 2024-03-28
Do I have to purchase the valve assembly?
I am replacing a ten year old Delta tub and shower trim. I have a delta valve currently. Replacing it would entail cutting through the drywall in the adjacent room. I would rather not do that if I don't have to. I am attaching a photo of the current trim assembly.
Hi Kim, Thank you for your question. If your pictured faucet is 10 years old it would be a 1300/1400 series faucet. Any of our new T13/T14 series faucet trims will work with your existing rough in valve. The new faucet trim will ship with a new cartridge. This new cartridge will not work with your existing rough in, you will need to continue to use the existing cartridge or order a new RP19804. The model T17464 that you linked to the question will not work with your existing rough in, you would have to change the plumbing in the wall.
Thanks,
Dave
Date published: 2024-03-28
Ashlyn series 17 tub and shower trim
We like the model but the square doesn't completely cover the hole in the tile. Is it possible to swap a round valve plate for that square one?
Dear Bill D,
Thank you for your inquiry! The Delta Ashlyn Tub and Shower T17464 faucet comes with a 6" (152 mm) square escutcheon plate. We do not make a larger plate or a outer trim plate for this collection. However the models T17451, T17452, T17467, and T17474 have larger size square shaped escutcheon plates, than the Ashlyn T17464 model.
Best regards,
Tanya
Date published: 2017-04-29
The Ashlyn tub spout has a square black plastic piece inside the spout that severely limits the water flow into the tub. Can that piece be removed?
Hello JanP,
Thank you for your inquiry! The plastic insert of the tub spout that comes with the Delta Ashlyn Tub and Shower T17464 faucet is not a removable part. Please feel free to call, email, or message us on social if there is anything else you need.
Best regards,
Tanya
Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Date published: 2024-03-28
If you have an existing delta shower kit package do you have to replace the valve
Hi Valued Customer,
Thank you for your question, please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
As long as your existing shower was a 1700 series or a R10000 valve the T17464-CZ would be compatible.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
Date published: 2025-10-07
We just installed this shower and tub combo and the pull up shower diverter does not stay up. There are no instructions.
Hi Bella226,
Thank you for your question about the Delta Faucet model T17464-CZ.
The diverter on the tub spout should stay up if the water is running. If it does not, the tub spout RP77091CZ may need to be replaced.
Please reach out for assistance or with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2026-04-30
