Trinsic®
TempAssure® 17T Series Valve Only Trim
Model#: T17T059-RB

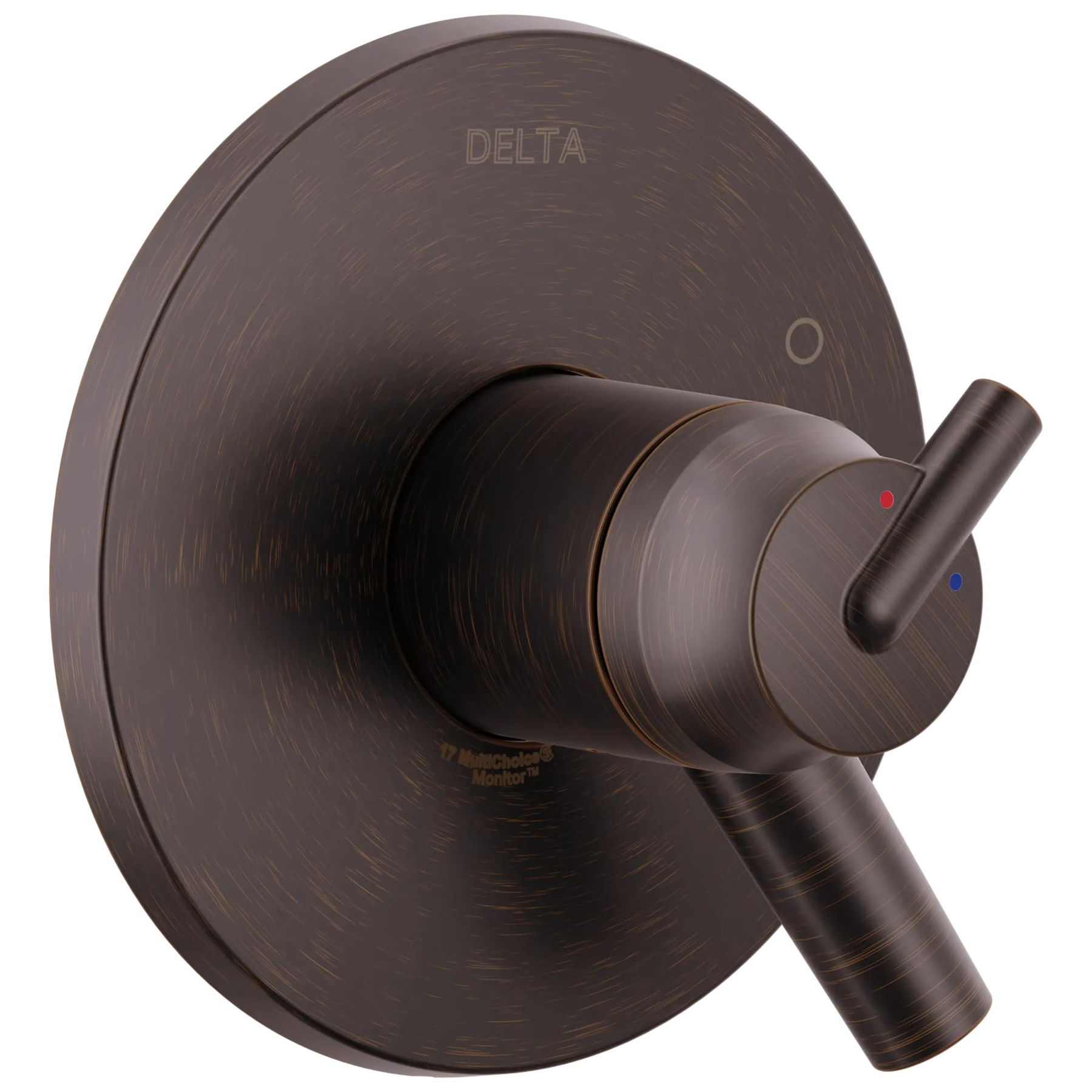

TempAssure® 17T Series Valve Only Trim
Trinsic®
TempAssure® 17T Series Valve Only Trim
Model#: T17T059-RB
Finish: Venetian Bronze
List Price*: $569.65
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Delta® thermostatic valves use TempAssure® Technology to protect you and your family from sudden temperature changes. An ornate blend of deep, warm tones and subtle highlights give Venetian Bronze® a hand-brushed look that can transform a bath. Offering a smooth contrast to light tones and coordinating well with darker ones, this finish can have a beautiful soothing effect on almost any space.
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • TempAssure thermostatic valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • ADA Compliant
  • Valve is not included, must purchase separately
  • Set ideal temperature and adjust volume separately
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Special Features
California Prop 65 WARNING
SUPPORT
Installation Information
Over All Height :
6-1/2
Connection Type :
NA
PART LIST
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Is there a way to remove the facing so I can adjust the maximum tempature? I don't see any screws to remove the handles, and it doesn't seem to twist off.

Asked by: Phil1315
Thank you for your question, Phil1315! Information on accessing and adjusting the cartridge for this model can be found in the Maintenance and Installation manual below on page 7, step 4. https://media.deltafaucet.com/MandI/68883%20Rev%20J.pdf Best regards, Edward
Answered by: Delta Faucet
Date published: 2020-02-04

What's the main difference between this valve and the valve included in TRINSIC® Monitor® 17 Series H2Okinetic® Shower Trim?

Asked by: Jose
Thank you for your question, Jose! Model T17T059 is a thermostatic valve trim, that takes an RP47201 cartridge assembly. The TRINSIC® Monitor® 17 Series H2Okinetic® Shower Trim, is a pressure balanced valve trim that looks identical to model T17T059, but takes an RP46463 cartridge instead of the RP47201. Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2019-10-18

Where is the T17T059-SS manufactured?

Asked by: Frank
Hello Frank, Thank you for your inquiry! As a global manufacturer, we source and assemble a number of parts around the world. No matter where in the world our products our sourced, manufactured or assembled, they are built to Delta Faucet Company's exacting specifications and are quality tested to ensure long-lasting performance. The location information on the back of the box will tell you where your specific faucet model was made. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-12-20

Is there a way to increase temperature span?

I would like to be able to go from regular temperature shower to cold shower. The temperature band doesn't allow this.
Asked by: Bill
Dear Bill, Thank you for your question. The front dial of the handle is designed, to adjust the temperature on the Delta Trinsic TempAssure T17T059 model. This front dial moves independently of the bigger handle (controls the volume of water), for adjust for hotter or colder water either before or during showering. Best regards, Tanya
Answered by: Tanya
Date published: 2016-10-15

Is the rough valve all I need to add to this item for installation?

In other words this item includes the Thermostatic cartridge and the extension kit and there is nothing else I need.
Asked by: tomluoma
Hi tomluoma, Thank you for your question. An R10000 rough-in valve will be all you need to install this trim. The cartridge is included. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-01-12

How do you remove the temp control knob to adjust the temperature without breaking it!!??

Asked by: Anonymous
Hi, Thank you for your question, and I am sorry to hear that you are experiencing an issue with your Delta faucet. To remove the temperature cover, pull the cover straight off by hand. Once the cover is off, unscrew the Philips screw counterclockwise to remove the control knob. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-04-05

Is the cartridge made of plastic or ceramic? If plastic, which series of Delta shower valves has a ceramic cartridge?

Asked by: solarjack
solarjack, Thank you for your question. The TempAssure 17T series includes a ceramic cartridge with a brass and non-metallic housing. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-10-09

Is the temperature knob made of plastic?

Asked by: beech
Hi, Beech! Thank you for your question. The temperature knob is plastic and the temperature cover is metal. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-01-31
