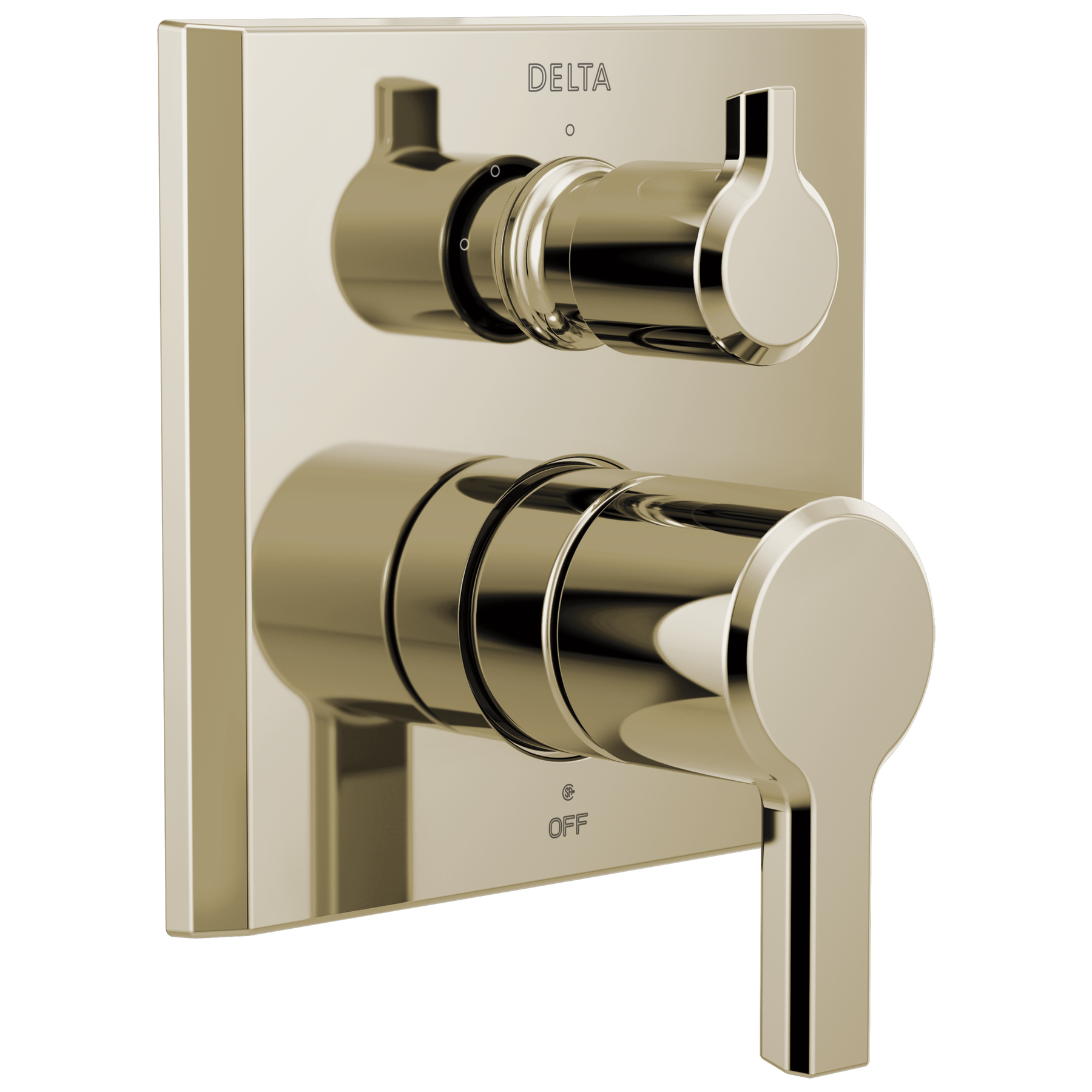

2-Handle Monitor® 14 Series Valve Trim with 3-Setting Diverter in Lumicoat® Polished Nickel
Model#:
T24899-PN-PR
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
The confident slant of the Pivotal® Bath Collection makes it a striking addition to a bathroom’s contemporary geometry for a look that makes a statement. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. By integrating separate controls on one trim with the MultiChoice® Integrated Shower Diverter, we’ve streamlined installation and your shower style. With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
- Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners on the product’s most commonly touched areas
- Delta MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
- Top handle controls diverter functions
- Bottom handle controls on/off and temperature
- 2-port, 3-position diverter
- 2 individual and 1 shared position
- Monitor® 14 Series single-function pressure balance cartridge
- Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
- Trim kit only, must order MultiChoice® Universal integrated diverter rough separately to complete the unit
- Recommended rough-in valve kit R22000 sold separately
- Field adjustable to limit handle rotation into hot water zone
- Bottom handle 120° maximum rotation
- Red/blue indicator markings
- Standard installation allows up to 1-1/8 in. finished wall thickness
- ADA Compliant
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Integrated Diverter
Integrated Diverter
The beauty of the MultiChoice Integrated Shower Diverter is that you can use one rough to control two valves in the wall – providing you a streamlined solution that is easier to install and has a very appealing style.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Overall Height (in.) :
6-3/4
Valve Type:
Single-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
REVIEWS
Rated 5 out of
5
by
NBW94 from
Excellent valve!
[This review was collected as part of a promotion.] We really like the Delta Valve, it's so easy to use and installation went smoothly. Love the color too, looks very elegant.
Date published: 2025-11-20
Rated 4 out of
5
by
Dean from
Very pleased with this.
Installation was easy enough except for the big o-ring. The directions regarding this was not clear. I hope I did it right. Then there was this white plastic thing about the same diameter of the o-ring. I have no idea what it was for, no mention of it in the instructions. The diverter and mixing valve work well. I was very impressed with the weight and finish of the trim pieces.
Date published: 2024-08-28
Rated 3 out of
5
by
ATX from
Can only speak to pre-installation
I have ordered 2 and both have had defects on the same piece. I just ordered my third and am hoping this one comes undamaged. If you are in a hurry, I would probably select a different trim.
Date published: 2024-01-04
Rated 5 out of
5
by
joel from
Love the style and my plumber was pleased too
[This review was collected as part of a promotion.] Purchased this for a master bath remodel and very please with the style and high quality finish. Purchased the required valve also and plumber just installed- he was very pleased with overall quality. Very satisfied with this- although it was a little more pricey, it clearly is top quality so the value is there.
Date published: 2018-02-03
Q&A
Hello, Will this ever be available in the matte black finish? If so, when? Is there any 2 handle water diverter currently available in matte black?
Hello Dsowinski,
Thank you for your question. The Delta Pivotal Integrated 14 Series and 3-Setting Diverter Trim T24899 is not manufactured in the Matte Black finish. We also do not have any of the other Integrated trim kits in the Matte Black finish, with no future plans of it at this time.
Best regards,
Tanya
Date published: 2024-03-28
is there a way to get the 3 way diverter trim kit and the pivotal shower head and arm (Model#: 52664-SS) together as a package or do they need to be ordered separately? If so, what is the model # ?
Thank you for your question, Skampers819! The 52664-SS shower head is not offered in a package with a trim kit at this time and these models will need to be ordered separately. I apologize for any inconvenience this may cause.
Best regards, Edward
Date published: 2024-03-28
WIll a 3 position diverter allow flow as follows? 1) Shower Head Only 2) Overhead Rain Shower Only 3) Both Shower Head and Overhead Rain Shower -or- is it for 3 different outlets one at a time? Thanks
Thank you for your question, Michael! The 3-setting diverter will allow for the use of either position alone or both at the same time.
Best regards, Edward
Date published: 2024-03-28
Will brush nickel be a finish choice? When will it be available?
Hi, Courteousmack!
Thank you for your question. The T24899-SS is in the Stainless Steel finish and will be available this Quarter 4 of 2017.
Best Regards,
Rosanna
Date published: 2024-03-28
In reading the spec sheet it is not clear to me if the T24899 & R 22000 will do what I need which is I need to operate 2 shower heads & 1 hand held independently of each other as in only 1 at a time. Will these components do that?
Hi Groovie,
Thank you for your question. When installing 2 shower heads and a hand shower you would want to use the Delta Pivotal Integrated 6-Setting T24999 Valve Trim Kit with the R22000 MultiChoice universal Integrated Valve. You would also need to purchase the non-shared 3-Function Diverter Cartridge RP71718.
https://www.deltafaucet.com/bathroom/product/T24999
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP71718
Best regards,
Tanya
Date published: 2024-03-28
Does the T24899 include the rough in body (R22000)?
Thank you for your question, John! To complete the installation of the Delta Pivotal Integrated 14 Series and 3-Setting Diverter Trim T24899 model, you would need to purchase the Delta R22000 Rough Valve Body.
https://www.deltafaucet.com/bathroom/product/R22000
Best regards,
Tanya
Date published: 2024-03-28
Why is this not recommended for tub spout applications? I'm trying to get an integrated diverter trim kit in the Pivotal collection that doesn't require the diverter be part of the tub spout.
Hi MimiBee, thank you for your interest in the T24899-BL!
Unfortunately, it does not have a bottom port for tub spout installation. Please contact us
directly if you have any questions or need additional assistance.
Best Regards,
Digital Communications Specialist
Date published: 2024-03-28
How to disassemble the diverter to adjust the temperature? I've already install the diverter, but I can't open it.
Hi Franky,
Thank you for your question about the Delta Faucet model T24899-BL.
The water temperature is mixed by the valve before the water goes to the diverter. To adjust the rotational limit stop and set the maximum temperature, first remove the bottom handle from the mixing valve. The handle is removed by loosening the set screw underneath the cover button that is below the handle blade.
Please contact us directly if you have any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-03-28
