Pivotal®
View Full Pivotal® Bathroom Collection

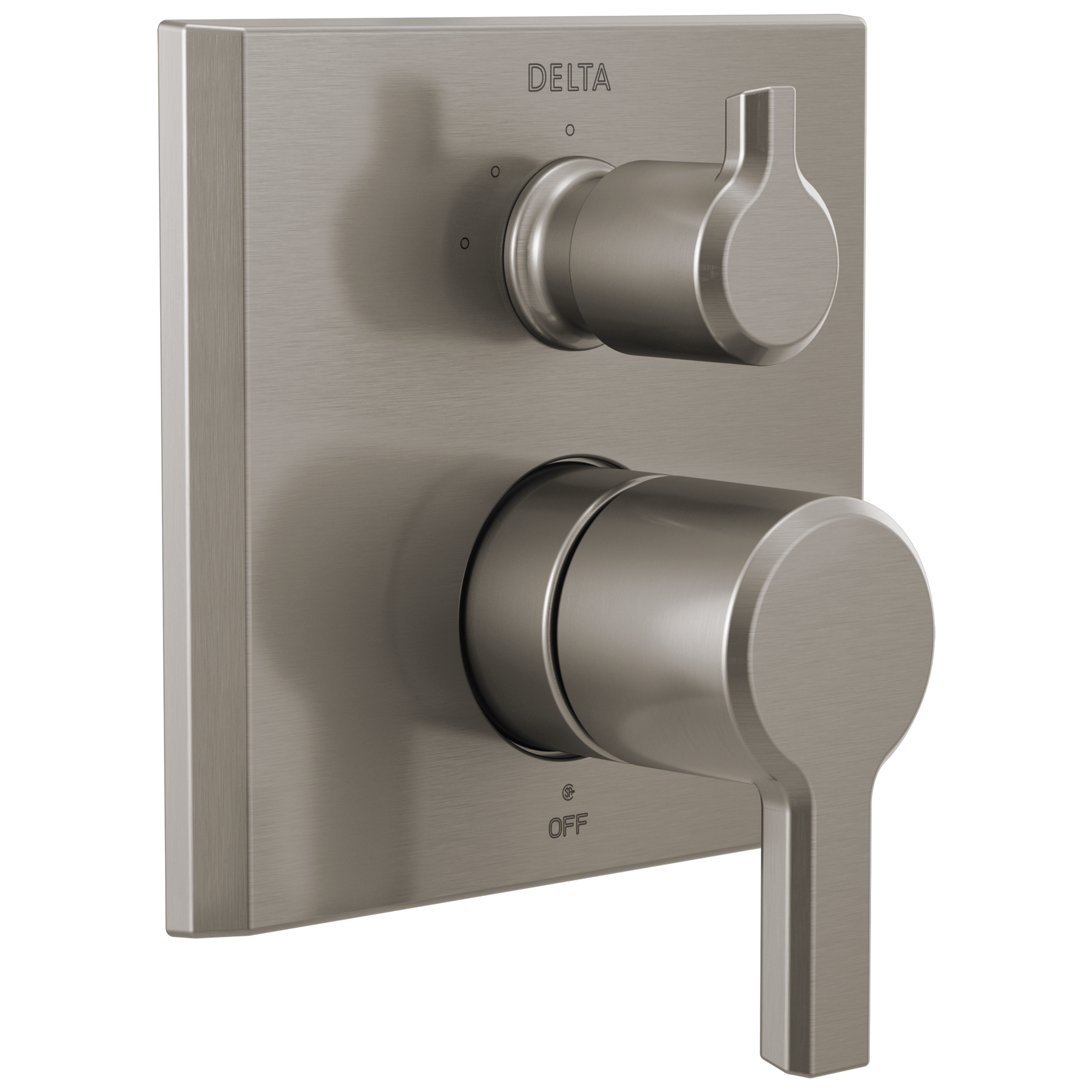

2-Handle Monitor® 14 Series Valve Trim with 3-Setting Diverter in Lumicoat® Stainless

Model#: T24899-SS-PR
Add to Favorites
Find local Delta® installers.
Pivotal®
View Full Pivotal® Bathroom Collection
2-Handle Monitor® 14 Series Valve Trim with 3-Setting Diverter in Lumicoat® Stainless
Model#: T24899-SS-PR
List Price: $1,02800
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The confident slant of the Pivotal® Bath Collection makes it a striking addition to a bathroom’s contemporary geometry for a look that makes a statement. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. By integrating separate controls on one trim with the MultiChoice® Integrated Shower Diverter, we’ve streamlined installation and your shower style. With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
  • Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners on the product’s most commonly touched areas
  • Delta MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
  • Top handle controls diverter functions
  • Bottom handle controls on/off and temperature
  • 2-port, 3-position diverter
  • 2 individual and 1 shared position
  • Monitor® 14 Series single-function pressure balance cartridge
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® Universal integrated diverter rough separately to complete the unit
  • Recommended rough-in valve kit R22000 sold separately
  • Field adjustable to limit handle rotation into hot water zone
  • Bottom handle 120° maximum rotation
  • Red/blue indicator markings
  • Standard installation allows up to 1-1/8 in. finished wall thickness
  • ADA Compliant
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Overall Height (in.) :
6-3/4
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Hello, Will this ever be available in the matte black finish? If so, when? Is there any 2 handle water diverter currently available in matte black?

Asked by: dsowinski
Hello Dsowinski, Thank you for your question. The Delta Pivotal Integrated 14 Series and 3-Setting Diverter Trim T24899 is not manufactured in the Matte Black finish. We also do not have any of the other Integrated trim kits in the Matte Black finish, with no future plans of it at this time. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

is there a way to get the 3 way diverter trim kit and the pivotal shower head and arm (Model#: 52664-SS) together as a package or do they need to be ordered separately? If so, what is the model # ?

Asked by: Skampers819
Thank you for your question, Skampers819! The 52664-SS shower head is not offered in a package with a trim kit at this time and these models will need to be ordered separately. I apologize for any inconvenience this may cause. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

WIll a 3 position diverter allow flow as follows? 1) Shower Head Only 2) Overhead Rain Shower Only 3) Both Shower Head and Overhead Rain Shower -or- is it for 3 different outlets one at a time? Thanks

Asked by: Michael
Thank you for your question, Michael! The 3-setting diverter will allow for the use of either position alone or both at the same time. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Will brush nickel be a finish choice? When will it be available?

Asked by: Courteousmack
Hi, Courteousmack! Thank you for your question. The T24899-SS is in the Stainless Steel finish and will be available this Quarter 4 of 2017. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2024-03-28

In reading the spec sheet it is not clear to me if the T24899 & R 22000 will do what I need which is I need to operate 2 shower heads & 1 hand held independently of each other as in only 1 at a time. Will these components do that?

Asked by: Groovie
Hi Groovie, Thank you for your question. When installing 2 shower heads and a hand shower you would want to use the Delta Pivotal Integrated 6-Setting T24999 Valve Trim Kit with the R22000 MultiChoice universal Integrated Valve. You would also need to purchase the non-shared 3-Function Diverter Cartridge RP71718. https://www.deltafaucet.com/bathroom/product/T24999 https://www.deltafaucet.com/parts-product-detail?modelNumber=RP71718 Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Does the T24899 include the rough in body (R22000)?

Asked by: John
Thank you for your question, John! To complete the installation of the Delta Pivotal Integrated 14 Series and 3-Setting Diverter Trim T24899 model, you would need to purchase the Delta R22000 Rough Valve Body. https://www.deltafaucet.com/bathroom/product/R22000 Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Do you have a direct replace for this unit....two fixed head system NO hand held shower

Asked by: Terry
Hello! Unfortunately we do not offer this trim kit with a dual showerhead system. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Digital Specialist
Date published: 2026-04-29

Why is this not recommended for tub spout applications? I'm trying to get an integrated diverter trim kit in the Pivotal collection that doesn't require the diverter be part of the tub spout.

Asked by: MimiBee
Hi MimiBee, thank you for your interest in the T24899-BL! Unfortunately, it does not have a bottom port for tub spout installation. Please contact us directly if you have any questions or need additional assistance. Best Regards, Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28
