Trillian®

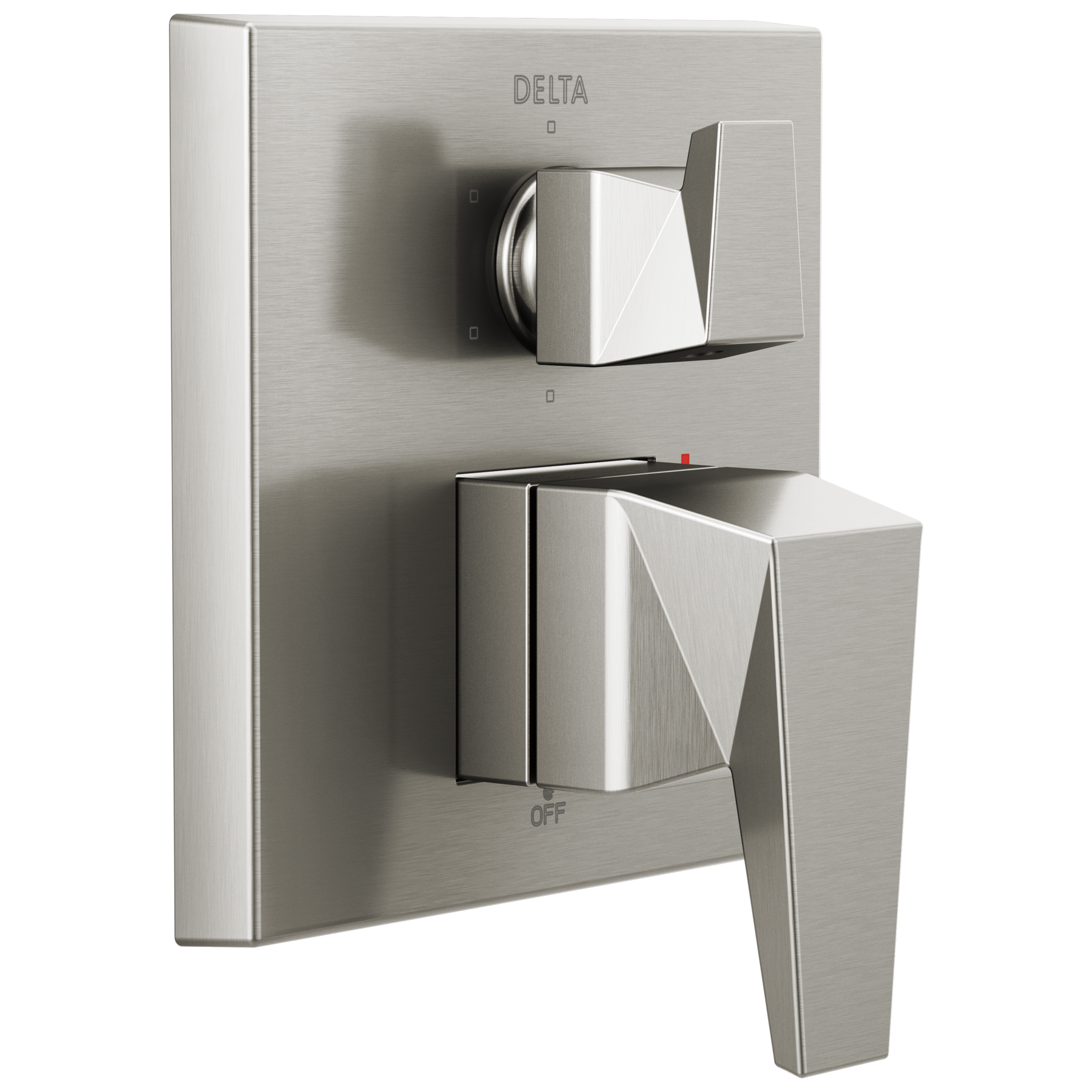

Two-Handle Monitor 14 Series Valve Trim with 6-Setting Diverter in Lumicoat® Stainless
Model#:
T24943-SS-PR
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
The prismatic faceting of the Trillian™ Bath Collection is an evolution of modern style that creates an edgy look which catches the light as well as the eye. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. By integrating separate controls on one trim with the MultiChoice® Integrated Shower Diverter, we’ve streamlined installation and your shower style. With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
- Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners on the product’s most commonly touched areas
- Delta MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
- Top handle controls diverter functions
- Bottom handle controls on/off and temperature
- 3-port, 6-position diverter
- 3 individual and 3 shared positions
- Monitor® 14 Series single-function pressure balance cartridge
- Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
- Trim kit only, must order MultiChoice® Universal integrated diverter rough separately to complete the unit
- Recommended rough-in valve kit R22000 sold separately
- Field adjustable to limit handle rotation into hot water zone
- Bottom handle 120° maximum rotation
- Red/Blue indicator markings
- Standard installation allows up to 1-1/8 in. finished wall thickness
- ADA Compliant
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Integrated Diverter
Integrated Diverter
The beauty of the MultiChoice Integrated Shower Diverter is that you can use one rough to control two valves in the wall – providing you a streamlined solution that is easier to install and has a very appealing style.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Overall Height (in.) :
6-9/10
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Q&A
Can I control the water flow (more or less water) with this trim?
Hello,
Thank you for your question!
No, the 14 series can only control temperature. The 17 series trim kits can control volume and temperature independently.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-12-09
Can you still use this if you only have 2 functions? Ex rain shower and hand held.
Hi Tom W,
Thank you for contacting Delta Faucet. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
Our Delta Faucet T24943-KS is a 6-setting diverter. I recommend using T24843-PR which is a 3-setting diverter for 2 accessories. Please see the link below.
https://www.deltafaucet.com/bathroom/product/T24843-PR.html
Thank you for being a loyal Delta Faucet customer. Please feel free to call, email, or message us on social if you need anything else.
Best Regards,
Themar
Digital Communications Specialist
Date published: 2024-03-28
Can I turn the shower on with this? Do I use the top knob to do it? The 6 functions are confusing.
Hi Sink,
Thank you for your question! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you.
The Delta Faucet model T24943-PR Two-Handle Monitor 14 Series Valve Trim With 6-Setting Diverter In Lumicoat Chrome bottom handle can be used to control the temperature and flow and the top handle can be used to divert between 3 separate components. There are 3 shared settings for each component to be shared with a second one and 3 non-shared settings so they can each be used individually.
Please feel free to contact us with any questions or for further assistance. Thank you for being a loyal Delta Faucet customer!
Best Regards,
Skyler
Date published: 2024-03-28
Can one of the functions used for a tub spout?
Hello Lamp06,
Thank you for your question, I would be happy to help you.
A tub spout can be plumbed from the diverter but we do not recommend it. The tub spout under normal installation puts out 8-10 GPM, when plumbed from the diverter it only puts out about 5-6 GPM.
Please contact us back for any further questions and concerns.
Best Regards, Nicole
Date published: 2024-03-28
