Delta®

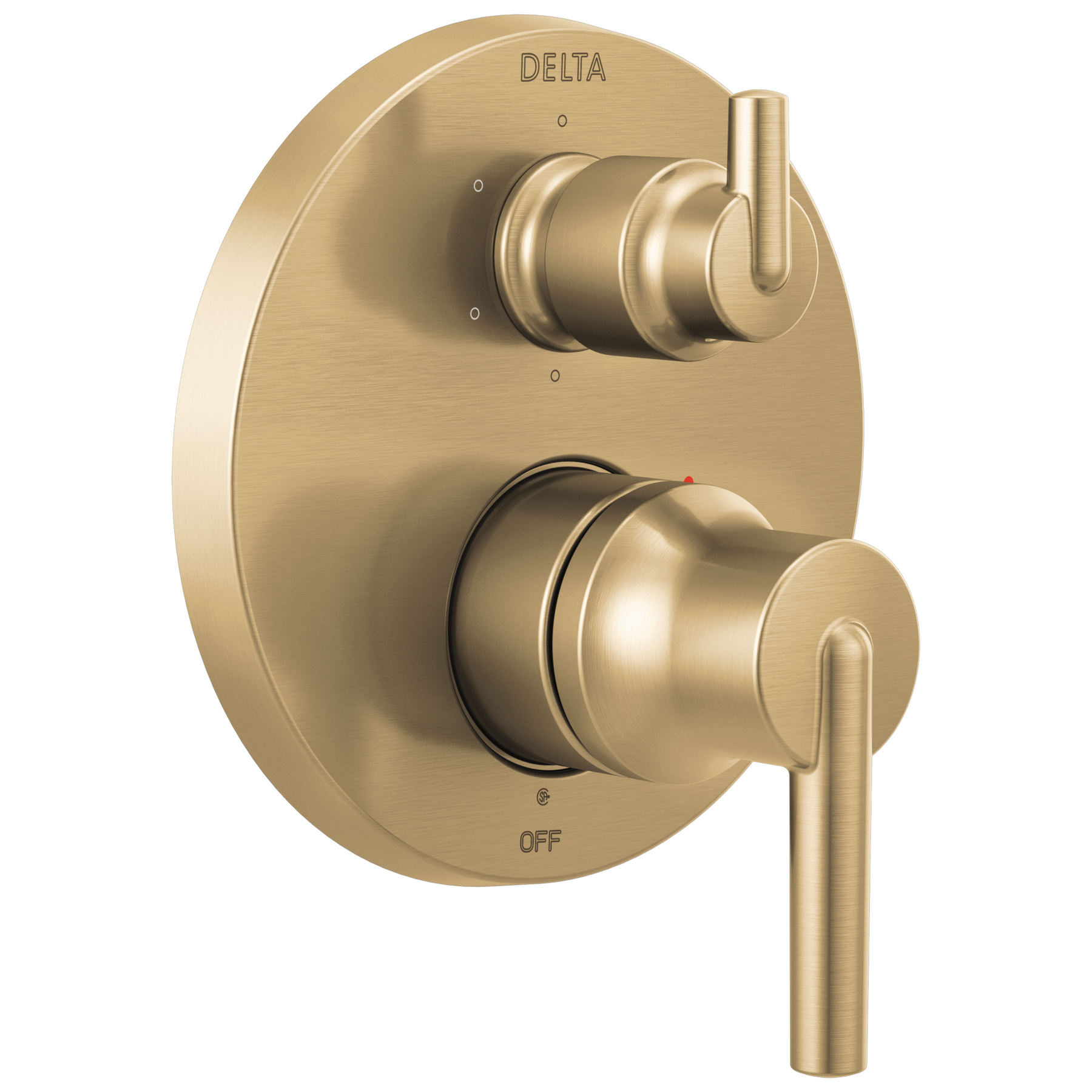

Contemporary Monitor® 14 Series Valve Trim with 6-Setting Integrated Diverter in Champagne Bronze
Model#:
T24959-CZ
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The contemporary round style is a smooth take on modern geometrics, offering a fresh look which can complement a wide range of decor. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
- 6-Setting diverter trim
- 2-handle trim
- Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
- Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
- Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
- Recommended rough-in valve kit R22000 sold separately
- Meets standards set by Americans with Disabilities Act (ADA)
- Bottom handle 120° Maximum rotation
- Red/blue indicator markings
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Integrated Diverter
Integrated Diverter
The beauty of the MultiChoice Integrated Shower Diverter is that you can use one rough to control two valves in the wall – providing you a streamlined solution that is easier to install and has a very appealing style.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
7-15/16
Valve Type:
Single-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 5 out of
5
by
JL123 from
Delta Diverter Trim
[This review was collected as part of a promotion.] Nice finish and product for 3 shower functions. I use it for rain fall, handheld, and regular shower head. Smooth transitions. Would purchase again
Date published: 2025-09-12
Rated 5 out of
5
by
Joe from
Stylish and Functional Upgrade for Any Modern Shower
[This review was collected as part of a promotion.] Installed the Delta T24959 Trinsic trim as part of a bathroom upgrade, and it's been fantastic. The modern, minimalist look fits perfectly with our style, and the integrated diverter makes switching between shower functions seamless. Feels solid and well-made. Highly recommend if you're looking for both form and function!
Date published: 2025-05-17
Rated 5 out of
5
by
Julesd from
Beautiful & functional
Easy to use , looks greats and does not water spot
Date published: 2025-05-16
Rated 5 out of
5
by
BeckyMcD5 from
Delta love it!
LOVE the look and the quality!
Date published: 2025-02-15
Rated 5 out of
5
by
Derek from
Excellent finish color!
[This review was collected as part of a promotion.] Easy to use faucet for a very good price.
Date published: 2025-02-14
Rated 2 out of
5
by
abizemom from
Delta Trinsic
While this product works great, the water spots on it are the worst I've ever seen with any faucet or shower head, etc that I've ever had!! I also have the Trinsic hand shower system and it is covered in water spots as well. So very disappointed! we went with the name Delta expecting high quality product and the water spots on these products make me miss my old ones.
Date published: 2023-06-06
Rated 5 out of
5
by
Scott from
Very nice trim
This is a very smooth operating valve trim. Seems very well constructed easy install
Date published: 2023-03-03
Rated 5 out of
5
by
Elaine D from
Great showers!
High quality and reliable
Date published: 2022-07-25
Q&A
With this new valve, my water pressure is very low, is there a setting that needs to change? Prior to upgrading to this, pressure was high. Thanks
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-06-10
Could you please explain the difference between a “2-Handle” and a “Two Handle” product? All of the “two handle” trims with integrated diverters. such as this one, appear to have just one handle.
Hi, Ianr!
Thank you for your question. The "Two Handle" for the Delta Monitor® 14 Series Valve Trim with 6-Setting Integrated Diverter T24989-RB is referring to the valve control and diverter control handles.
The other Two Handle Monitor® 17 Series Valve Trim with 6-Setting Integrated Diverter T27989-RB has both volume and temperature valve control and diverter control handles.
Best Regards,
Rosanna
Date published: 2024-03-28
where can I find an Owners' manual
Hi Boss,
Thank you for your question. The Delta Contemporary 14 Series Valve Trim with 6-Setting Integrated Diverter T24959 faucet Maintenance/Installation Owner's manual can be viewed, printed or downloaded from the Documents and Specs section.
https://media.deltafaucet.com/MandI/84892%20Rev%20C.pdf
Best regards,
Tanya
Date published: 2024-03-28
What materials are the components of this trim kit made from?
Thank you for your question, jkl2455! This unit has metal and non-metal components. The handles, sleeves, diverter cartridge, and escutcheon plate are metal.
Best regards, Jon
Date published: 2024-03-28
what tub spout would correspond with trim?
Hi Steven,
Thank you for your question. Products in the Trinsic, Compel, and other contemporary collections will match this trim. However, the R22000 valve for this trim does not have a tub spout outlet.
You may connect a non-diverter tub spout to the 6-setting diverter as a temperature tester, but the flow rate will be reduced, so it is not recommended to be used for a tub filler spout.
Best regards,
Jon
Date published: 2017-01-24
What is the difference between the 14 series and the 17 series?
Hello Wondering,
The Delta Contemporary Valve Trim T24959-SS is a 14 Series unit with a single handle controlling temperature only, with one constant volume. The T27959-SS is a 17 Series unit that controls volume and water temperature independently with two separate handles for more refined control of your shower experience. Both trim kits are compatible with the matching Integrated Rough-In R22000 valve.
Best regards,
Tanya
Date published: 2024-03-28
Does the top handle on this control where the water comes out? If so, if I have two body jets, a shower head, and a shower wand, can I use all three at once or only two of the three water outlets?
Hello Aaron! Thank you for your question. I am happy to assist you today.
The T24959-BL Delta Shower Trim's top handle does operate the diverter which controls which function is being used. You are able to use the two body jets as long as they're installed using the same port. You may also use the shower head as well as the wand. Please be advised that you may only use two of the three devices at on time.
Best regards, Antoine
Date published: 2020-12-07
how is this compared to the T27959? Does this also allow individual control of 3 different components (i.e. showerhead, jets, handheld). Does it allow all 3 to run at the same time? Or only 2 at a time? When more than one is running is there less flow?
