Delta®

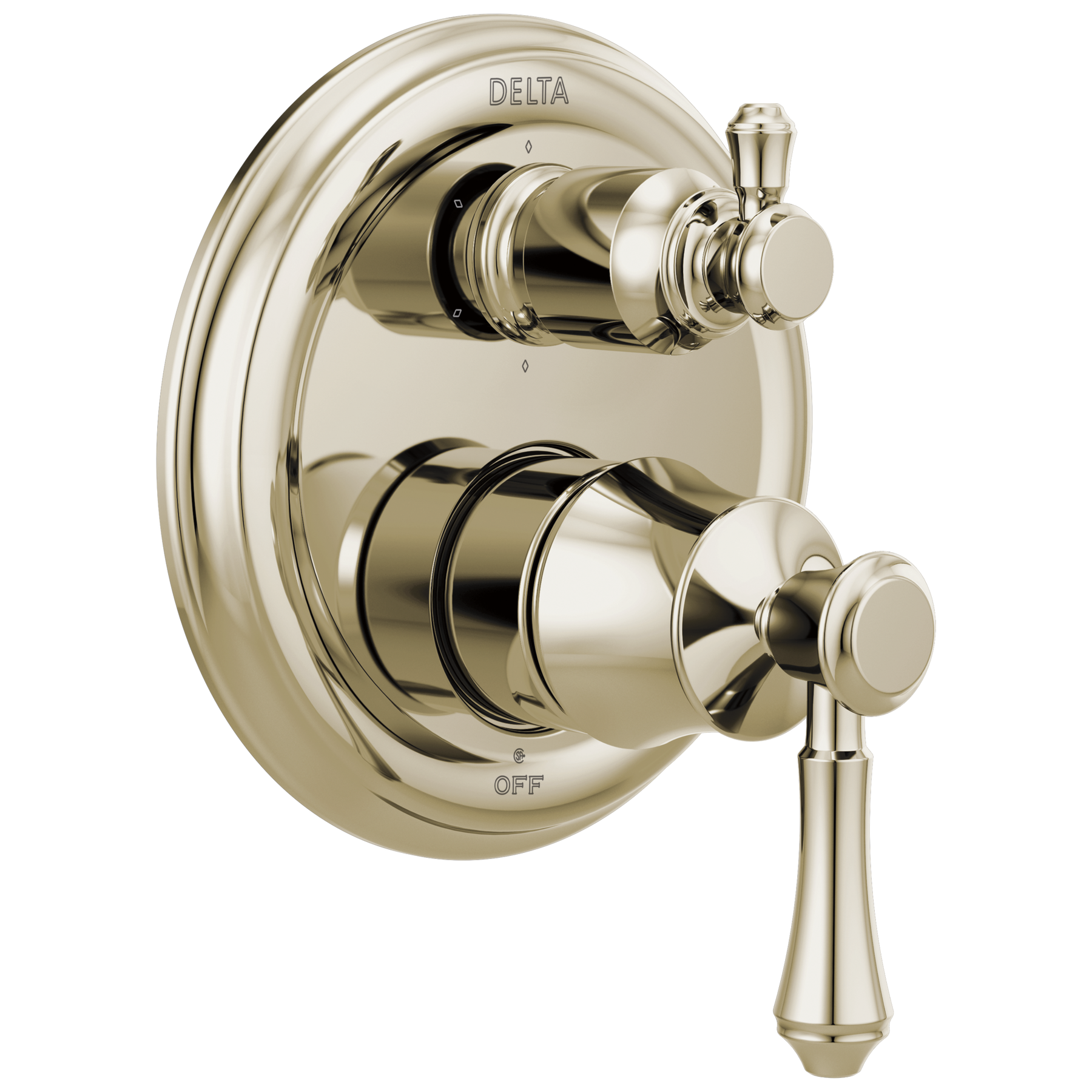

Traditional Monitor® 14 Series Valve Trim with 6-Setting Integrated Diverter
Model#: T24997-PN
Traditional Monitor® 14 Series Valve Trim with 6-Setting Integrated Diverter
Delta®
Traditional Monitor® 14 Series Valve Trim with 6-Setting Integrated Diverter
Model#: T24997-PN
Finish: Polished Nickel
List Price*: $528.00
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The traditional round style lends a timeless feel to your space. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
  • 6-Setting diverter trim
  • 2-handle trim
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • Recommended rough-in valve kit R22000 sold separately
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Bottom handle 120° Maximum rotation
  • Red/blue indicator markings
Technology
California Prop 65 WARNING
SUPPORT
Installation Information
Over All Height :
8-3/16
Connection Type :
NA
PART LIST
REVIEWS
Rated 4 out of 5 by from Delta t24997 Shower Diverter It was very easy to install and the Venetian Bronze looks great. It's very well made from quality materials. It easily changes through the six functions and it's perfect if you have body spays. My only dislikes are the price and the scald guard rotational limit stop not giving you more control of the hot water.
Date published: 2019-02-19
Rated 4 out of 5 by from Shower Diverter Works very well, easy to change from one function to another. My only issue is I was told (after it was installed!) that it has a function where it keeps the water from getting hot enough to scald anyone. Sounds good except I have to put the water heater as high as it will go to get a warm shower, it also makes the rest of the water in the house with the capacity to scald someone from the excessive heat. Wish there was a way to disable that feature. Otherwise, attractive and works well.
Date published: 2019-02-09
  • y_2021, m_3, d_4, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_T24997-PN, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
Q&A

What is the difference between the 17 Series and 14 Series Traditional Valve Trims? How do we determine which diverter we need, a 3 Setting Diverter or a 6 Setting Diverter?

Asked by: Renee
Thank you for your question, Renee! The Monitor 14 series will provide both volume and temperature control in one handle whereas the 17 series will provide the option of two levers, one for volume and the other for temperature which can be adjusted independently. A 3-setting diverter trim will switch between two individual products such as a shower head and hand shower with the option of using both at the same time. A 6-setting diverter trim will divert water between three products individually with three shared positions as well. Best regard, Edward
Answered by: Delta Faucet
Date published: 2019-04-24

Shower faucet:  what do the 3, 6 diverter settings do?  The diverters I'm used to using are either engaged or not engaged.  Not sure how these work Also, how does an integrated diverter differ from one that isn't integrated? Thanks,  Mark

Asked by: Mark
Hi, Mark! Thank you for your question. The 3 setting diverter assembly has 2 individual settings and 1 shared setting. For example, if you install a hand shower and shower head, you will have one setting for the shower head, one setting for the hand shower and a shared setting for both on at the same time. For the 6 setting diverter assembly, you will have 3 individual settings and 3 shared settings. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-05-23

Can you use a 6 setting diverter with tub spout?

Asked by: Bren
Thank you for your question, Bren! The Delta 14 Series Traditional 6-Setting Diverter Valve Trim Kit T24997, unfortunately cannot be used for tub spout water supply because it does not have a bottom port for tub spout installation. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-06-18

using a T24997 chrome shower valve trim in a bath shower looking for the matching trim for tub valve only . can the model number be provided

Asked by: lucky
Hello lucky! Thank you for your question and we are happy to help. The Delta 14 Series Traditional 6-Setting Diverter Valve Trim Kit T24997, unfortunately, cannot be used for tub spout water supply because it does not have a bottom port for tub spout installation. With any further questions or concerns, please do not hesitate to reach out to us directly. Best Regards, Carrie
Answered by: Delta7
Date published: 2021-02-17

I just installed this product and it is slowly dripping out of the shower head. About 1 drip every 3 seconds. This is a brand new product. What should I check?

Asked by: Travis1987
Hello Travis1987, Thank you for your question. We are happy to help! Sorry to hear your faucet is dripping. We recommend turning off the water supply and removing the cartridge. Clean any debris from the seats and springs in the legs of the cartridge and check the condition of the o-rings on the legs. Turn on the water supply, which will shoot water across the shower and clear any debris in the valve. If the issue remains, replace the RP4993 seats and spring and the RP14414 o-rings. Please reach out directly if you have any questions or need additional assistance. Best regards, Bryan
Answered by: Delta Faucet
Date published: 2021-02-02
  • y_2021, m_3, d_4, h_17CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_5
  • loc_en_US, sid_T24997-PN, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 50ms
  • questions, product
Mike and Hanna
Delta logo thumb

Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.

Delta BiLT app
BiltLogo IntelligentInstructions Horizontal

Installation made easy. Download the free BILT app to access step-by-step 3D interactive instructions.

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
