Delta®

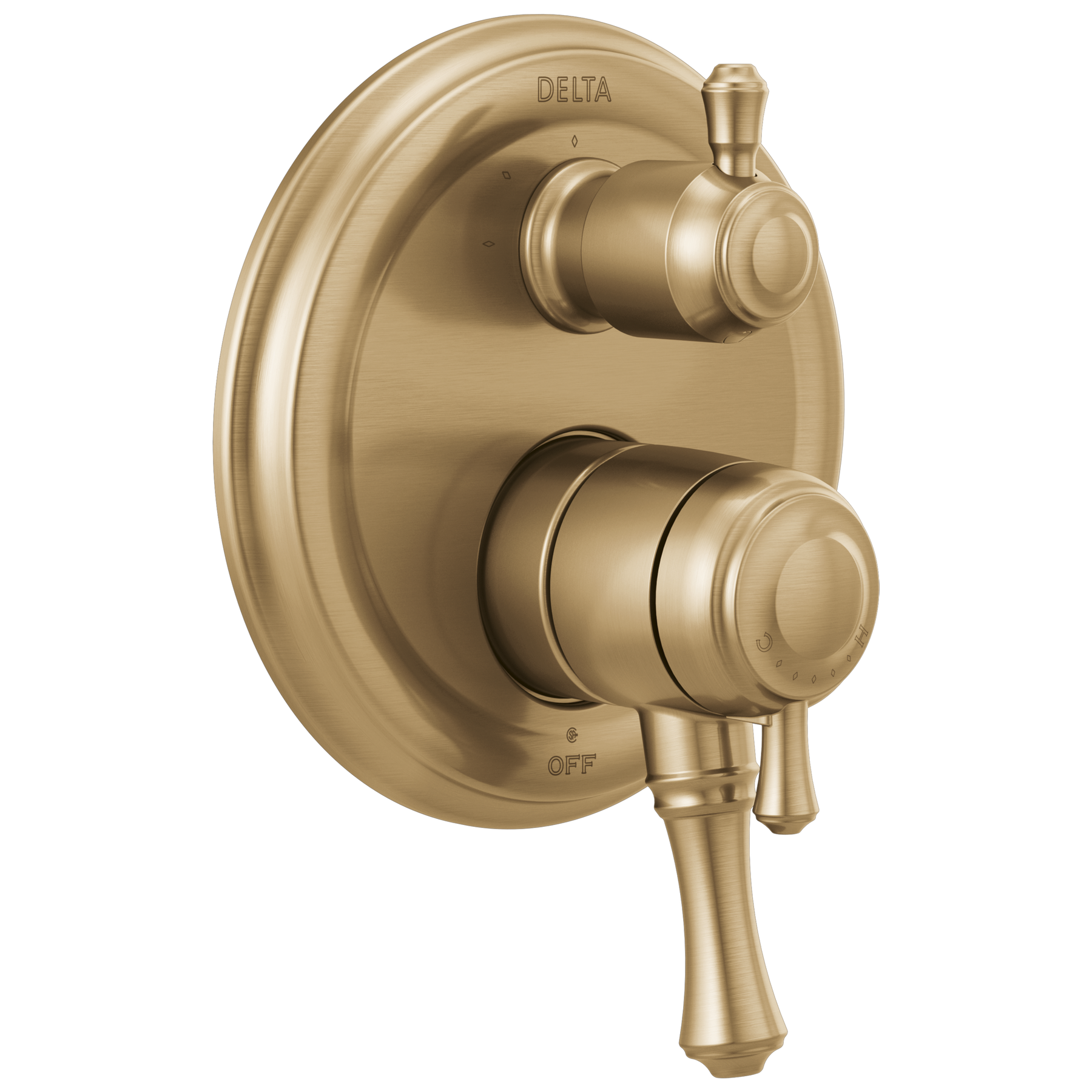

Traditional Monitor® 17 Series Valve Trim with 3-Setting Integrated Diverter in Champagne Bronze
Model#:
T27897-CZ
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The traditional round style lends a timeless feel to your space. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
- 3-Setting diverter trim
- 2-handle trim with separate temperature dial
- Control volume and water temperature independently with two separate handles for more refined control of your shower experience
- Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
- Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
- Recommended rough-in valve kit R22000 sold separately
- Meets standards set by Americans with Disabilities Act (ADA)
- Bottom handle 90° Maximum rotation
- Red/blue indicator markings
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Integrated Diverter
Integrated Diverter
The beauty of the MultiChoice Integrated Shower Diverter is that you can use one rough to control two valves in the wall – providing you a streamlined solution that is easier to install and has a very appealing style.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Overall Height (in.) :
8-13/16
Valve Type:
Dual-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 2 out of
5
by
Lacy Harville from
Poor Quality
Cheap parts broke soon after installation
Date published: 2022-11-26
Rated 5 out of
5
by
Lillian from
My new bath room
Love this , I have in bronze it works amazing just turn on the bottom handle and the water is always set for temperature I like .
Date published: 2022-05-10
Rated 3 out of
5
by
L from
Product valve replaced
The three point valve needed replaced and it was a new product. Once replaced, it’s working nicely. It is very attractive. I haven’t received the plumbing bill so I don’t know how much the return visit to replace the valve is going to cost me.
Date published: 2022-04-28
Rated 5 out of
5
by
JohnD from
Great Valve
Sleek, great valve, all in one
Date published: 2021-05-28
Rated 5 out of
5
by
B from
Grest
Very different but easy. Like it.
Date published: 2021-03-19
Rated 1 out of
5
by
Hamstrung from
-
Certain hidden features made these products unsuitable for this application.
Date published: 2021-02-07
Rated 5 out of
5
by
Twinkie from
This one is my shower
Love Delta faucets. This one is great because the diverter control is on the same eschcution.
Date published: 2020-10-13
Rated 5 out of
5
by
Fixitall123 from
A great decition, Glad I did
Ive had this installed for a month. Easy to set up and operate.
Now there are other reviews about the Temp handle. I didn't have any problems with this. I set the temp and then made sure I snapped it in right. Clik and its done.
A great design, be patient, and do it right the first time.
Date published: 2019-08-20
Rated 5 out of
5
by
Amymayyam from
Very happy with this diverter
[This review was collected as part of a promotion.] I love the functionality of this diverter. Works great, has a really smooth feel as it moves. I love how it “saves” the heat level from the previous shower, since the on/off is a different lever. I used to get big temperature fluctuations when someone flushed the toilet somewhere else in the house. Not anymore! The only thing I don’t like is that it shows water spots of you don’t wipe it down when you get out of the shower.
Date published: 2019-07-22
Rated 4 out of
5
by
brandi from
we didn't end up using but quality of product seamed very solid
Date published: 2019-02-22
Q&A
Is the temperature control handle on the T27897 plastic?
Thank you for your inquiry, Fred! The temperature dial of the Delta Traditional 17 Series Integrated 3-Setting Diverter Trim T27897 kit, is non-metallic.
Best regards,
Tanya
Date published: 2024-03-28
What do I do if I only have 2 shower components and 3 settings?
I am about to install this in a stand-alone shower. I have an overhead shower head and a set of 3 body jet sprayers.
1. can I set it up so my settings are: (a: shower only, b: body only, c: both)?
2. if not, can how do I install it such that my settings are (a: shower, b: body, c: n/a)?
Dear Doug,
Thank you for your inquiry! The Delta Traditional 17 Series Trim T27897-RB come with the 3-Setting Diverter (top handle). You would want to cap off the right side of the rough-in valve and plumb the body sprays to the left port of the valve.
https://media.deltafaucet.com/MandI/92345%20Rev%20B.pdf
Best regards,
Tanya
Date published: 2024-03-28
What cartridges is included with the T27897-ss trim? I want the following shower functions: shower head only, handheld shower only, and both the shower head and handheld shower.
Hi, Nate!
Thank you for your question. The T27897-SS has a Dual Function Pressure Balance Cartridge, RP46463, along with a 3 setting diverter cartridge assembly, RP51918. This will allow a shared setting for both units on at the same time and two individual settings.
Best Regards,
Rosanna
Date published: 2024-03-28
Does this valve adjust water pressure or just turn on and off? The specifications states "Bottom handle controls on/off and ADJUSTS VOLUME; dial controls temperature", but many of these handles are just an on / off switch, so I wanted to confirm.
Hi, Jimd!
Thank you for your question. The Delta Monitor® T27897-SS 7 Series Valve Trim with 3-Setting Integrated Diverter Faucet has both temperature and volume control.
Best Regards,
Rosanna
Date published: 2024-03-28
Installation options not clear.
We want this valve to work to choose only one of these three: (1) bath faucet to the tub, (2) shower head, and (3) hand shower.
Isn't there a three-position diverter that gives us this functionality?
Must we go with the 6-function diverter to get this functionality? That gives us 3 mixed ("shared") positions we don't want. Will the RP71718 "3-function non-shared" diverter do this?
Where are the diverter reference diagrams that show diversion for ALL 4 cartridges? RP71717, RP51918, RP71718, and RP51919.
Thank you.
Hi JAM,
Thank you for your question. The RP71718 3-Function Non-Shared Diverter Cartridge will give you this functionality. We recommend to use it with the T27997 trim so that the markings on the plate will align with the handle in all three positions.
Regarding the diagram, the positions will match the non-shared settings of the 6-Setting diverter.
Best regards,
Jon
Date published: 2024-03-28
Are the chrome handles and trim all metal, or plastic?
Hi MerBear,
Thank you for your question! The volume handle, diverter handle, and escutcheon are metal. The temperature knob is non-metallic.
Best regards,
Jon
Date published: 2024-03-28
Is there an option of a handle to match Lahara faucet handles?
Dear Andrea,
Thank you for your question. The Delta Traditional 17 Series TempAssure Diverter and Valve Trim T27897-RB, doesn't have any other handles styles designed for it.
https://media.deltafaucet.com/PartsDiagram/DPD-L-T27897.pdf
Best regards,
Tanya
Date published: 2019-07-27
Can I use the R10000 with the T27897 Trim? I want to use the R100000 so I can add a tub spout w/ diverter. Thanks!
Hi, Neil!
Thank you for your question. The Delta Monitor T27897 Integrated Valve and Diverter Trim Kit only works with the Delta MultiChoice Universal R22000 Integrated Valve and Diverter Rough. Here is a link to this rough valve body:
https://www.deltafaucet.com/bathroom/product/R22000
We do not recommend installing a tub spout on the R22000 Rough Valve Body as the tub spout will not have a positive shut off while a shower component is being used.
Best Regards, Rosanna
Date published: 2024-03-28
