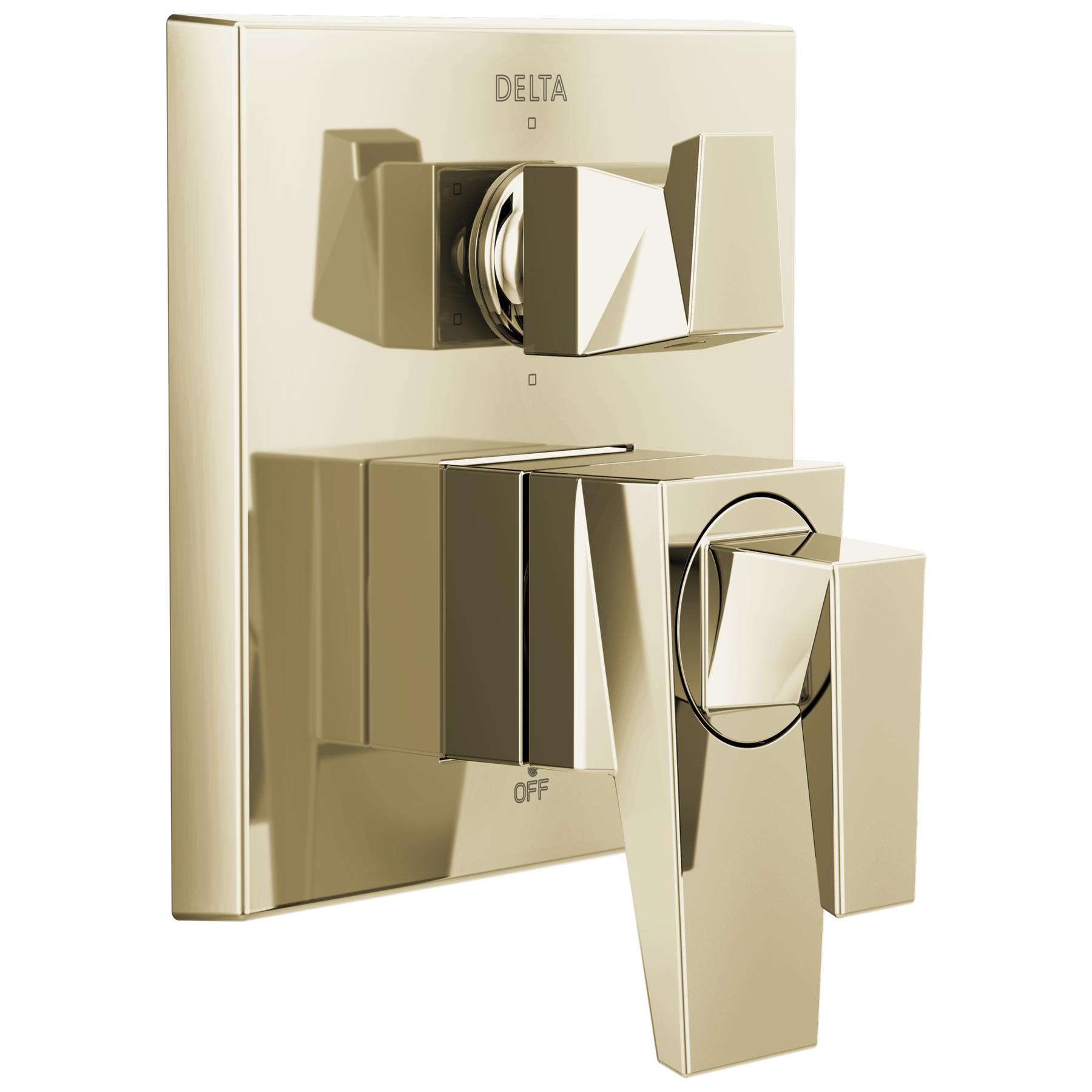

Two-Handle Monitor 17 Series Valve Trim with 6-Setting Diverter in Lumicoat® Polished Nickel

Model#: T27943-PN-PR
Two-Handle Monitor 17 Series Valve Trim with 6-Setting Diverter in Lumicoat® Polished Nickel
Model#: T27943-PN-PR
List Price: $62800
PRODUCT FEATURES
The prismatic faceting of the Trillian™ Bath Collection is an evolution of modern style that creates an edgy look which catches the light as well as the eye. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. By integrating separate controls on one trim with the MultiChoice® Integrated Shower Diverter, we’ve streamlined installation and your shower style. With the MultiChoice Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. With separate volume and temperature control on this model, simply set the water at your preferred temperature and turn the shower on or off with the volume control handle — without interrupting your set temperature. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
  • Lumicoat® Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners on the product’s most commonly touched areas
  • Delta MultiChoice Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
  • Top handle controls diverter functions
  • Bottom handle controls on/off and adjusts volume, while the dial controls temperature
  • 3-port, 6-position diverter
  • 3 individual and 3 shared positions
  • Monitor® 17 Series dual-function pressure balance cartridge
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® Universal integrated diverter rough separately to complete the unit
  • Recommended rough-in valve kit R22000 sold separately
  • Field adjustable to limit handle rotation into hot water zone
  • Bottom handle 90° maximum rotation
  • Red/Blue indicator markings
  • Standard installation allows up to 1-1/8 in. finished wall thickness
  • ADA Compliant
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Installation Information
Overall Height (in.) :
6-9/10
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from The best Absolutely love this set. I swapped out my old shower with the new Delta and man what a difference. Built really well and heavy duty. Love the option of two different knobs for pressure and temp. Running water any where else does not affect it at all. Delta is #1 in my book
Date published: 2021-12-28
Rated 5 out of 5 by from Works great It took me a while to install and that was because I didn’t have everything I needed to install the diverter. I had to get a kit that works with the valves. The installation was fairly easy after that. I love the way it looks. The water flow is great, before it wasn’t consistent. It looks awesome. I highly recommend this diverter for any project if you want to upgrade your shower.
Date published: 2021-12-26
Rated 5 out of 5 by from High quality diverter that's very easy to install Supplies: Just to give everyone a heads up - this kit works with the universal valve system. If you don't install that, this diverter won't install properly. Installation: This is by far the easiest installation I've ever done on a diverter. Most of the DIY projects I've gotten myself involved in with friends, have been a mess when we got to the diverter installation. However, this one was super easy to work with, and the fit is absolutely seamless. Quality: I love the look of this unit. It's understated, but the finish is very nice. The unit itself is very well made, and rock solid. Functionality: If you install this properly, it functions flawlessly. We haven't had any issues at all, no matter which of the 6 positions we're using. Flow remains consistent no matter the position. Overall: I couldn't be happier with this diverter. It looks great. It's absolutely rock solid. Flow is consistent regardless of position the diverter is in. Installation was so easy. Really, I have nothing negative to say about this diverter. Highly recommended 5 stars
Date published: 2021-11-12
  • y_2026, m_6, d_13, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_T27943-PN-PR, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 18ms
  • reviews, product
Q&A

Can I use this T27943-SS-PR for a use with a shower, hand wand and tub, using the R10000 valve or do I also need the R11000 diverter? Also do I need the 6 position diverter to allow for shower+wand, wand only, shower only, tub only?

Asked by: PPP in Austin
Hello, Thank you for your question! You will not need an additional R11000 diverter and trim kit. Yes, you will need the six-function diverter trim kit to divert water between the three components. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-01-23

If I need to have a diverter that functions for a hand-spray, shower head and a rain shower head, would I use the 3 position diverter or 6 Position Diverter?

Asked by: Jeds Shower
Hello Jeds Shower, Thank you for your question! I am happy to help you! Our Delta T27943 will work to provide water for all three items hand shower, shower head and rain can. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

What valve should I buy? I have a shower head and hand sprayer only. Want to control the following; volume temperature. set to either shower head, hand sprayer or both.

Asked by: MM Handyman
Hello MM Handyman, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet TRILLIAN™ Two-Handle Monitor 17 Series Valve Trim With 6-Setting Diverter MODEL#: T27943 requires the R22000 rough valve, please see the link below. https://www.deltafaucet.com/bathroom/product/R22000.html Thank you for being a loyal Delta customer. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

If I need to have a diverter that functions for a hand-spray and a rain shower head (ceiling), would I use the 3 position diverter or 6 Position Diverter?

Asked by: Nela
Hello Nela! Thank you for your question and we are happy to help. We apologize for this information not being readily available to you. The Delta Faucet Trillian™ Two-Handle Monitor 17 Series Valve Trim With 6-Setting Diverter In Stainless MODEL#: T27943-SS with a handheld and ceiling shower head would use the 3 setting diverter. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta Faucet customer. Best Regards, Carrie
Answered by: Delta7
Date published: 2024-03-28

Is there a 3/4" valve available for this trim? If a 1/2" valve is used will it support 1 - 2.5 gpm head and 3 - 1.75 gpm body sprays running together with-out a significant pressure drop?

Asked by: Rob Jackson
Hello Rob! Thank you for your question and we are happy to help. We apologize for this information not being readily available to you. Unfortunately, there is no 3/4" valve for the Delta Trillian™ Two-Handle Monitor 17 Series Valve Trim With 6-Setting Diverter In Stainless MODEL#: T27943-SS. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta Faucet customer. Best Regards, Carrie
Answered by: Delta7
Date published: 2024-03-28
