Delta®

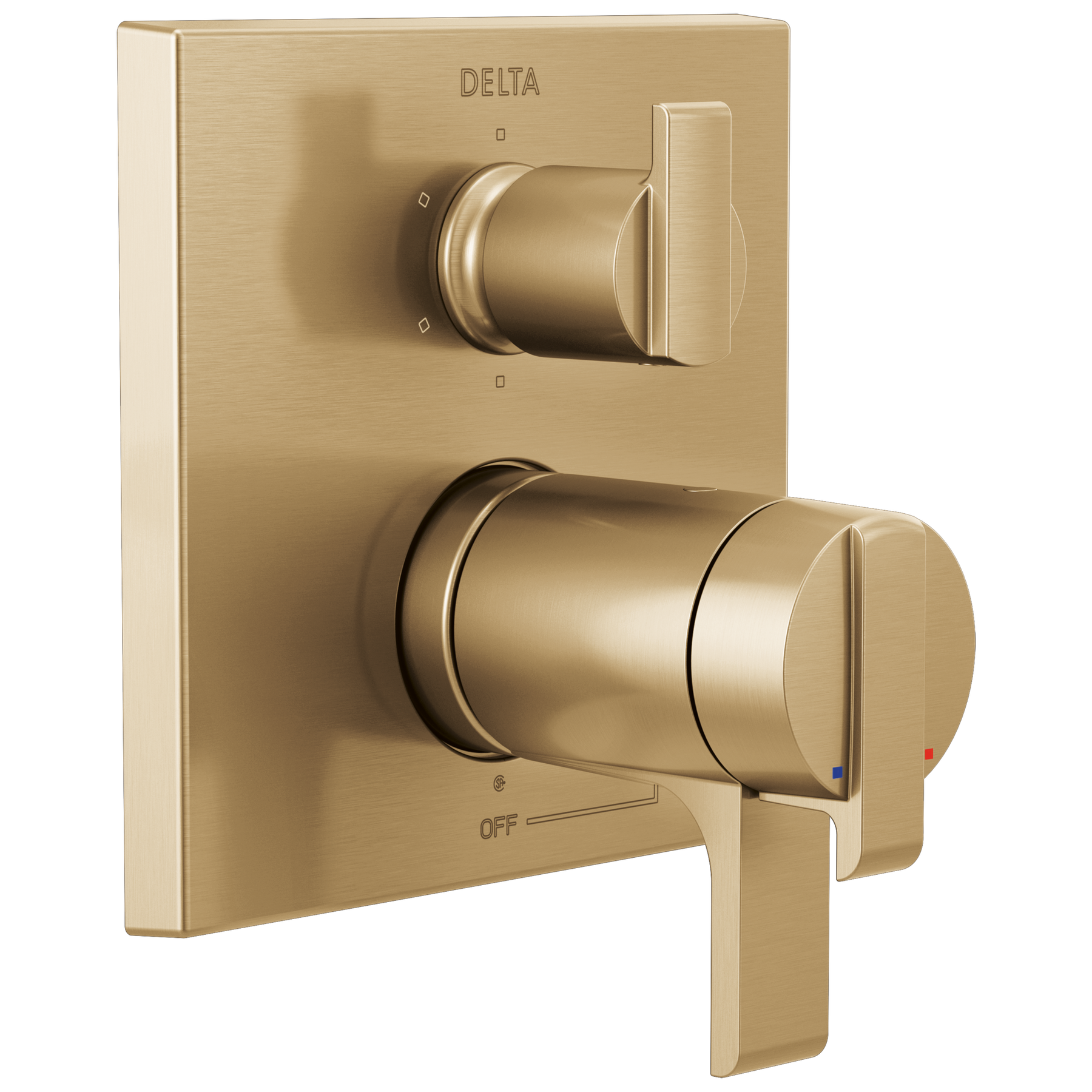

Angular Modern TempAssure® 17T Series Valve Trim with 6-Setting Integrated Diverter in Champagne Bronze
Model#:
T27T967-CZ
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The angular modern style is boldly contemporary, featuring crisp lines for an upscale feel. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. Delta's dual-function thermostatic valve cartridge keeps water temperature consistent (within 3.6°) by actually measuring and monitoring the temperature of the water. Temperature can be set in order to remain consistent shower after shower.
- 6-Setting diverter trim
- 2-handle trim with separate temperature dial
- Control volume and water temperature independently with two separate handles for more refined control of your shower experience
- TempAssure Thermostatic cartridge measures and monitors the temperature of the water and automatically adjusts to maintain a more precise water temperature
- Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
- Recommended rough-in valve kit R22000 sold separately
- Meets standards set by Americans with Disabilities Act (ADA)
- Bottom handle 90° Maximum rotation
- Red/blue indicator markings
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Integrated Diverter
Integrated Diverter
The beauty of the MultiChoice Integrated Shower Diverter is that you can use one rough to control two valves in the wall – providing you a streamlined solution that is easier to install and has a very appealing style.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
7-15/16
Valve Type:
Dual-function thermostatic cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
REVIEWS
Rated 5 out of
5
by
Straz from
Valve Termostat
[This review was collected as part of a promotion.] Product was exactly as noted online and was easy to install providing the experience desired.
Date published: 2025-11-15
Rated 5 out of
5
by
Alex H from
Great Product - Purchased for multiple installations
[This review was collected as part of a promotion.] We’re big fans of this valve and trim combo and have used it in multiple installations, including my own home. It’s a great product overall. Installation is straightforward. It’s easy to use. The temperature can be preset, so the valve requires only an on/off action.
Date published: 2025-03-14
Rated 5 out of
5
by
Mike R from
The combination of volume, temp, and mode into one fixture was great. Prevented having to add a separate valve/fixture. the 6-position mode selector is perfect for our application.
Great compact and useful design
Date published: 2023-08-02
Rated 5 out of
5
by
Chellecat from
Worth it. Love.
This is the best on off for 4 water sources. Works exactly as described. We like it so much better than the push buttons in our other shower and it's easy to have any combination of the water sources on. Love it. Well worth the price. Very durable.
Date published: 2023-07-04
Rated 5 out of
5
by
Home owner from
Delta valve control
The thermostatic system works great
Date published: 2022-03-17
Rated 5 out of
5
by
Anonymous from
Fantastic Job Delta!
Great quality product. The finish is beautiful. Easy to install
Date published: 2020-09-14
Rated 3 out of
5
by
Tom Tu from
Looks great and easy installation but the plastic temperature dial.
My contractor installed this faucet for my bathroom renovation project. It looks great and feel solid except the temperature tune button, it is a plastic one. I definitely prefer a metal solid feeling than a cheap plastic. At the time I put my order in, I saw one with the identical looking at $2xx and the one I got at $3xx. Some one put review saying the $2xx one with a cheap plastic temperature dial. I literally payed more than $100 in trying to avoid the plastic piece but end up the same. I think whoever buying this faucet should try the cheaper one first.
Again, it is a good looking faucet but with some imperfection.
Date published: 2018-11-02
Q&A
If I want 4 functions and options of useing at least 2 at a time do I need separate water line? And does these help with pressure. Which is recommended ? I also wrote the earlier function limited in characters. Sorry
Hi, Deborah!
Thank you for your question. The fourth showering component would require a separate rough-in valve and trim. Only three shower components will fit onto the Delta T27T967 Valve Trim with 6-Setting Integrated Diverter. Only two shower components will work at once.
Best Regards,
Rosanna
Date published: 2024-03-28
I plan on having shower head, hand-held shower and 3 spray heads (to operate as one). Can you confirm that the 6 setting diverter T17T067 will allow use of each of these independently as well as being able to use any two of the three at one time..Thanks
Thank you for your question, Dick! The T27T967 Trim Kit will allow you to run each of these components individually or any combination of two together.
Best regards, Jon
Date published: 2024-03-28
What about if you install a rain head, a shower head, and body sprays in one wall, in the opposite wall you install the controls, to start the water without going inside the stall, and the jn 90 degrees wall install a hand held, across from the door?
Hello CRTM,
Thank you for you question. We would recommend installing the handle valve inside the shower for access to the temperature adjustment and diverter. The showering components can be installed on a different wall than the valve. However, the Delta Angular Modern 17T Series 6-Setting Trim T27T967 unit can only divert between three components. The fourth showering component would require a separate rough-in valve and trim. Please feel free to reach out to our customer service team at 1-800-345-3358 or customerservice@deltafaucet.com if there is anything else you need.
Best regards,
Tanya
Date published: 2024-03-28
Functionality
Hello,
I am looking to use this with a hand shower, rain shower and standard shower head. Can all components be individually controlled (on one at a time) and then all on at the same time?
Dear GP2,
Thank you for your question. A hand shower and both shower heads can be installed with the Delta Angular T27T967 valve trim. This will allow each individual unit running by themselves and 3 shared positions between each item.
Best regards,
Tanya
Date published: 2024-03-28
I want 2 rain fall shower heads that can both be on at the same time or choose 1 at time, Also shower jets and a wand. Jets able to work with at least 1 rain fall. Could sacrifice the wand to get others to work together + independent. Is it possible how
Thank you for your inquiry, Deborah! The Delta Angular Modern Integrated 17T 6-Setting T27T967 Trim Kit will allow you to run each of these components individually or any combination of two together. The fourth showering component would require a separate rough-in valve and trim. Please feel free to call, email, or message us on social if there is anything else you need.
Best regards,
Tanya
Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Date published: 2024-03-28
What is a 6 setting diverter valve and what is a 3 setting valve? What does each do, and what are the advantages of a 6 vs 3?
Dear Scott Brennan,
Thank you for your question. The Delta Angular Modern T27867 and T27967, 3 and 6 Setting Integrated Diverter and Trim, are used when adding handshower, body sprays, or another showerhead. The top handle is the diverter handle, to switch from one or combination of two running at the same time. If you are adding one extra showering unit, you would use the 3 setting and if you are adding two extra showering units you would use the 6 setting.
Best regards,
Tanya
Date published: 2020-03-10
MY CUSTOMER DOESNT WANT SHARED OPTIONS BUT NEED THE 6 SETTING FOR 3 FIXTURES, CORRECT? IF SO HOW CAN I INSTALL PROPERLY TO ENSURE NO SHARED USAGE WILL OCCUR.?
Where is the set screw located on the handle, for tightening?
Hi GA DAWG 71,
Thank you for your question about the Delta Faucet model T27T967-RB.
The handle set screw is located on the top of the handle when the handle is pointed down.
To remove the temperature knob cover, first disengage the larger snap on the knob cover. See step 4 A1 of the installation instructions for more information:
https://media.deltafaucet.com/MandI/107533%20Rev%20F.pdf
Please reach out with any additional questions!
Best Regards,
Bryan
Date published: 2026-01-16
I have new built shower with 3 body sprays (2.5 gpm each), showerhead (1.75 gpm) & a hand held. When using 2 components, or just using the body sprays alone, the water pressure is insufficient. Installer recc'd this. Will it help?
Hi Refturner,
Thank you for your question about the Delta Faucet model
T27T967-SS.
Our TempAssure thermostatic shower trims do have a higher total flow rate than our pressure-balanced trims. It should help, but the body sprays may still not have full flow. The total flow rate also depends on the home water pressure and the valve rough.
With a TempAssure trim, if the valve rough is R22000, for a total 7.5 gpm for the body sprays, the water pressure would need to be at least about 70 psi. A 9.25 gpm total flow would require higher water pressure close to our recommended maximum of 100 psi.
R22000-WS valve rough total flow rate is a little less, typically one gpm or less difference.
Please reach out with any additional questions!
Best Regards,
Bryan
Date published: 2025-12-12
My diverter valve vibrates noisily. It sounds like an old steam engine. Quite disturbing, and the valve doesn't do a great job of diverting, sometimes taking a few minutes for a new setting to lock in. Is this a defective valve?
Hello Graham,
Thank you for contacting us, I would be happy to help you.
The Vibration and noise are caused by debris or blockage, We would recommend a complete flush of the system.
1) Remove the handle by loosening the set screw on the side of the base of the handle. The set screw is either a 1/8" or 3/32" allen screw. So you will need to use the appropriate size allen wrench to loosen it. Loosen it just enough to be able to easily pull the handle off.
* Note. If there is calcium build-up at the base of the handle it may be necessary to soak it in a 50/50 solution of vinegar and water. Simply saturate the rag with the 50/50 solution, wrap it around the handle base and place a plastic bag over it. I would recommend do this the night before removing the handle.
2) After removing the handle, remove the trim sleeve.
3) Then you will need to remove the bonnet nut. The bonnet nut is the threaded ring at the valve opening. It unscrews counterclockwise. You will need a pipe wrench or a pair of channel locks.
4) After removing the bonnet nut, you will need to pull the cartridge straight out. You may need a small skinny bladed screwdriver to wedge in between the lip of the cartridge and the valve to help start it out.
5) Once the cartridge is removed, you will have an open valve body.
6) Next, shut the shower door or curtain and turn the water on to the valve. Water should gush out much like an open fire hydrant. Have someone observe if there is good water pressure coming out of the valve and let flush for 30 seconds.
7) Re-install the cartridge and re-assemble in reverse of how it was disassembled. The Tub/Shower should then have a good flow. If it does not, the cartridge will need to be replaced.
Please contact us back if you have any questions or need further assistance.
Best Regards,
Nicole
Date published: 2024-03-28
I need to purchase the temperature knob & cover handle for a DELTA FAUCET T27T967, Chrome Ara Angular Modern TempAssure 17T Series Valve Trim with 6-Setting. Would please provide the knob part #
Hi Lene!
Thank you for your question and we are happy to help. The Delta T27T967 temperature knob is RP84980 and the control handle is RP84981. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2024-04-16
does this have a finish that resists spots?
Hi Edie,
Thanks so much for contacting Delta Faucet Company!
No, this model does not feature the SpotShield technology.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2023-03-02
Looking for more detail on parts. Does the actual diverter valve come with the 6 position trim kit? I know the rough in valve with stops, R22000-WS. What are the specific part numbers for the series 17 (thermostatic) cartridge?
Hello DaveK,
Thank you for contacting us, I would be happy to help you.
Our Delta T27T867 is 3 setting and the T27T967 is the 6 setting, the trim will come with the cartridge needed for the functions. Our R22000-WS is universal and will accept any of those trim kits.
Please contact us back if you have any questions or need further assistance.
Best Regards,
Nicole
Date published: 2024-03-28
Will Model T27T967 work to control the following three functions: (1) head-shower, (2) hand-shower and (3) tub spout. Please advise. If not, kindly provide alternatives. G.
Hi GIMR,
Thanks for your question regarding T27T967-SS!
No, this model does not have a tub spout port. The recommendation is to use an R10000-UNWS, R11000, and matching trim. I have included a few links below.
https://www.deltafaucet.com/bathroom/product/R10000-UNWS.html
https://www.deltafaucet.com/bathroom/product/T17T453-SS-WE.html
https://www.deltafaucet.com/parts/product/R11000.html
https://www.deltafaucet.com/bathroom/product/T11853-SS.html
I also included a few links to the hand shower options, and the elbow needed to finish the installation.
https://www.deltafaucet.com/bathroom/product/55530-SS.html
https://www.deltafaucet.com/bathroom/product/57530-SS.html
https://www.deltafaucet.com/parts/product/50570-SS-PR.html
Please feel free to contact us with any questions or for further assistance.
Best Regards,
Emma
Digital Communications Specialist
Date published: 2024-03-28
Do you know of anywhere in Indiana this may be in stock. Made a scheduling mistake and trying to find one today?
Hi Zeb1,
Thank you for your question!
Please see the following link for purchasing this model in your area.
https://www.deltafaucet.com/where-to-buy?pid=T27T967-BL
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-09-17
Why is the temperature control knob plastic when all of the rest is metal? When I turn the volume control on, it's very tight and almost makes a metal-on metal grinding sound. Why?
Hello DC47!
Thank you for your question and we are happy to help! The temperature control knob is made of mixed materials to avoid rusting or deterioration as if it were made completely of metals, there is a higher possibility of it rusting and needing to be replaced earlier on.
If you are hearing grinding, we recommend loosening up the handle as it should not be "very tight". We also recommend soaking these parts in 50% warm water and 50% white vinegar to break up any debris or hard water build-up. With any further questions or concerns, please do not hesitate to reach out to us directly.
Best Regards,
Carrie
Date published: 2024-03-28
The handle for the hot and cold is plastic. Can it be replaced with metal?
Hi Clay,
Thanks for your question regarding T27T967! No, our Delta product is a mixture of metallic and non-metallic material, Quality is very important to us and our products undergo rigorous testing to ensure high-quality performance. Non-metallic products are beneficial in that they do not rust or corrode and help prevent heat transfer.
Please feel free to contact us with any questions or for further assistance.
Best Regards,
Emma
Digital Communications Specialist
Date published: 2023-04-19
I'm looking for this trim with a rain head and shower wand
Hi Billy,
Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you.
Our Delta Faucet Angular Modern TempAssure® 17T Series Valve Trim With 6-Setting Integrated Diverter In Venetian Bronze MODEL#: T27T967-RB does not include the shower head or hand shower, unfortunately those would need to be purchased separately.
Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you. Please contact us back with any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
I have tried to buy this on wayfair and other places and they tell me it's discontinued... do you have any alternative on bronze color with temperature control and diverter valve like the T27T967-RB?
Hello Jose M,
Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you!
Our Delta Faucet Angular Modern TempAssure® 17T Series Valve Trim With 6-Setting Integrated Diverter In Venetian Bronze MODEL#: T27T967-RB is still currently being sold, I have included a link below to other integrated shower trims in RB. Please see the link below.
https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets?cgid2=Delta_Bathroom_Showering_Tub-and-Shower-Faucets&prefn1=featureFacet&prefv1=FltIntegratedDiverter&prefn2=finish&prefv2=Venetian_Bronze&prefn3=narrowResults&prefv3=hideDiscontinued&prefn4=recertified&prefv4=false
Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you. Please contact us back with any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
I recently bought and had installed delta ara17t, model number t27t967. The plumber threw all literature away. I don’t know how to operate it. Can you tell me where I can find instructions for this model.
Hello!
Thank you for contacting Delta Faucet Company!
We apologize for the issues you are experiencing and we are happy to help! Please refer to the link below to our Maintenance and Installations sheet!
chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://media.deltafaucet.com/MandI/107533%20Rev%20F.pdf
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Communications Specialist
Date published: 2025-10-24
