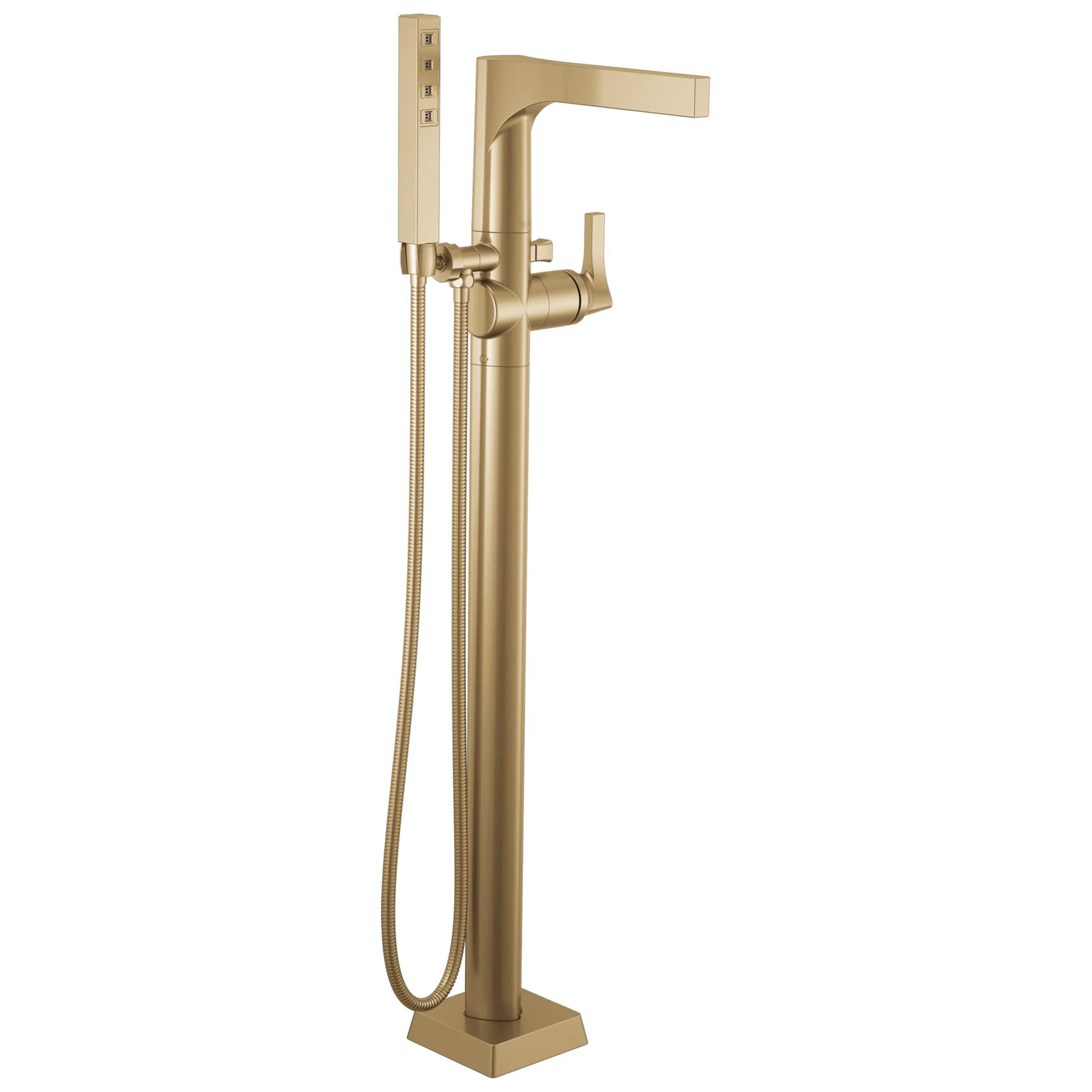

Single Handle Floor Mount Tub Filler Trim with Hand Shower in Champagne Bronze
Model#:
T4774-CZFL
Image Thumbnail, click to view zoomed product image
null
null
PRODUCT FEATURES
Complete your bath with a beautifully designed Delta roman tub faucet, meticulously crafted to turn heads and enhance your experience. The included hand shower makes this a versatile addition to your bath, perfect for rinsing off, washing loved ones and pets or keeping your tub clean. Delta® H2Okinetic® Hand Showers look different because they are different. Using advanced technology, H2Okinetic Hand Showers sculpt water into a unique wave pattern, giving you 3X the coverage of a standard shower head.* The end result is a hand shower that provides more coverage, more warmth and more intensity for a truly drenching experience. Designed to look like new for life, Brilliance® finishes are developed using a proprietary process that creates a durable, long-lasting finish that is guaranteed not to corrode, tarnish or discolor. Take the chill out of contemporary with the eloquent warmth of Champagne Bronze™ in your bath. This vibrant, gold finish provides a vivid splash of contrast to your space for a look that's simultaneously modern and nimble, able to pair elegantly with traditional, transitional, and contemporary décor. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. *Coverage measured in accordance with EPA WaterSense® Specification for shower heads, March 4, 2010.
- Perfectly coordinates with the Zura™ bath collection for a cohesive, modern look
- H2Okinetic Hand Shower sculpts water into a unique wave pattern, forming a powerful drench spray
- Gives you the feeling of more water without using more water
- Coordinating hand shower included
- Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
- Spray settings include: Adjustable H2OKinetic spray, H2OKinetic spray
- Metal lever handle meets standards set by Americans with Disabilities Act (ADA)
- Trim kit only, must purchase rough-in R4700-FL separately to complete the unit
- Hand shower includes double check valves for backflow protection
- Single hole installation
- Rigid spout does not swivel
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
H2Okinetic® Technology
H2Okinetic® Technology
Delta’s proprietary H2Okinetic® Technology creates a shower experience like no other. Each shower head and hand shower contains an internal system that controls the speed, movement and droplet size of the water, which creates the feeling of more water than a standard shower flowing at the same rate.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Single hole installation
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
42-3/8
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 1 out of
5
by
Kate from
Nothing good about this.
We selected this tub filler for our newly constructed home 2 years ago. So far I truly have nothing good to say about it.
1. To get the water to a hot temperature, the water pressure must be at maximum (you can’t control flow and temperature separately) so there is no way to trickle the water, say, if a child is in the tub. Low flow is always cold. My plumber insisted this is a “safety measure,” and several calls to Delta seems to prove that representatives don’t even understand the issue. If it’s truly for “safety” (to prevent burns) then I don’t see how much “safer” it is to bathe a small child in cold water so that the flow is moderate.
2. If using the sprayer, again- to have a spray that is warm enough to rinse hair or body, the flow is so high that the sprayer jets across the room.
3. After using the sprayer, and shutting the water off, the attachment dribbles and leaks for several minutes. Which will drip onto the floor if the sprayer is returned to its holder.
Considering the cost of this filler, I’m deeply disappointed and even more disappointed that Delta, despite its claims it has a customer satisfaction guarantee, has not offered any solutions.
For now, my tub is rarely used although it looks good. Too much of a frustration.
Date published: 2024-10-10
Rated 2 out of
5
by
Becca 71 from
This is great looking
Unfortunately Very Messy, much too much force as it sprays so hard you cannot keep water in the tub on both faucets
Date published: 2024-07-30
Rated 5 out of
5
by
Anonymous from
the best ever!
Very Sleek and Sophisticated!
Date published: 2023-11-12
Rated 5 out of
5
by
Ehughes012 from
Great product.
Great product. I really like the appearance and versatility.
Date published: 2019-03-01
Q&A
With the Ara tub filler we just purchased we are unable to get hot enough water from the faucet. Please advise.
Hello Dena,
Thank you for your question. The T4774-FL does have a rotational limit stop that can be adjusted to regulate temperature. To get to the rotational limit stop, remove the handle with a 1/8" allen wrench. You will then see the white, round limit stop around the stem of the cartridge. To adjust the temperature pull the white Rotational Limit Stop outward and rotate. Clockwise rotation will decrease the outlet temperature, counterclockwise rotation will increase the outlet temperature. Temperature change per tooth (notch) could be 4° - 16°F based on inlet water conditions. Repeat as necessary. When finished, make sure that the Rotational Limit Stop is fully retracted into the seated position.
Best regards,
Tanya
Date published: 2024-03-28
HOW DO YOU REMOVE THE DIVERTER FROM A T4794LF
Hi Sammy,
Thank you for your question! To access the diverter, unscrew the finial on the opposite side of the spout and loosen the set screw under the diverter. This will allow you to pull out the hand shower holder and diverter.
Best regards,
Jon
Date published: 2017-05-09
how do you control water pressure on the handheld wand?
Hi there, Don!
Thank you for your inquiry! The Delta Zura Floor Mount Roman Tub T4774-FL faucet comes with a single function hand shower, the pressure is controlled by the main handle of the full faucet.
Best regards,
Tanya
Date published: 2024-03-28
What is the estimated gallons per minute for the Zura freestanding tub filler? I see the handheld shower is 2.0 gpm. How long should it take to fill a 68 gal max fill soaking tub?
Hi, JimmyG!
Thank you for your question. The gallons per minute depends on the psi for your home for the Zura T4774-PNFL unit. At 80 psi, you should get 8.5 gallons per minute.
Best Regards,
Rosanna
Date published: 2024-03-28
We did a bath remodel and have this faucet for the bath, I can't seem to get the water warm/hot. How do you adjust the temperature?
Thank you for your question, Allen95! The Delta Zura Floor Mount Tub Filler T4774-SSFL model does have a rotational limit stop that can be adjusted to regulate temperature. To get to the rotational limit stop, remove the handle with a 1/8" allen wrench. You will then see the white, round limit stop around the stem of the cartridge. To adjust the temperature pull the white Rotational Limit Stop outward and rotate. Clockwise rotation will decrease the outlet temperature, counterclockwise rotation will increase the outlet temperature. Temperature change per tooth (notch) could be 4° - 16°F based on inlet water conditions. Repeat as necessary. When finished, make sure that the Rotational Limit Stop is fully retracted into the seated position.
Best regards,
Tanya
Date published: 2024-05-13
How can I regulate the water temperature after installation?
Hi, rwalls!
Thank you for your question. The T4774-FL does have a rotational limit stop that can be adjusted to regulate temperature. To get to the rotational limit stop, remove the handle with a 1/8" allen wrench. You will then see the white, round limit stop around the stem of the cartridge. To adjust the temperature pull the white Rotational Limit Stop outward and rotate. Clockwise rotation will decrease
the outlet temperature, counterclockwise rotation will increase the outlet temperature. Temperature
change per tooth (notch) could be 4° - 16°F based on inlet water conditions. Repeat as necessary. When finished, make sure that the Rotational Limit Stop is fully retracted into the seated position.
Best Regards,
Rosanna
Date published: 2024-03-28
The water flow appears to be block at the filler. Is there a way to clean the screen for the filler?
Hello Nick,
Thank you for contacting us, I would be happy to help you.
Low flow is caused by a blockage or debris, we recommend that the unit be flushed. The stream straightener can be removed as well, but without flushing the whole system the blockage may still be there.
Please contact us back if you have any questions or need further assistance.
Best Regards,
Nicole
Date published: 2024-03-28
Can the turn on lever be on the left side, and hand held on the right? Or can it only be installed as shown? Zura Tub Filler MODEL#: T4774-CZFL
Hi Shaina,
Thank you for contacting Delta Faucet. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
Our Delta Faucet Delta Zura® Single Handle Floor Mount Tub Filler Trim With Hand Shower In Chrome MODEL#: T4774-FL handle would need to be on the right side. The design for the hand shower is to be installed on the left side only.
Thank you for being a loyal Delta Faucet customer. Please feel free to call, email, or message us on social if you need anything else.
Best Regards,
Themar
Digital Communications Specialist
Date published: 2024-03-28
