HydraChoice®

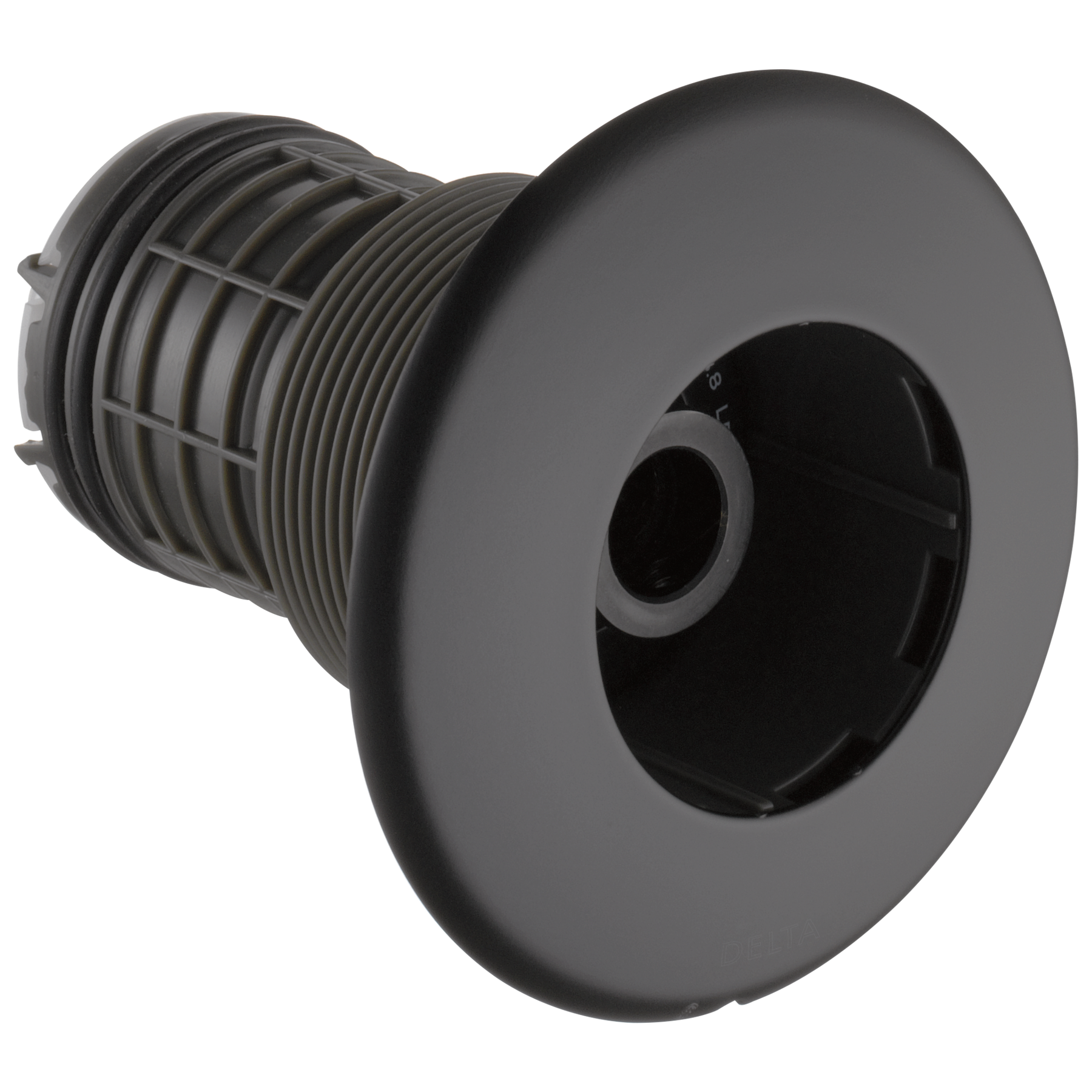

HydraChoice® Round Body Spray Trim in Matte Black
Model#:
T50010-BL
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
PRODUCT FEATURES
Create a truly custom shower by installing this HydraChoice® Body Spray Round Trim Only in Matte Black. The flush-mount design doesn’t sacrifice functionality, and offers a sleek look with 50 degrees of adjustability in any direction to help aim the water where you want it. The ability to change spray options to customize your shower experience before and after installation offers complete design flexibility. Matte Black makes a statement in your space, cultivating a sophisticated air and coordinating flawlessly with most other fixtures and accents. With bright tones, Matte Black is undeniably modern with a strong contrast, but it can complement traditional or transitional spaces just as well when paired against warm neutrals for a rustic feel akin to cast iron.
- Flush mount installation
- Rough and spray head sold separately
- Must also order rough-in (model # R50200) and choice of spray heads (model #s SH5000, SH5002, SH5003, or SH5005) separately to complete the unit
- 1/2 in. (12.7 mm) rough-in
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Flow Rate :
1.0 gpm @ 80 psi, 3.8 L/min @ 552 kPa
Overall Height (in.) :
3-1/2
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 5 out of
5
by
bcp from
Works Great. Confirm you have the right rough in.
[This review was collected as part of a promotion.] Easy to install and look great. The biggest thing to note is to make sure you understand how you have roughed in for the body spray as these are the in wall rough in version.
Date published: 2025-07-20
Rated 5 out of
5
by
KatDesigner from
Body Spray For the Ultimate Shower
[This review was collected as part of a promotion.] We purchased these body sprays for a client, along with a shower head and a shower wand, all are on separate switches, but you can add them for the ultimate shower. Our client was needing assistance in the shower, with grab bars, and needed to get as clean as possible, and our client's husband felt these items were the best way to get an essential clean shower and also easy for the housekeeper to clean the shower too. They were in 3 separate parts, and we ordered Chrome, I was pleased with the installation, but have not taken pictures yet of the finished shower.
Date published: 2025-02-18
Rated 4 out of
5
by
Hilltop home from
Great Look
We are still in the installation phase but they look good. Will probably rate a five after actually use them
Date published: 2023-02-28
Rated 5 out of
5
by
Daniel from
Works well and looks nice
[This review was collected as part of a promotion.] We purchased four of these and actually installed them in Brizo rough-ins. We originally intended to use all Brizo Lux Gold fixtures, but ended up with some Delta champagne bronze to save cost. They are not a perfect match of course, but when separated by a few feet, we're happy with them.
Date published: 2019-10-08
Rated 5 out of
5
by
Mike from
Good choice
[This review was collected as part of a promotion.] I’ve purchase this trim for my new shower
Works great as always with delta
Never have any issues with this company
Best value for the money
Date published: 2019-10-07
Rated 5 out of
5
by
zach from
Excellent customer service
Had and issue with the escutcheon corroding, Delta sent a replacement quickly, and we are enjoying the fixture again - great service
Date published: 2018-06-06
Q&A
On the hydrachoice group of trim and sprays, is there a preferred amount of distance between the spray and where it makes contact with the body? I am building my custom shower and was wanting to make sure to get maximum benefits from the sprays. Thanks
Hi, Jackislost!
Thank you for your question. There is not a suggested distance for the Delta T50010-BL HydraChoice® Round Body Spray Trim. We leave the distance preference up to the home owner.
Best Regards,
Rosanna
Date published: 2024-03-28
For Delta trim and valves, can we use Brizo Spearheads? Thanks!
Hi, Monic!
Thank you for your question. You can use Brizo HydraChoice™ sprayer heads as well as Delta HydraChoice™ trim and valves.
Best Regards,
Rosanna
Date published: 2016-11-09
Can I use two of these body sprays with the Delta Monitor 17 Series Dual Function Pressure Balanced Shower System? I like that they use less gpm than the surface body spray.
Thank you for your question, Erin! Model T50010 can be used with a 17 series valve trim, depending on the existing set up. If a shower head and/or tub spout is currently connected to the valve body, a Diverter valve and trim may need to be installed, for the body jets to work.
Best Regards, Benjamin
Date published: 2024-03-28
Follow-up Question on the T50010, what are the engineering specs for the threads? Specifically, what is the Thread Pitch and Size?
Hello Jason,
Thank you for your question. The Dela HydraChoice Body Spray T50010-SS has a 2.0625-12 special thread and 2.001-2.007 pitch size.
Best regards,
Tanya
Date published: 2024-03-28
Do you larger escutcheon plates for these body sprayers? I need to cover up the tile that was overcut.
Thank you for your question, Paul. We currently have two options, the model T50010, which has a 3 1/2" diameter, and the model T50210, which has a 3 1/2" x 3 1/2" square escutcheon. Unfortunately, we do not make larger plates for the HydraChoice Body Sprays.
Best regards, Jon
Date published: 2024-03-28
Function
The video of these on YouTube show them emerging from the housing about 1" when water pressure applied. Do they automatically retract when the water is shut off?
Hi Logan7,
Thank you for your question! The spray head does not automatically retract, but can be easily pressed back into the trim.
Best regards,
Jon
Date published: 2016-09-23
Does the Spray Trim thread into the rough in value or push in? Also does the "threading" have to reach a maximum seated position or can it be tightened till it is seated against the finished wall? I need to determine if the depth I have is accurate.
Thank you for your question, Dennis! The trim threads into the rough-in valve. The stringer for the valve must be 3" plus or minus 3/8" from the finished wall. This will put the finished wall flush with the markings on the test cap. Please refer to section 1 of the Installation Instructions for the valve.
https://media.deltafaucet.com/MandI/75391%20Rev%20D.pdf
Best regard, Jon
Date published: 2024-03-28
question on the T50010. Is there anyway to extend the trim module an extra inch? If not do you offer different lengths of the trim module?
Hi, dakomish!
Thank you for your question. Unfortunately, we do not have a way to extend the trim for the sprayer. There are not different lengths for this unit. I do apologize for this inconvenience.
Best Regards,
Rosanna
Date published: 2024-03-28
