HydraChoice® Body Spray System

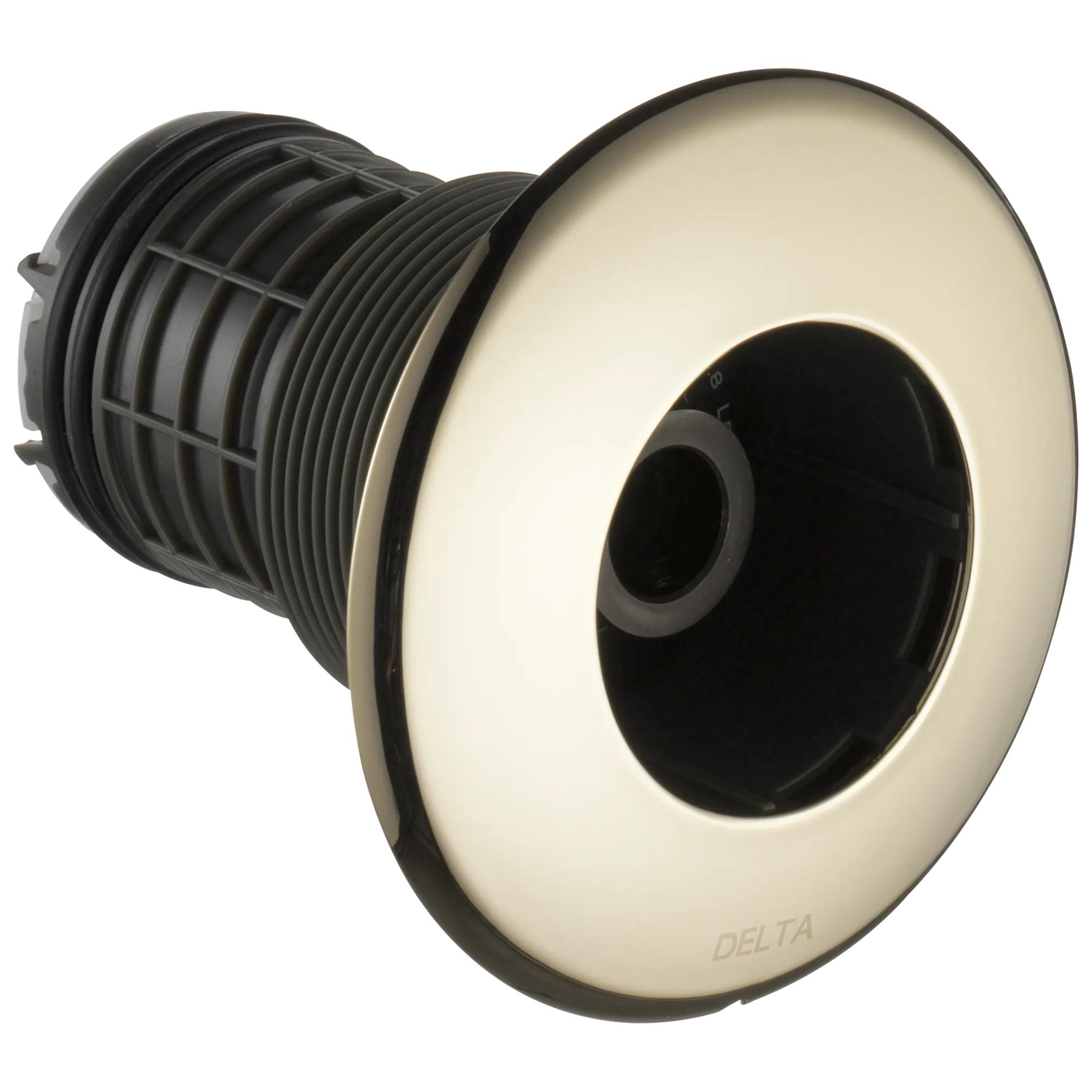

HydraChoice® Body Spray Trim
Model#: T50010-PN
Finish: Polished Nickel
List Price*: $99.60
PRODUCT FEATURES
Create a truly custom shower by installing this HydraChoice Body Spray Round Trim Only in Polished Nickel. The flush-mount design doesn’t sacrifice functionality, and offers a sleek look with 50 degrees of adjustability in any direction to help aim the water where you want it. The ability to change spray options to customize your shower experience before and after installation offers complete design flexibility.
  • Flush mount installation
  • Rough and spray head sold separately
  • Must also order rough-in (model # R50200) and choice of spray heads (model #s SH5000-PN, SH5002-PN, SH5003-PN, or SH5005-PN) separately to complete the unit
  • 1/2 in. (12.7 mm) rough-in
Special Features
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Spout Height :
2
Over All Height :
3-1/2
Connection Type :
NA
Spout Length :
8-1/4
PART LIST
REVIEWS
Rated 5 out of 5 by from Works well and looks nice [This review was collected as part of a promotion.] We purchased four of these and actually installed them in Brizo rough-ins. We originally intended to use all Brizo Lux Gold fixtures, but ended up with some Delta champagne bronze to save cost. They are not a perfect match of course, but when separated by a few feet, we're happy with them.
Date published: 2019-10-08
Rated 5 out of 5 by from Good choice [This review was collected as part of a promotion.] I’ve purchase this trim for my new shower Works great as always with delta Never have any issues with this company Best value for the money
Date published: 2019-10-07
Rated 5 out of 5 by from Excellent customer service Had and issue with the escutcheon corroding, Delta sent a replacement quickly, and we are enjoying the fixture again - great service
Date published: 2018-06-06
  • y_2021, m_1, d_24, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_T50010-PN, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

For Delta trim and valves, can we use Brizo Spearheads? Thanks!

Asked by: Monic
Hi, Monic! Thank you for your question. You can use Brizo HydraChoice™ sprayer heads as well as Delta HydraChoice™ trim and valves. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2016-11-09

Can I use two of these body sprays with the Delta Monitor 17 Series Dual Function Pressure Balanced Shower System? I like that they use less gpm than the surface body spray.

Asked by: Erin
Thank you for your question, Erin! Model T50010 can be used with a 17 series valve trim, depending on the existing set up. If a shower head and/or tub spout is currently connected to the valve body, a Diverter valve and trim may need to be installed, for the body jets to work. Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2019-12-07

Follow-up Question on the T50010, what are the engineering specs for the threads? Specifically, what is the Thread Pitch and Size?

Asked by: Jason
Hello Jason, Thank you for your question. The Dela HydraChoice Body Spray T50010-SS has a 2.0625-12 special thread and 2.001-2.007 pitch size. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-06-18

Do you larger escutcheon plates for these body sprayers? I need to cover up the tile that was overcut.

Asked by: Paul
Thank you for your question, Paul. We currently have two options, the model T50010, which has a 3 1/2" diameter, and the model T50210, which has a 3 1/2" x 3 1/2" square escutcheon. Unfortunately, we do not make larger plates for the HydraChoice Body Sprays. Best regards, Jon
Answered by: Delta Faucet
Date published: 2018-09-13

Function

The video of these on YouTube show them emerging from the housing about 1" when water pressure applied. Do they automatically retract when the water is shut off?
Asked by: Logan7
Hi Logan7, Thank you for your question! The spray head does not automatically retract, but can be easily pressed back into the trim. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-09-23

On the hydrachoice group of trim and sprays, is there a preferred amount of distance between the spray and where it makes contact with the body?  I am building my custom shower and was wanting to make sure to get maximum benefits from the sprays.  Thanks

Asked by: jackislost
Hi, Jackislost! Thank you for your question. There is not a suggested distance for the Delta T50010-BL HydraChoice® Round Body Spray Trim. We leave the distance preference up to the home owner. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2019-01-04

Does the Spray Trim thread into the rough in value or push in? Also does the "threading" have to reach a maximum seated position or can it be tightened till it is seated against the finished wall? I need to determine if the depth I have is accurate.

Asked by: Dennis
Thank you for your question, Dennis! The trim threads into the rough-in valve. The stringer for the valve must be 3" plus or minus 3/8" from the finished wall. This will put the finished wall flush with the markings on the test cap. Please refer to section 1 of the Installation Instructions for the valve. https://media.deltafaucet.com/MandI/75391%20Rev%20D.pdf Best regard, Jon
Answered by: Delta Faucet
Date published: 2019-06-07

question on the T50010. Is there anyway to extend the trim module an extra inch? If not do you offer different lengths of the trim module?

Asked by: dakomish
Hi, dakomish! Thank you for your question. Unfortunately, we do not have a way to extend the trim for the sprayer. There are not different lengths for this unit. I do apologize for this inconvenience. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-05-11
