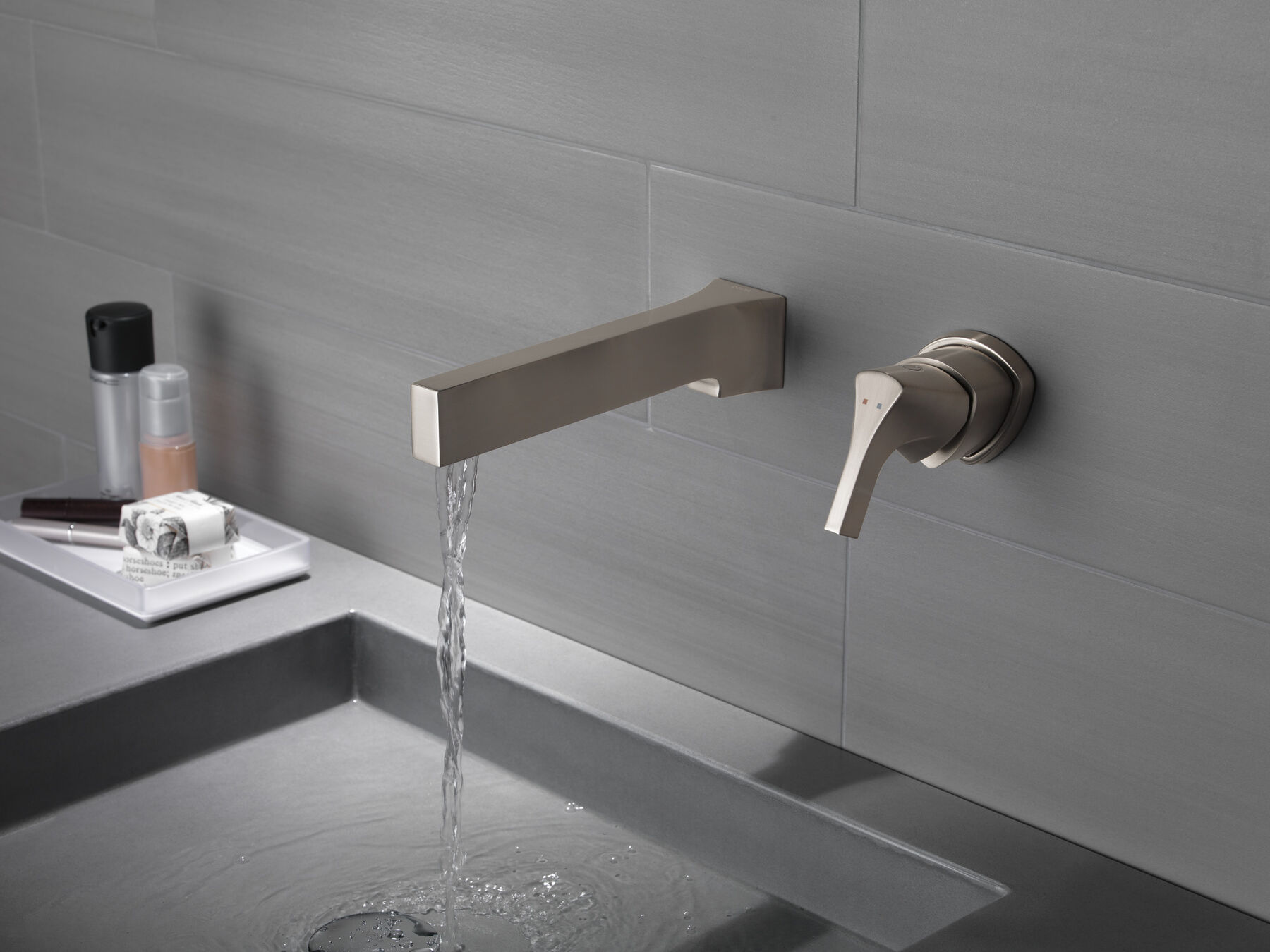

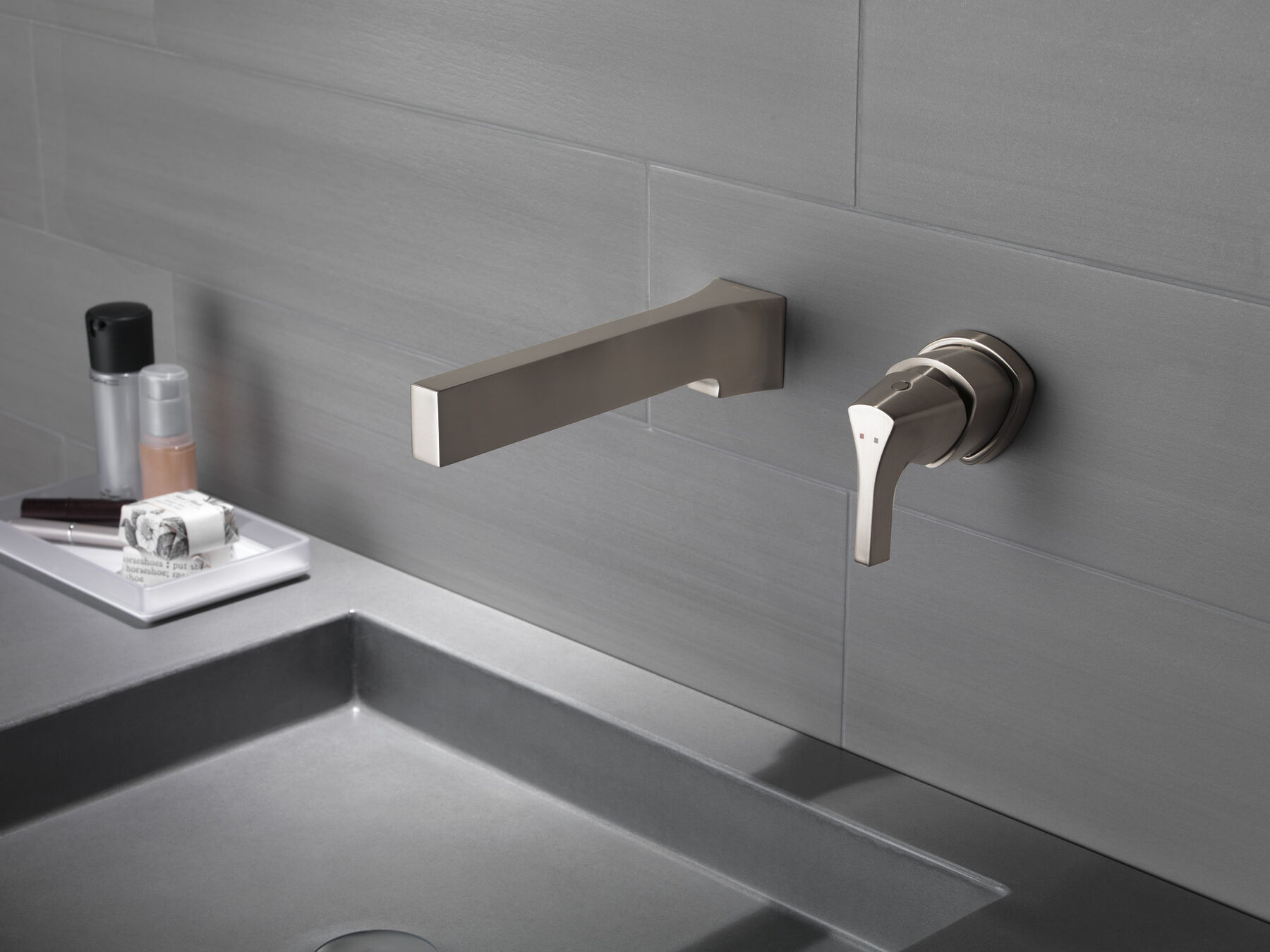

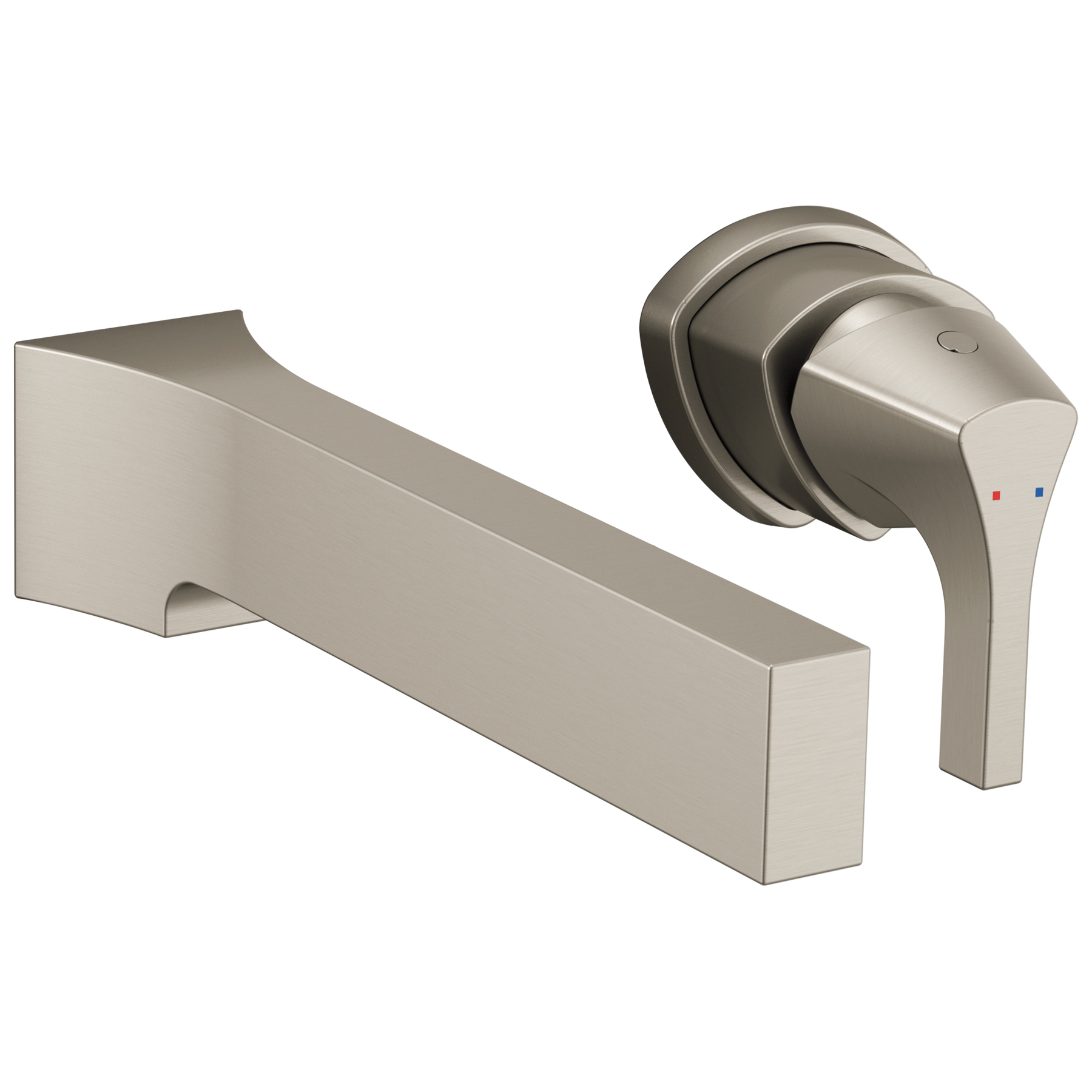

Single Handle Wall Mount Bathroom Faucet Trim in Stainless
Model#:
T574LF-SSWL
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
PRODUCT FEATURES
The Zura™ design is a precise marriage of rounded, rectangular and triangular elements and offers innovative, geometric styling to complement our current contemporary lineup. By mounting your bathroom faucet to the wall, you can not only achieve a sleek, stunning style but also free up precious vanity space and help streamline cleaning. The reach of the spout is meticulously engineered to simplify daily tasks likes washing your hands and brushing your teeth over your sink bowl. The polished nickel finish reflects back deep shadows from your space, creating contrast within the pale gold tones which takes on a new light from every angle.
- Wall-mounted for use with vessel style lavatories
- Trim kit only, must purchase rough-in kit separately
- Meets standards set by Americans with Disabilities Act (ADA)
- Meets standards set by Americans with Disabilities Act (ADA)
- 2-hole 4" installation
- Rigid spout
- Temperature and volume controlled by handle
- Drain sold separately
- Red/blue indicator markings
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
2-hole 4-8" installation
Connection Type :
1/2" IPS connection
Flow Rate :
1.20 gpm @ 60 psi, 4.5 L/min @ 414 kPa
Overall Height (in.) :
4-1/4
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 3 out of
5
by
Susan from
Modern look -
This color is pretty but scratches very easily and is hard to keep looking nice. The water spots seem to discolor it more than other finishes I have used. Was used as a wall mounted tub filler as Delta doesn’t have a lot of these faucets in a modern look- The water barely came out at first. There is some sort of govenor in side. My plumber removed it.
Date published: 2024-03-18
Rated 5 out of
5
by
Laura from
Well made and beautiful
They are really beautiful. I put them above a zero clearance sink and they look gorgeous! Very well made heavy etc.
Date published: 2021-03-29
Rated 4 out of
5
by
J from
Beautiful!
[This review was collected as part of a promotion.] Faucet is wall mounted in a powder room, and gives the powder a nice distinctiveness. Quality is good, and plumber had no difficulty with installation.
Date published: 2019-10-29
Q&A
Does the metal plate pictured behind the faucet and handle in one of the photos come with this or is it purchased separately?
Hi, Cathy!

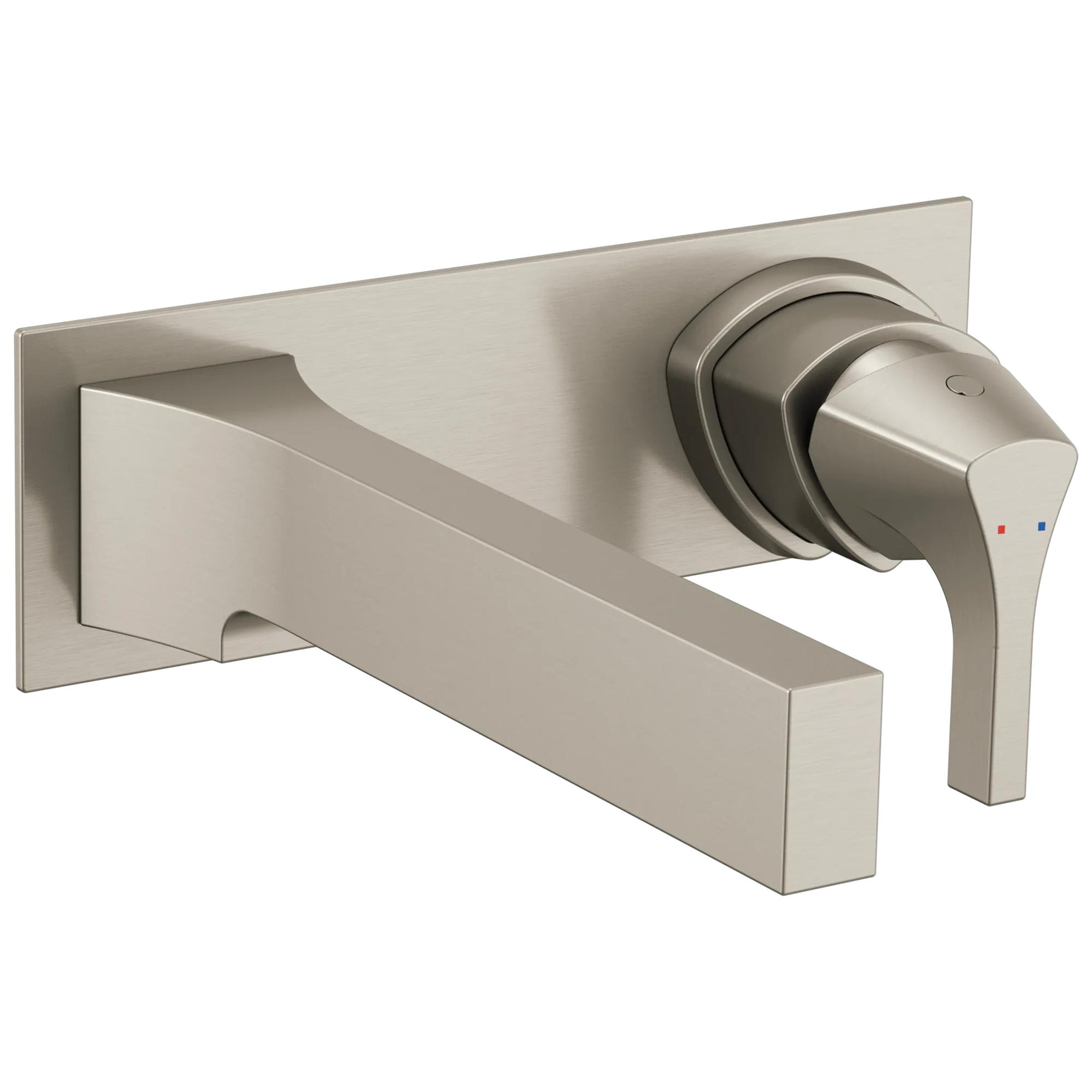

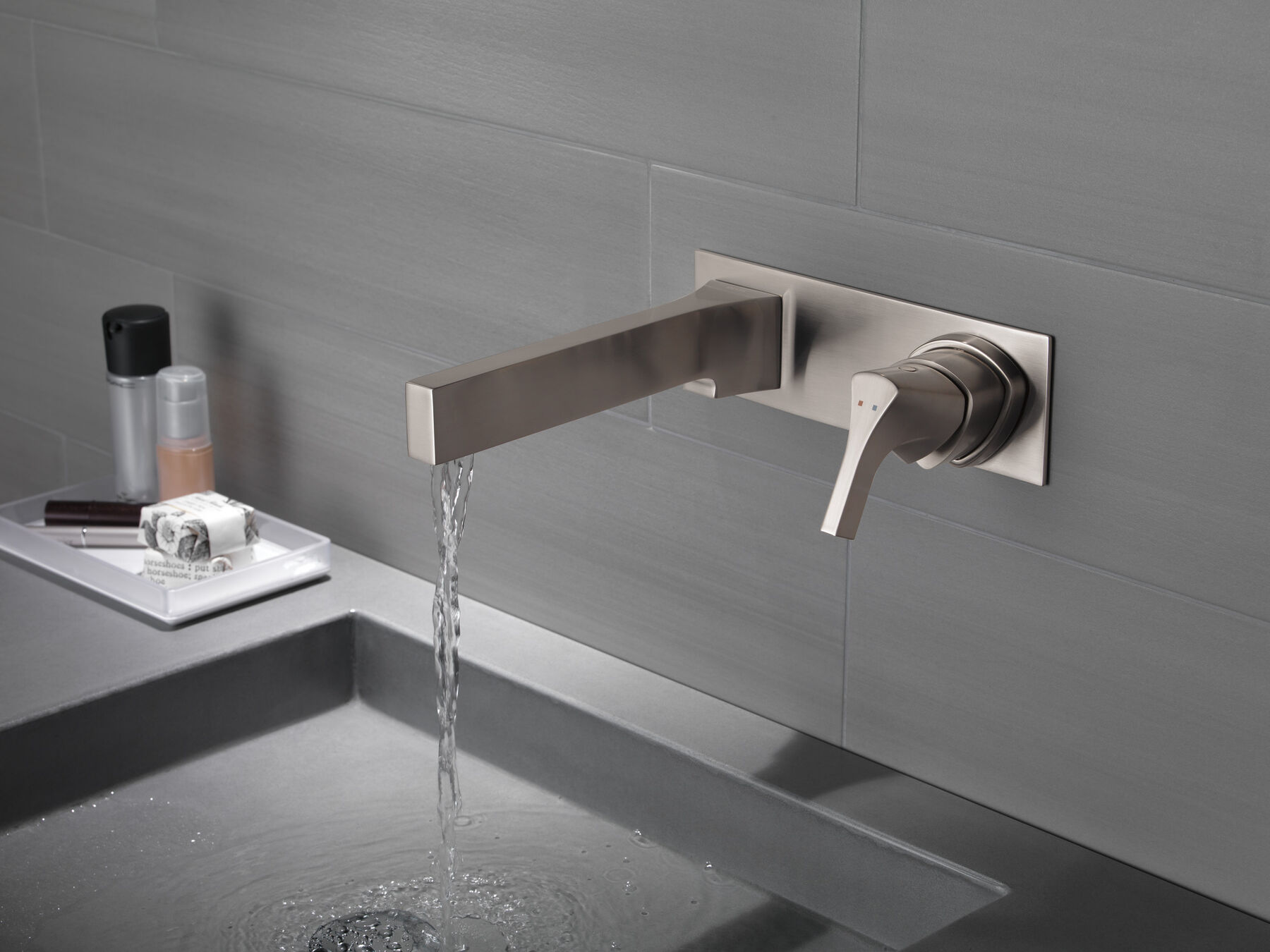

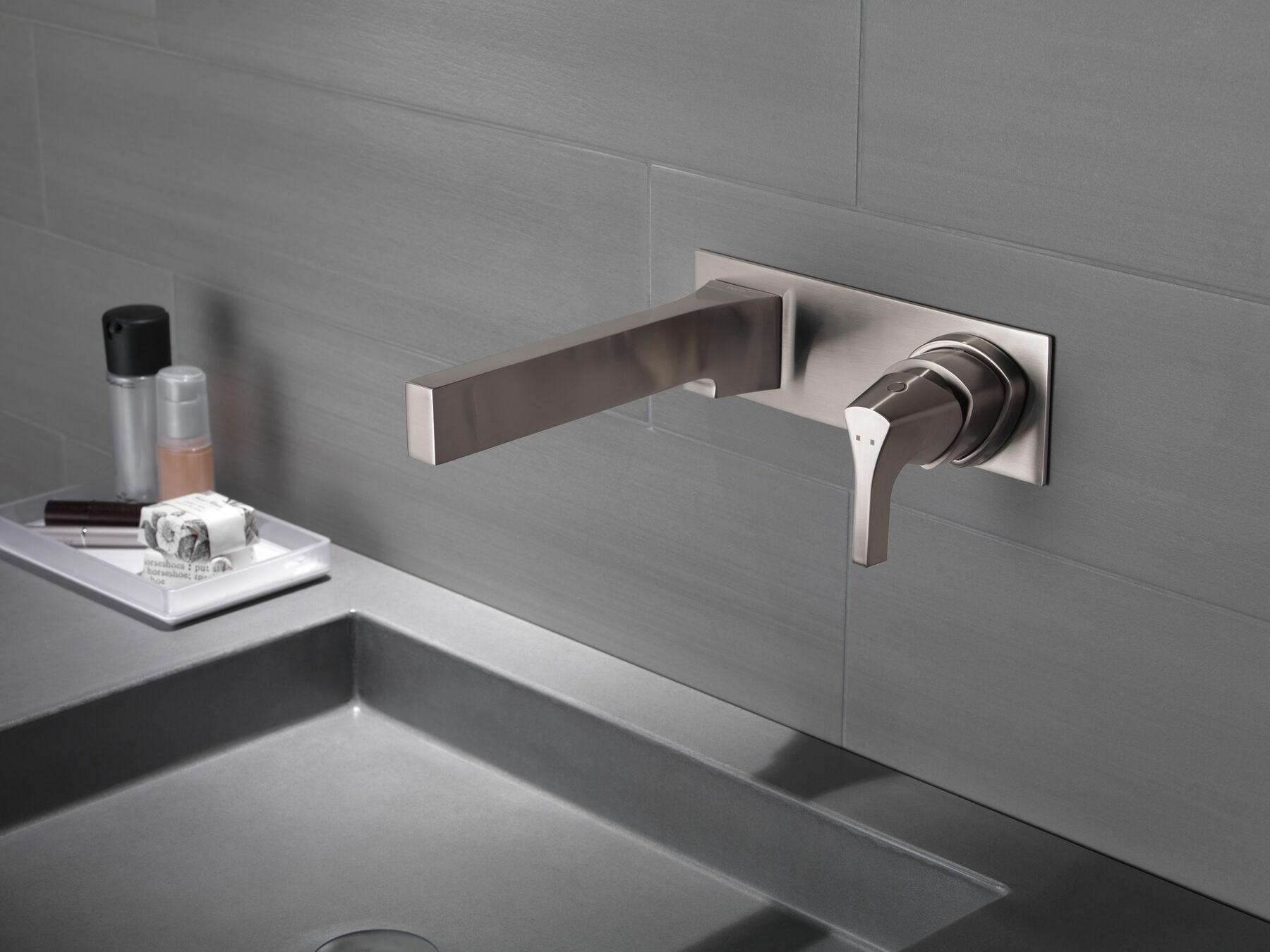

Thank you for your question. The Delta T574LF-SSWL Faucet does include the RP84367 Escutcheon Plate.
Best Regards,
Rosanna
Date published: 2024-03-28
Please confirm - with the Zura wall mount single handle bathroom faucets - is the spout intended to be positioned over the drain? If so, the handle is off to the right of the sink. Is that correct?
Hello installation design q,
Thank you for your question. The Delta Zura Wall Mount Lavatory T574LF-WL faucet is designed to be use with vessel style lavatories. There is no recommended height or position for installing the spout. The handle can also be installed to rotate in difference direction for on/off, via installer or owner preference.
Best regards,
Tanya
Date published: 2024-03-28
Is it possible to get the Zura single handle wall mount without the blue/red temperature dots on the handle? Or for that matter, any of the faucet handles without the dots showing?
Thank you for your inquiry, Clev! The Delta Zura Lavatory T574LF-WL faucet comes with indicator and screw cover buttons. These buttons do not have to be installed, it would be the customer/installer preference.
Best regards,
Tanya
Date published: 2024-03-28
pls provided cadd drawings
Hi, Krishna!
Thank you for your question. CADD drawings can be found here:
https://www.deltafaucet.com/for-professionals/product-resources/product-design-files/zura-bathroom
Best Regards,
Rosanna
Date published: 2024-03-28
how do I clean this?
Hi cornbread,
Thanks so much for contacting Delta Faucet Company about cleaning your T574LF-CZWL.
Always blot dry any water from the faucet surface. Allowing water to evaporate on the surface can lead to a build-up of mineral deposits. Cleaning with a damp non-abrasive sponge and buffing it dry with a clean soft cloth should help keep your product looking beautiful. To remove water spots, use warm water and a soft, damp cloth. Hard water stains may be removed using a 50/50 solution of white vinegar and water. Make certain that you rinse the surface thoroughly with water afterward.
I have also included a link to our “How to clean your faucet” on our website, please see the link below.
https://www.deltafaucet.com/design-innovation/inspiredliving/how-to-clean-a-faucet
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2024-03-28
I installed to deep do you have extencions
Good morning Luis!
Thank you for your question! I do apologize that your faucet was installed too deep in your wall and we will be happy to help you.
At this time, we do not offer any extension kits for this faucet.
Please contact us back for any further questions.
Best Regards,
Frank
Date published: 2024-03-28
Do they make one with the handle on the opposite side
Hi Wise Choice,
Thanks so much for contacting Delta Faucet Company!
The T574LF-BLWL handle can be mounted on the left side, we just ask to plumb and install to our specifications to prevent any future issues.
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2024-03-28
Is this filler suitable for use as wall-mounted freestanding tub filler?
Hello cuthy,
Thank you for your question! I am happy to help you!
Our Delta T574LF-WL is a wall-mounted lavatory faucet that allows a flow rate of 1.20 GPM @ 60 psi, This will not be sufficient to fill up a tub. I have attached a link below to show some wall mount tub fillers we currently have available.
https://www.deltafaucet.com/bathroom/product/T5799-WL
https://www.deltafaucet.com/bathroom/product/T5797-WL
https://www.deltafaucet.com/kitchen/product/T5743-WL
Please contact us back for any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
