Universal Showering

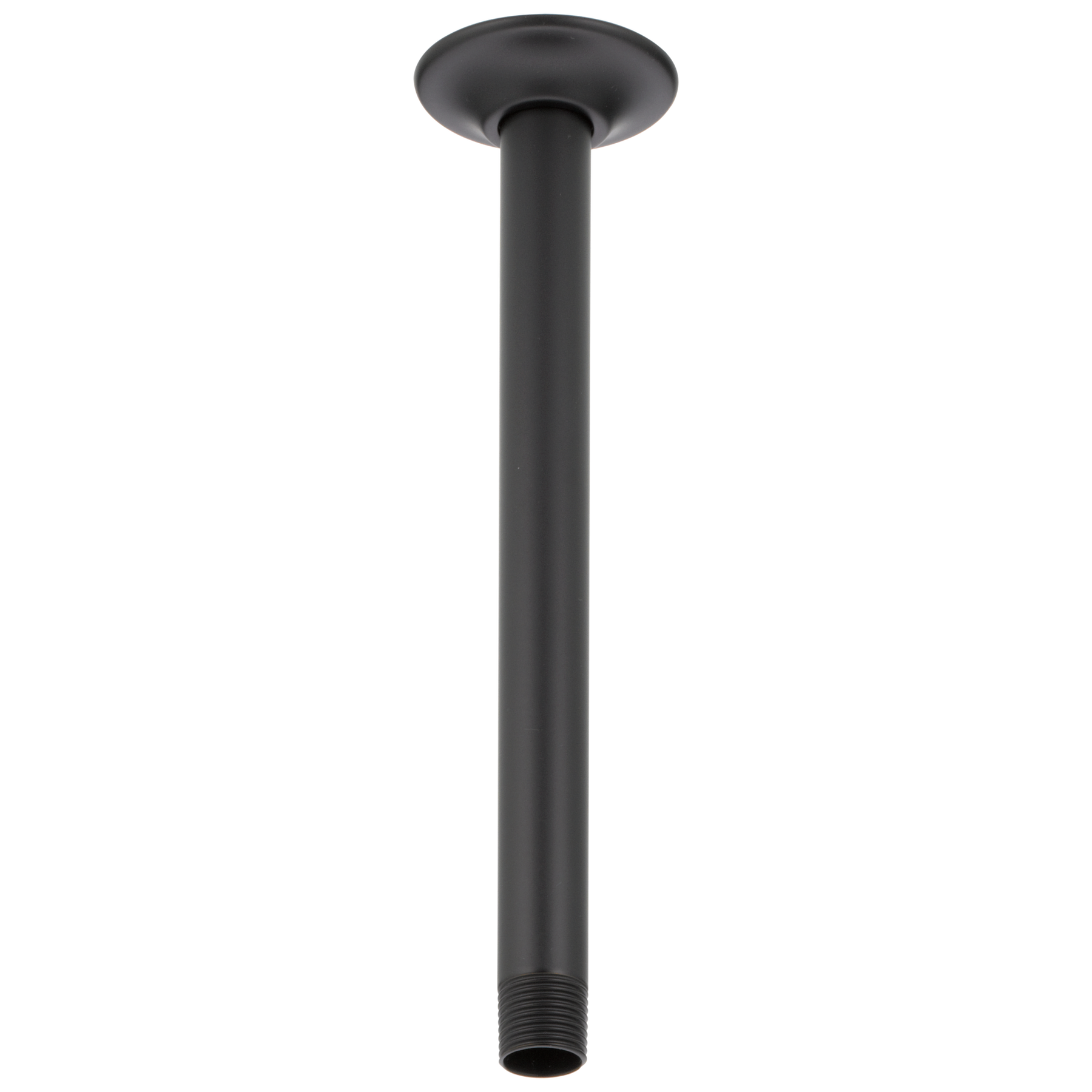

10" Ceiling Mount Shower Arm and Flange in Matte Black

Model#: U4999-BL
Add to Favorites
Find local Delta® installers.
Universal Showering
10" Ceiling Mount Shower Arm and Flange in Matte Black
Model#: U4999-BL
List Price: $19700
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
This Ceiling-Mount Shower Arm and Flange is an essential component to a coordinated shower. The shower becomes your private sanctuary where body sprays and shower heads work in perfect harmony. Getting ready in the morning is far from routine when you are surrounded by a bath that reflects your personal style. Customize your experience with hand showers, body sprays, body jets and raincan shower heads.
  • Mounts to ceiling
  • Extends 10 in. down from ceiling
  • Includes flange
  • Shower head sold separately
  • Flange has 2-1/2 in. outside diameter
  • Durable stainless steel construction for years of reliable use
  • 1/2 in. (12.7 mm) IPS male threads
  • Installs in minutes
Special Information
Warning Image
California Prop 65 WARNING
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
Register Product
Installation Information
Overall Height (in.) :
9
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 12ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Installing a showerhead

Hello, We have this Delta Ceiling Mount Shower Arm and Flange and need to know the weight of the shower head it will support as we are looking at all options. Can you tell me the maximum weight that would be recommended? Thanks
Asked by: ahala
Hello, Thanks for your question! Our ceiling mounted shower arms are tested to a tensile strength of 100 lbs. I hope this helps!
Answered by: DeltaFaucet9
Date published: 2024-03-28

Do you have a ceiling shower arm and flange that is 12" or more in length?

Asked by: Cyndee
Hello Cyndee, Thank you for your question regarding the Delta Ceiling Mount Shower Arm & Flange and I am happy to assist you today. Unfortunately at this time, we do not have a longer ceiling mounted shower arm and flange than the 9" model, U4999, although we do carry longer models which can be mounted to the wall. Please visit the link below to view all of the wall mounted models we currently offer: https://www.deltafaucet.com/bathroom/showering/shower-components?removeRetail=true If you need further assistance, please feel free to give us a call on our warranty line at 800-345-3358 and we will be happy to help you where we can. Thank you, Brandy
Answered by: Brandy
Date published: 2024-03-28

Is there any reason not to use a U4999-PK to extend the distance of a UA902-PK from a wall?

We will use the UA902-PK adjustable arm with the outlet in the wall (not ceiling) but would like the rain shower head to be further from the wall than the 10" it provides. Is there any reason not to use the U4999-PK to extend that by 9" or the U4996-PK to extend it by 3"? Any advice on properly supporting the wall outlet to do this? The system will be installed by a professional plumber. Thank you
Asked by: Mike
Hi Mike, The UA902-PK will attach to both the U4999-PK and U4996-PK and allow you to extend the showerhead further from the wall. We recommmend installing a drop ear elbow directly to the stud/stringer for additional support. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Can this be attached to U4999-SS (16-Inch Shower Arm) to lower the shower head from ceiling by 9-10inches? Ceiling height is 9ft.

Asked by: Susan
Thank you for your question, Susan! No, the U4999-SS shower arm can not be connected to another shower arm. Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2024-03-28

is the maximum length arm available 9"? If a 24" arm were needed, how would you solve the problem?

Asked by: cjc
Hi cjc, Thank you for your question. Unfortunately, we do not make a 24" ceiling mount shower arm. However, you may be able to find a third party product that is 24". Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-07-28

Can two shower arms be attached in-line for a total of 18" arm from ceiling?

Asked by: Toni
Hi Toni, Thank you for your question. The shower arms have 1/2" male pipe threads at each end. So they would be able to be coupled together with a 1/2" pipe coupling. The problem that you will run into is that you will not find a finished coupling to match the shower arms leaving a mismatched look. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Can this arm be used a wall (instead of ceiling) mount for a rain shower head?

Asked by: AG76
Hi, AG76! Thank you for your question. We do not recommend wall mounting this Delta U4999-CZ Shower Arm as it will stick straight out and does not bend to position a shower head down for showering. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Are the male thread on this shower arm compatible with the female thread on the shower head Raincan RP103699?

Asked by: DBA20
Hi DBA20! Thank you for your question and we are happy to help. The shower arm will work with the RP103699. With any further questions or concerns, please do not hesitate to reach out to us again. Best Regards, Carrie
Answered by: Customer Service
Date published: 2024-11-08
